AB Elektronik Hi Quality potentiometer 10K NOS West Germany
AB Elektronik Hi Quality potentiometer 10K NOS West Germany
Regular price
€19,95
Regular price
Sale price
€19,95
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

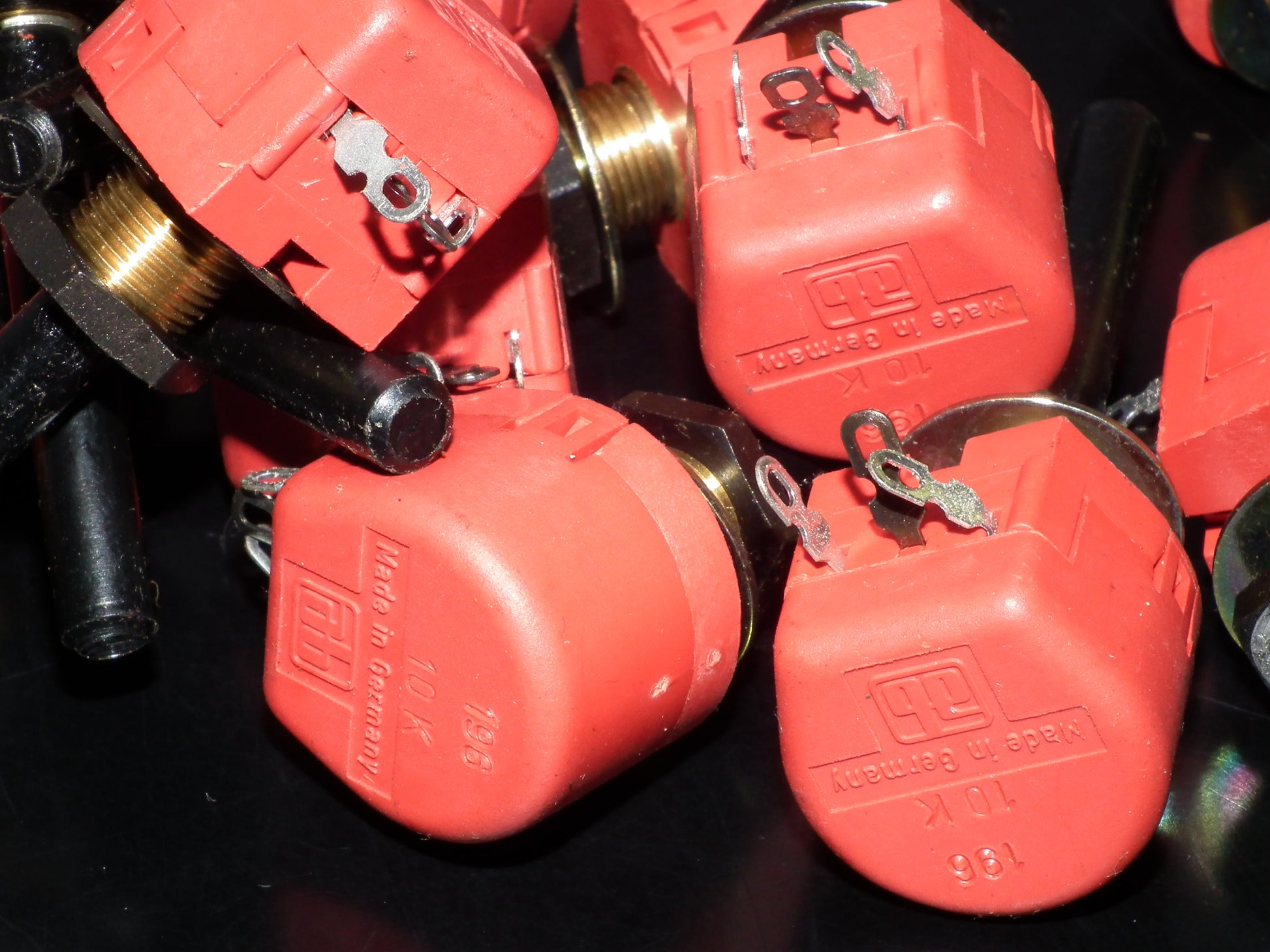

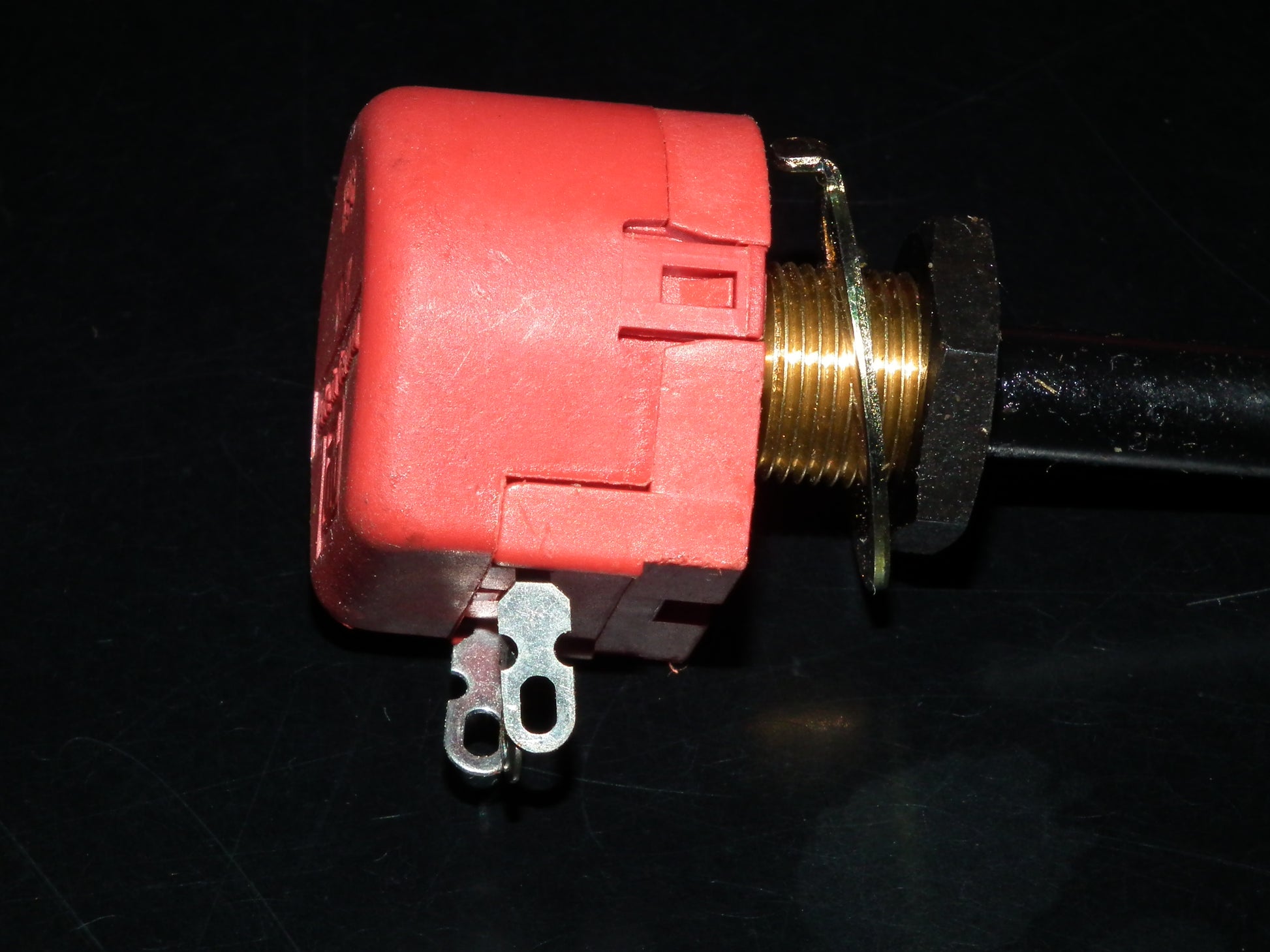

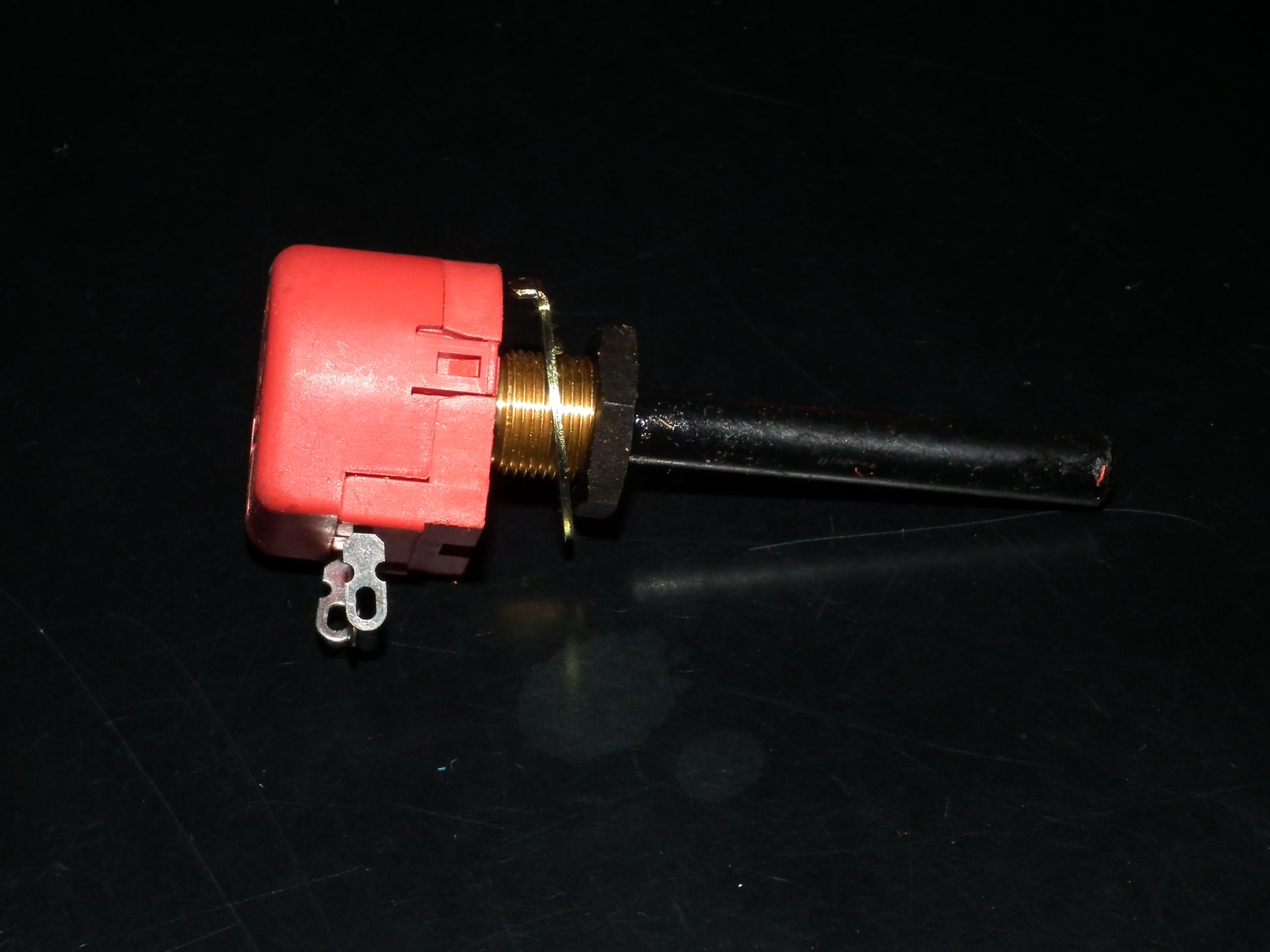

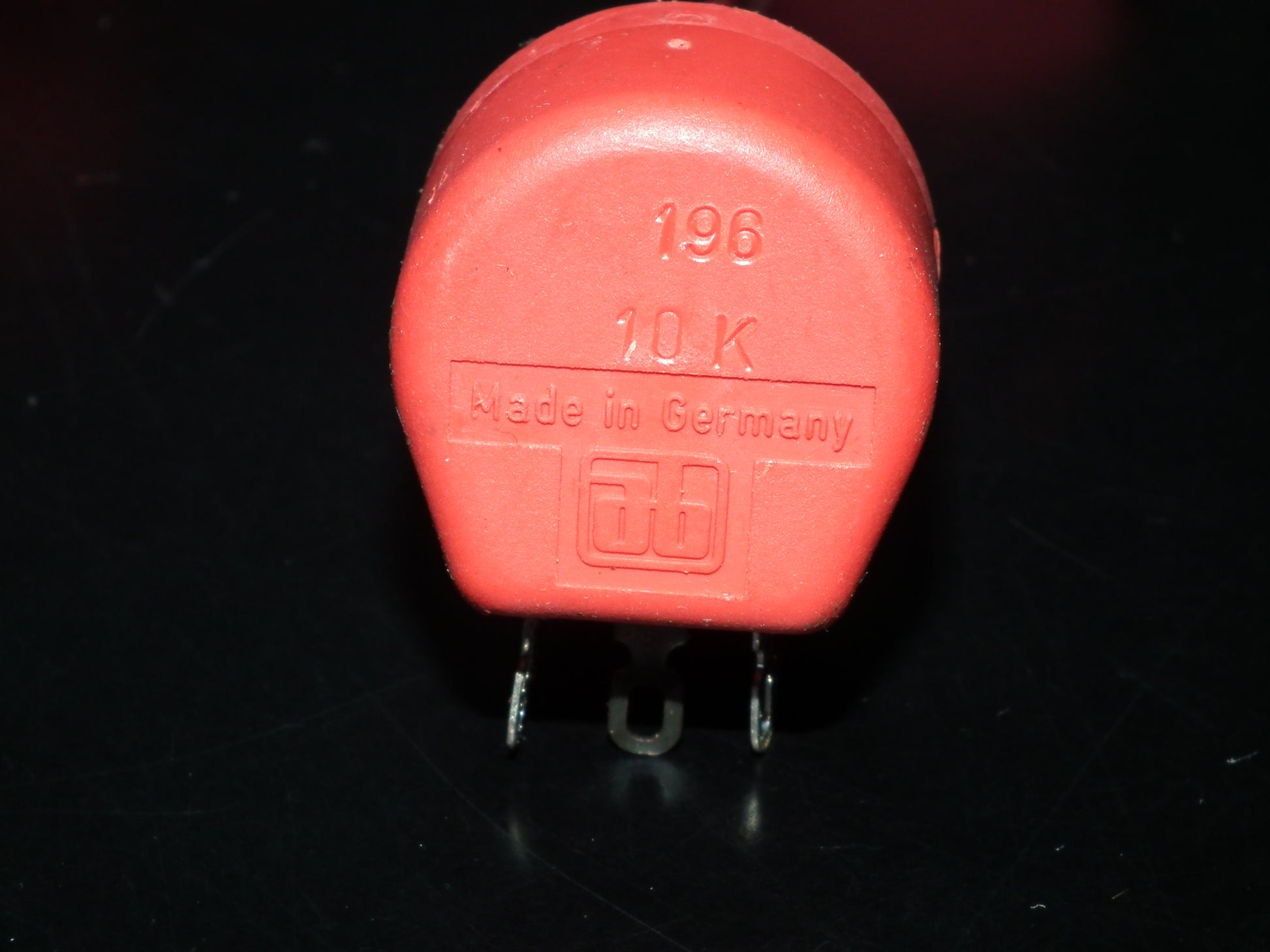

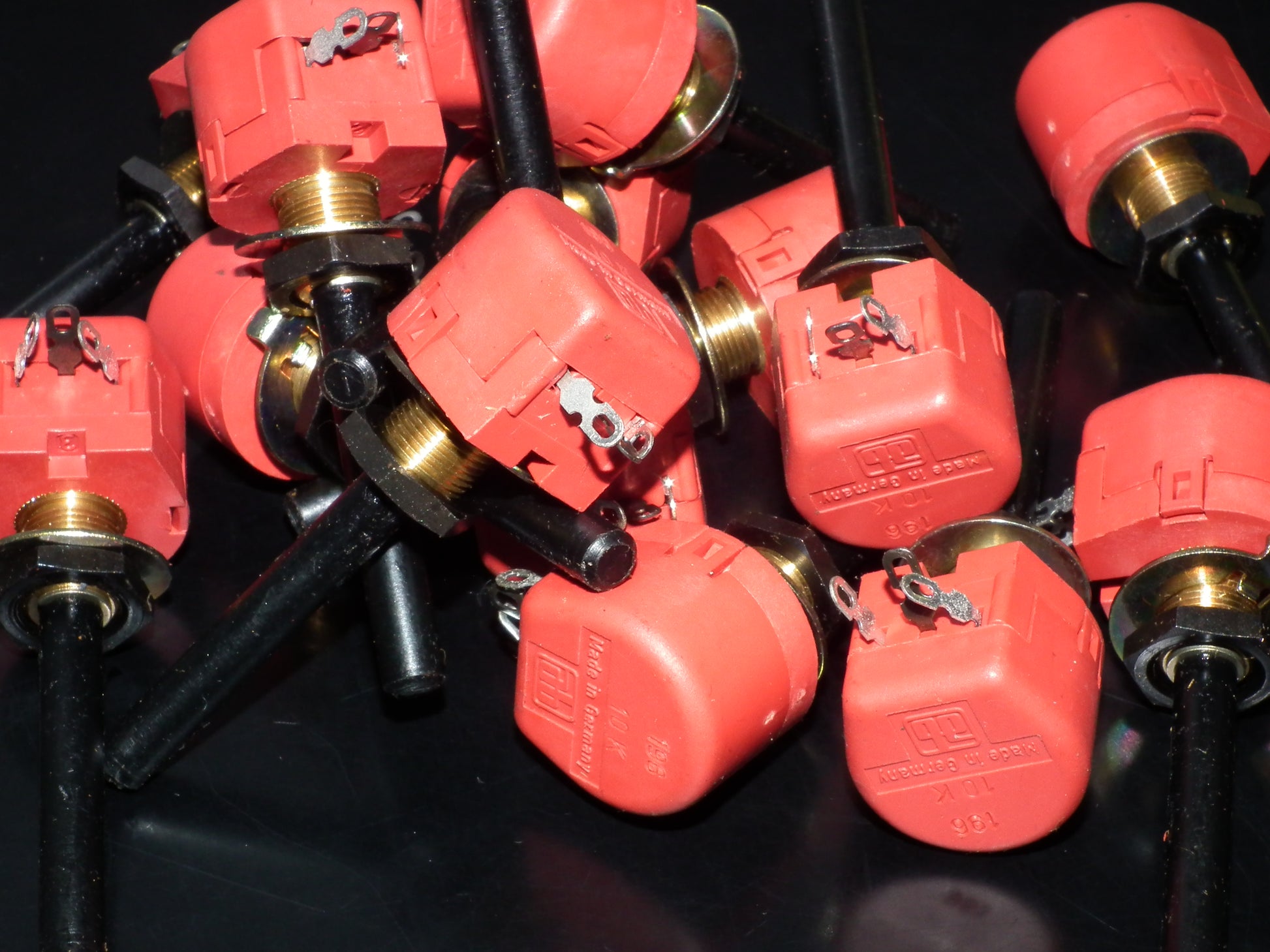

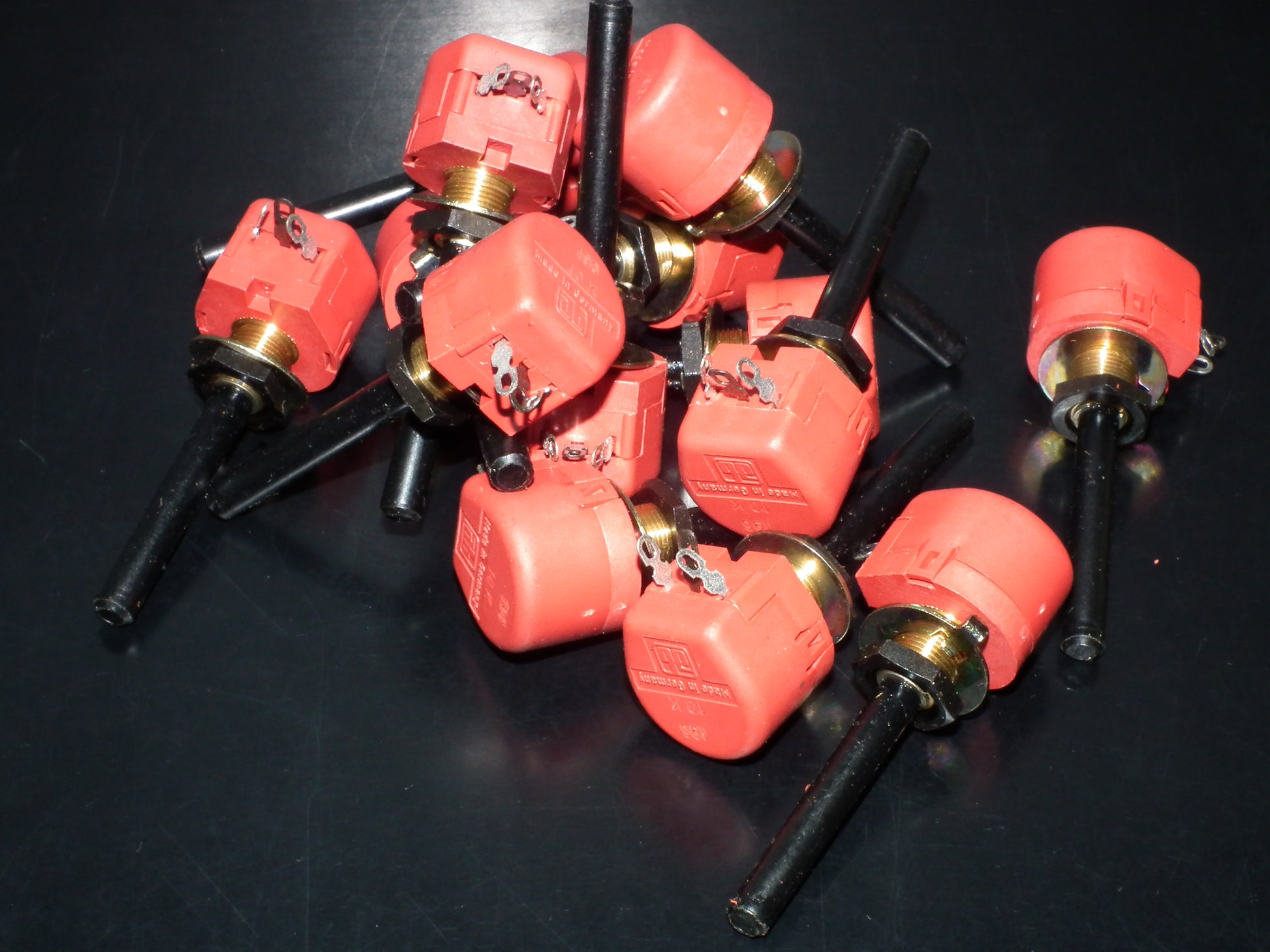

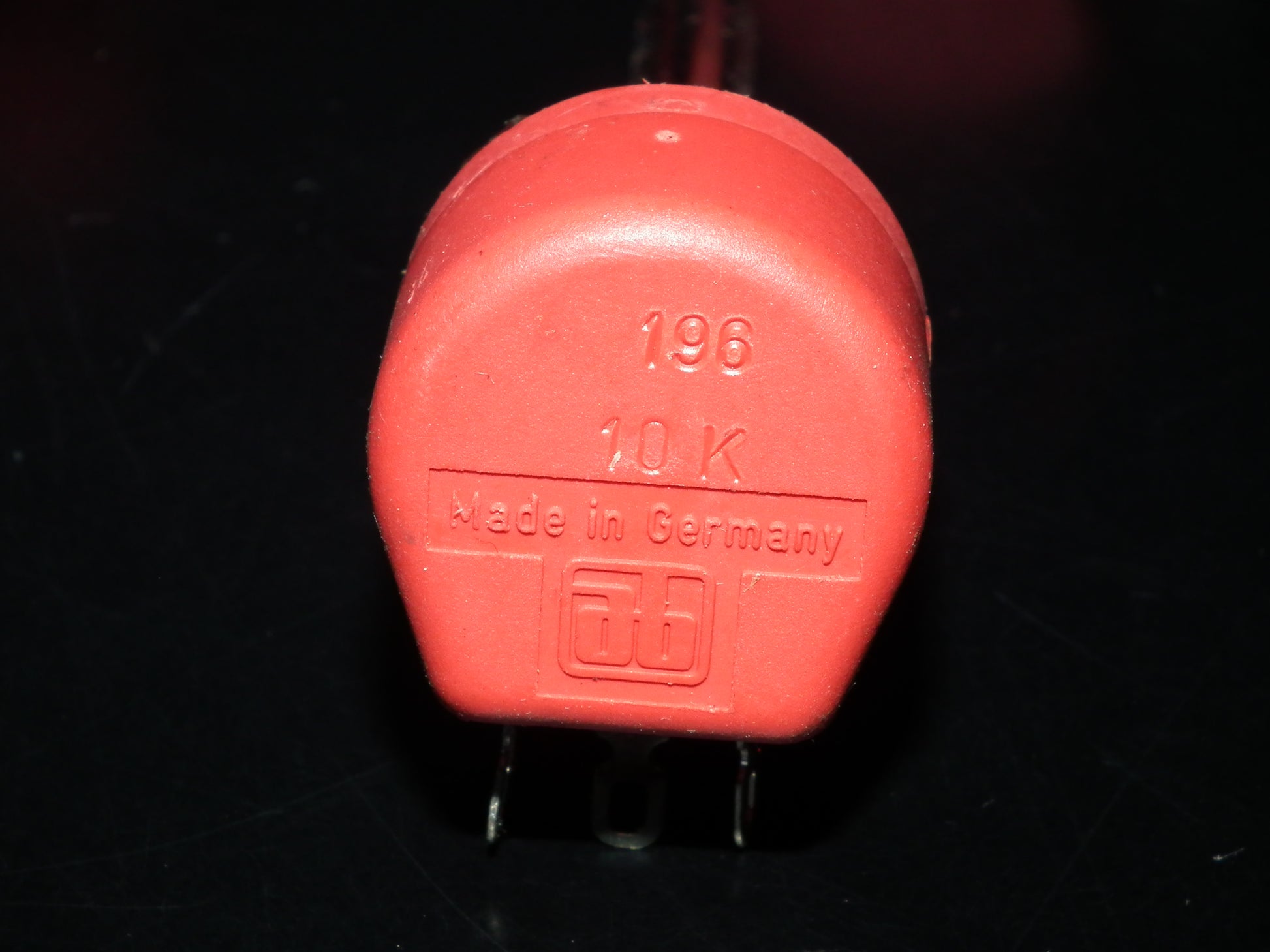

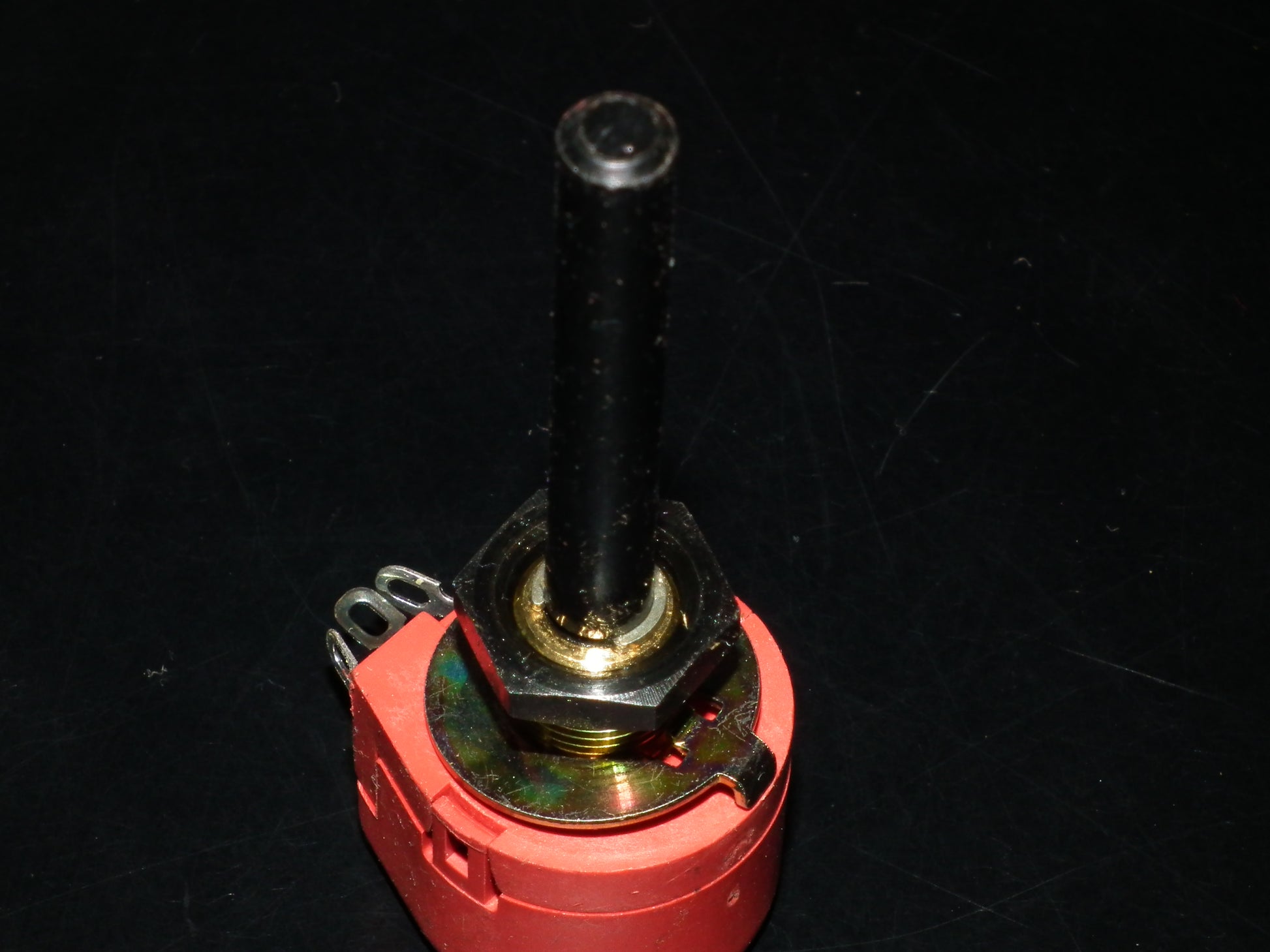

One (1 pcs) AB Elektronik Hi Quality potentiometer 10K NOS West Germany
NOS - New Old Stock
The ABW1 series from AB Electronik are spindle style wirewound rotary potentiometers with encased solder tag terminals.
Product Features
- ±10%, ±20% tolerance
- Rated power dissipation at 40°Cis 1W
- Limiting element voltage of 300V
- Operating temperature range -40°C to +90°C
- Endurance of 10000 cycles
Product Details
| Adjustment Type: | Rotary |
| No. of Gangs: | 1 |
| No. of Turns: | 1 |
| Potentiometer Mounting: | Panel |
| Power Rating: | 1W |
| Product Range: | ABW1 Series |
| Resistance Tolerance: | ± 10% |

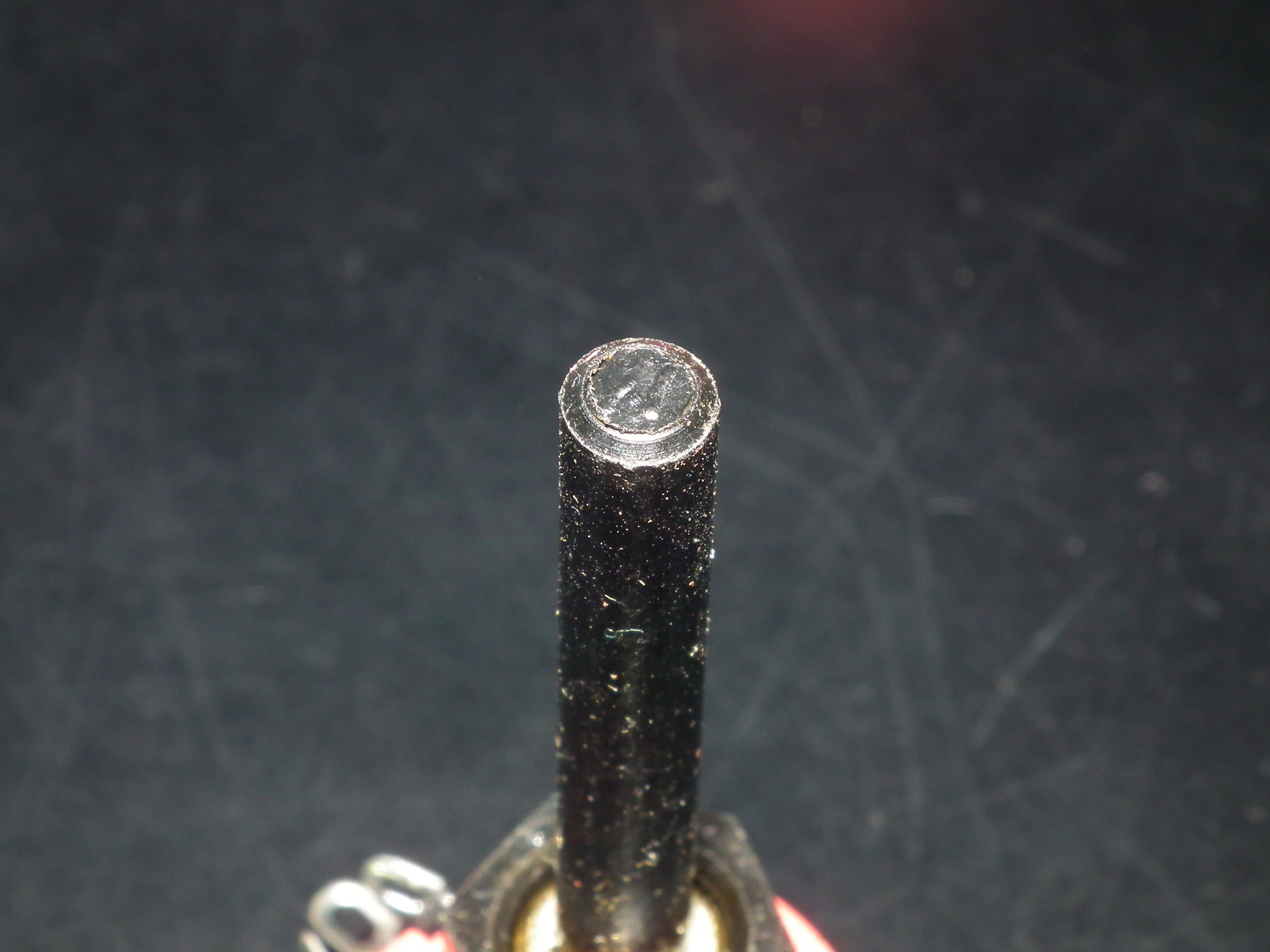

| Shaft Diameter: | 6.00mm |
| Shaft Length: | 40.00mm |
| Track Resistance: | 10kohm |
| Track Taper: | Linear |
