MAGNETRON

MI-351-A Magnetron USSR MI351A NOS NEW 1985 МИ-351-A МИ351 MI351

MI-351-A Magnetron USSR MI351A NOS NEW 1985 МИ-351-A МИ351 MI351

€67,99
€67,99
Sale Sold out
Tax included. Shipping calculated at checkout.

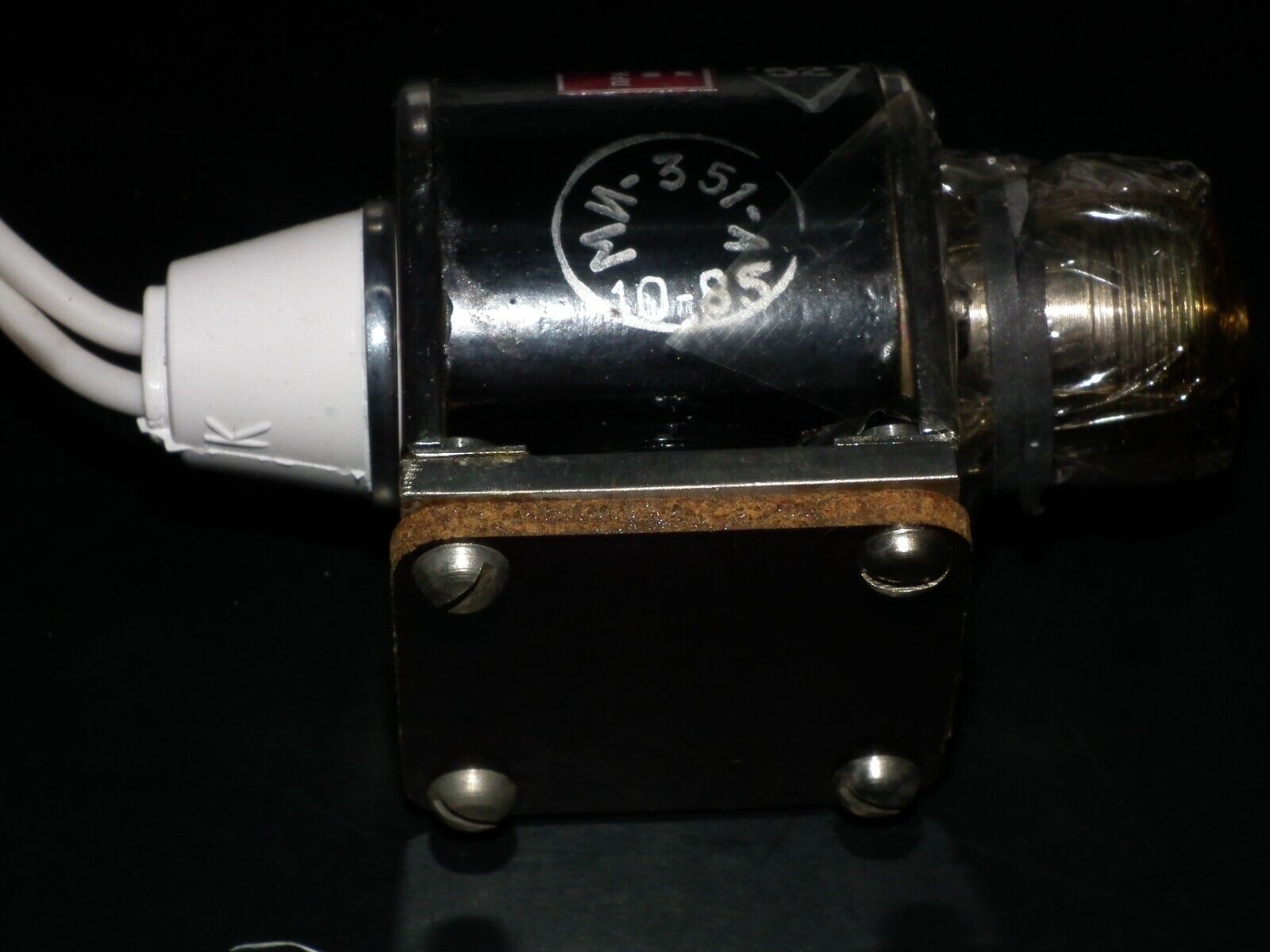

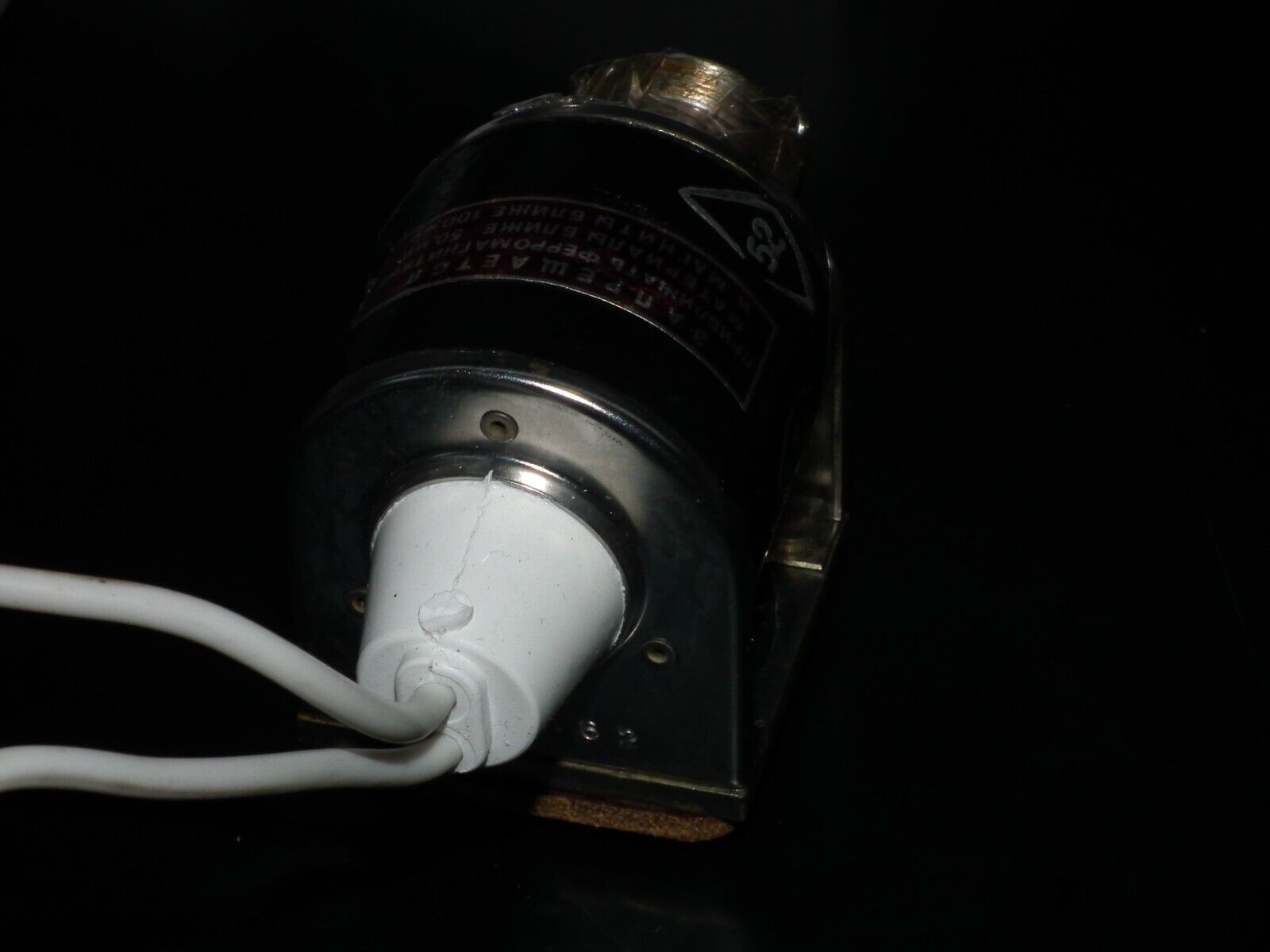

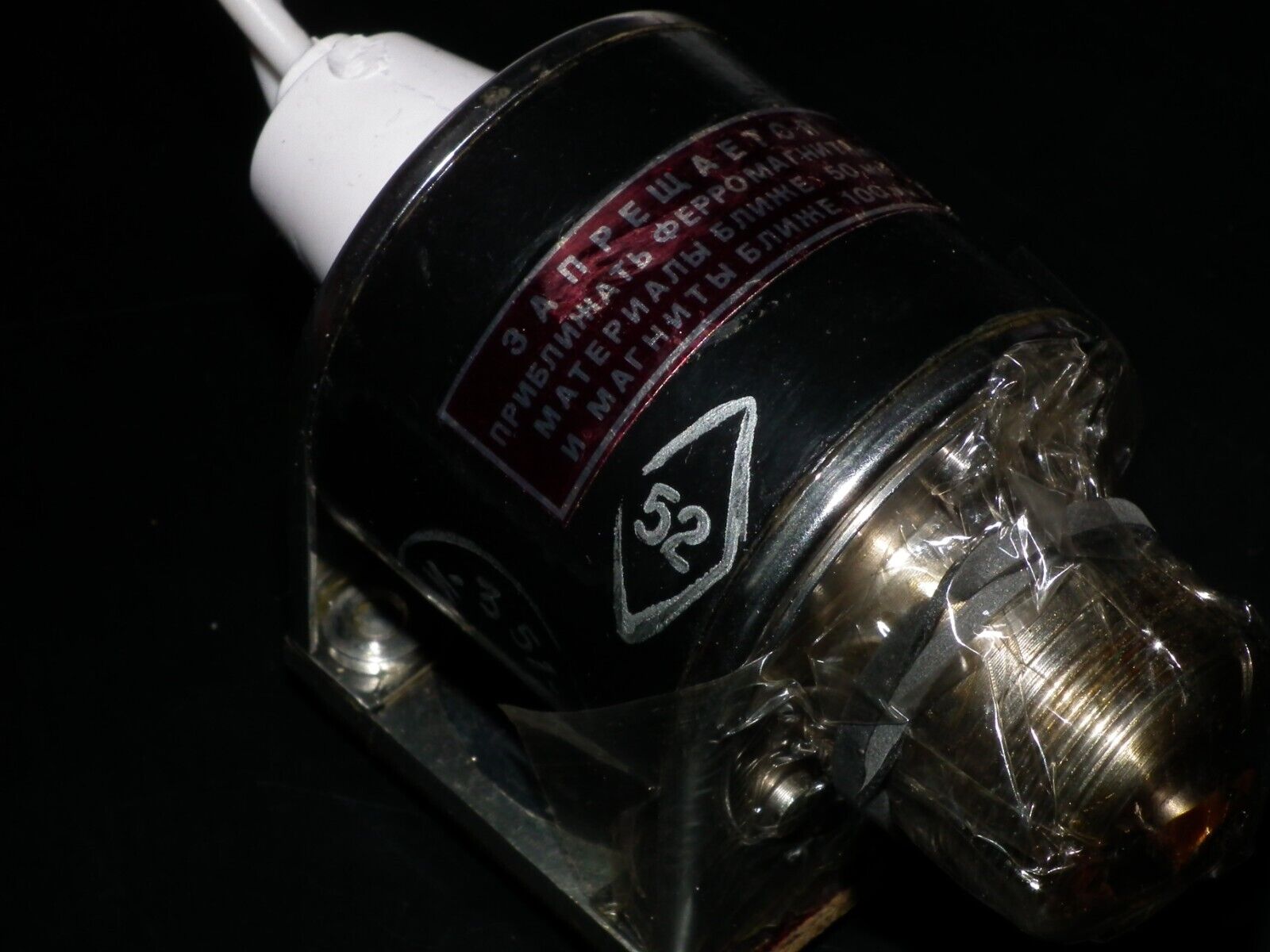

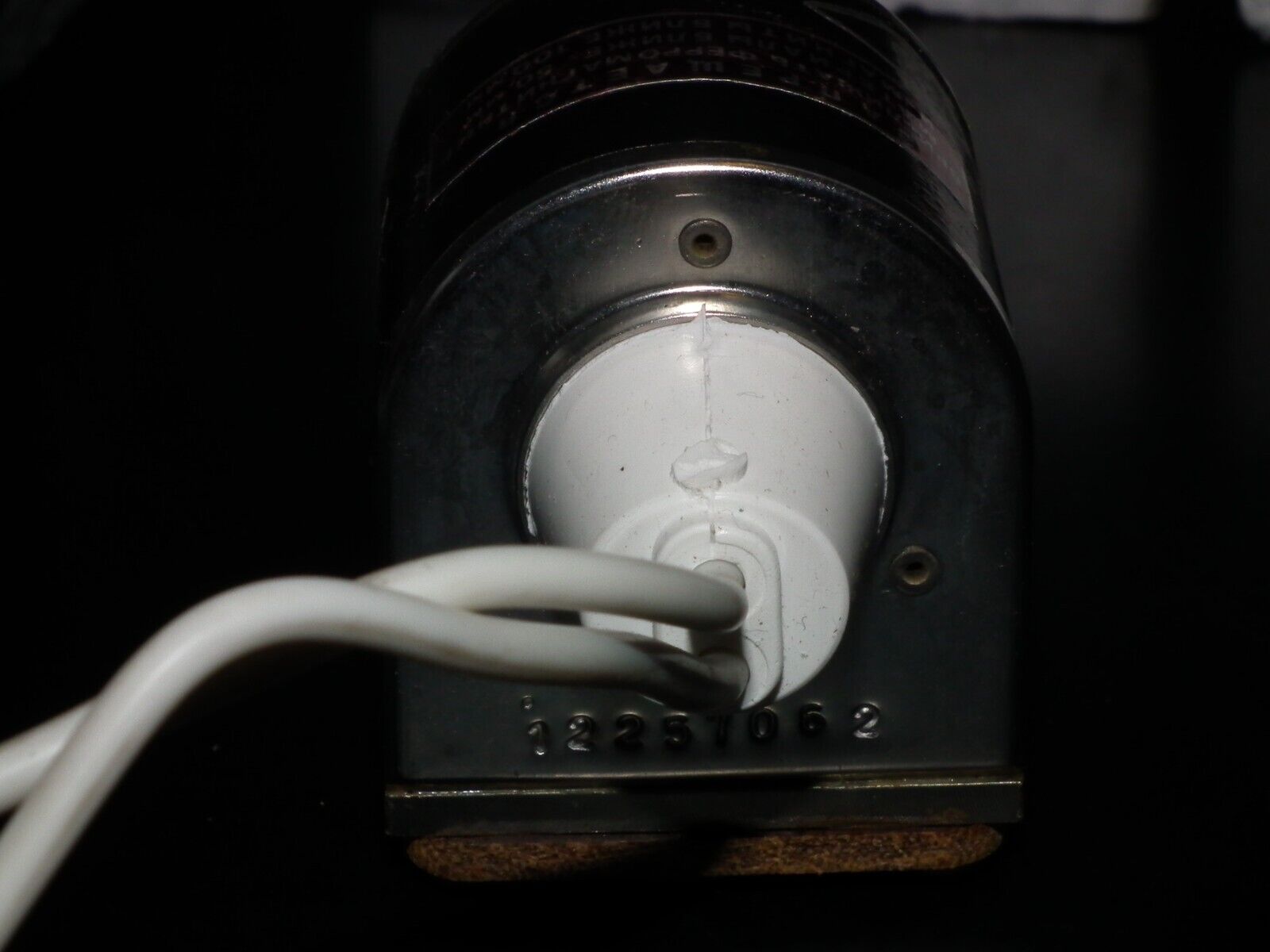

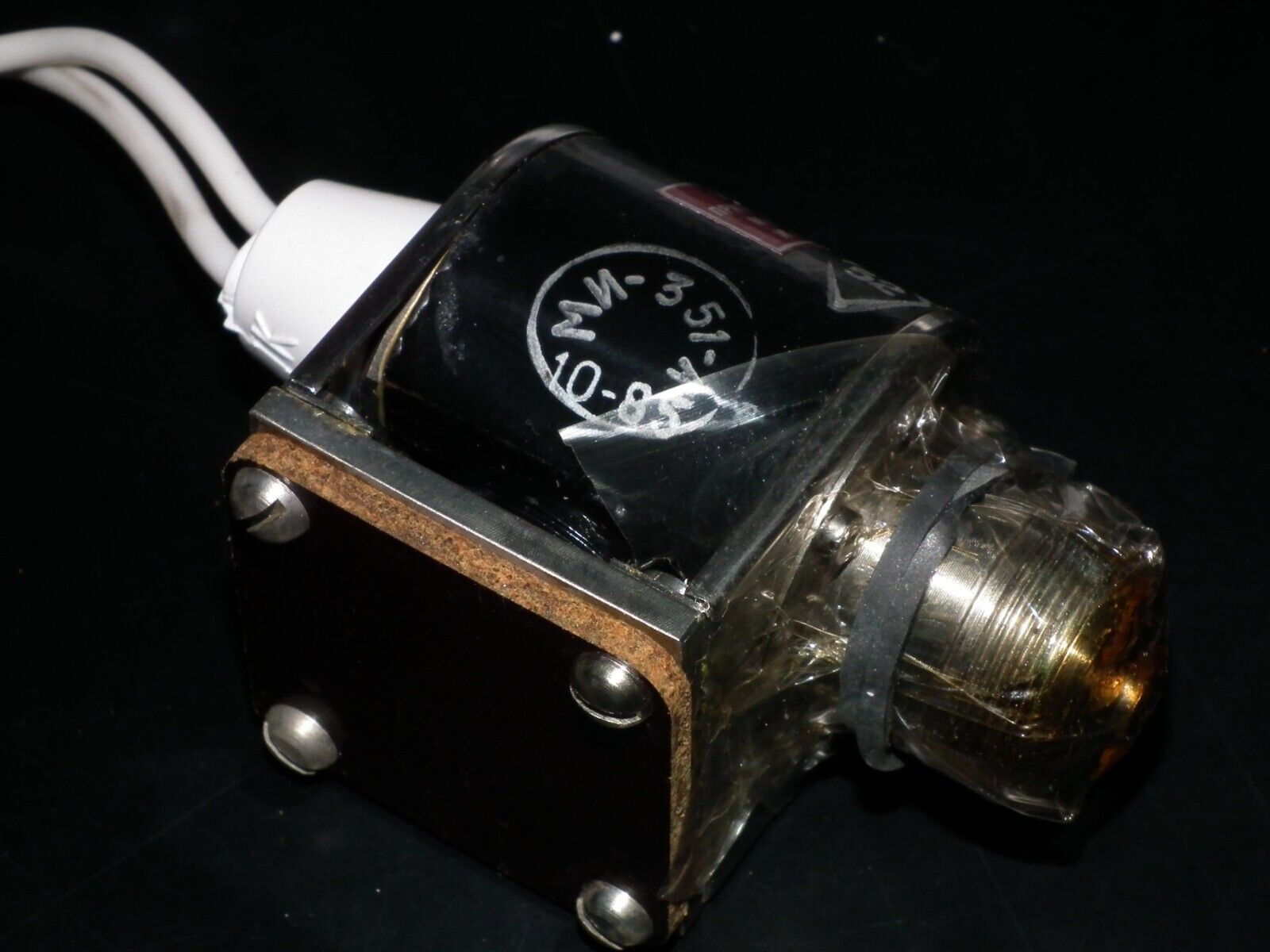

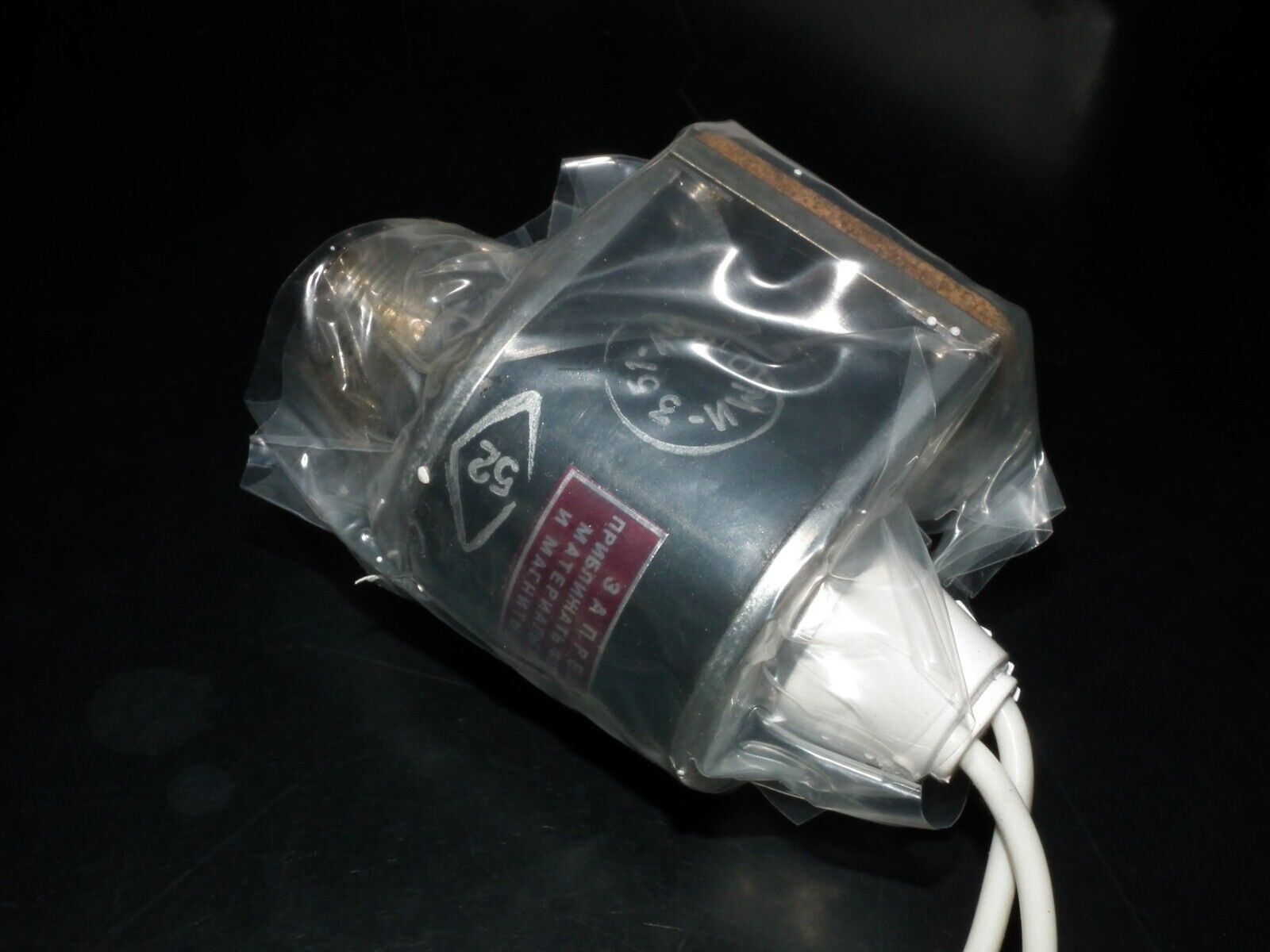

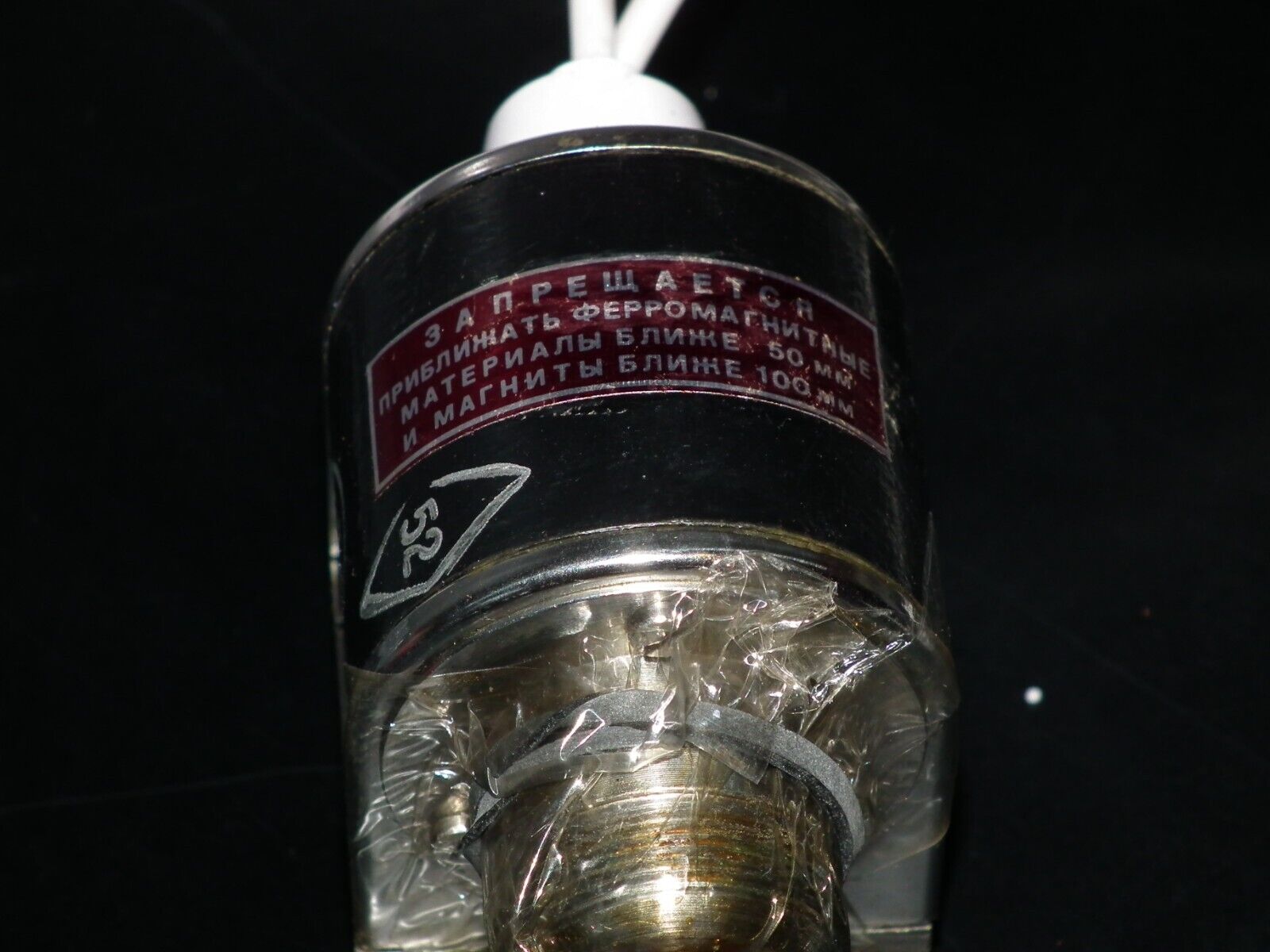

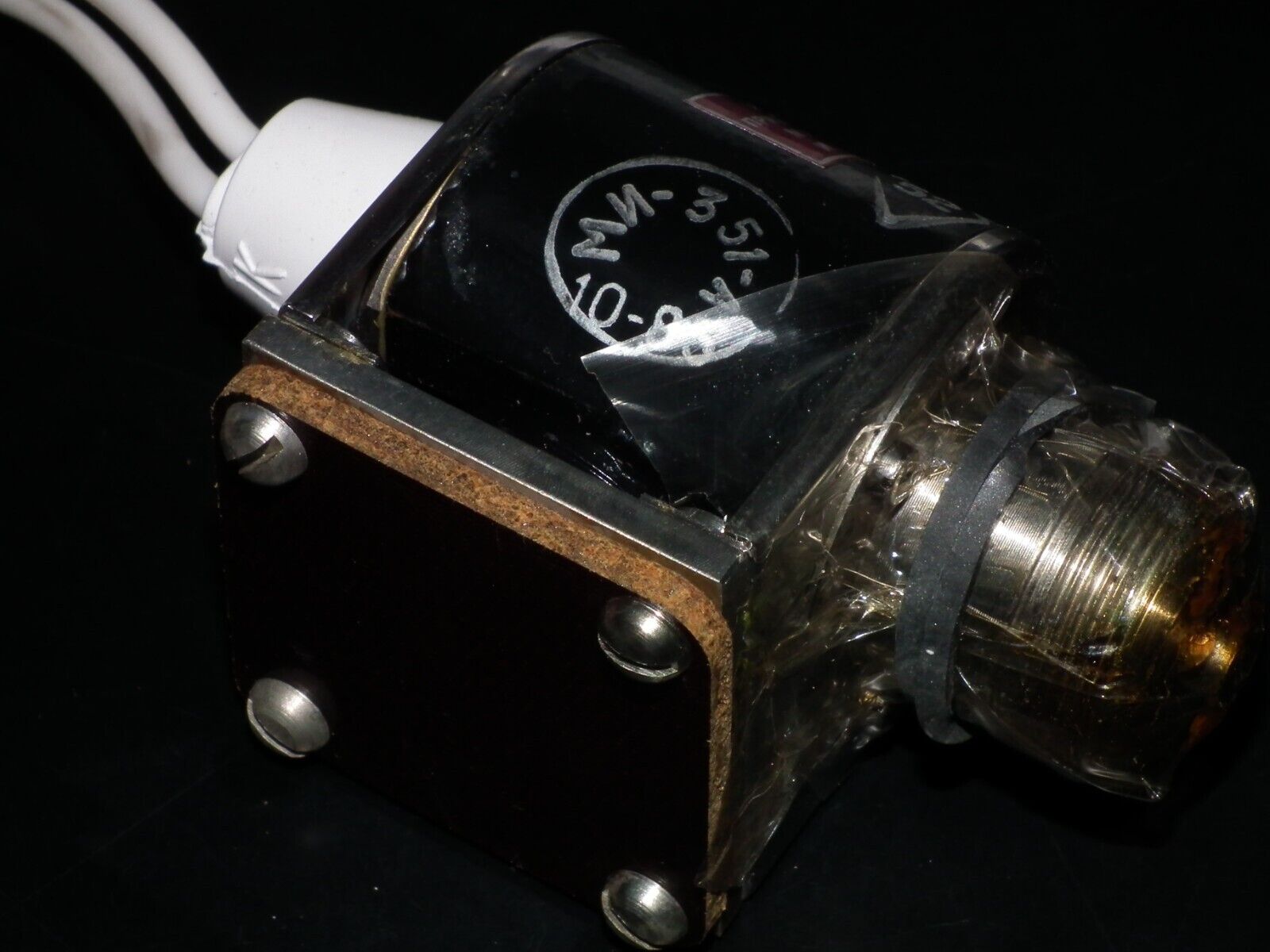

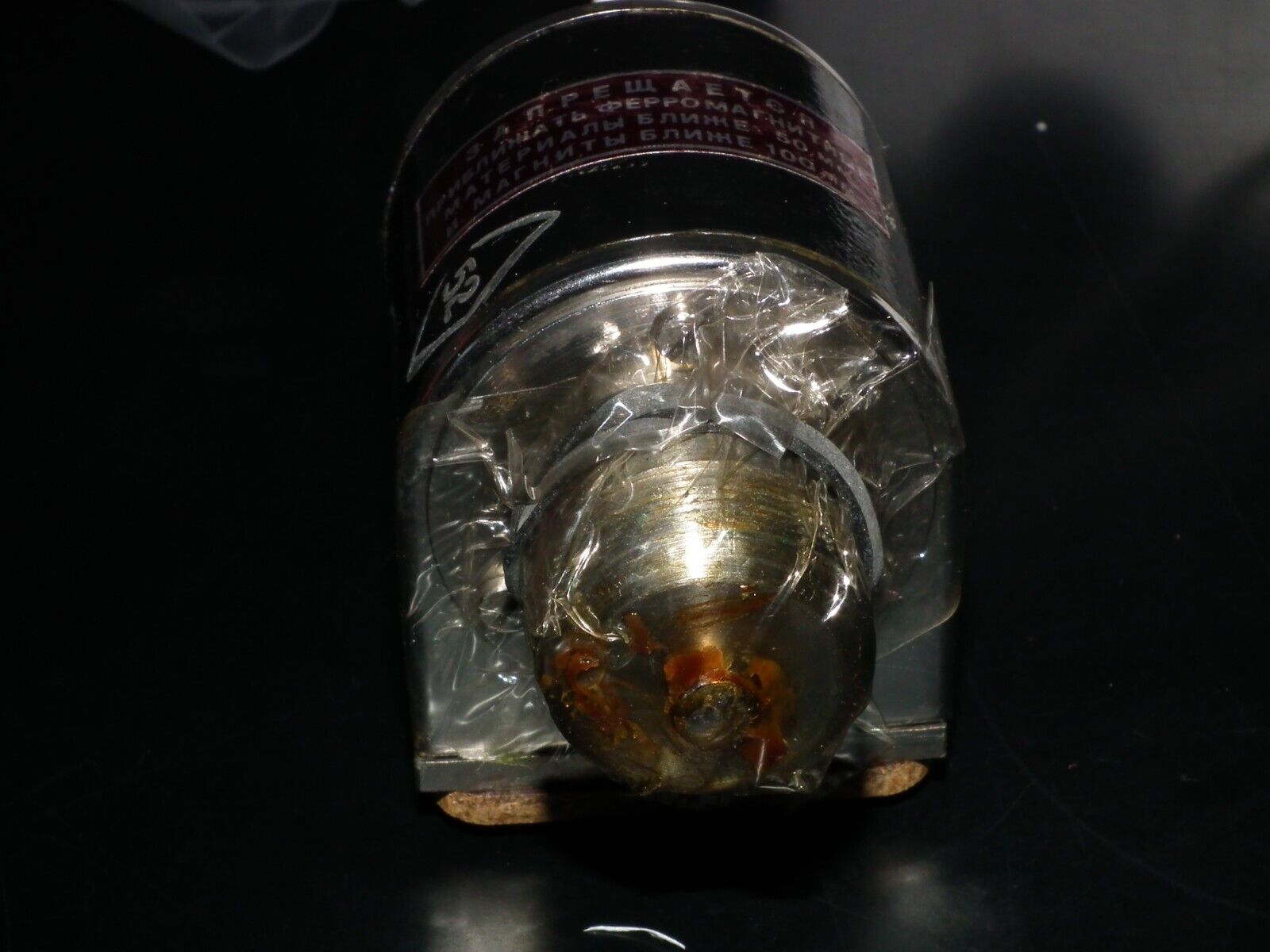

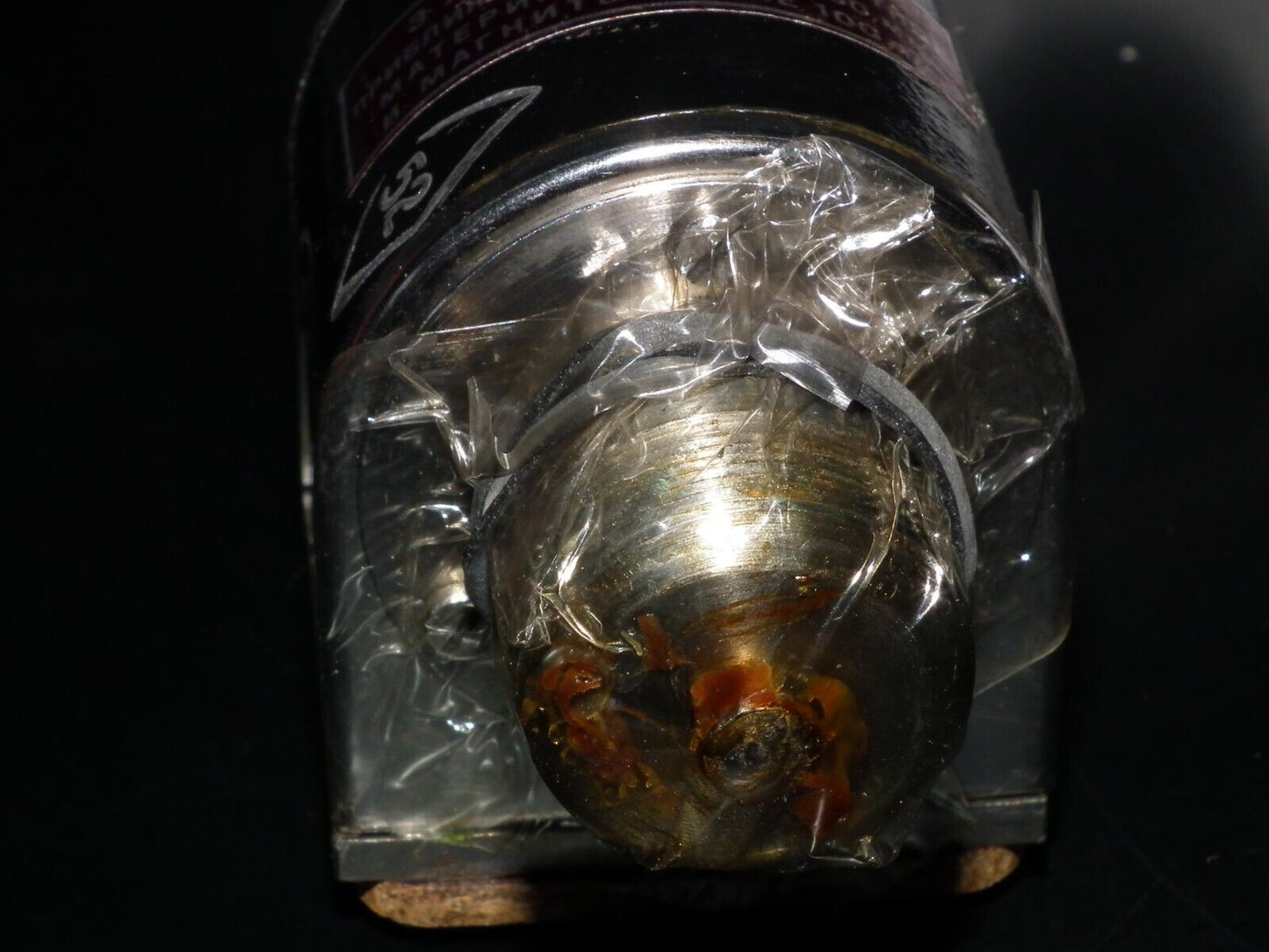

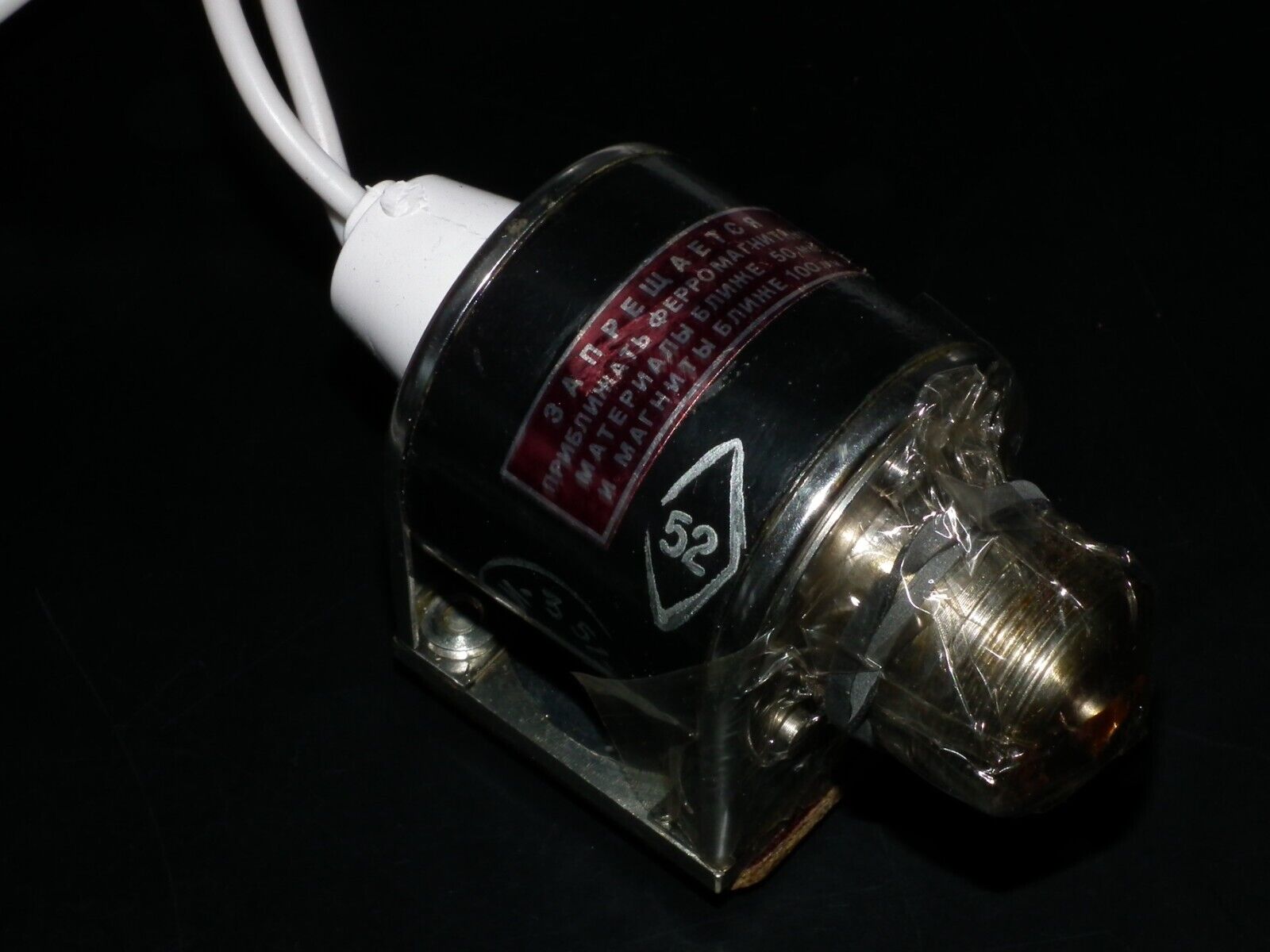

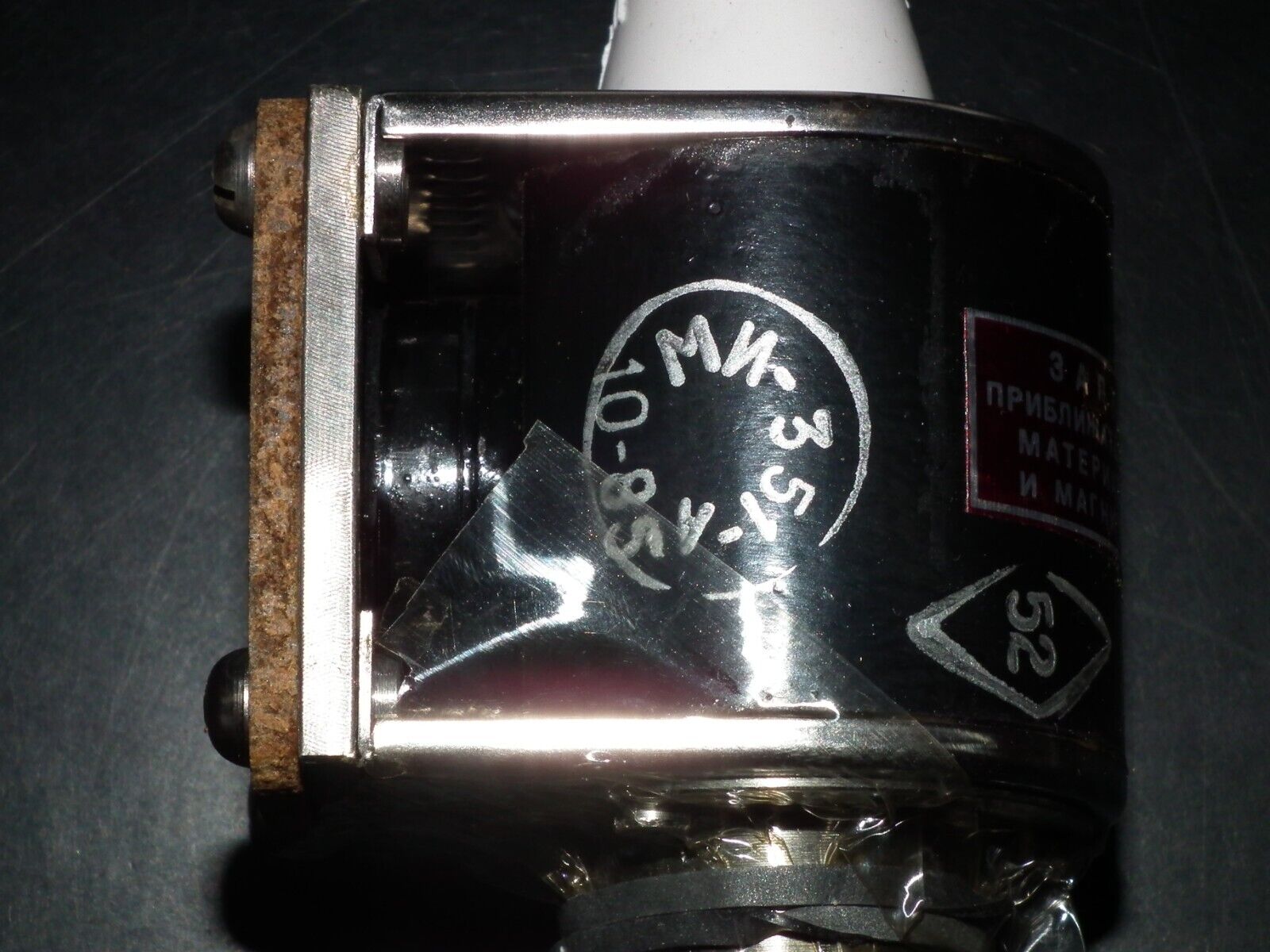

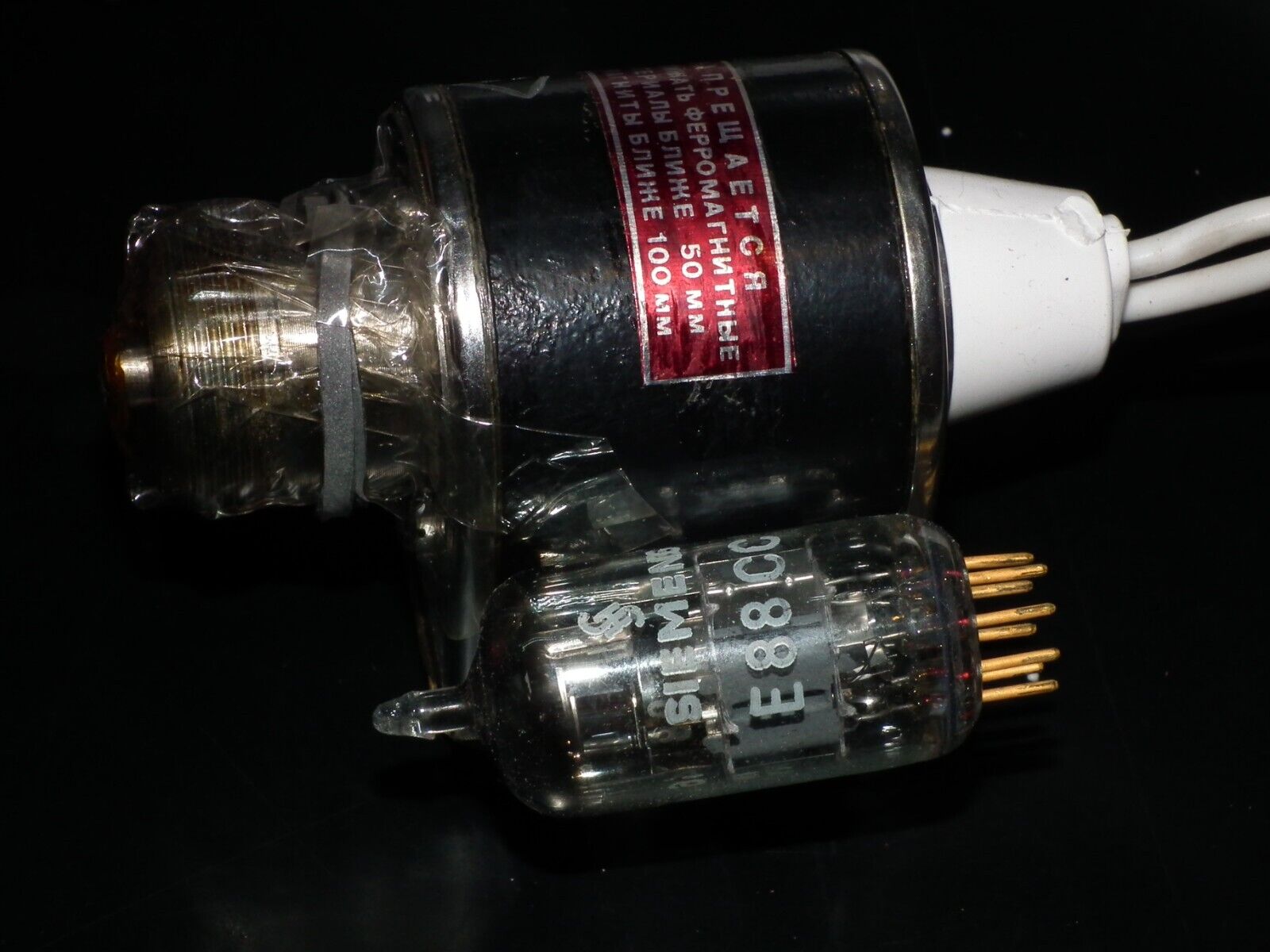

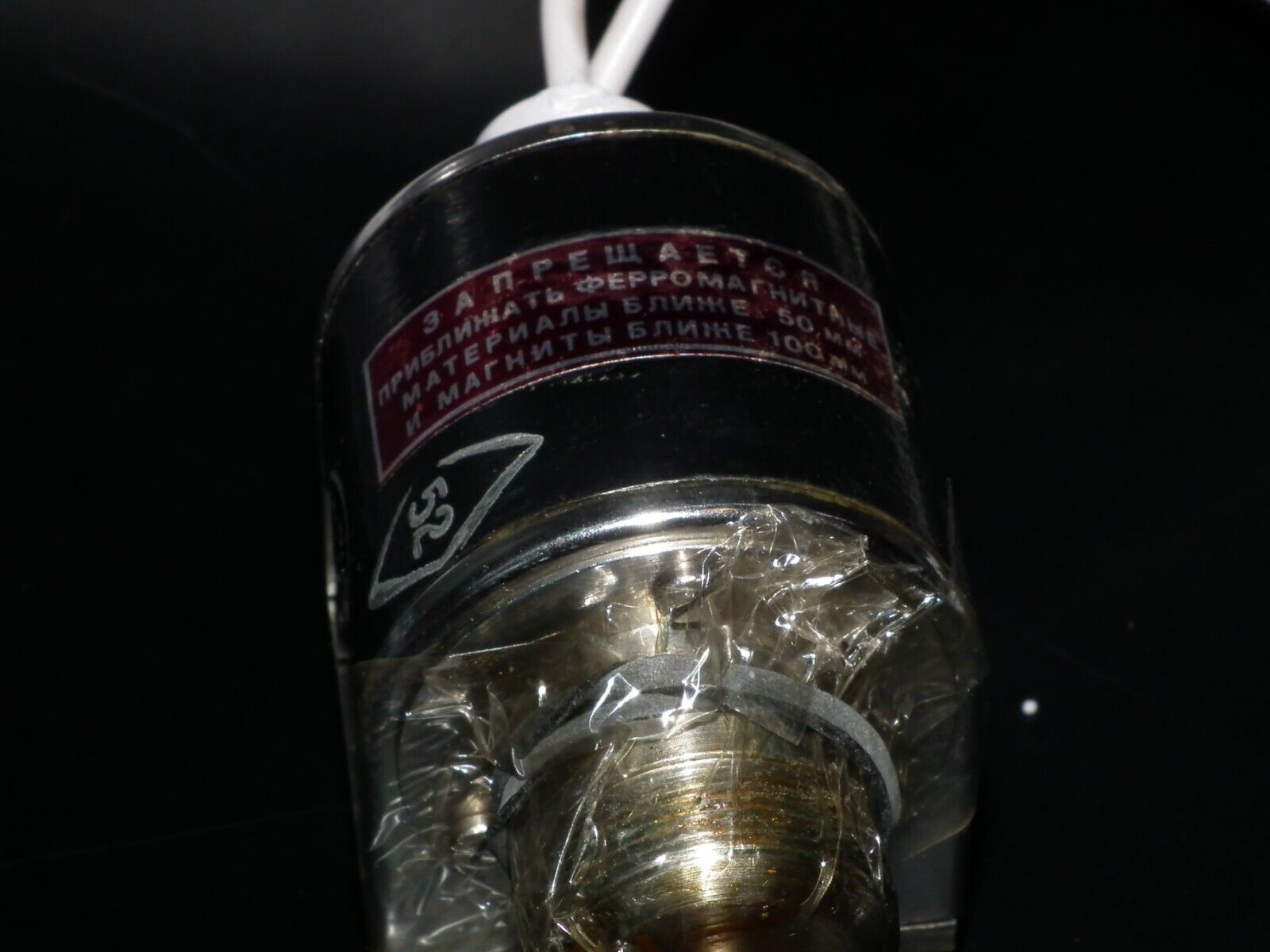

One (1 pcs) magnetron MI-351-A MI351A МИ-351-A


NOS - New Old Stock.


General characteristics
Frequency range, GHz
16,05-16,40
Pulsed output power, W, min.
400
Pulse repetition frequency, kHz
5000
Pulse duration, mcs
0,1-0,5
VSWR, max.
1,3
Spectrum width, MHz, max.
2/tp±25%
Frequency tuning steepness, MHz/mm, max.
250
Lifetime, h
500
Dimension, mm
53×88×44
Weight, kg
450




Main Parameters
Frequency, GHz 16,05-16,4
Peak Power Output, kW 0,5
Anode Voltage, kV 2,45-2,8
Cathode heating voltage, V 6,0-6,9


Electric characteristics
Anode Current, amps 1,5-2,25
Cathode heating current, amps 0,48-0,6
Setup time, s 60
Pulse Width, microseconds 0,1-0,5
Duty Cycle
VSWR, max 1,3


Mechanical characteristics
Lifetime, h 500
Dimensions, mm 53х88х44
Weight, Kg 0,45
Configuration packaged,
metal-ceramic
Output waveguide



1pc. MI-351-A Magnetron

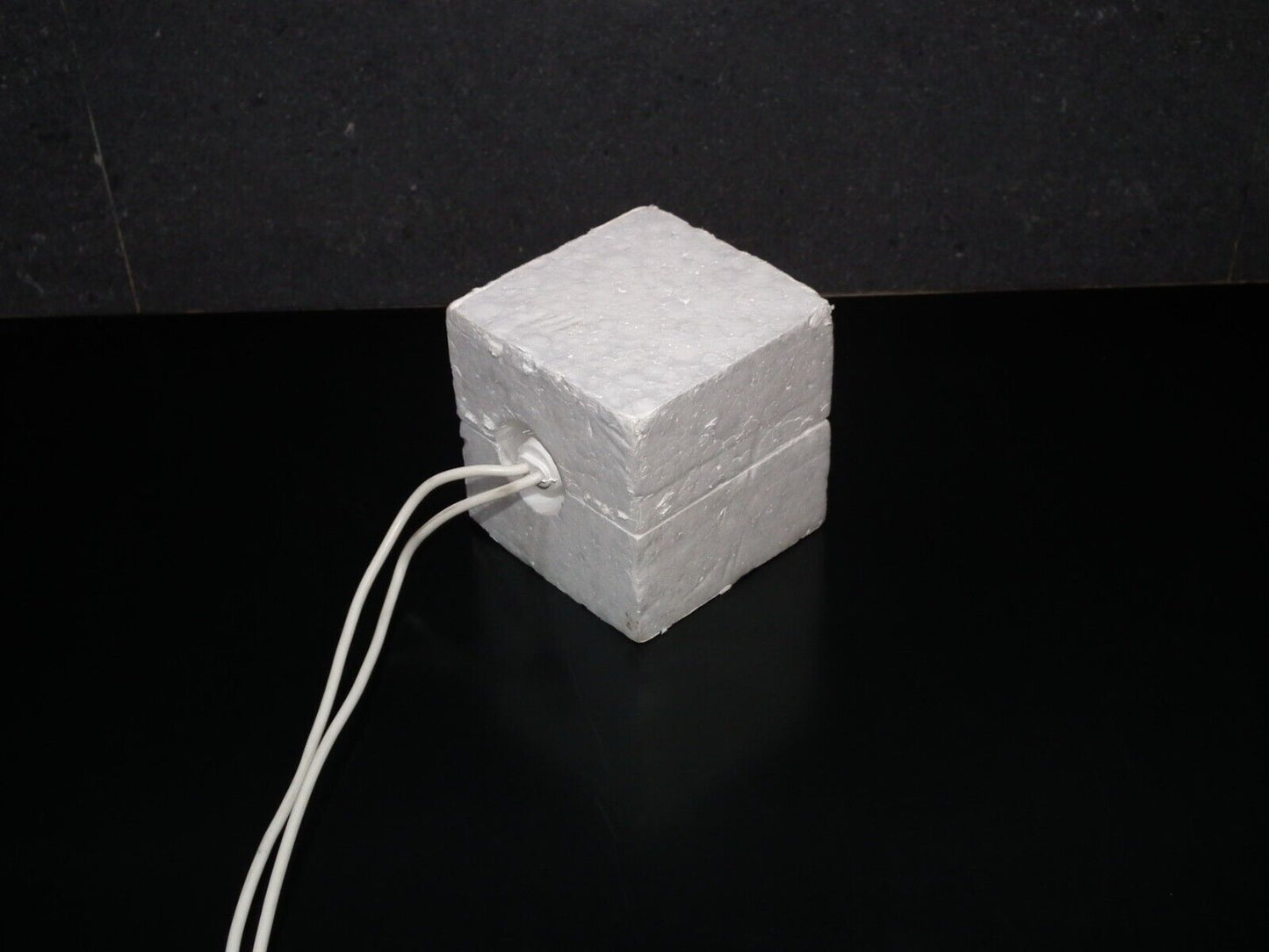

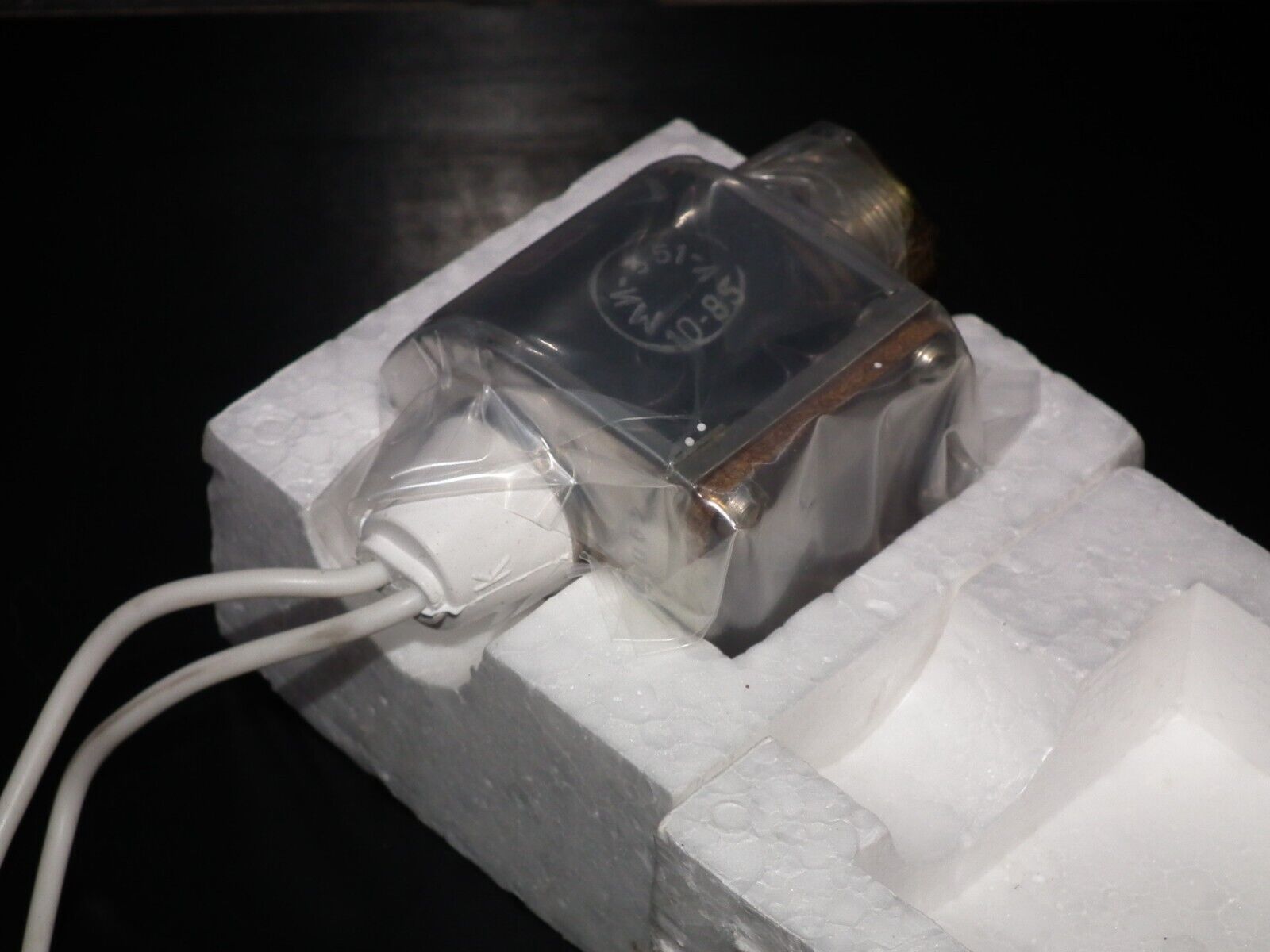

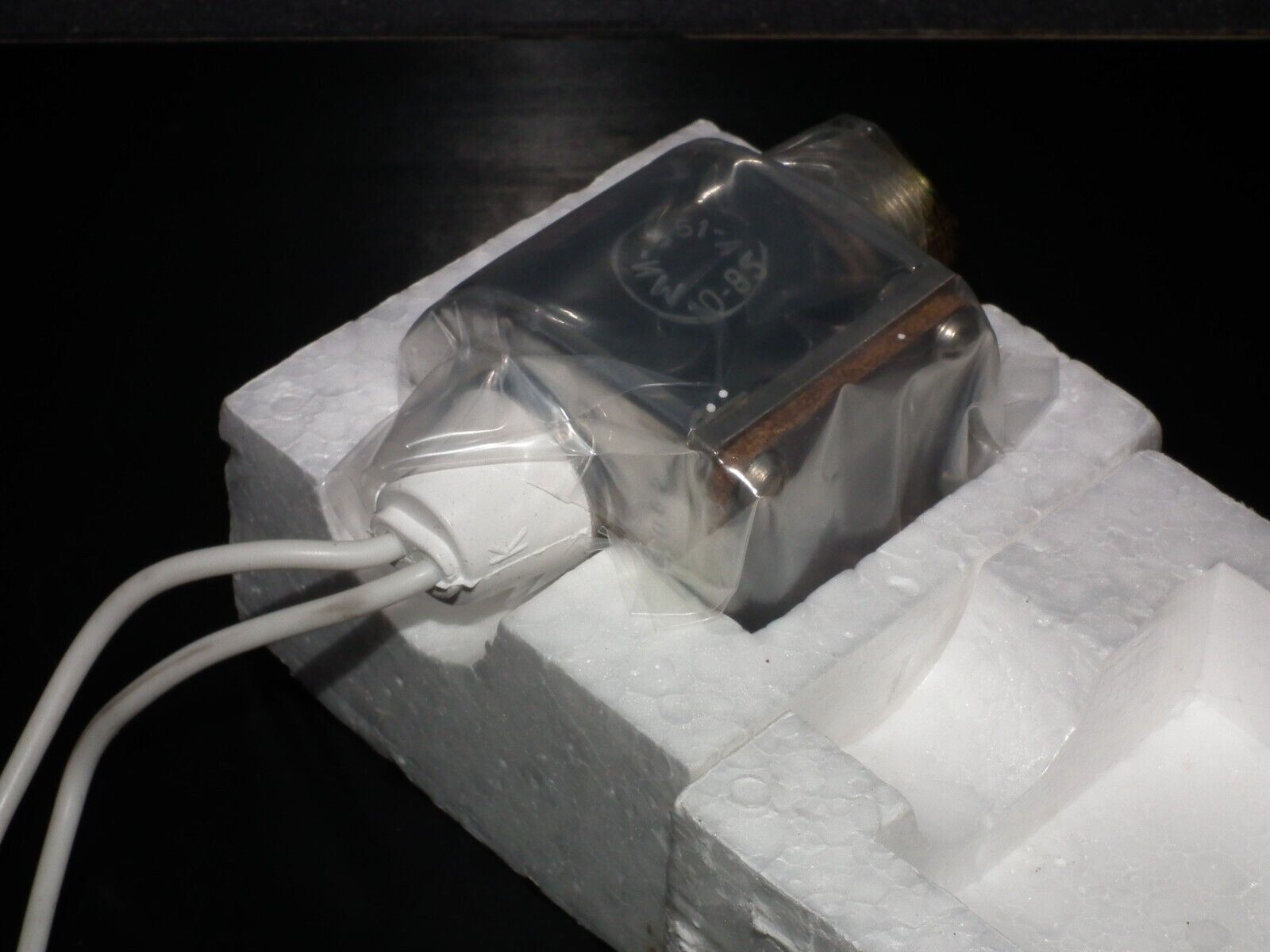

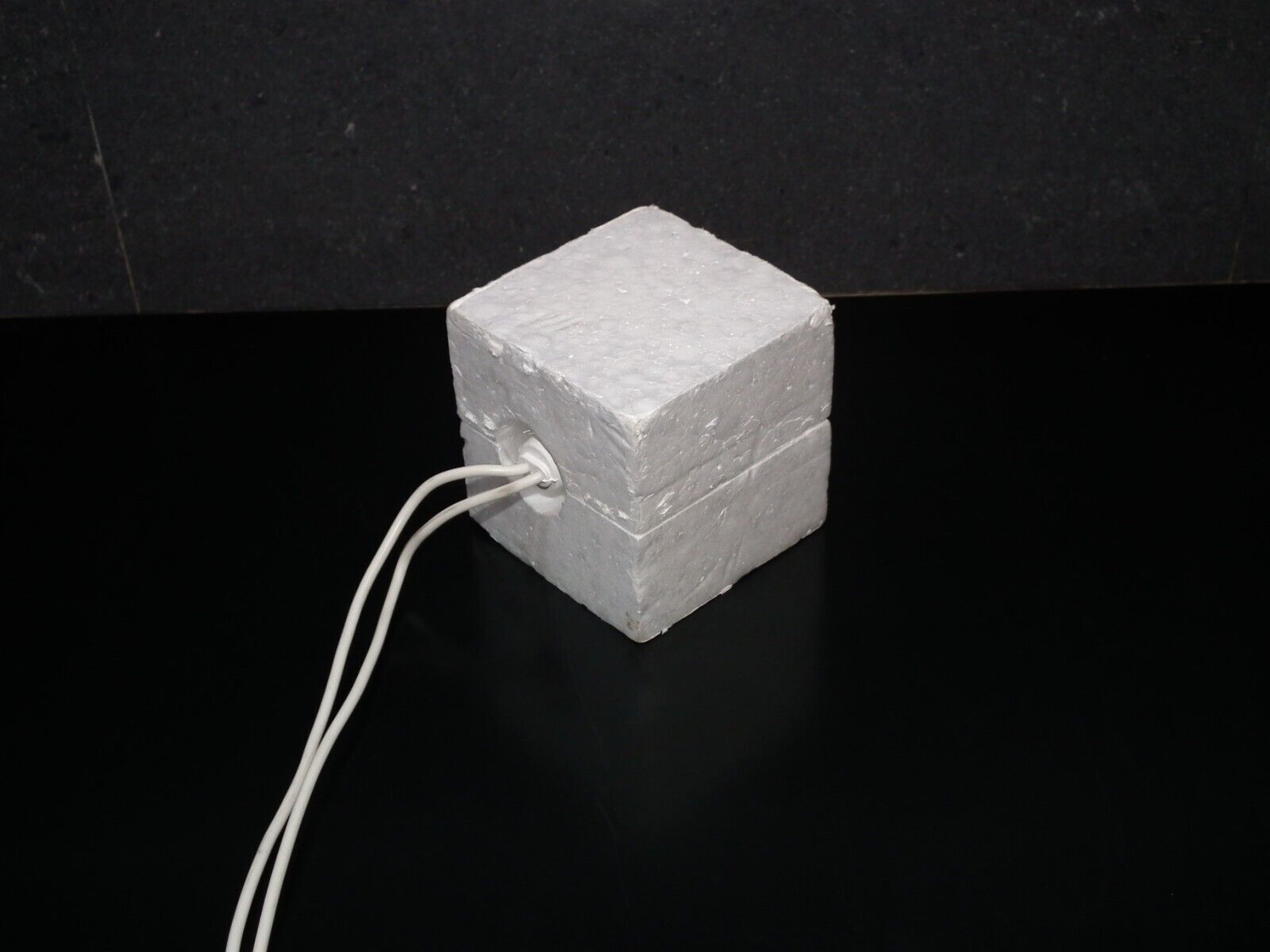

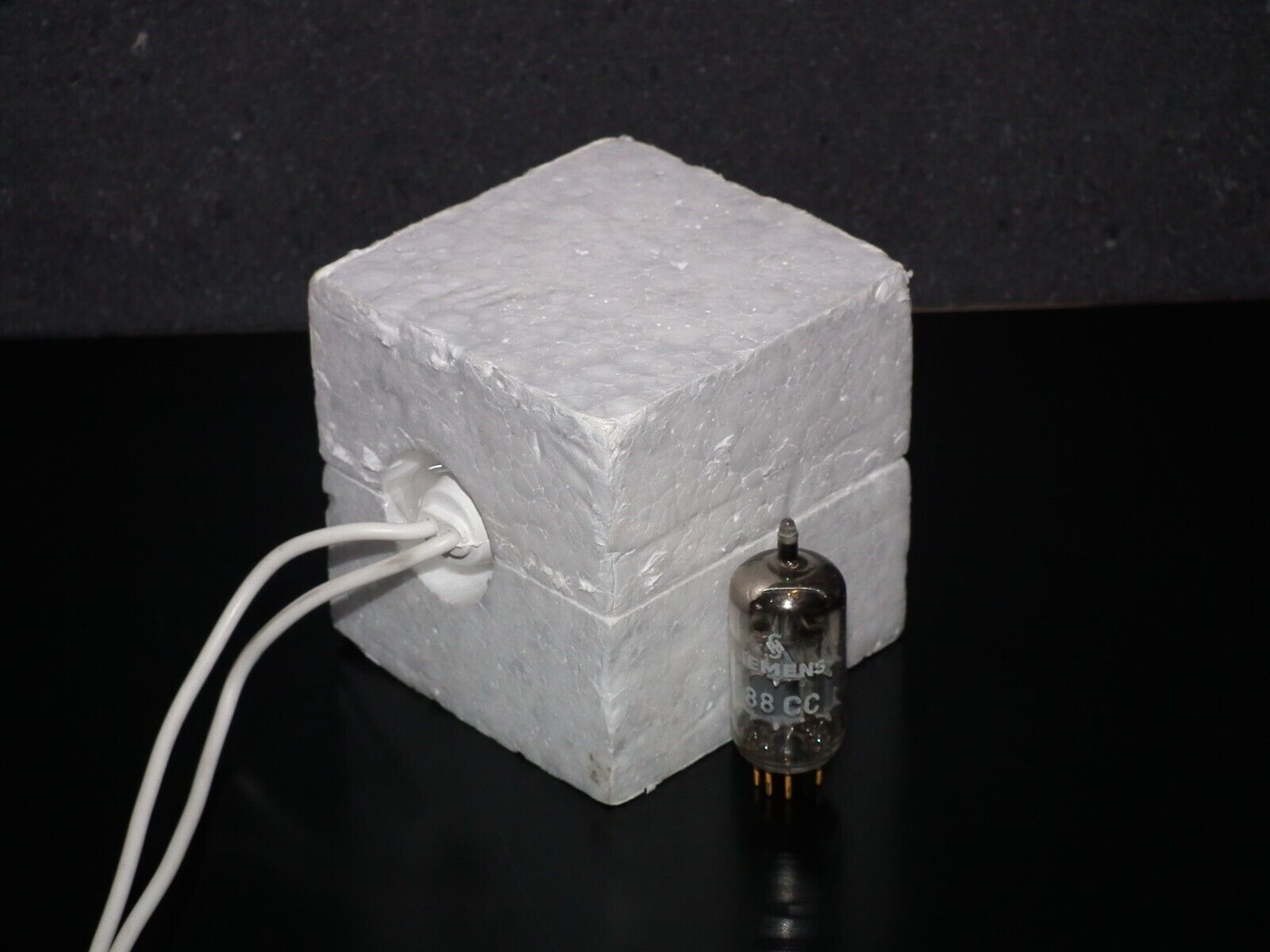

It's NEW OLS STOCK, never used item in original styrofoam box. I sell it "as is", no returns. What you see is what you get.
