MI-351 Magnetron USSR MI351A/B NOS NEW 1985 МИ-351 МИ351 MI351 Never Opened
MI-351 Magnetron USSR MI351A/B NOS NEW 1985 МИ-351 МИ351 MI351 Never Opened
Regular price
€99,95
Regular price
Sale price
€99,95
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

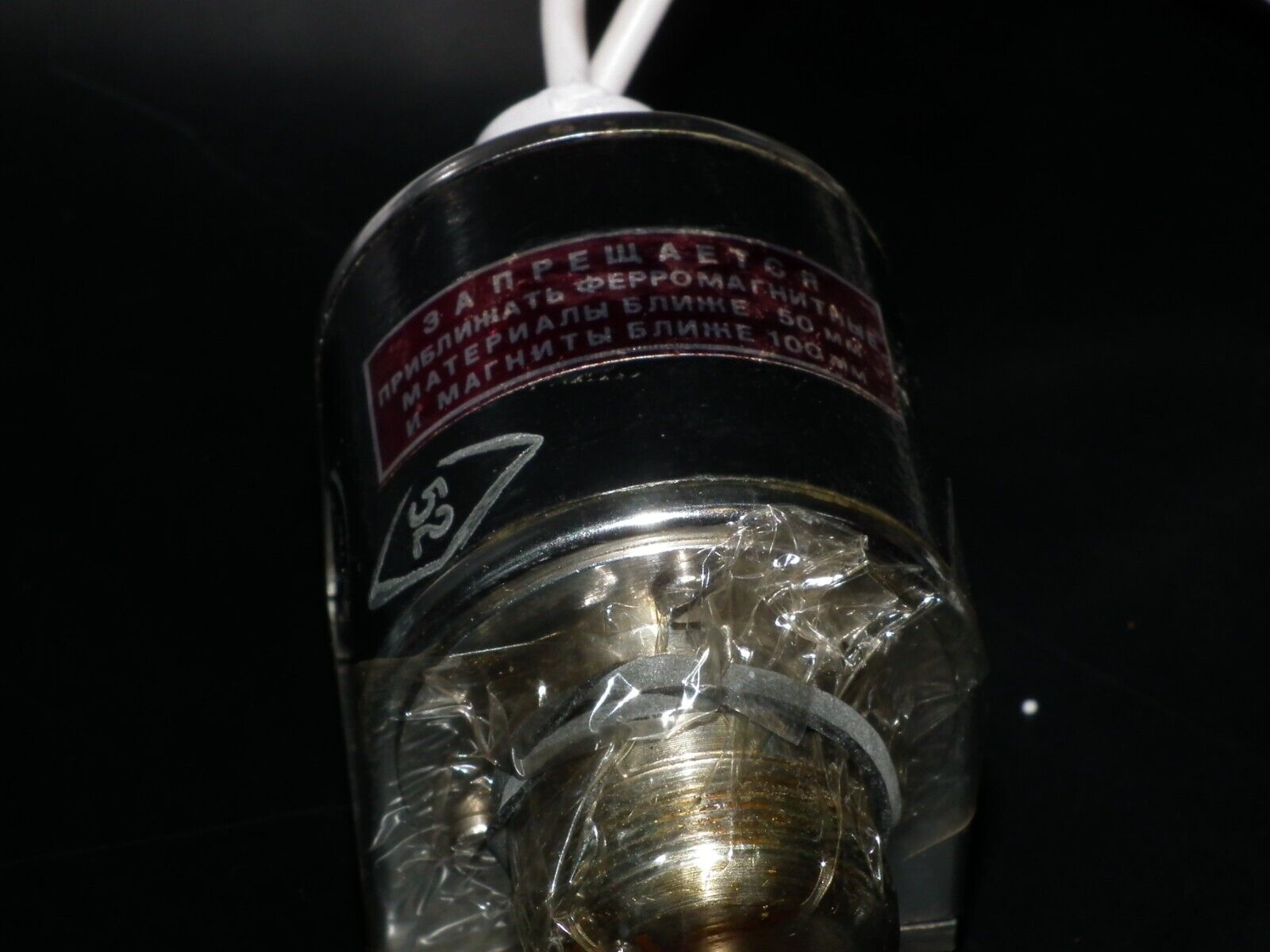

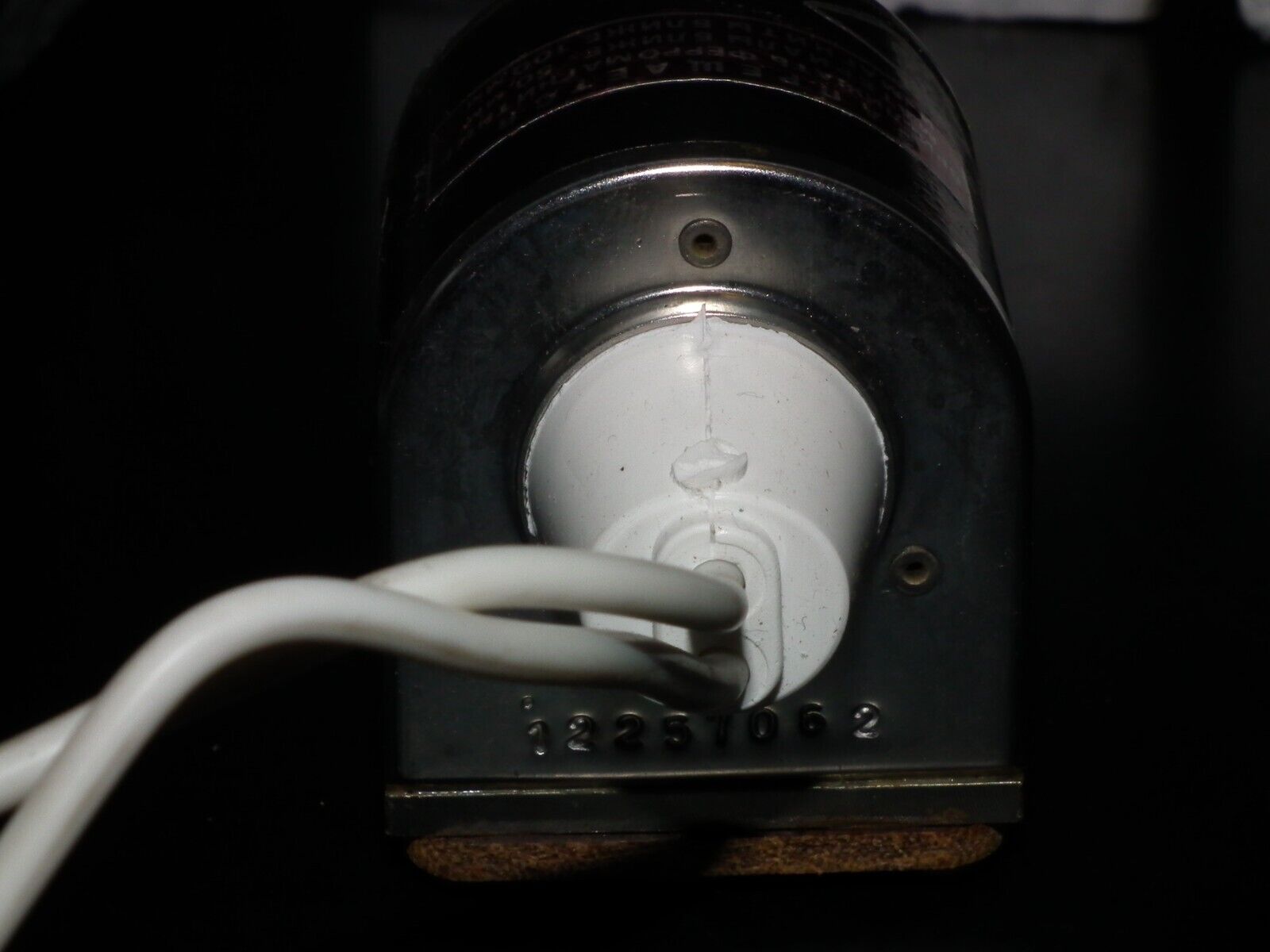

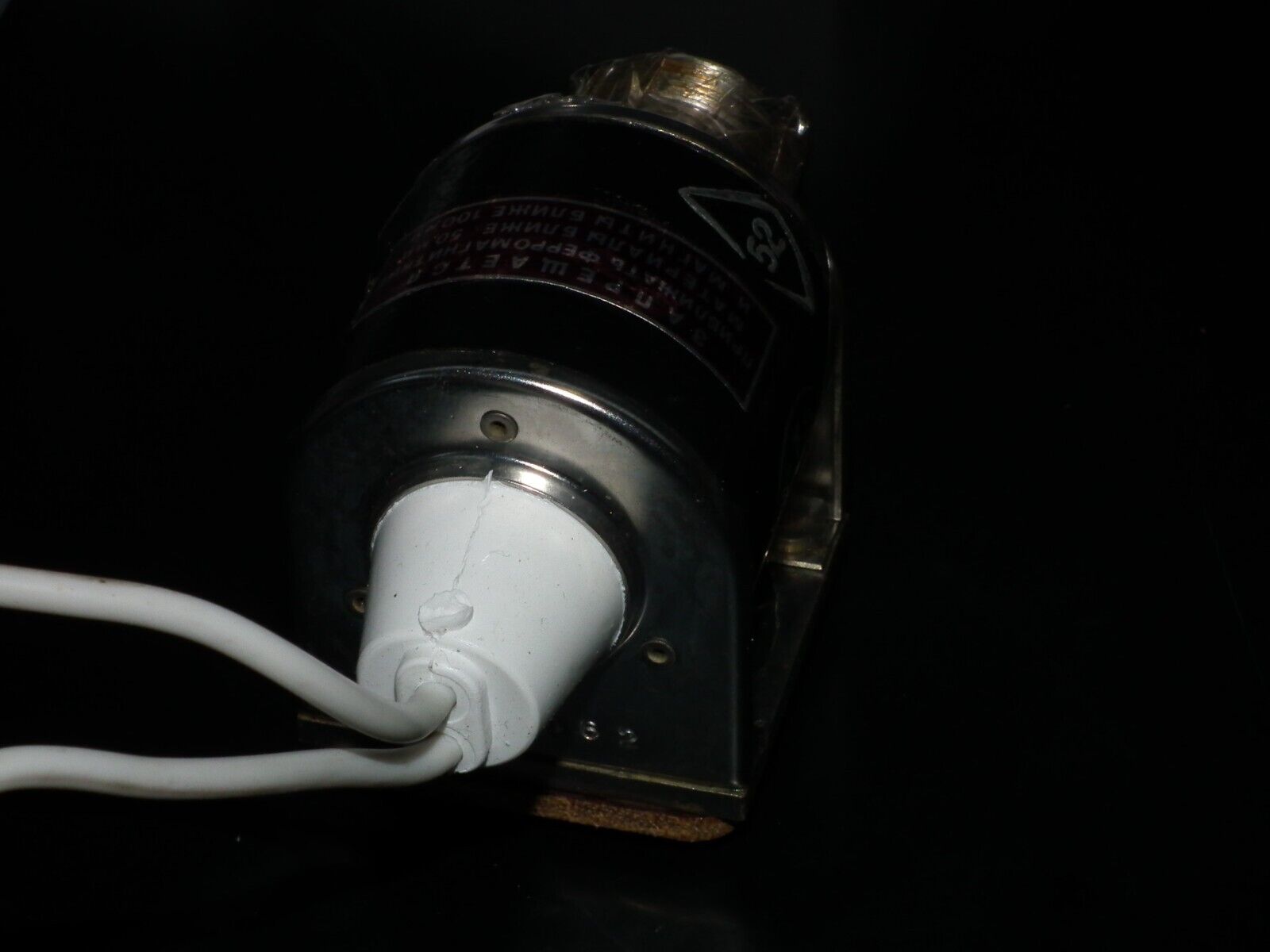

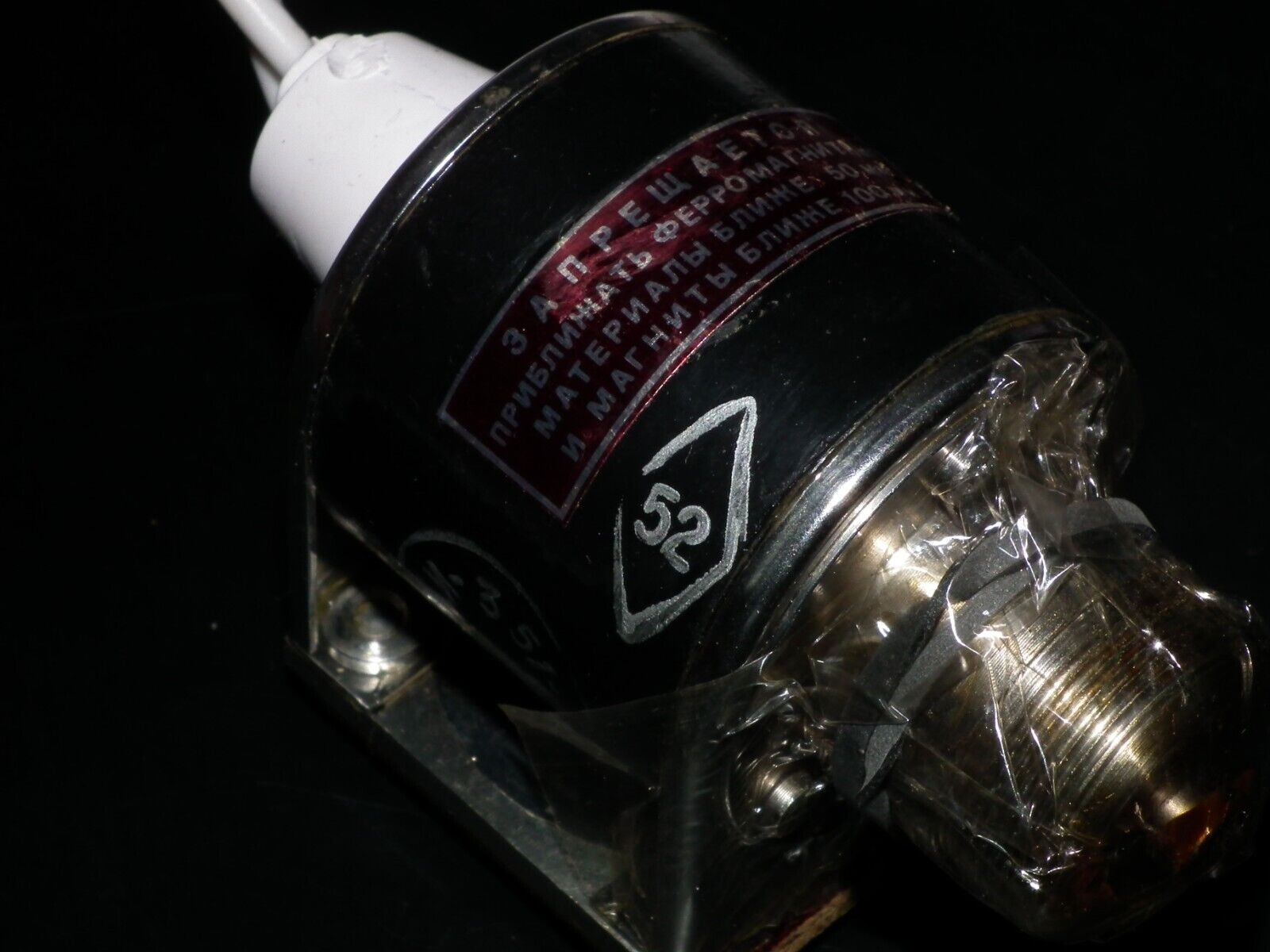

One (1 pcs) magnetron MI-351A/B MI351A МИ-351-A MI351B
NOS - New Old Stock.
| Frequency range, GHz | |
| Pulsed output power, W, min. | |
| Pulse repetition frequency, kHz | |
| Pulse duration, mcs | |
| VSWR, max. | |
| Spectrum width, MHz, max. | |
| Frequency tuning steepness, MHz/mm, max. | |
| Lifetime, h | |
| Dimension, mm | |
| Weight, kg | |
| Main Parameters |
| Frequency, GHz | 16,05-16,4 |
| Peak Power Output, kW | 0,5 |
| Anode Voltage, kV | 2,45-2,8 |
| Cathode heating voltage, V | 6,0-6,9 |
| Electric characteristics |
| Anode Current, amps | 1,5-2,25 |
| Cathode heating current, amps | 0,48-0,6 |
| Setup time, s | 60 |
| Pulse Width, microseconds | 0,1-0,5 |
| Duty Cycle | |
| VSWR, max | 1,3 |
| Mechanical characteristics |
| Lifetime, h | 500 |
| Dimensions, mm | 53х88х44 |
| Weight, Kg | 0,45 |
| Configuration | packaged, metal-ceramic |
| Output | waveguide |

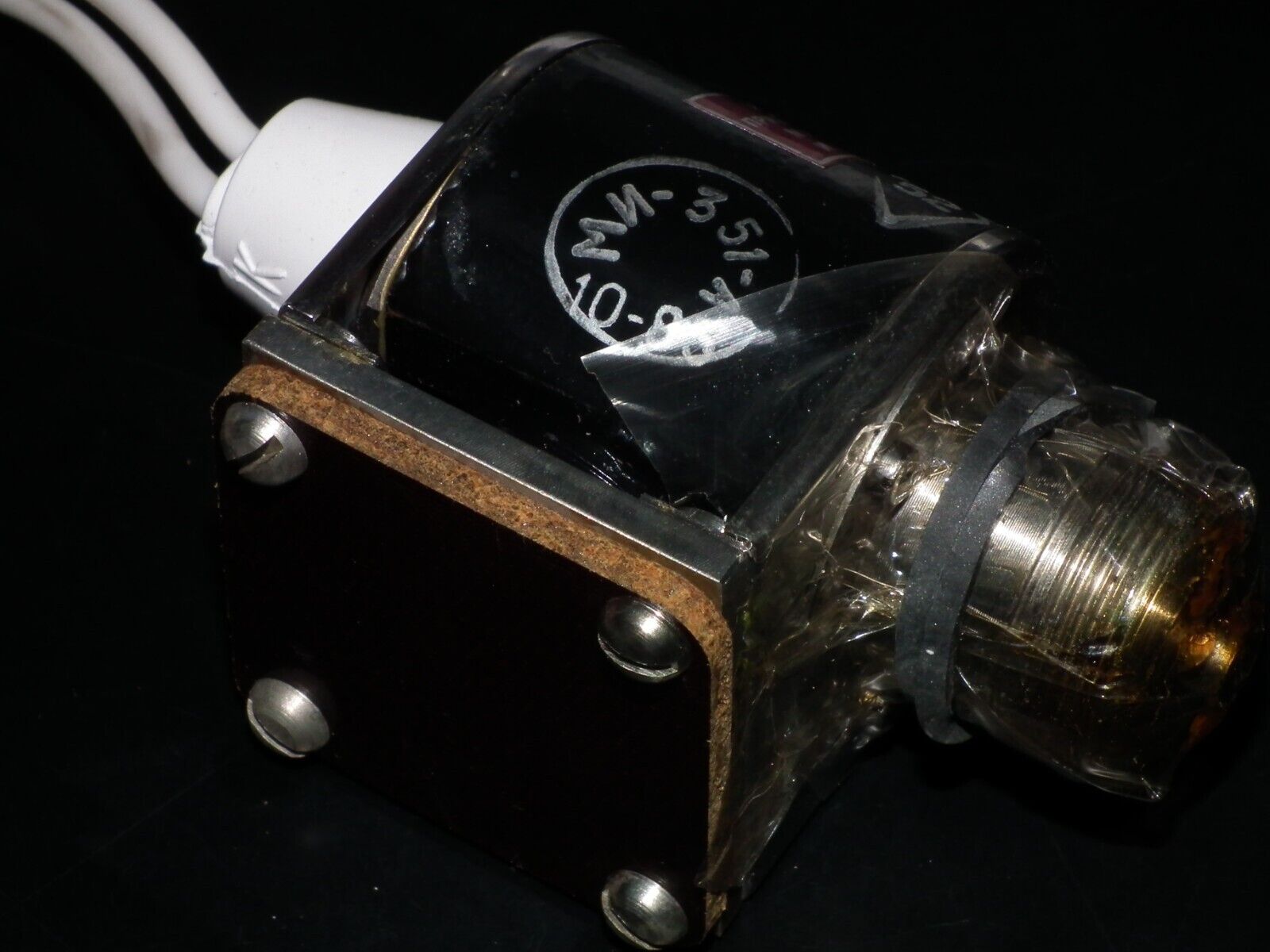

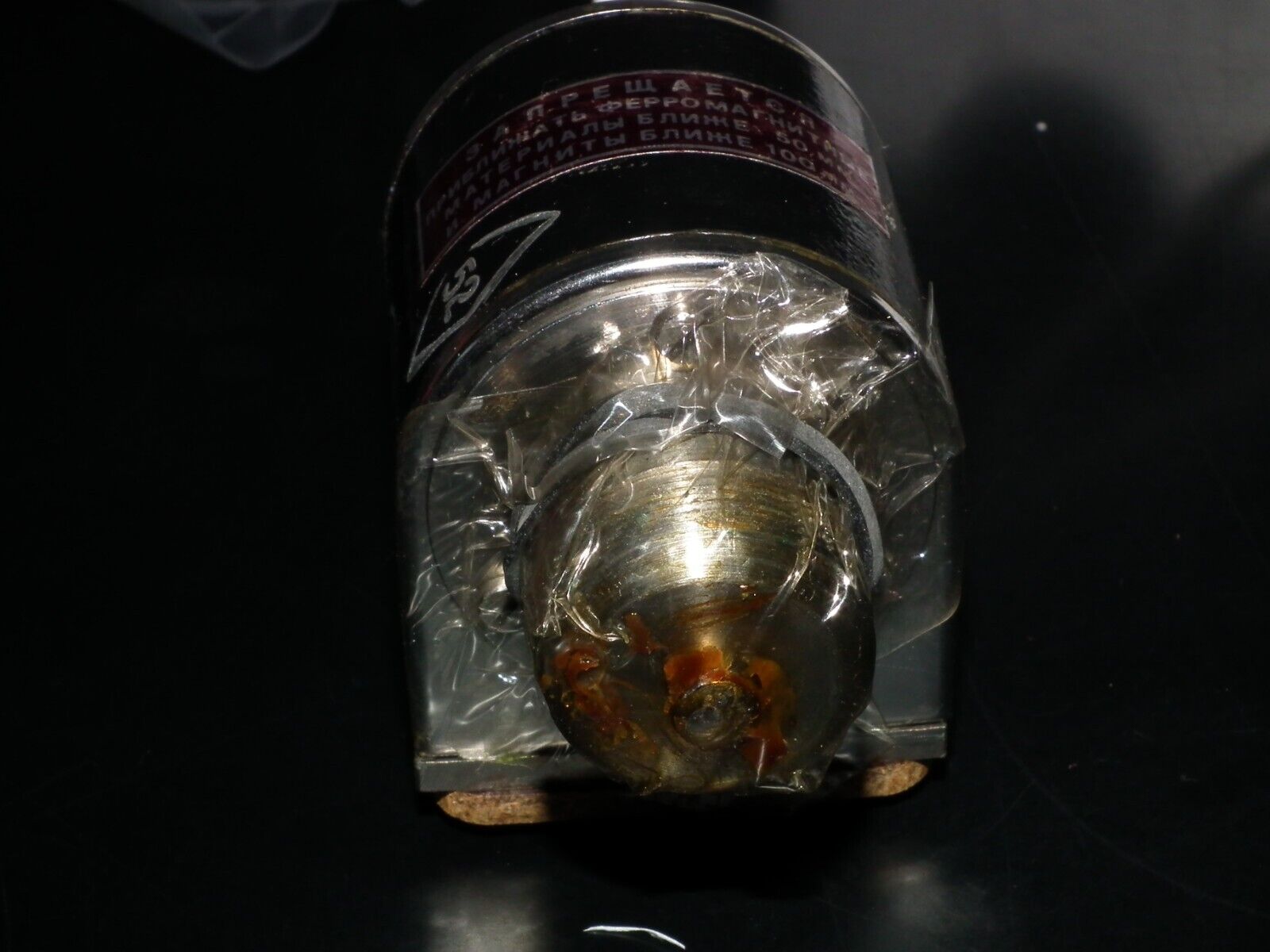

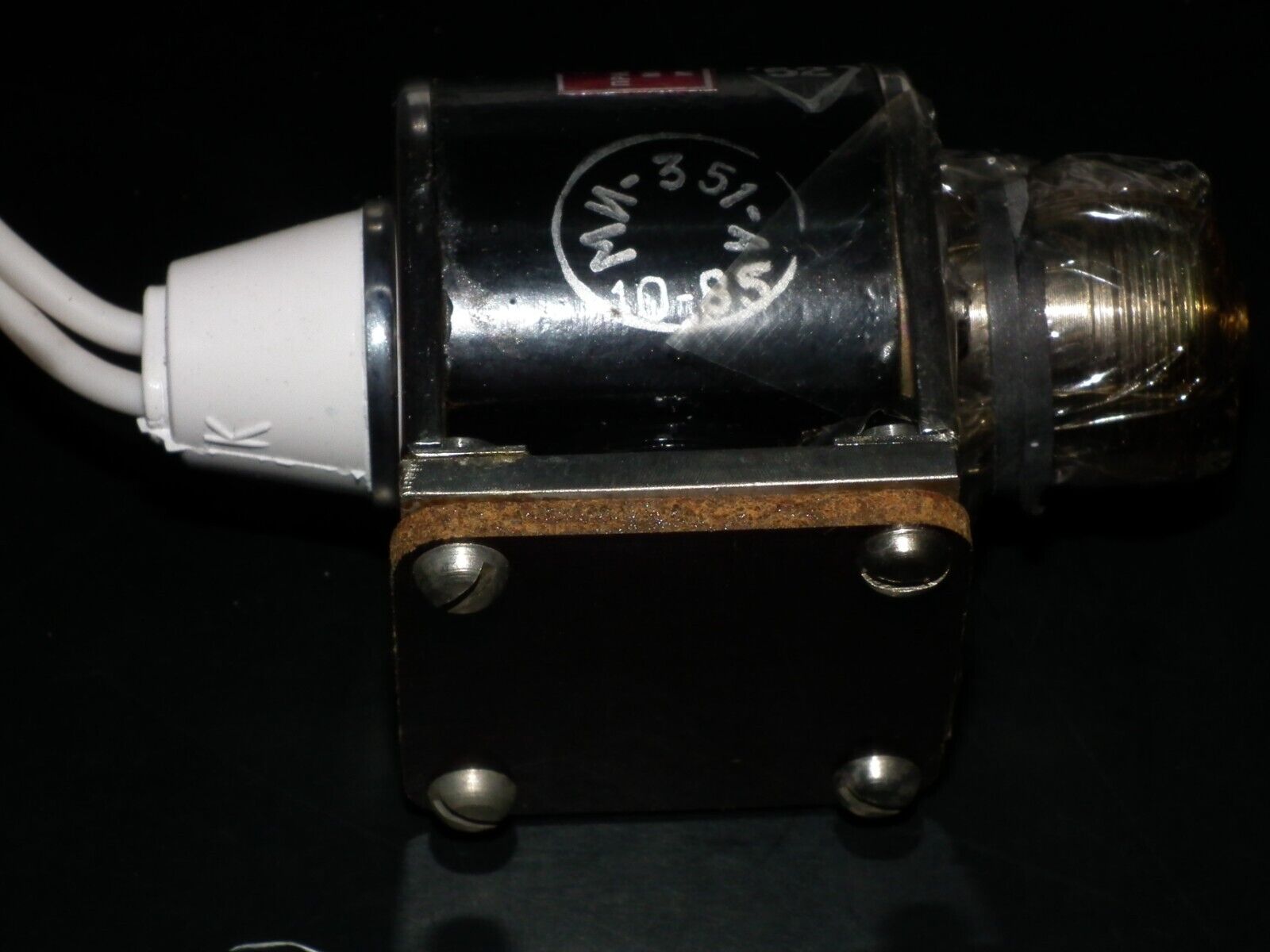

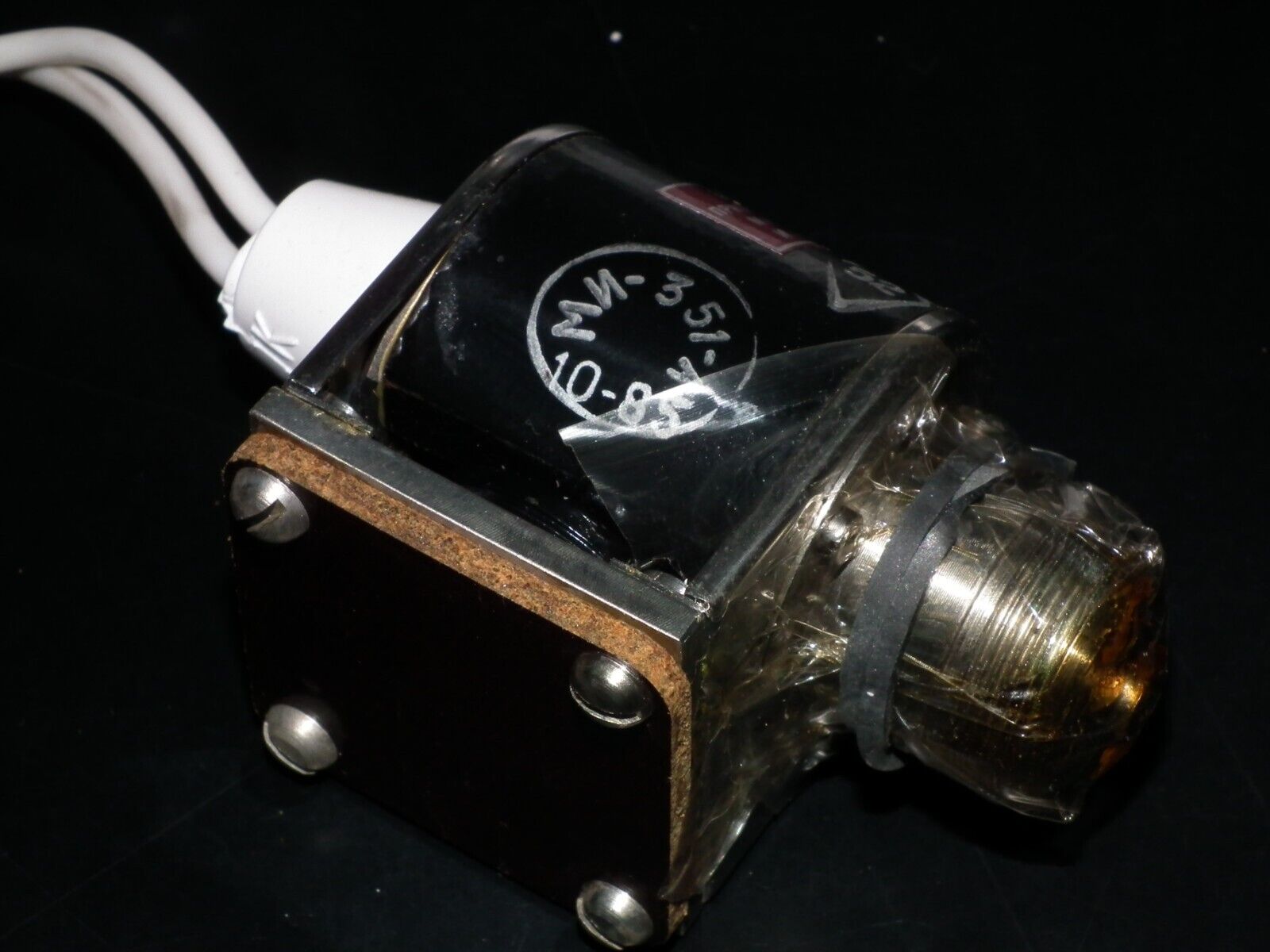

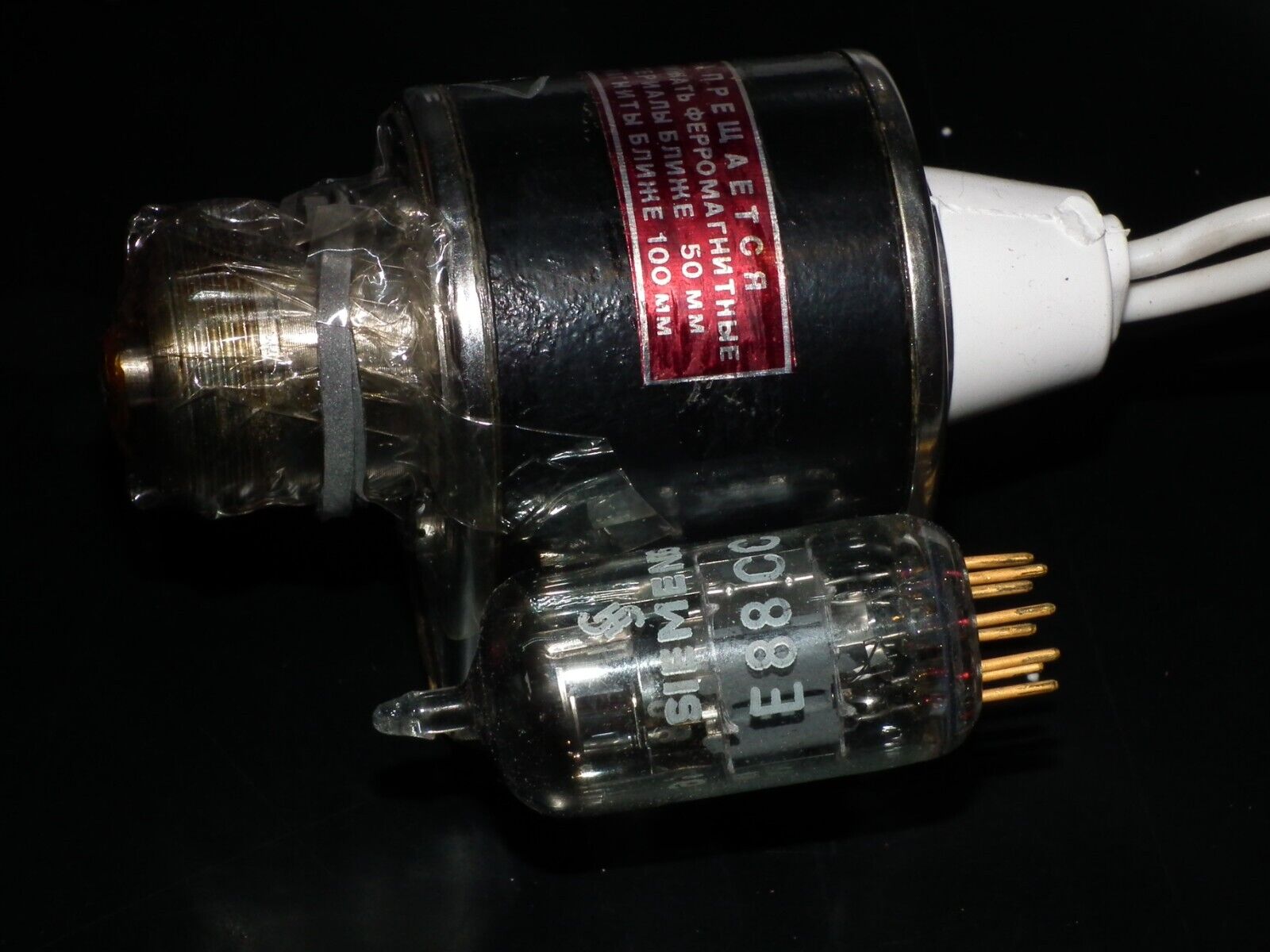

1pc. MI-351-A Magnetron

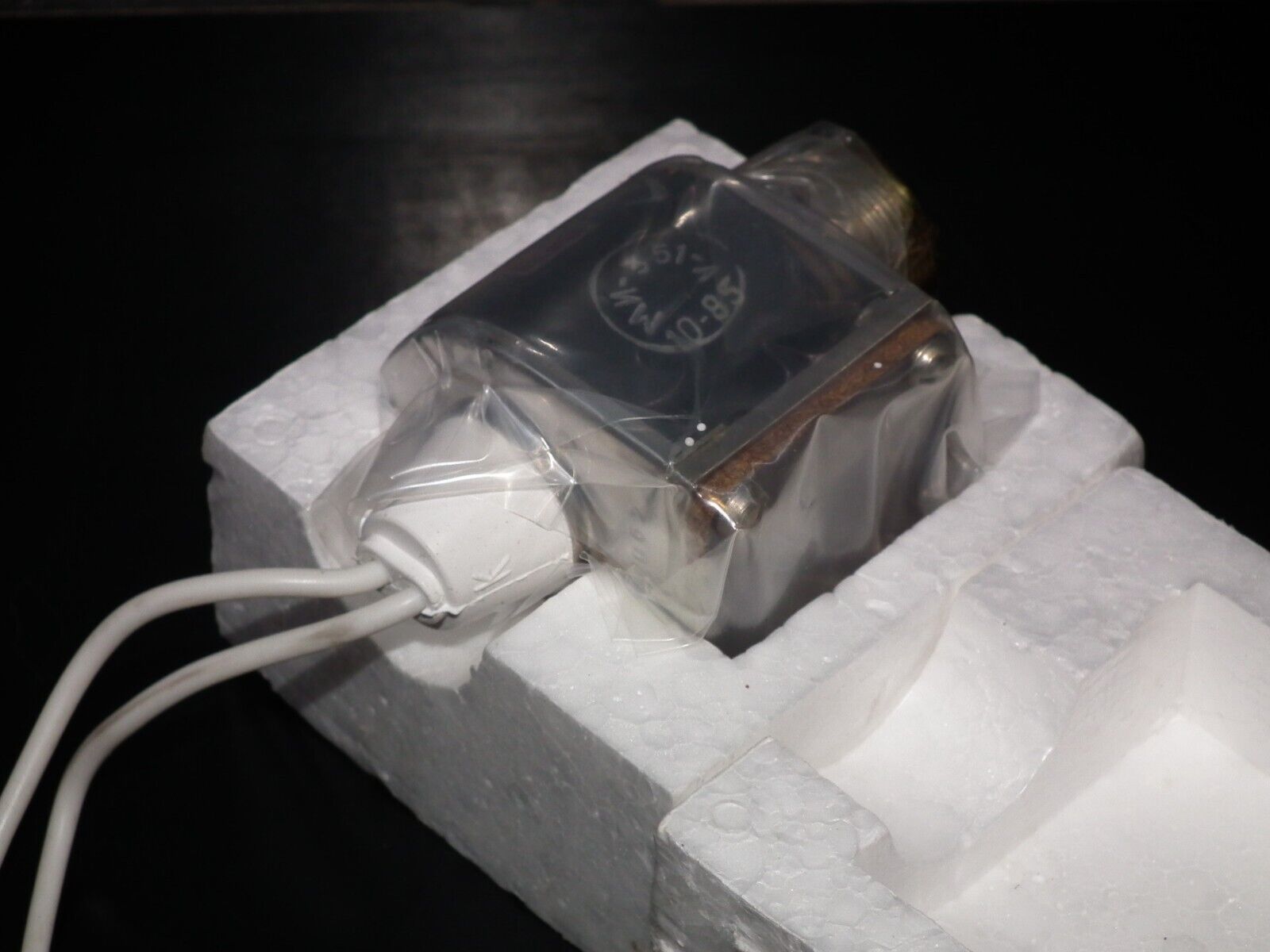

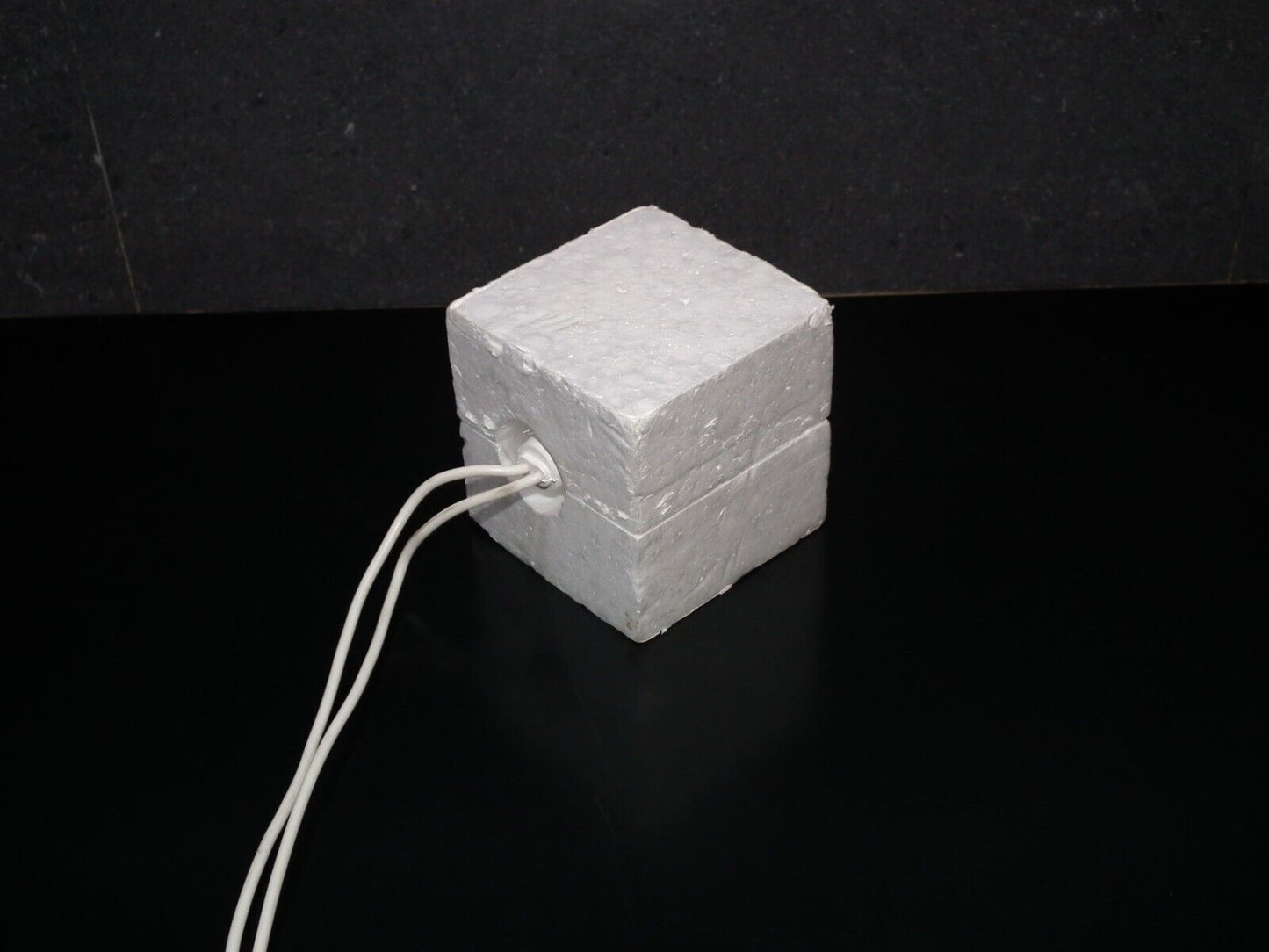

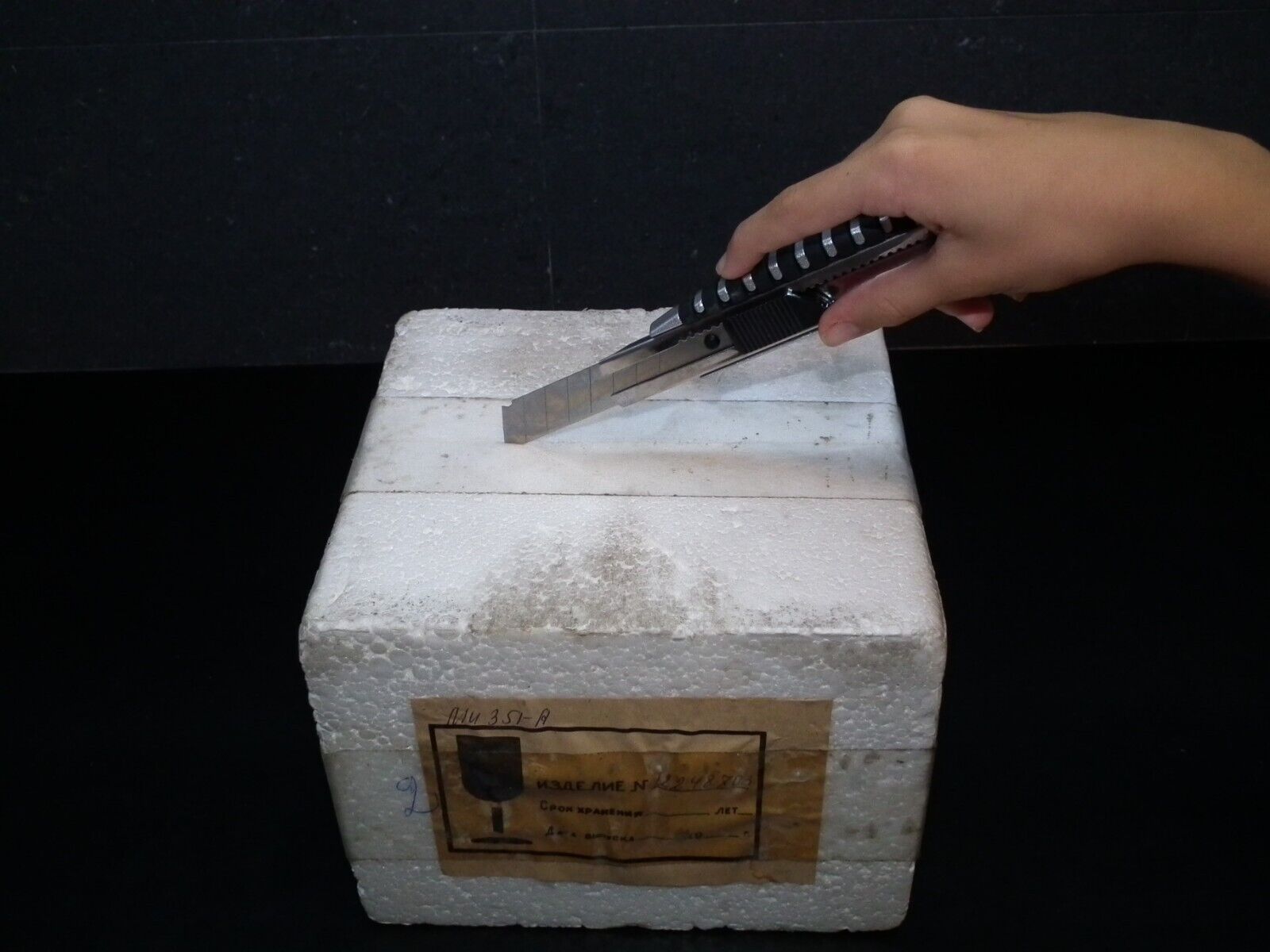

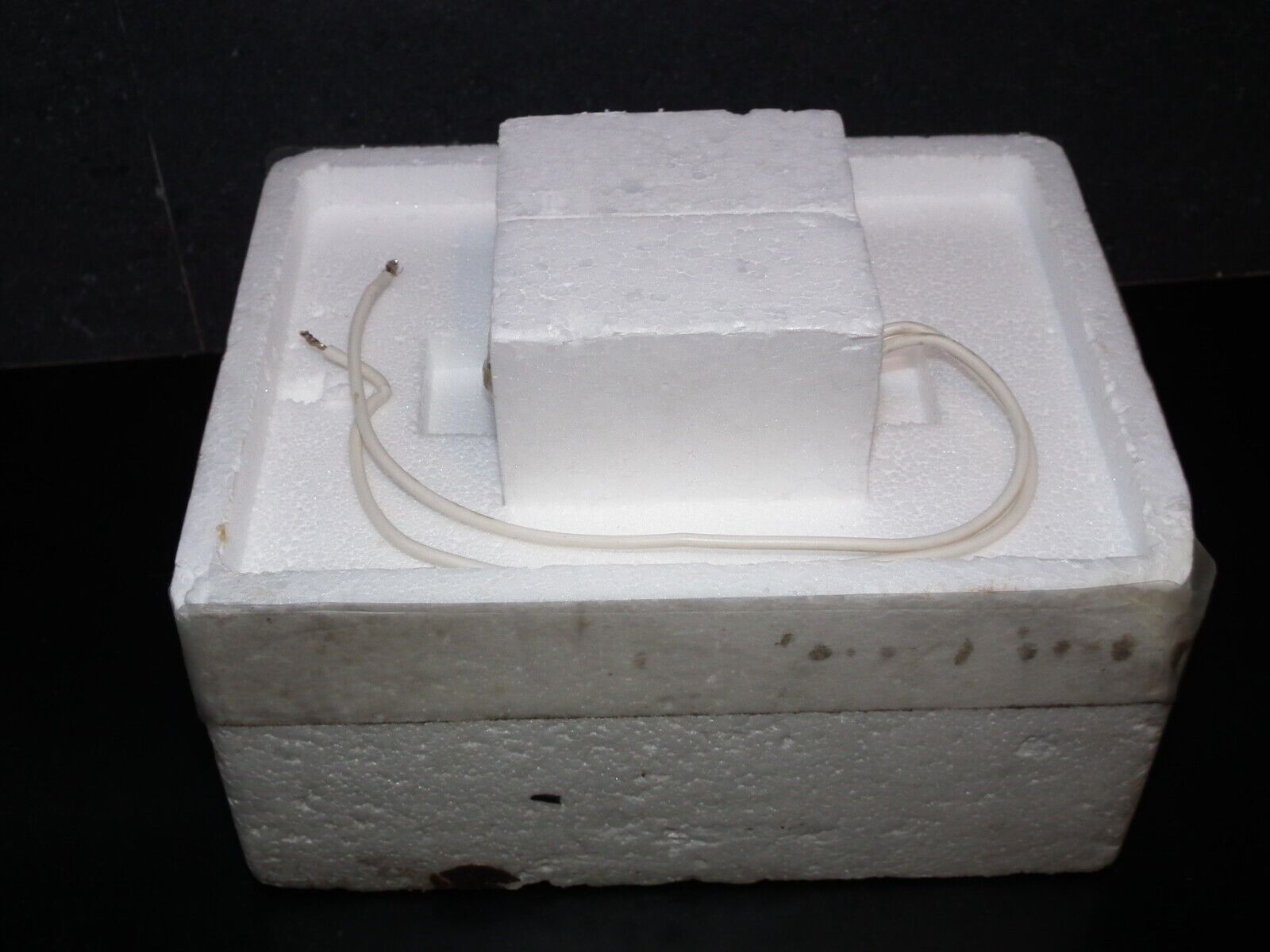

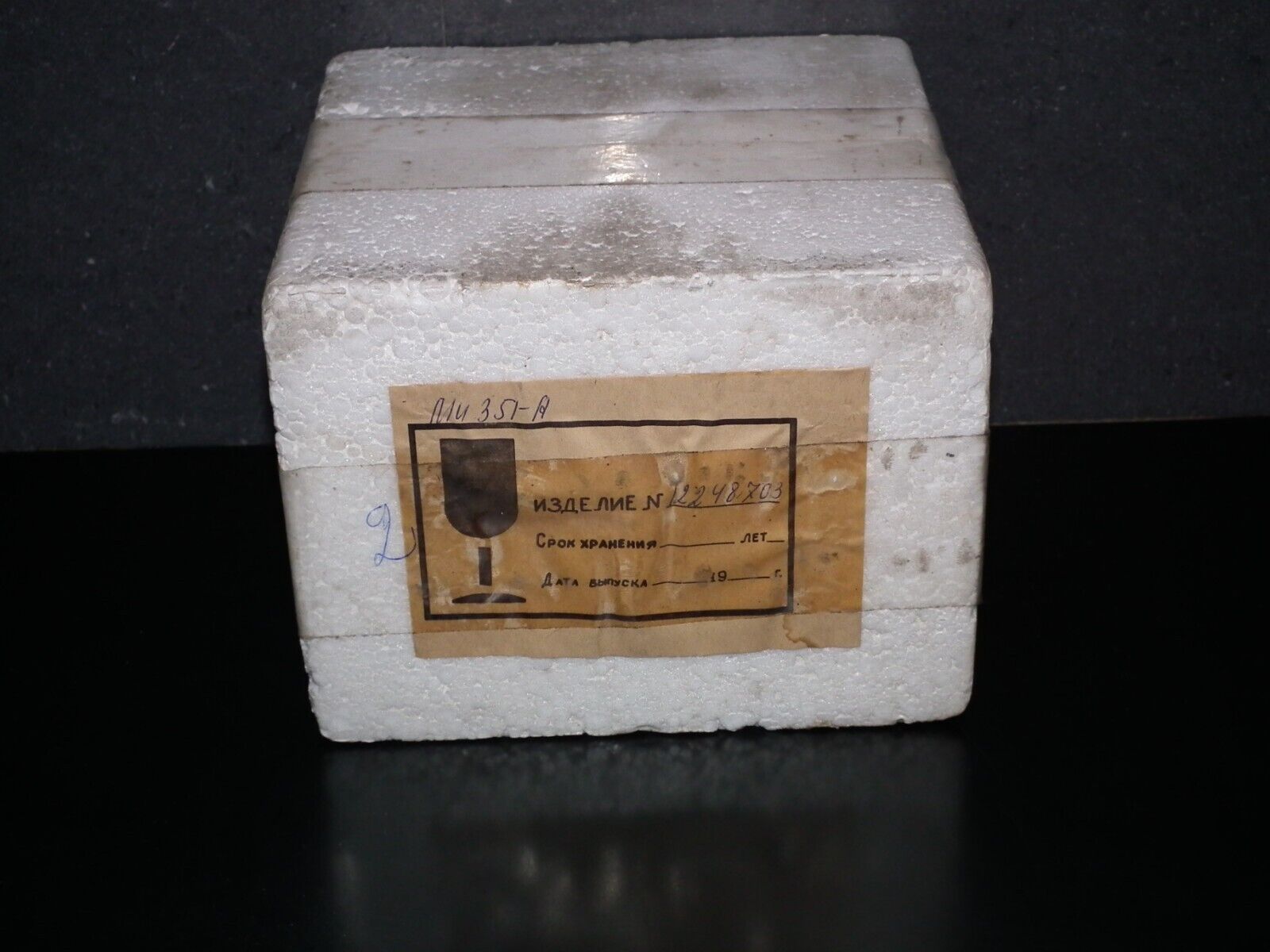

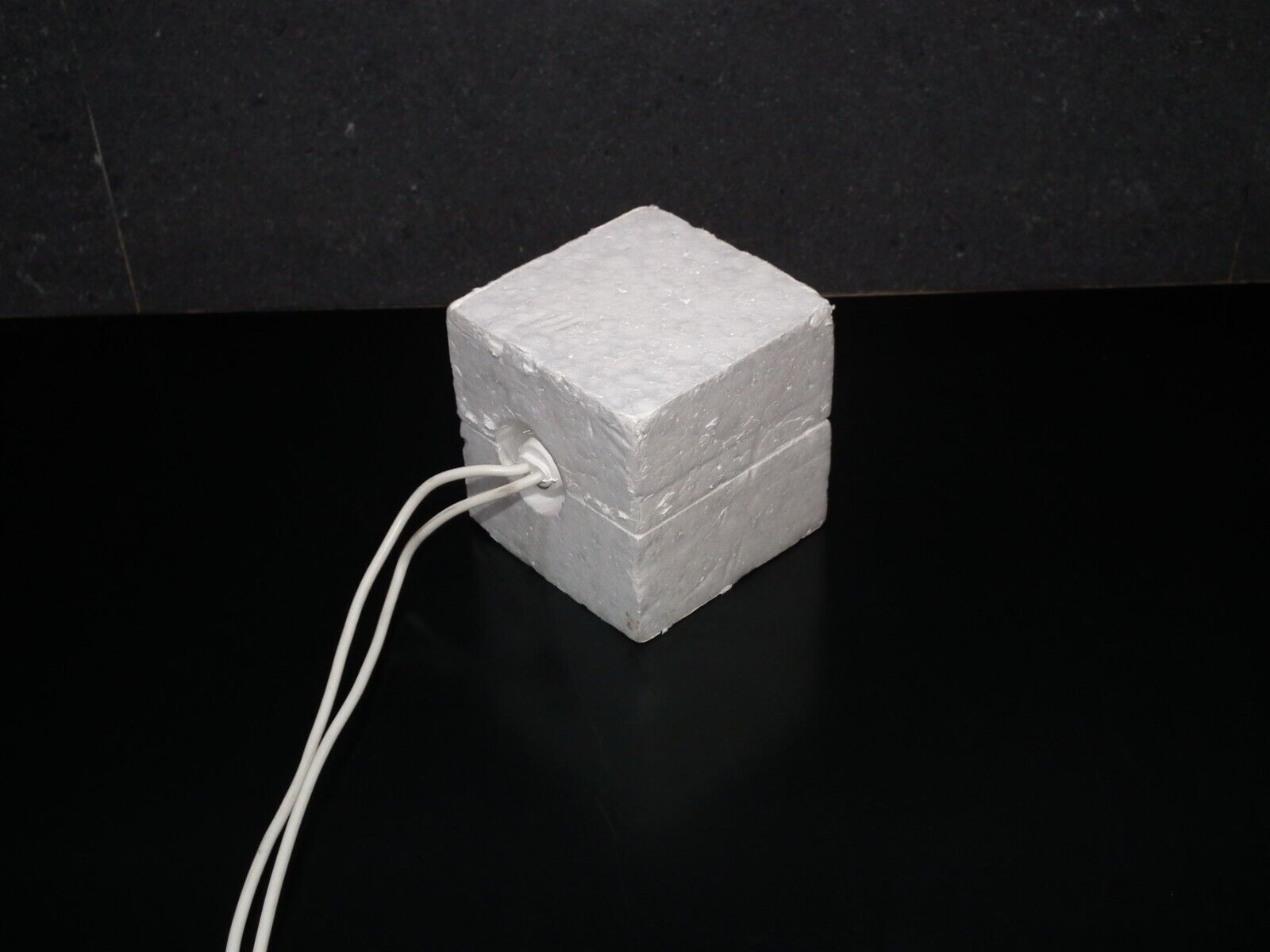

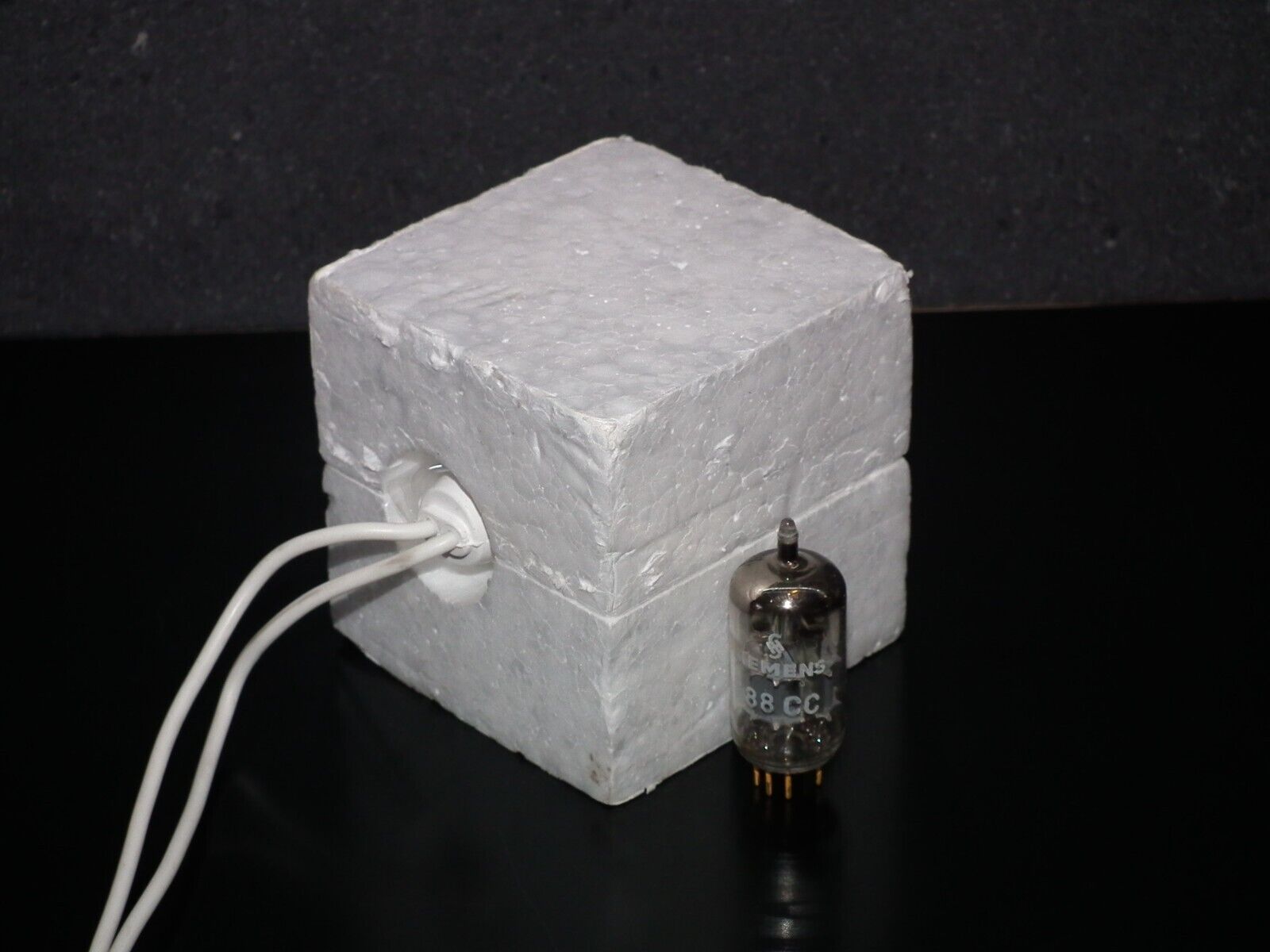

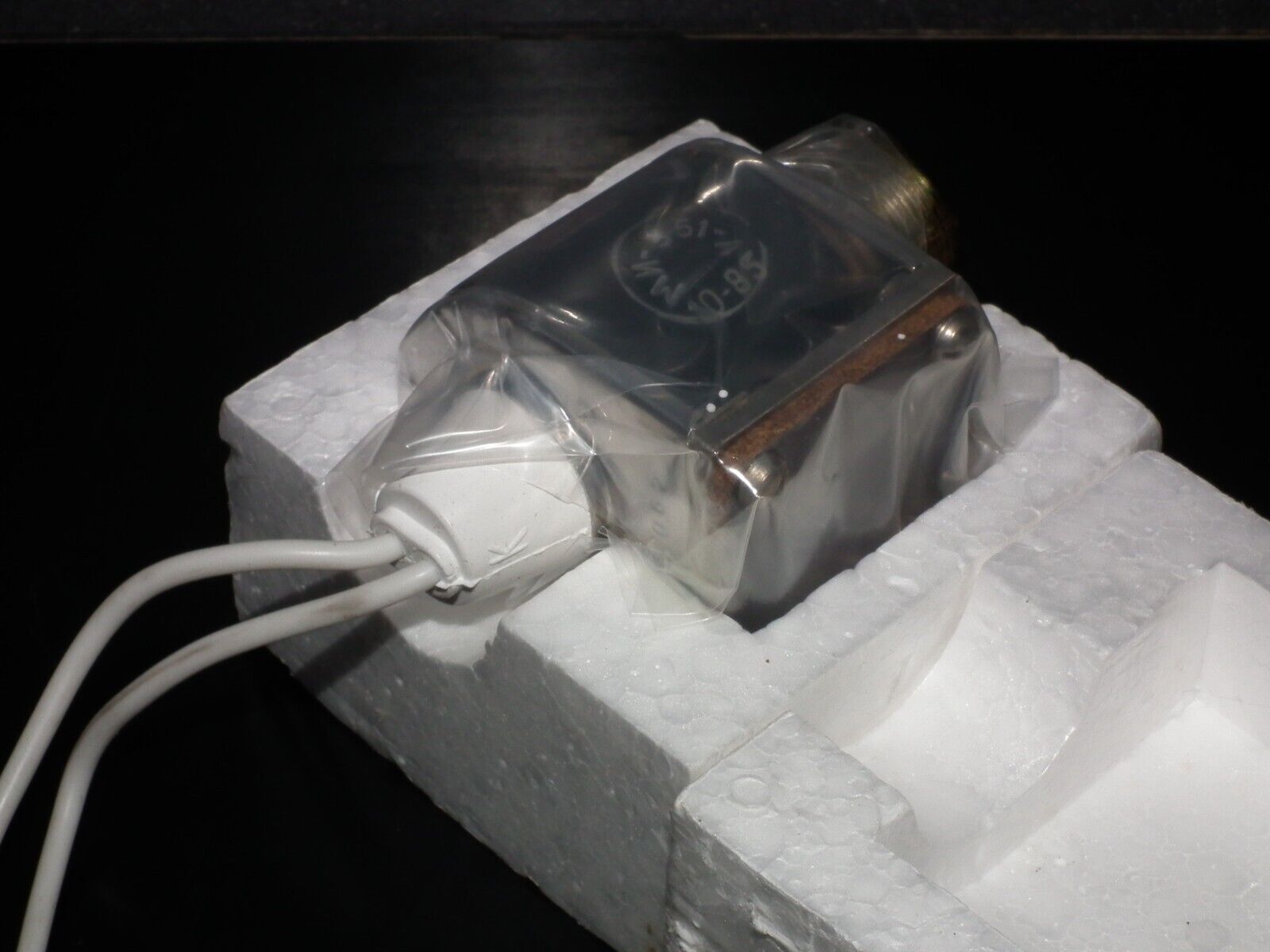

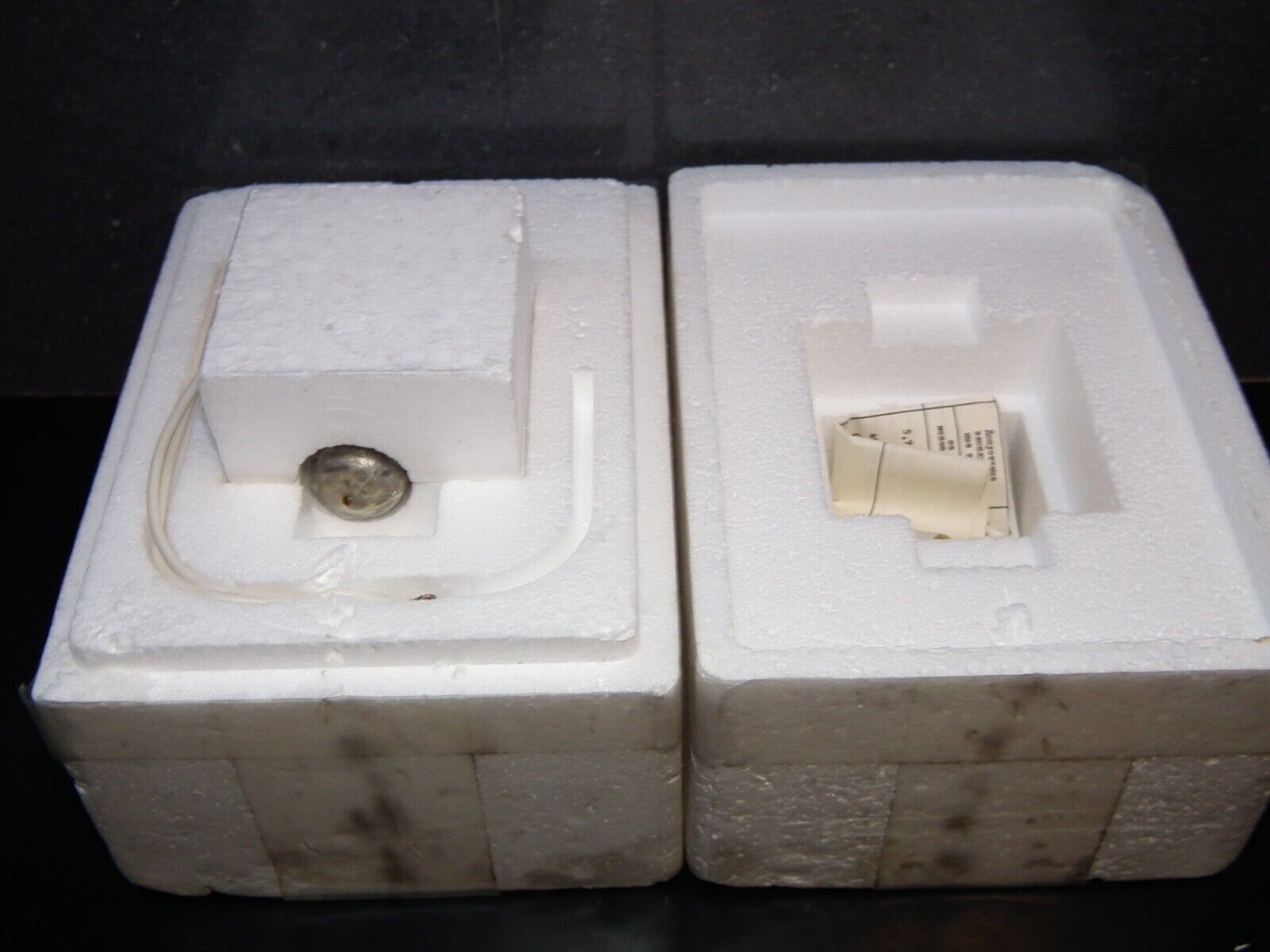

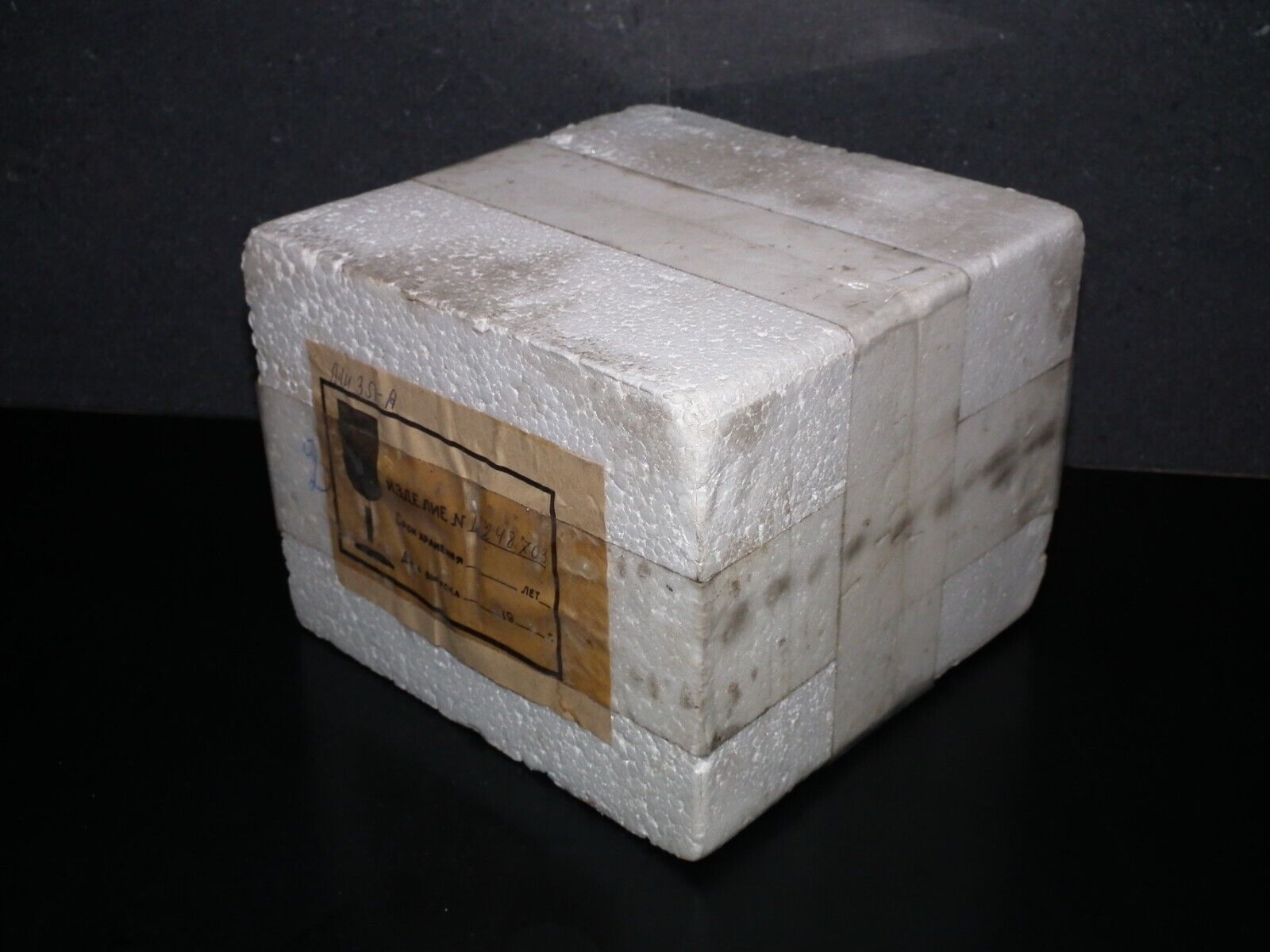

It's NEW OLS STOCK, never used item in original styrofoam box. We sell it "as is", no returns. What you see is what you get.
