Ducati
Ducati variable capacitor NOS SINGLE GANG HIGH ACCURACY for stable VFO and linea
Ducati variable capacitor NOS SINGLE GANG HIGH ACCURACY for stable VFO and linea
Regular price
€41,99
Regular price
Sale price
€41,99
Unit price
/
per
Tax included.
Couldn't load pickup availability
Brand: Ducati
One (1) NOS vintage hi quality DUCATI EC3201 variable capacitor, 250 pF, ideal for tube type transmitters, made back in 70s by Ducati, from NOS military stock.
With shaft! On some photos is shown without shaft, but shaft is also included.

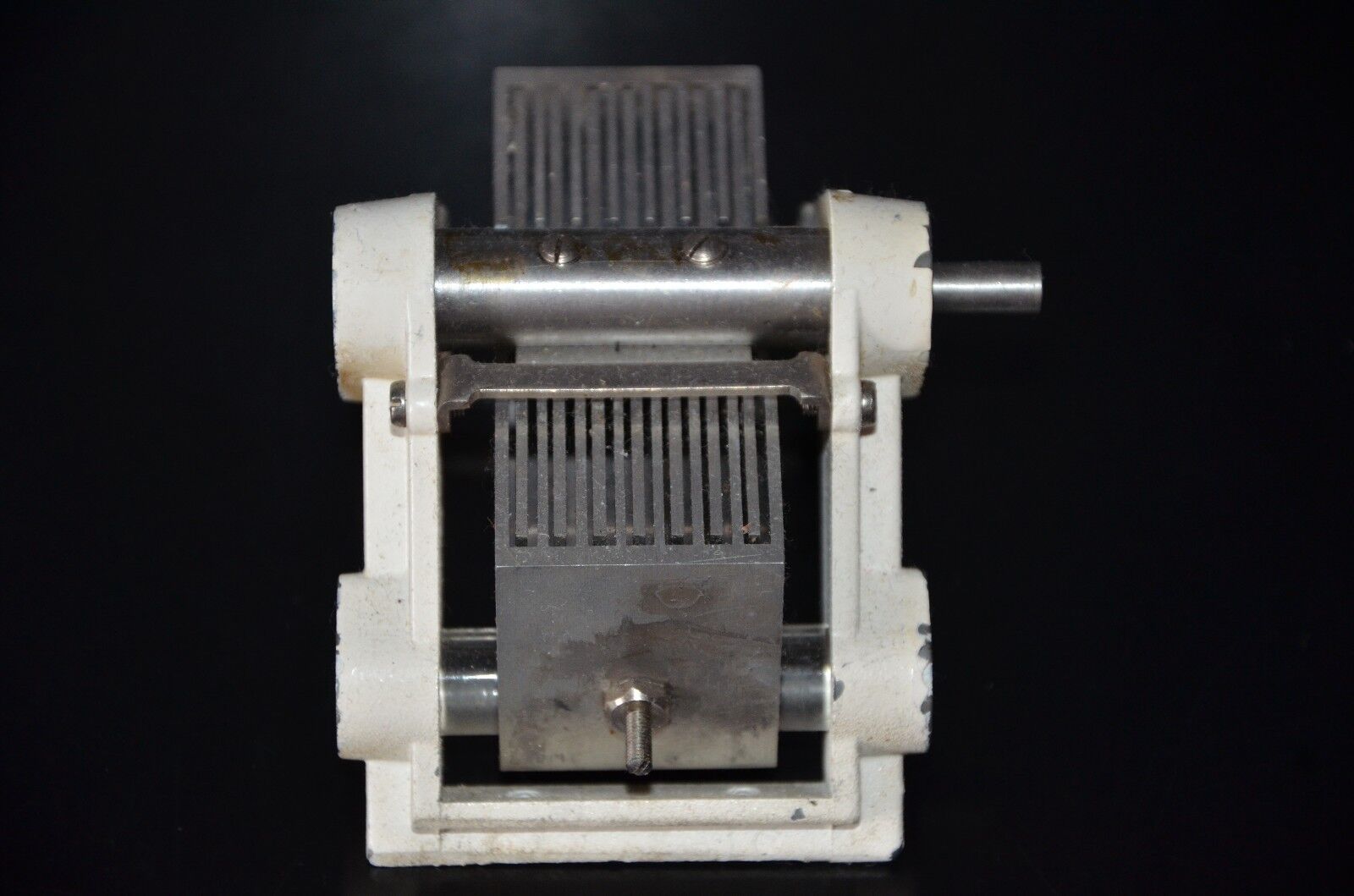

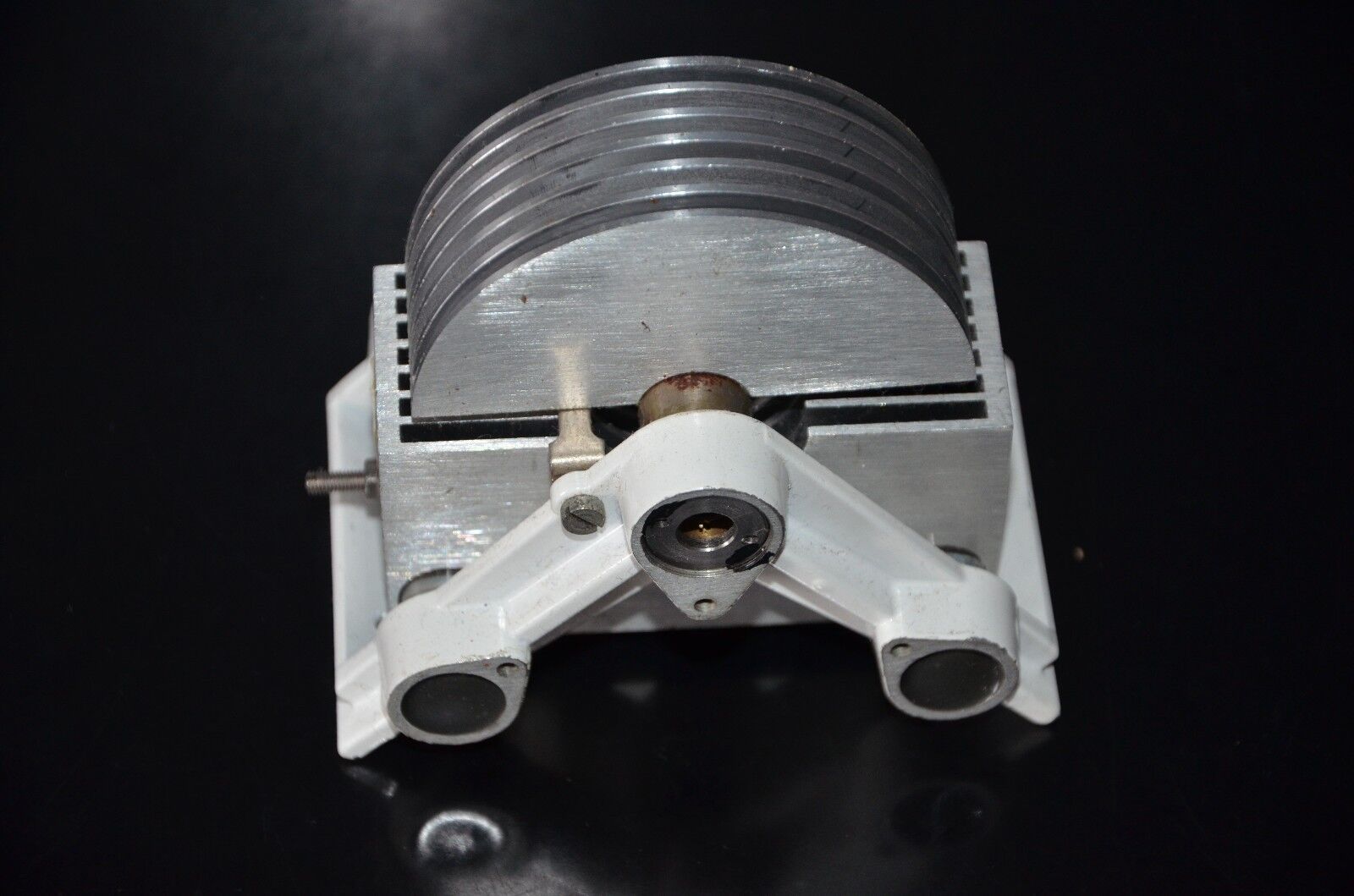

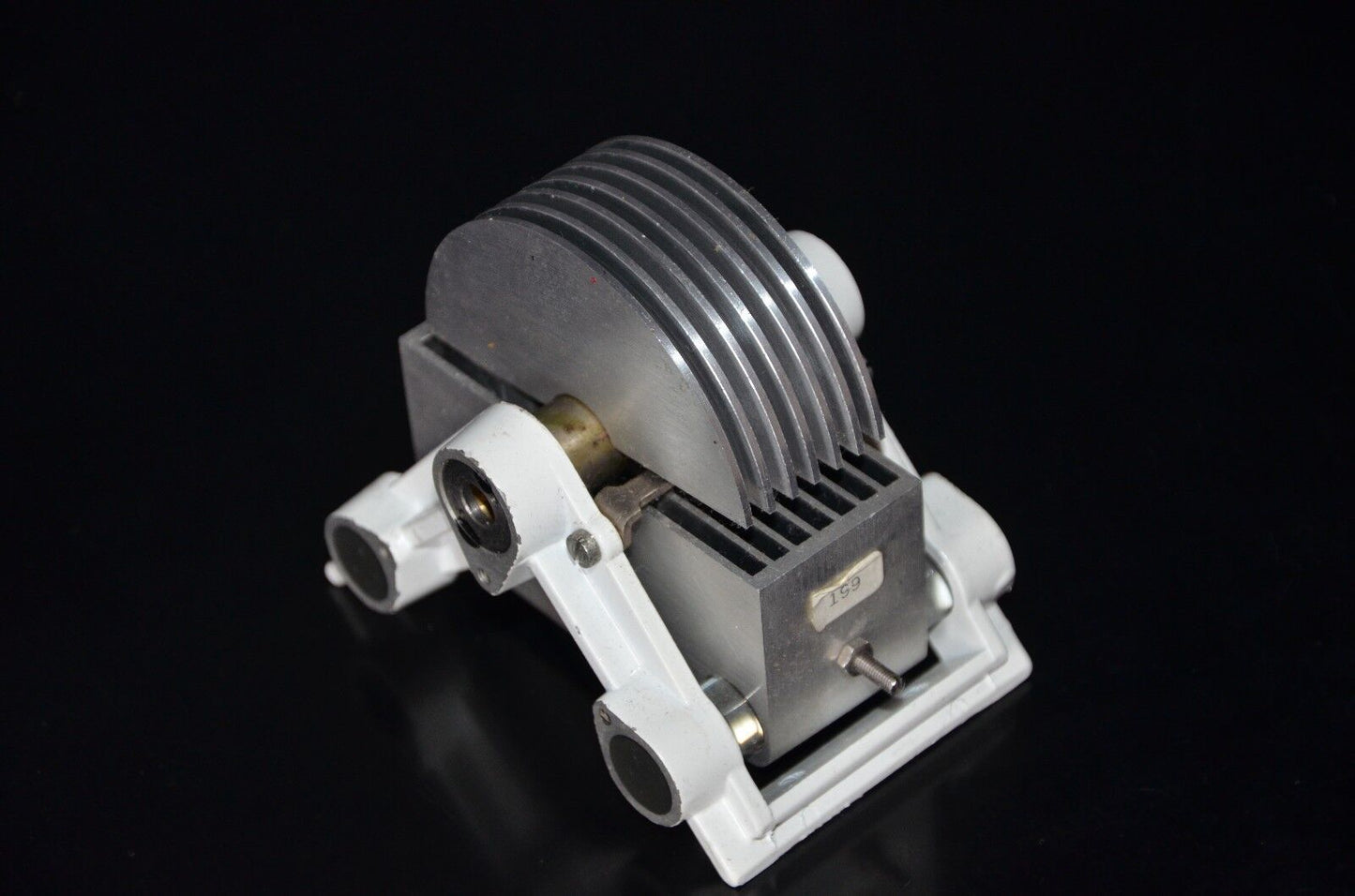

This auction is for a single Italian made DUCATI variable capacitor, model EC 3201. It is rated at 6 to 250 pF, 1500 V. It is a high quality capacitor of which the stator and rotor sections are each a single block of machined aluminium. The stator hangs on four glass insulators and the rotor is on ball-bearings. The frame is white painted cast aluminium. All this is done to achieve the high accuracy needed for its purpose which is to be the main variable capacitor in VFO. It is a new and unused spare part for a vintage italian military HF transceiver. However, it can be used in various other applications, including linear amplifiers. Dimensions are 90 x 60 x 60 mm (approx.). As pictured.
I collect tubes and tube gear for more then 30 years and I start to sell recently, please be sure to check my other items and visit my store for more rare NOS tubes and parts.
I have more than 200000 NOS tubes in stock and just small part is listed here, if you are interested in any specific tube or part, please send me message.
If you buy any item on ebay from me and for if you are not fully satisfied for any reason or have any complains, please send me message before leaving negative or neutral feedback or opening a case. I really do care about your satisfaction and I’ll do my best to solve any kind of problem.
