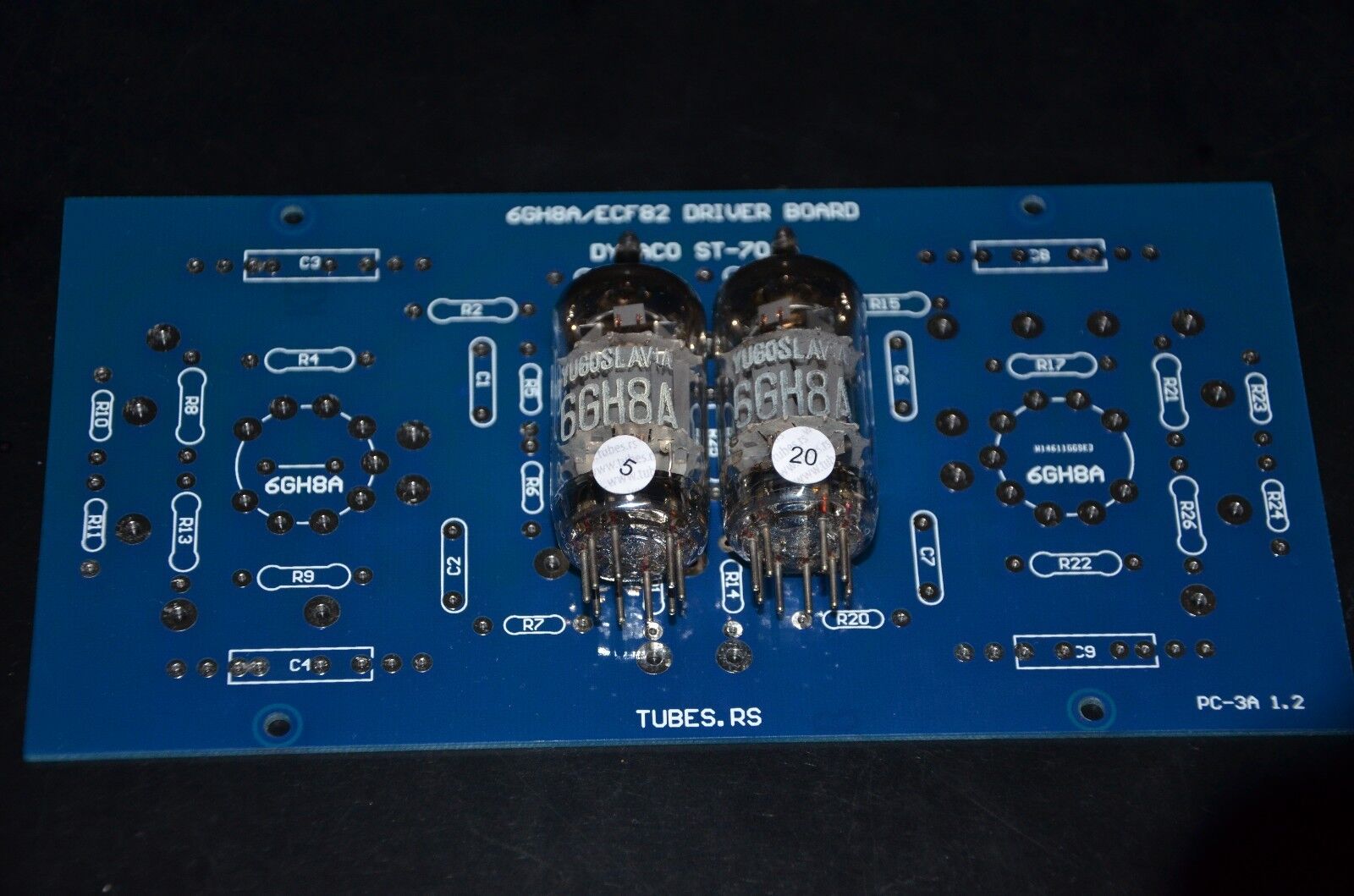

DYNACO ST-70 6GH8A / 6GH8 PC-3 DRIVER BOARD PCB

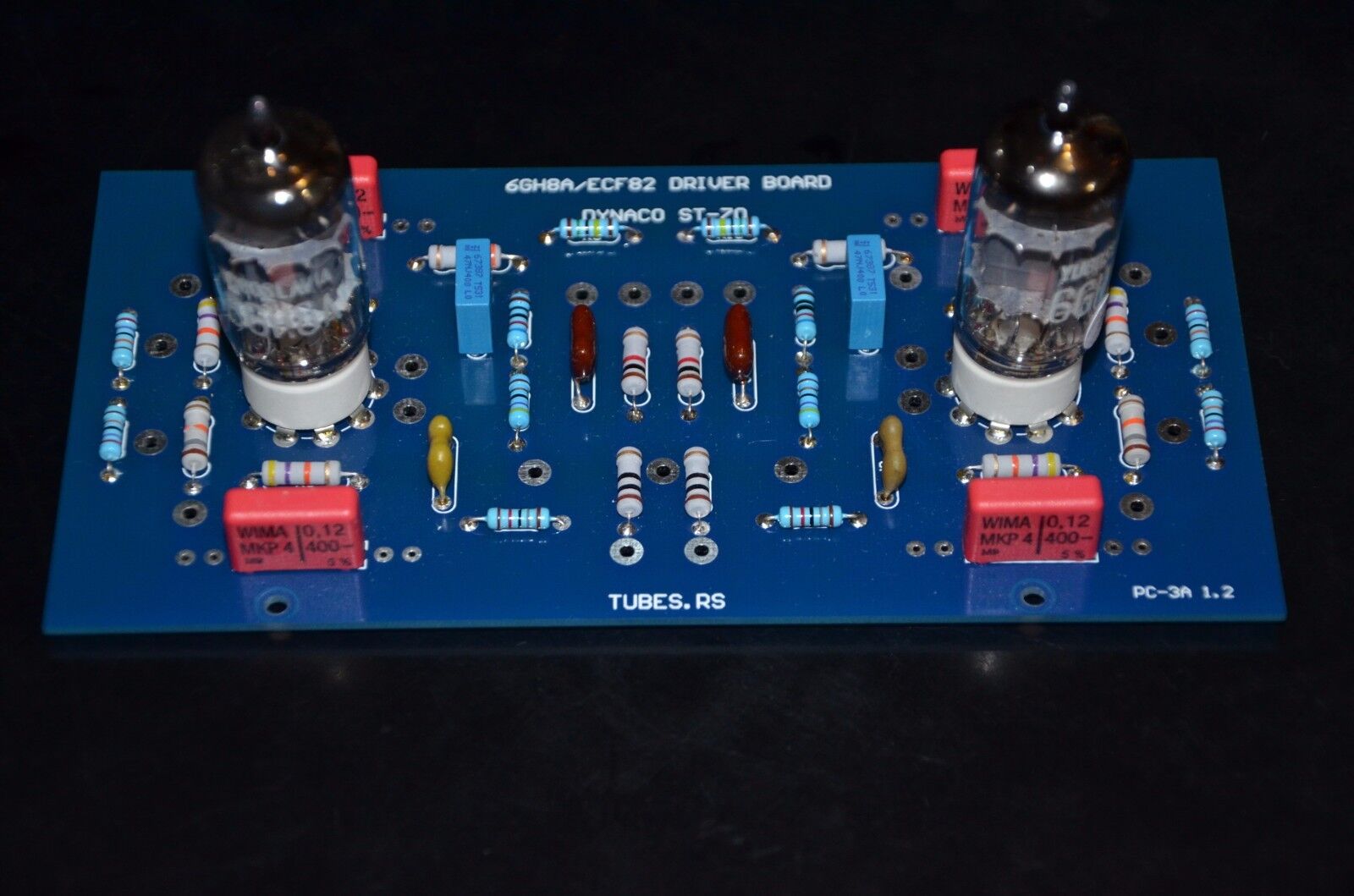

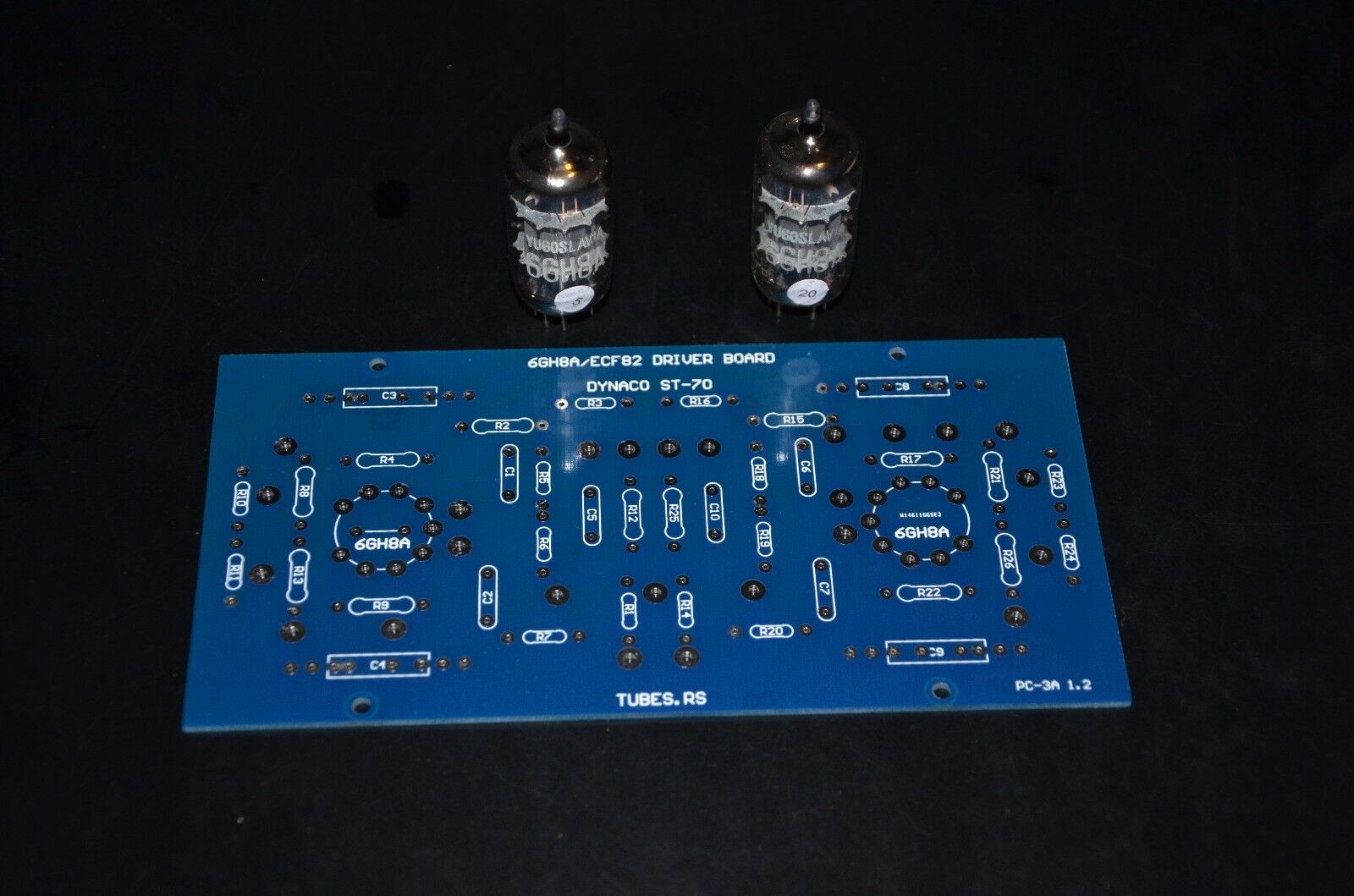

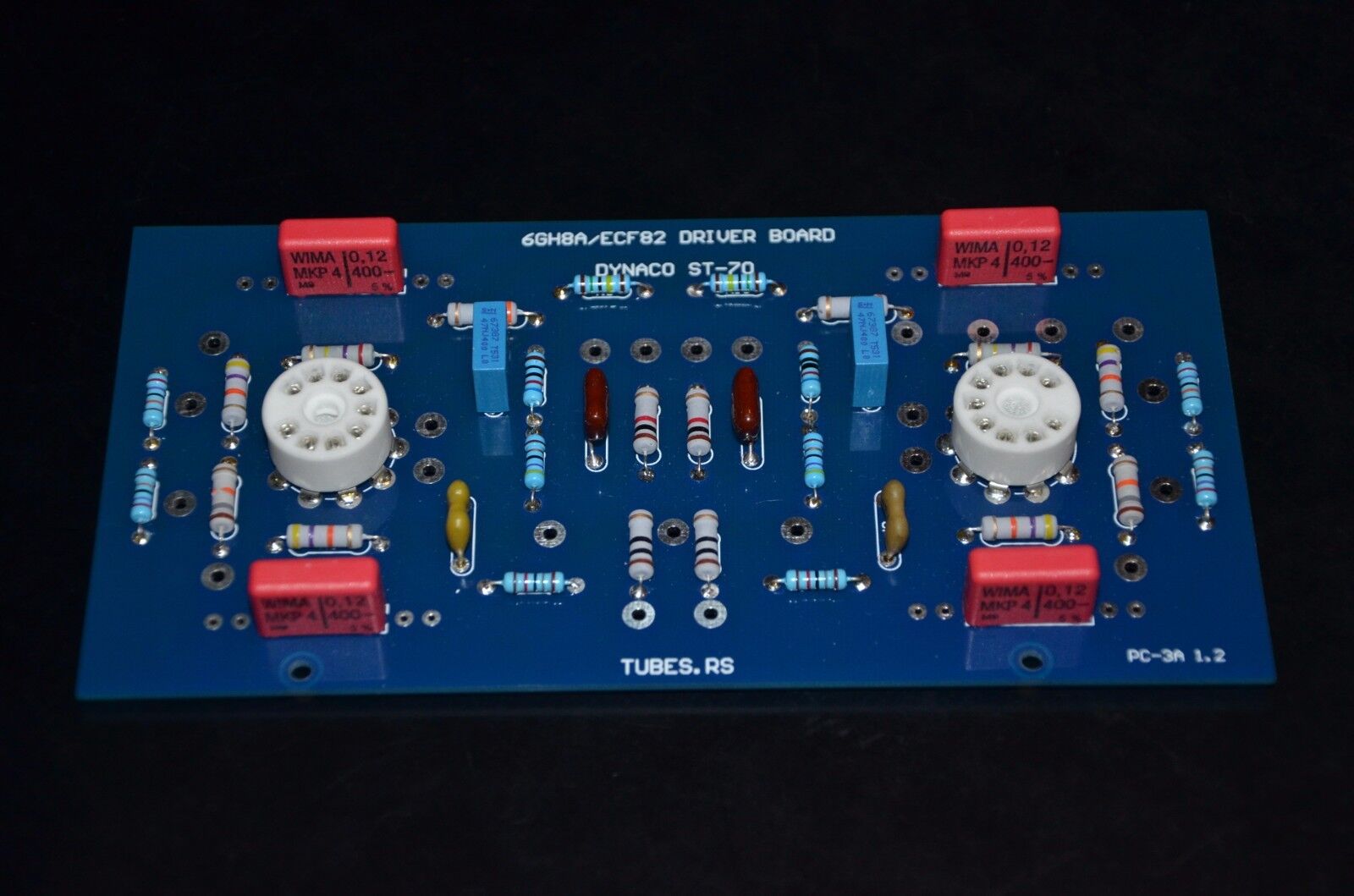

This is Dynaco ST-70 driver board PC-3. It’s developed and designed to be drop in replacement and it follows original wire hole layout, but it’s modified to use widely available and better sounding 6GH8 / 6GH8A / 6KD8 / ECF82 tubes instead of obsolete and hard to find 7199 tubes.  You can find many quality NOS tubes of any of these types for normal prices and you can enjoy tube rolling with this driver board.  It’s also modified to accept modern and NOS coupling capacitors of various types and dimensions.

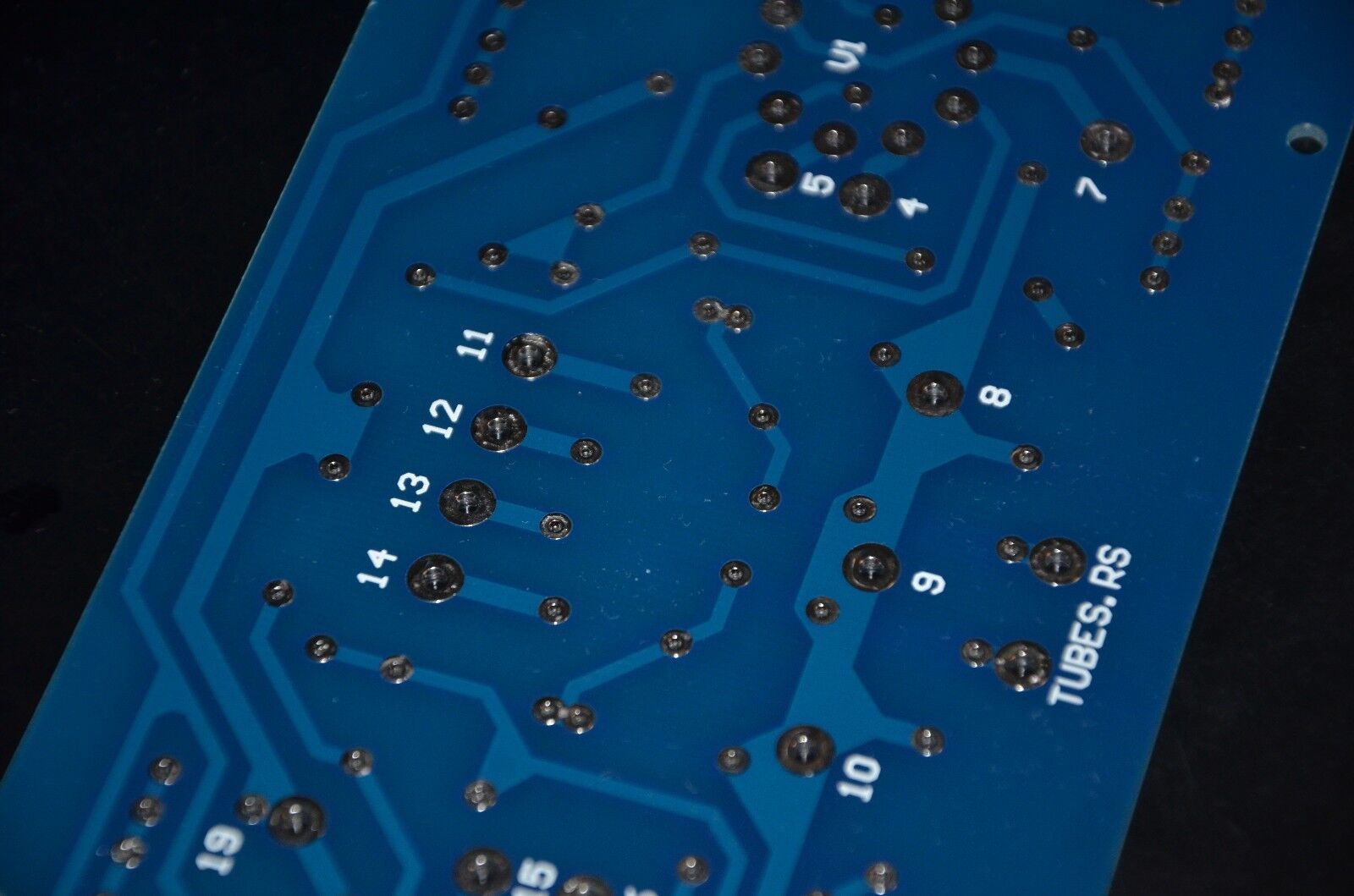

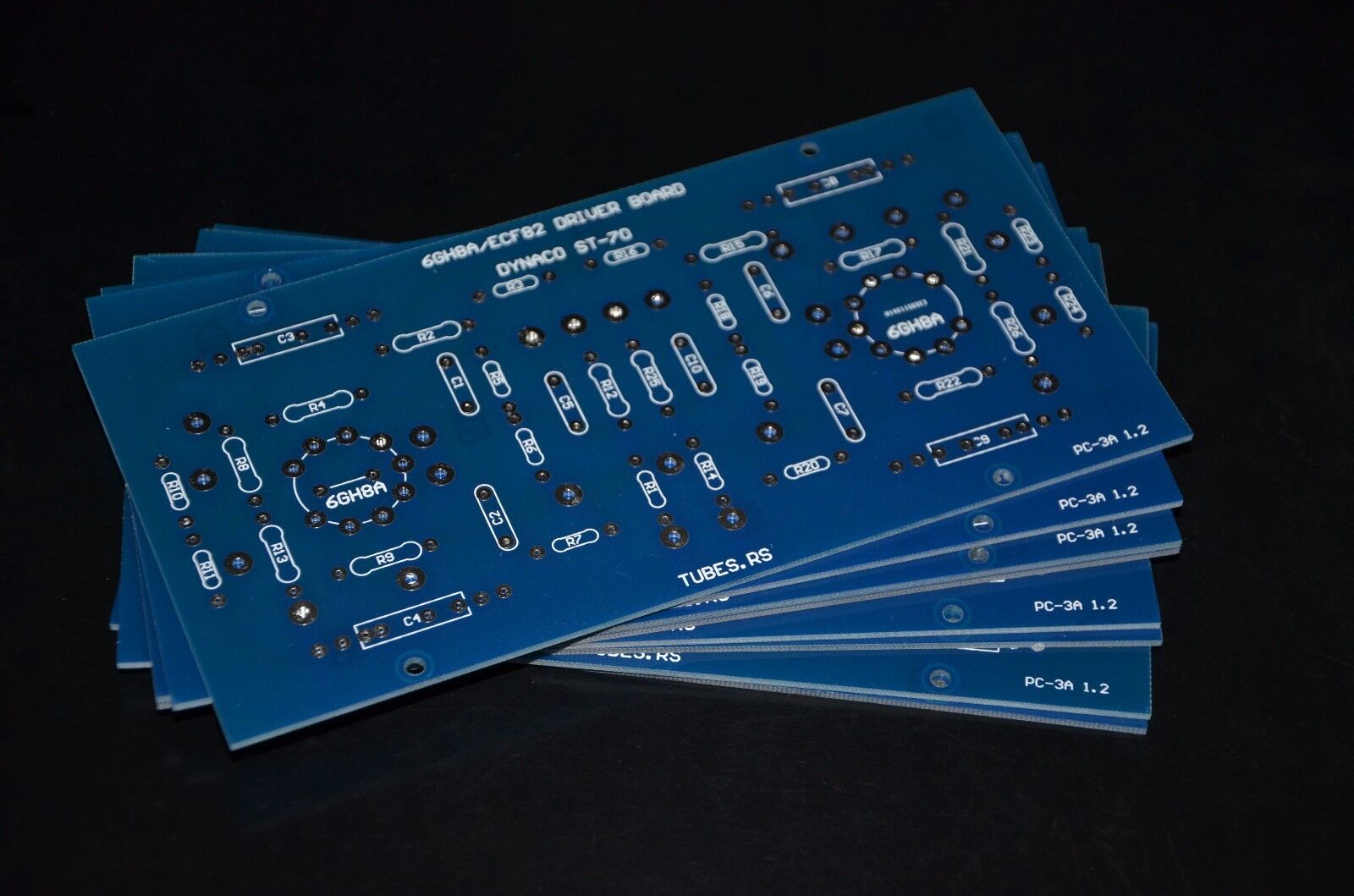

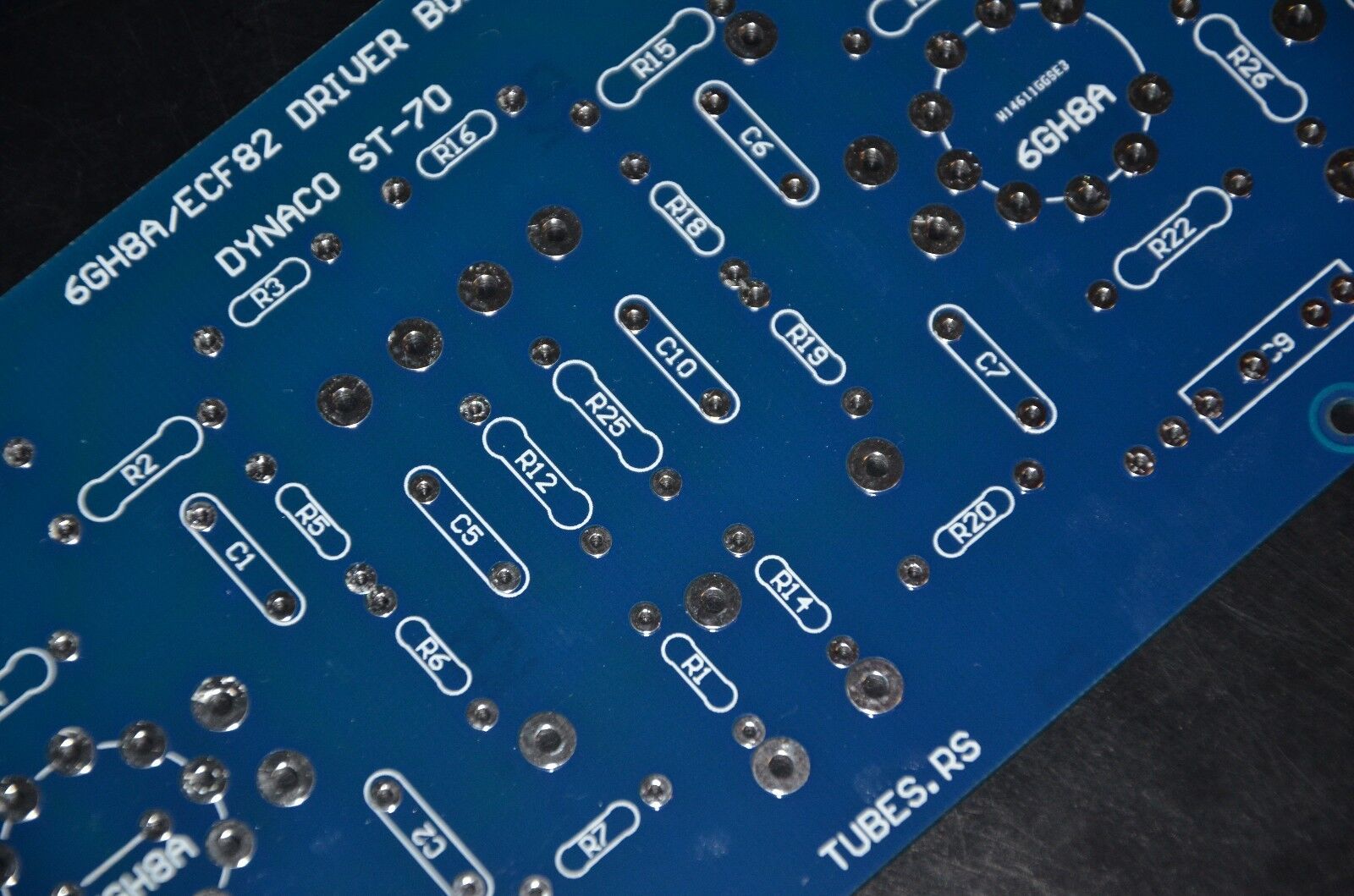

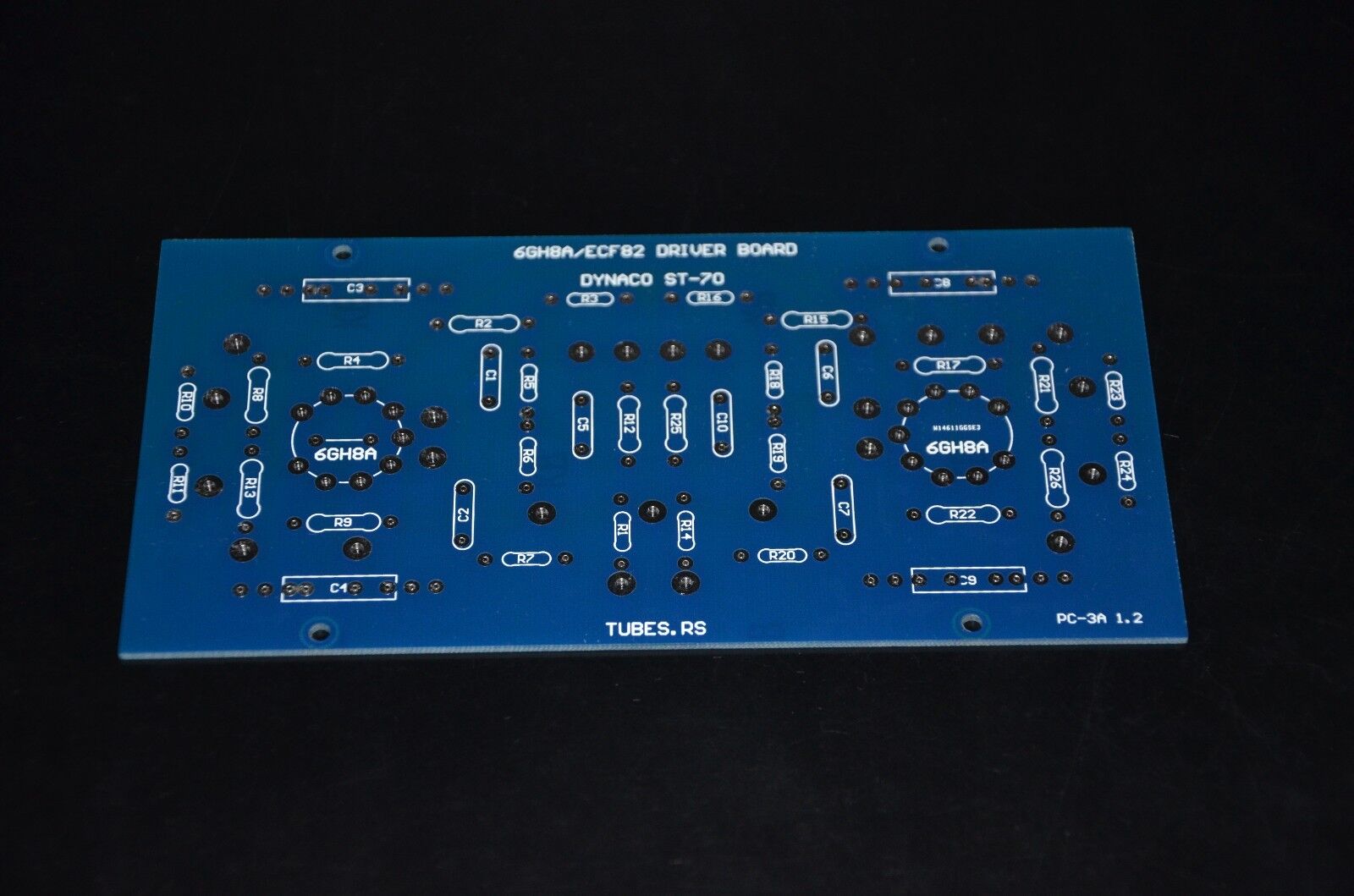

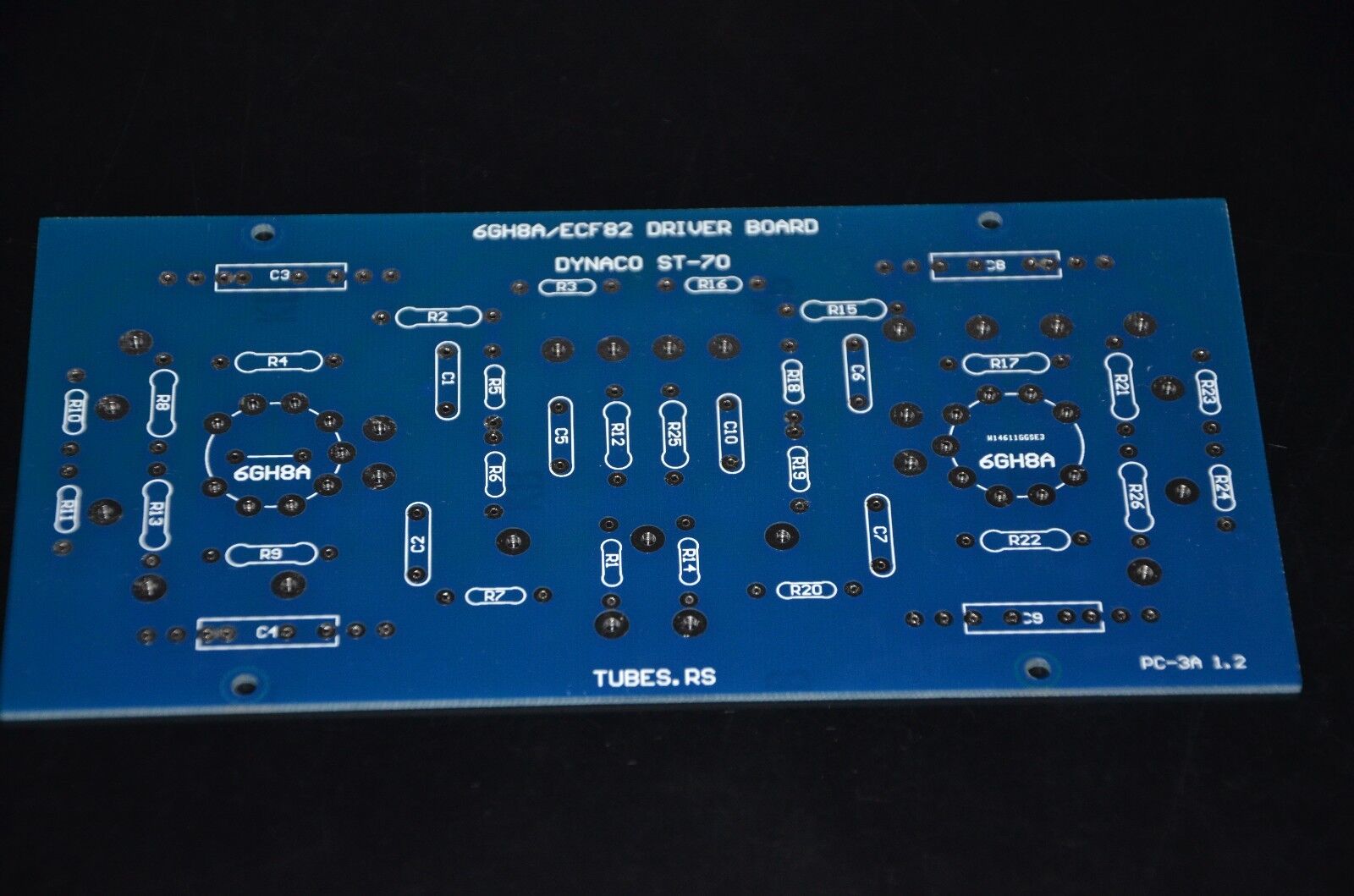

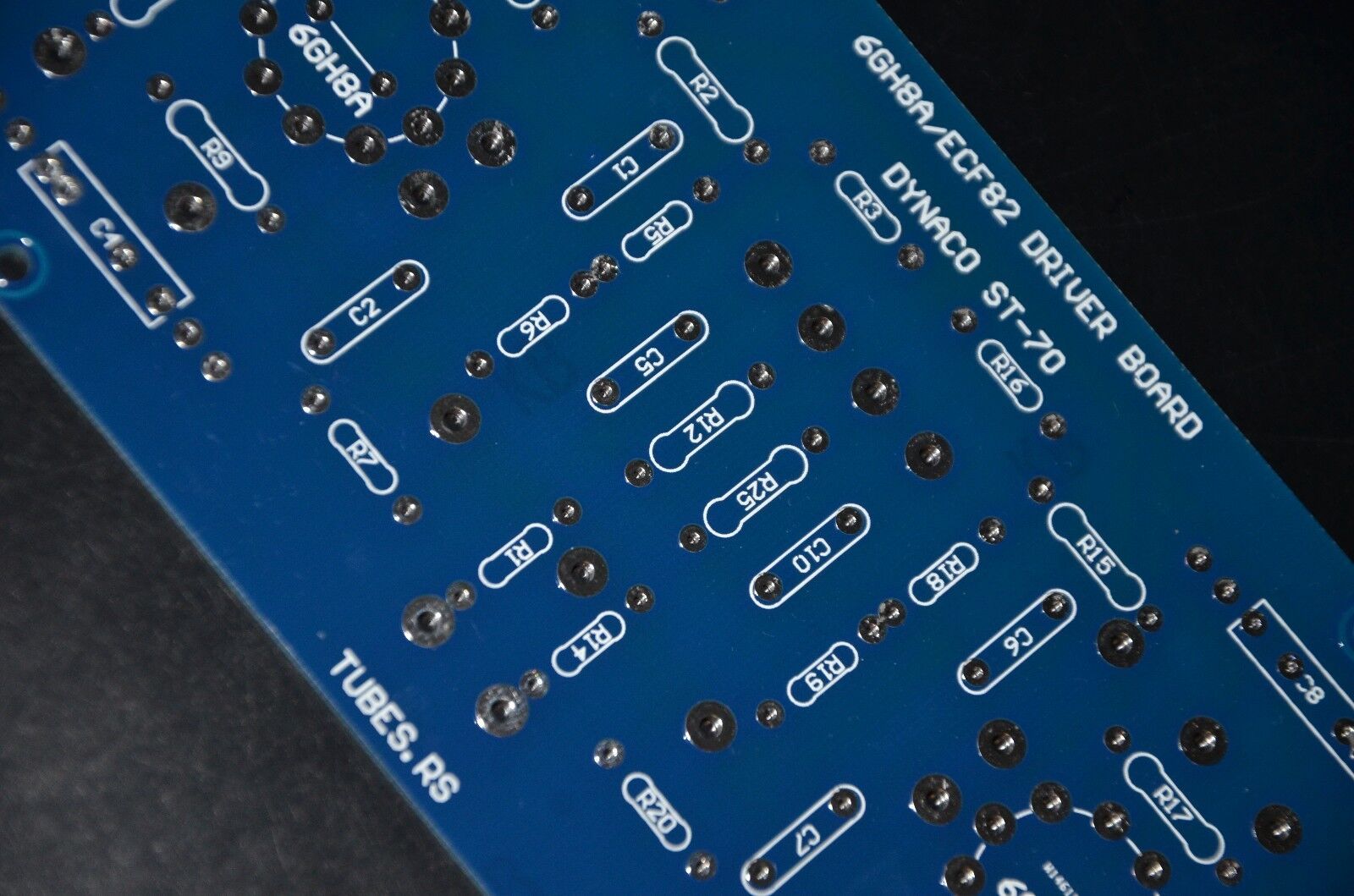

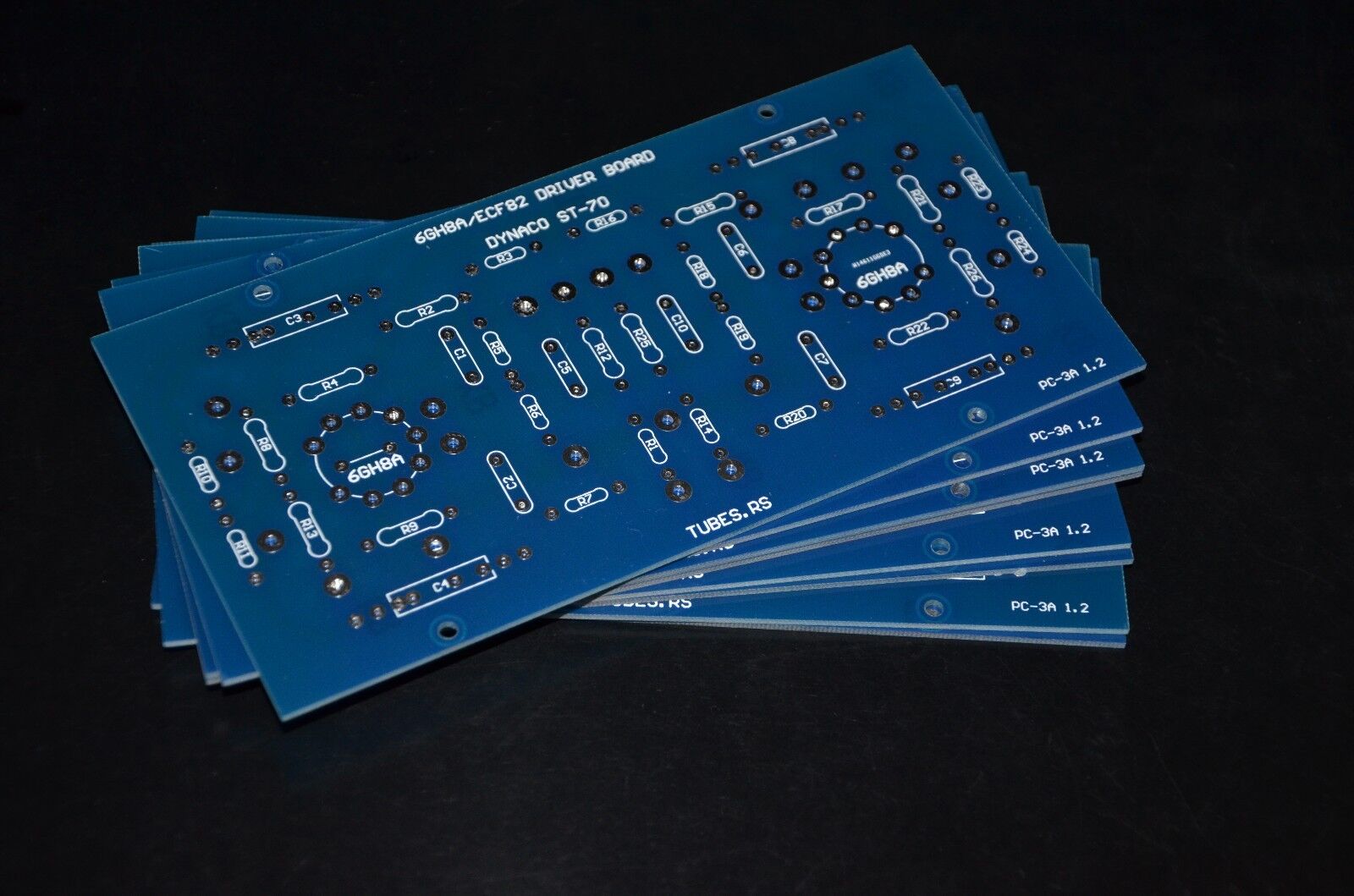

It’s made of hi quality epoxy fiberglass FR4 material 1.6mm (0.062’) thickness, it’s double sided with solder rings on top layer.  Solder reflow process is done on both layers and also inside every hole and blue solder mask is applied on both sides. All connections and elements on the board are silkscreened with original DYNACO numbering, so you can use original DYNACO ST-70 manual to complete it.

DYNACO ST-70 Stereo 70 ST70 - 6GH8A 6GH8 PC-3A DRIVER BOARD PCB

part is listed here, if you are interested in any specific tube or part, please send me message.
