DYNACO ST-70 6GH8A / 6GH8 COMPLETE STUFFED PC-3 DRIVER BOARD (Retro Phenolic Look) WITH TUBES (NOS Platinum matched pair of 6GH8A EI Philips)

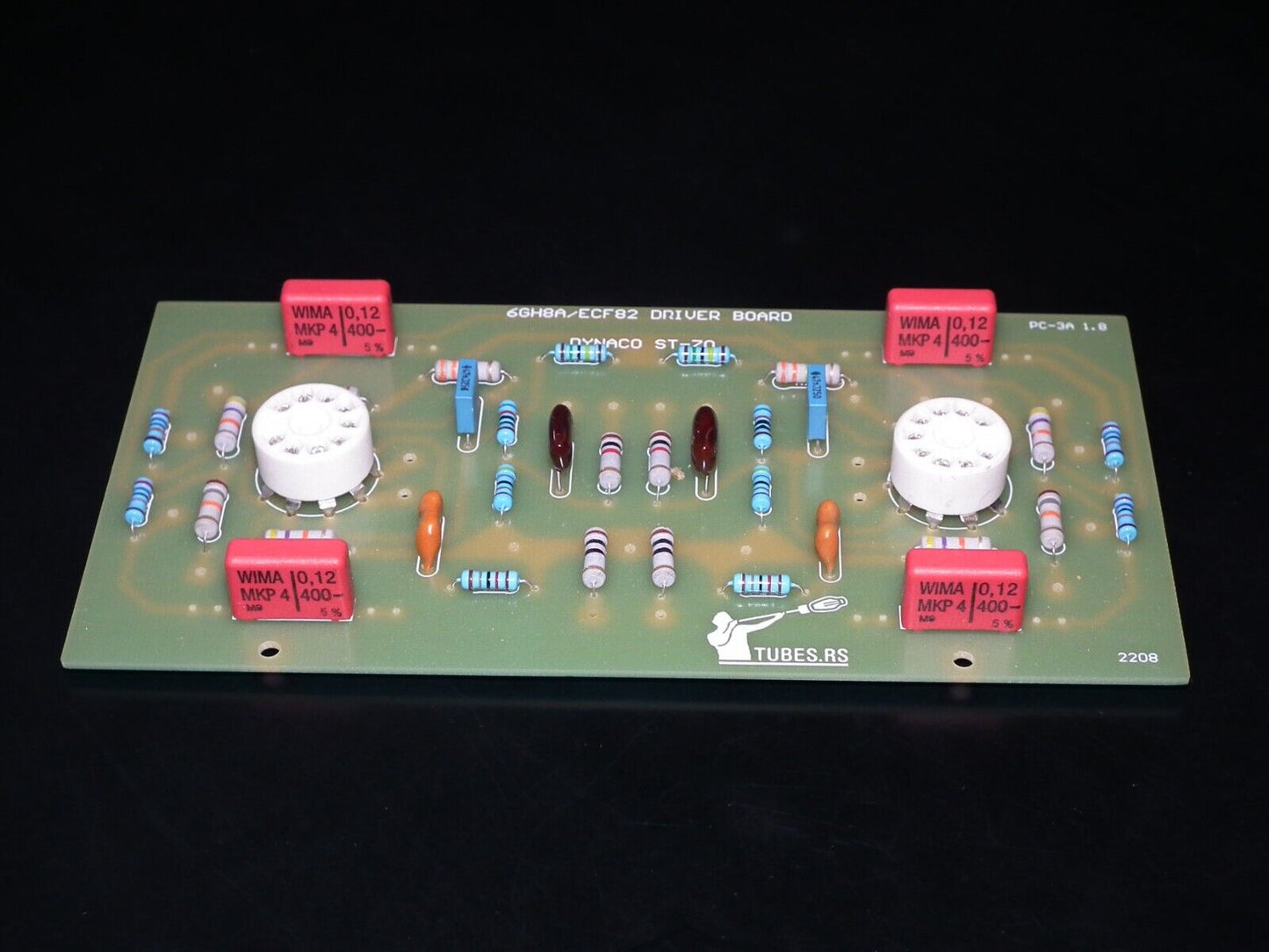

This is Dynaco ST-70 driver board PC-3. It’s developed and designed to be drop in replacement and it follows original wire hole layout, but it’s modified to use widely available 6GH8 / 6GH8A / 6KD8 / ECF82 tubes instead of obsolete and hard to find 7199 tubes.  You can find many quality NOS tubes of any of these types for normal prices and you can enjoy tube rolling with this driver board.  It’s also modified to accept modern and NOS coupling capacitors of various types and dimensions.

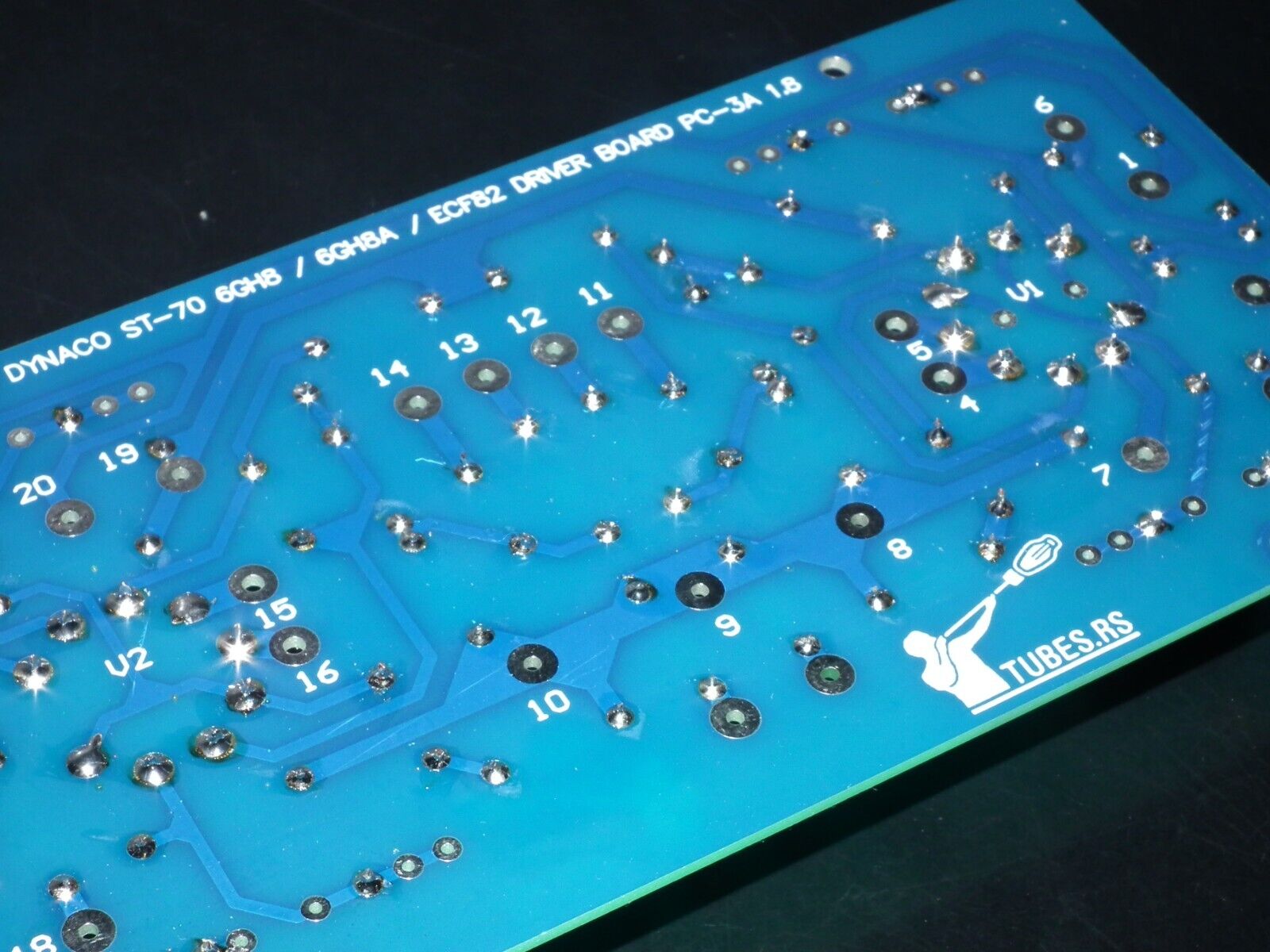

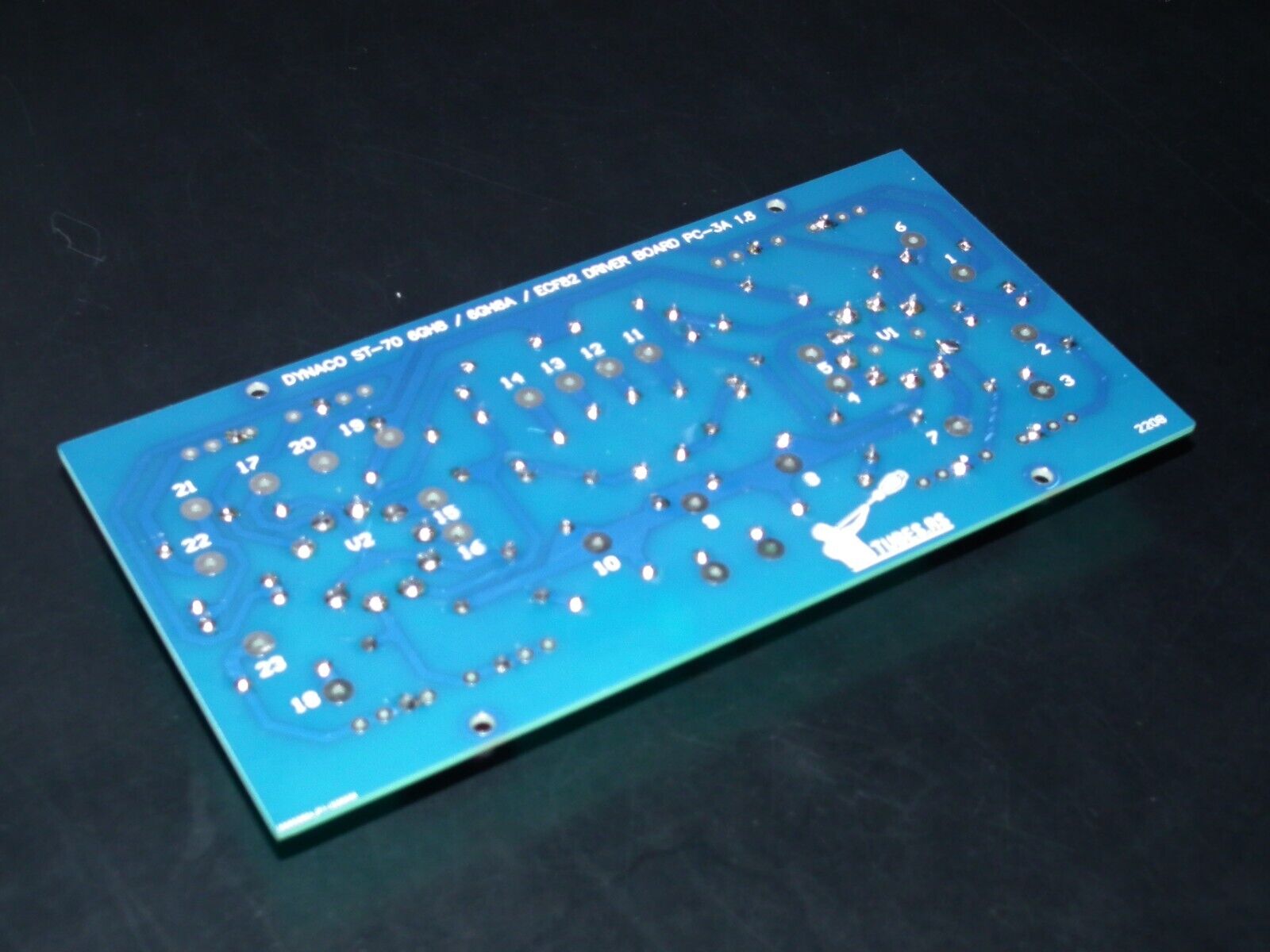

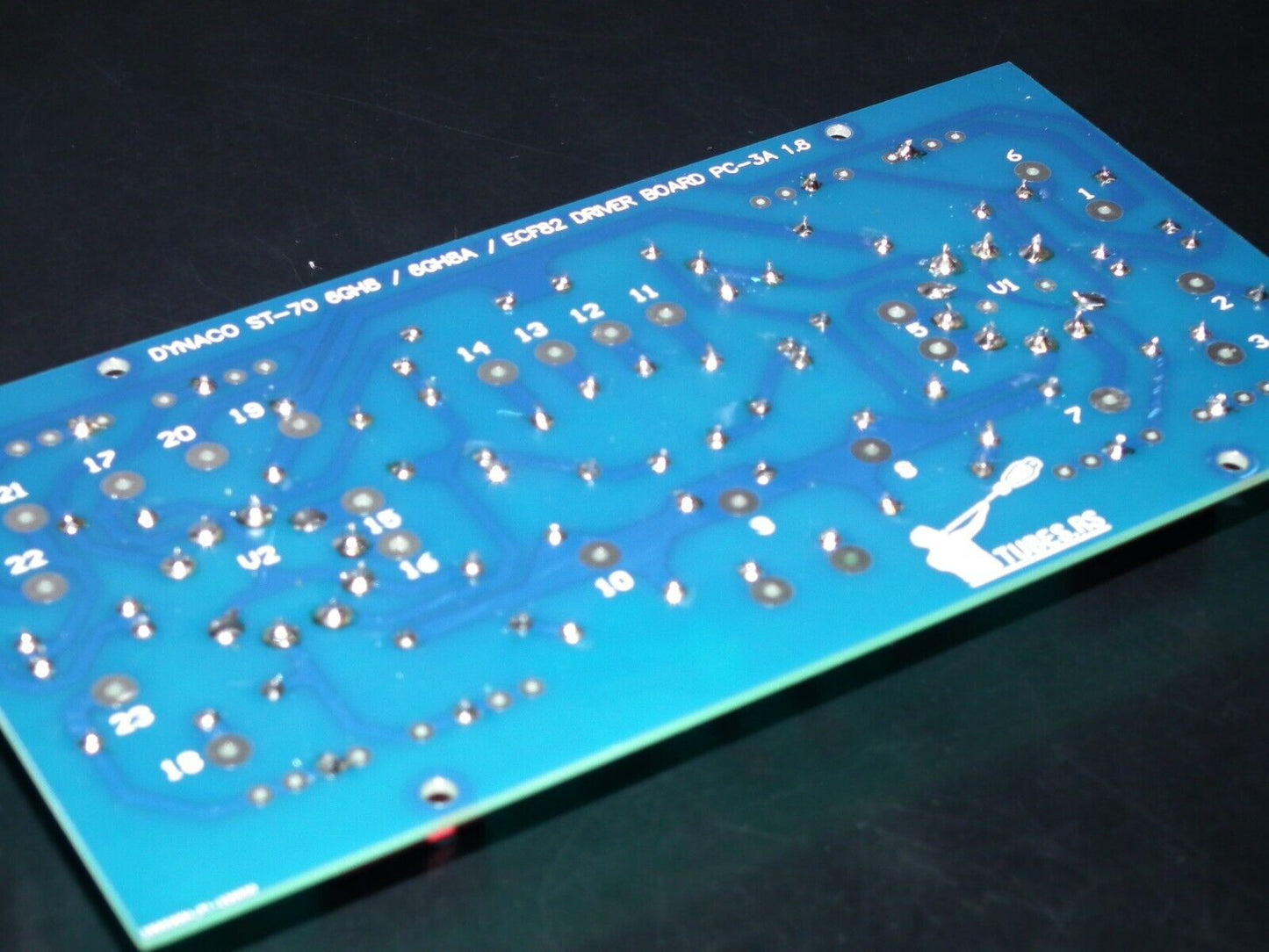

It’s made of hi quality epoxy fiberglass FR4 material 1.6mm (0.062’) thickness, it’s single layer board with solder rings at the bottom layer.  Solder reflow process is done at the bottom layer and blue solder mask is applied at the bottom side. All connections and elements on the board are silkscreened with original DYNACO numbering, so you can use original DYNACO ST-70 manual to complete it or we can provide it.

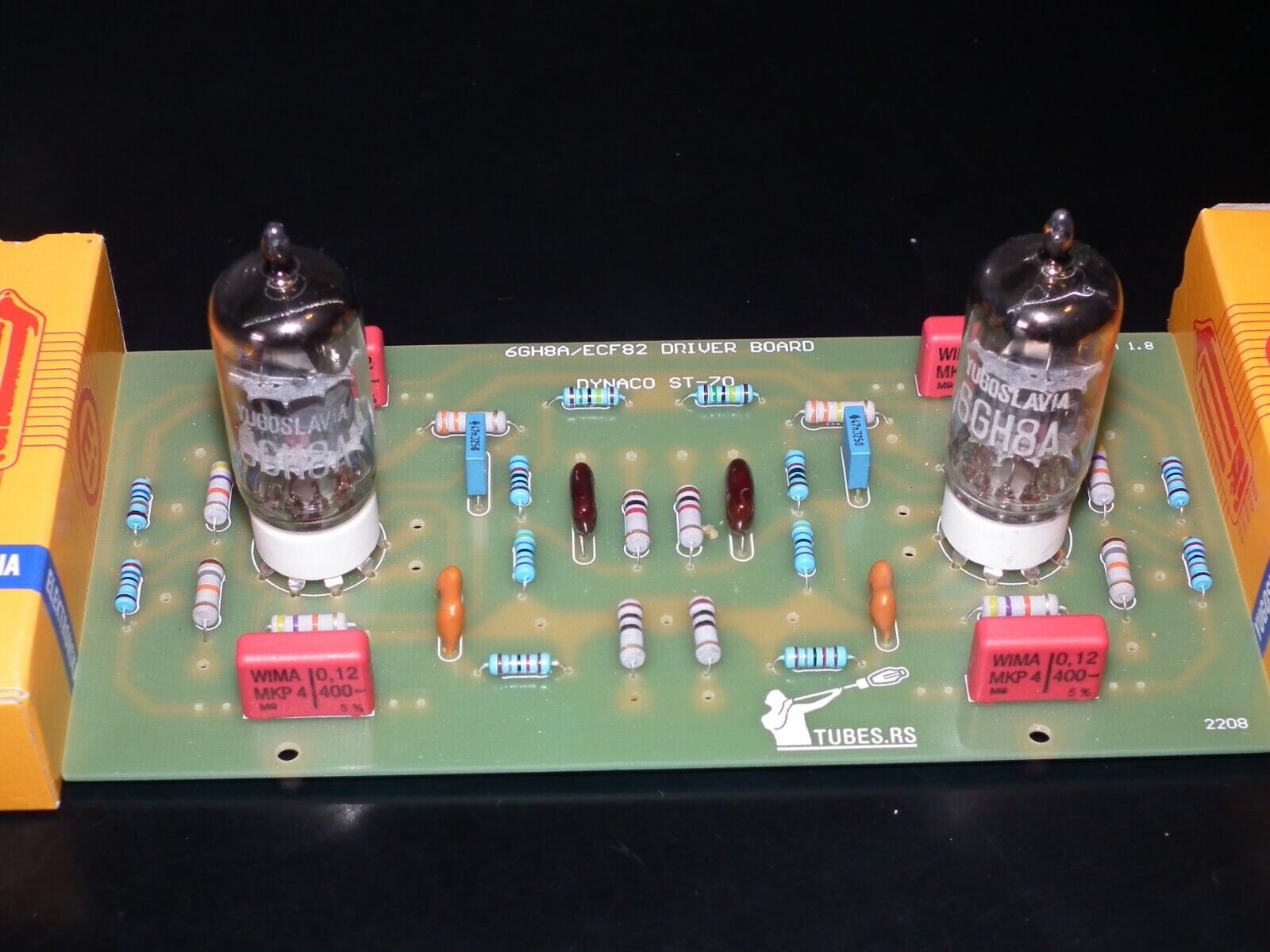

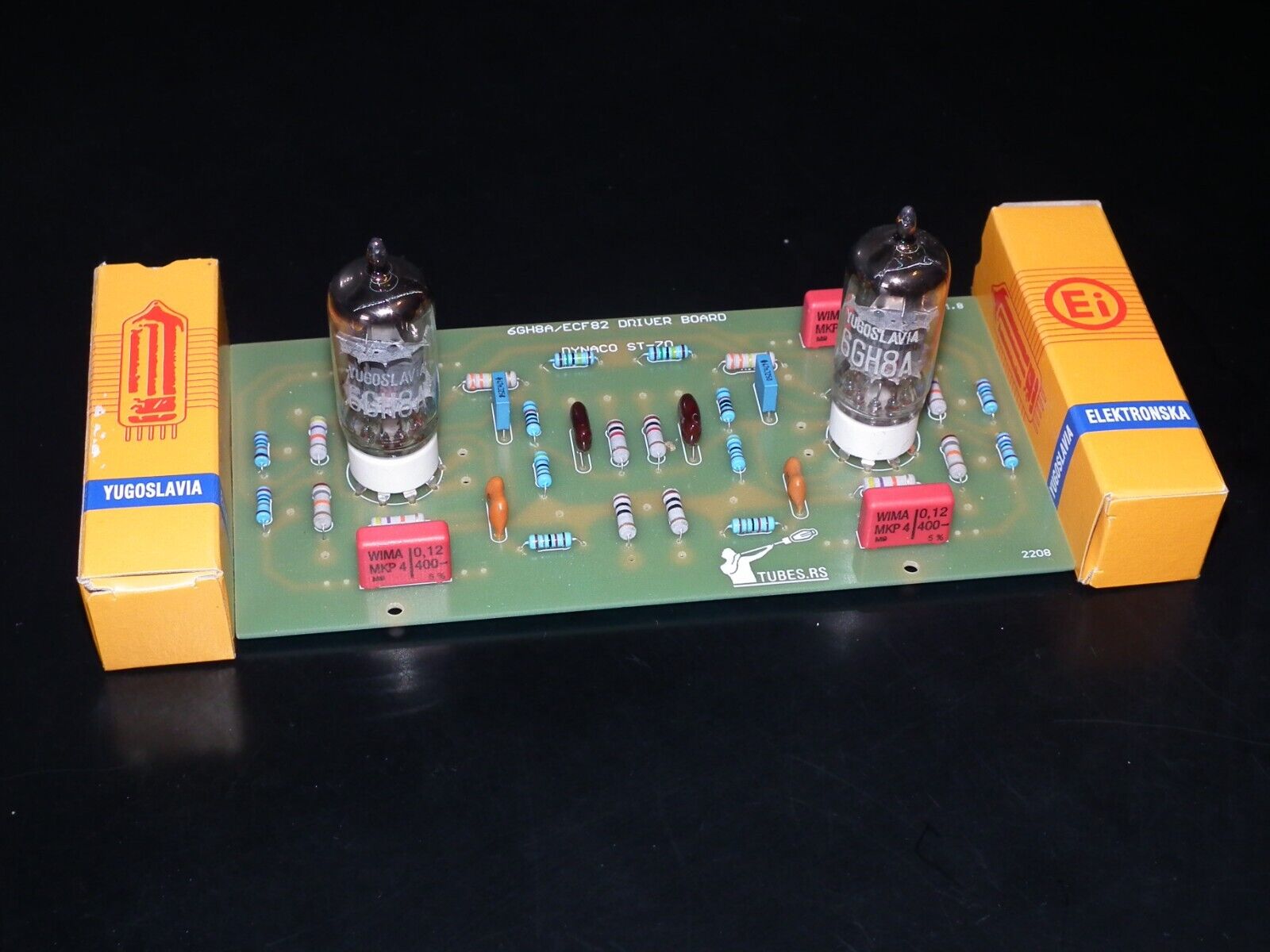

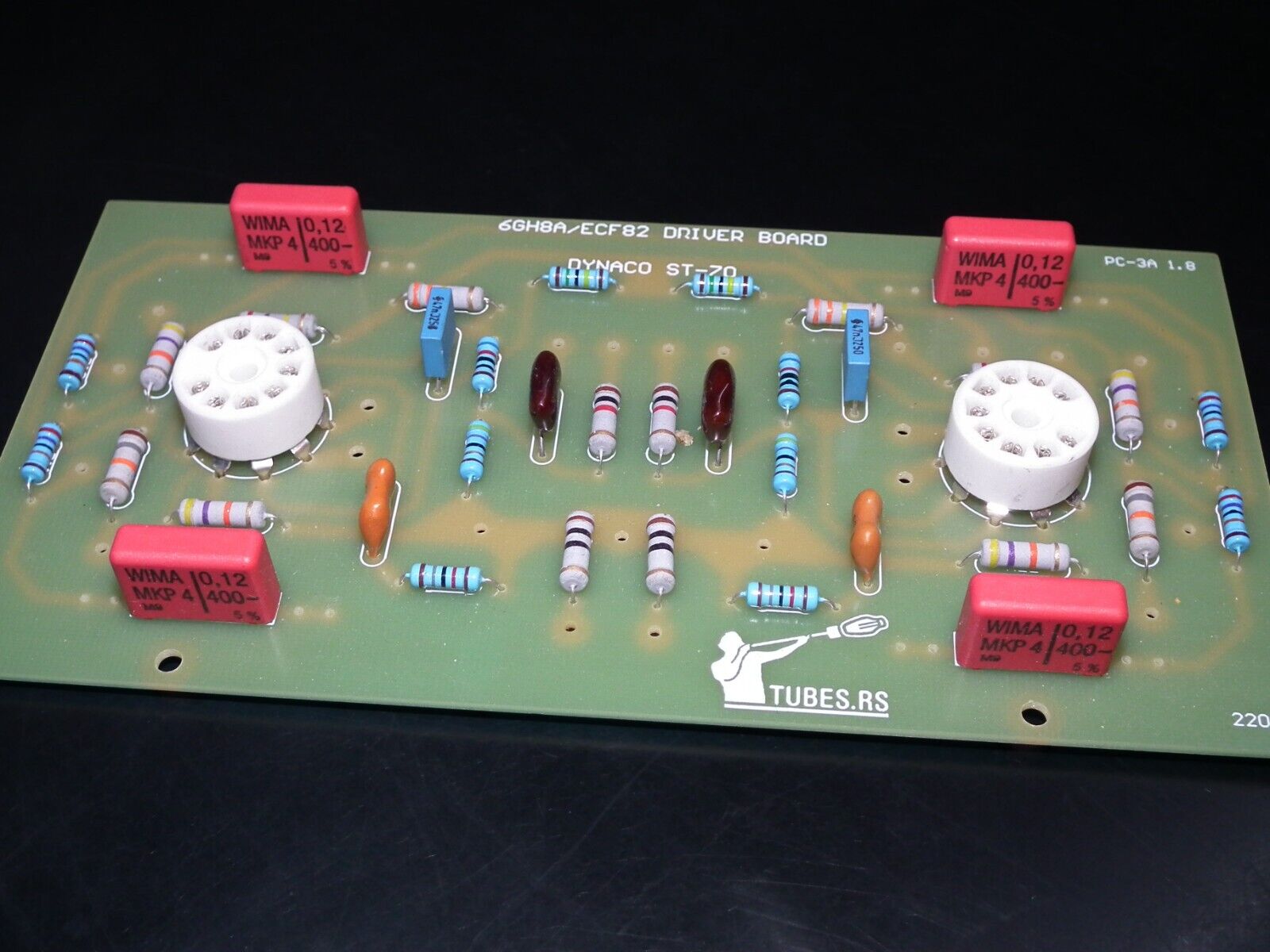

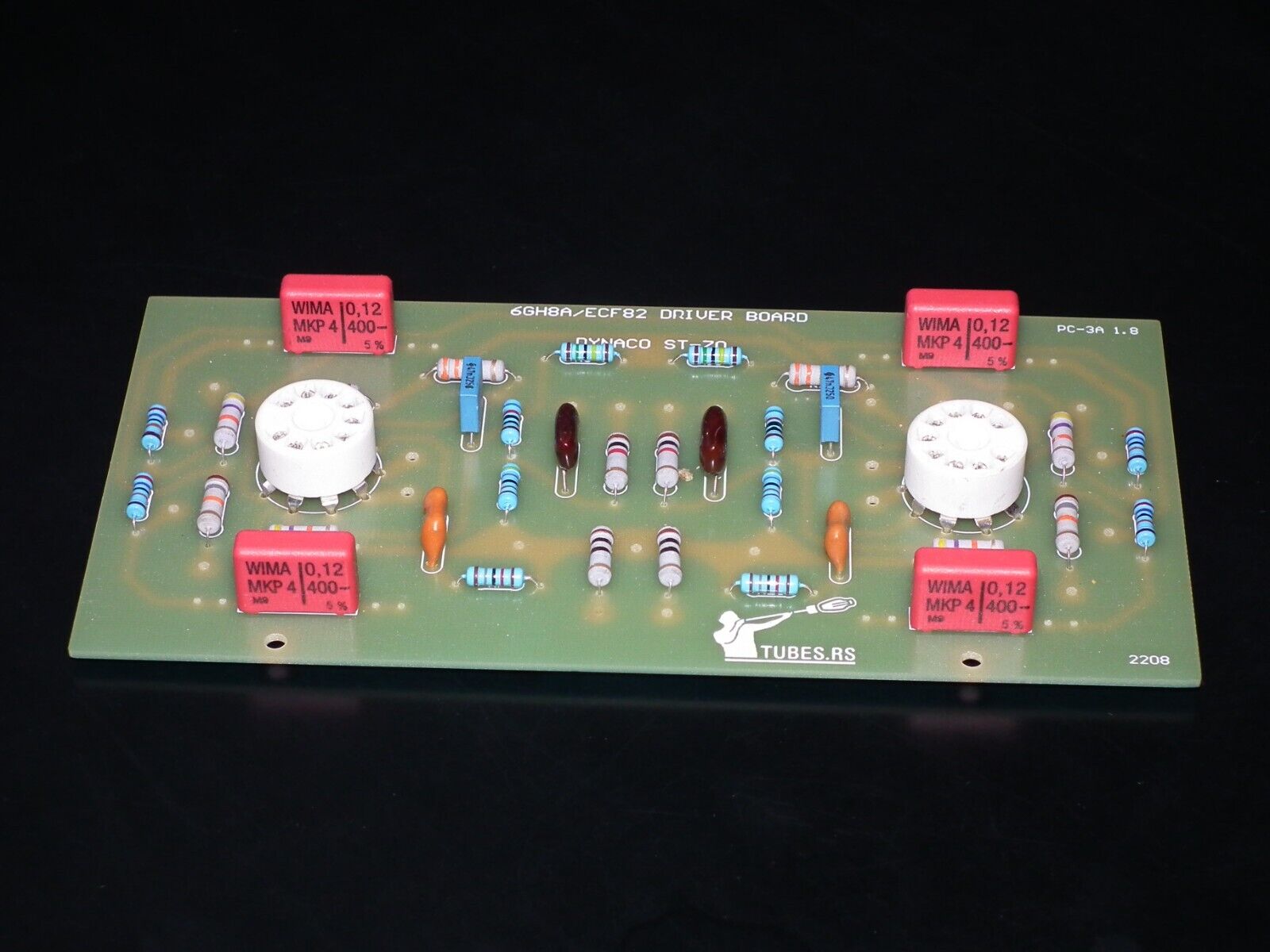

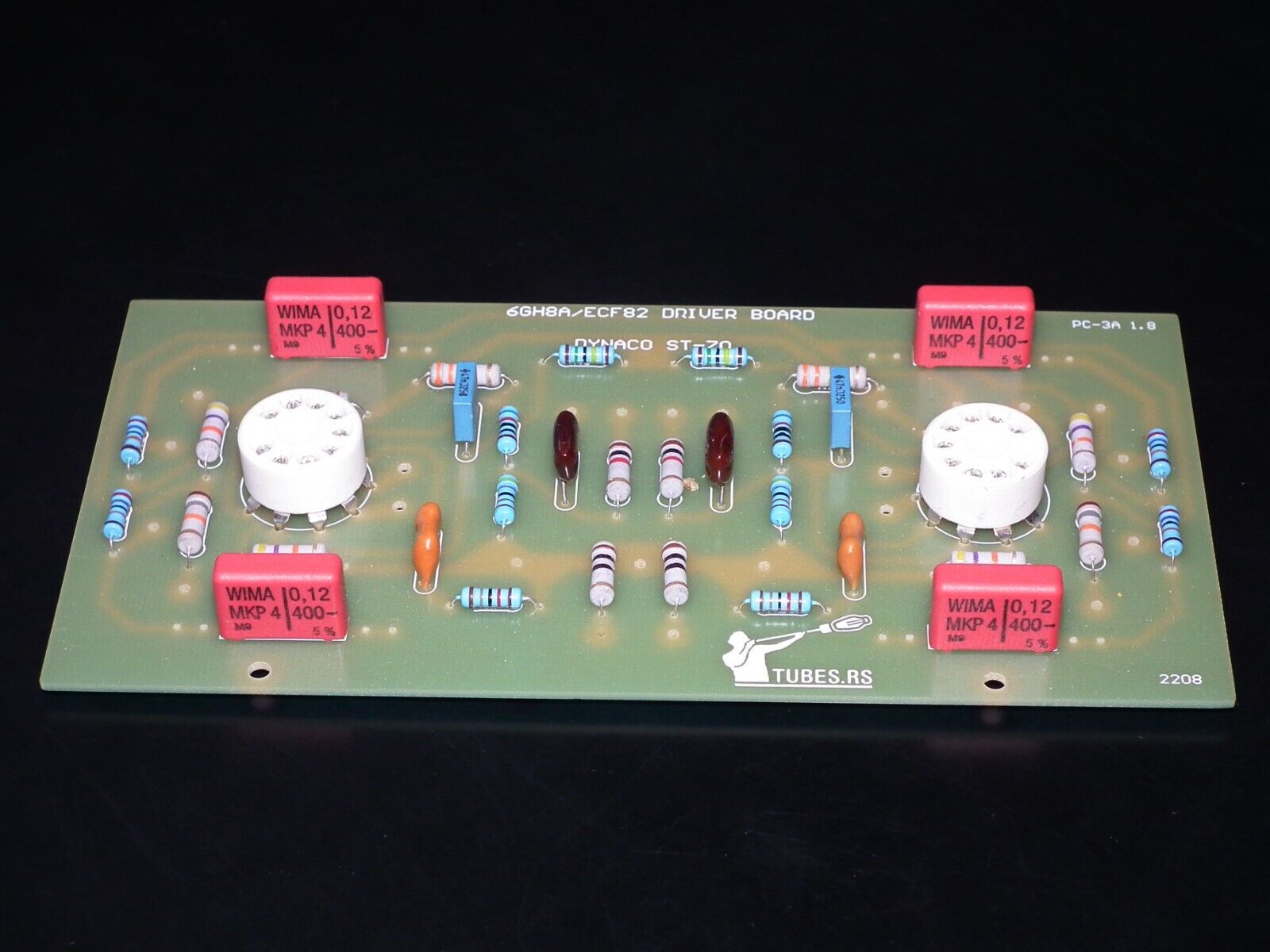

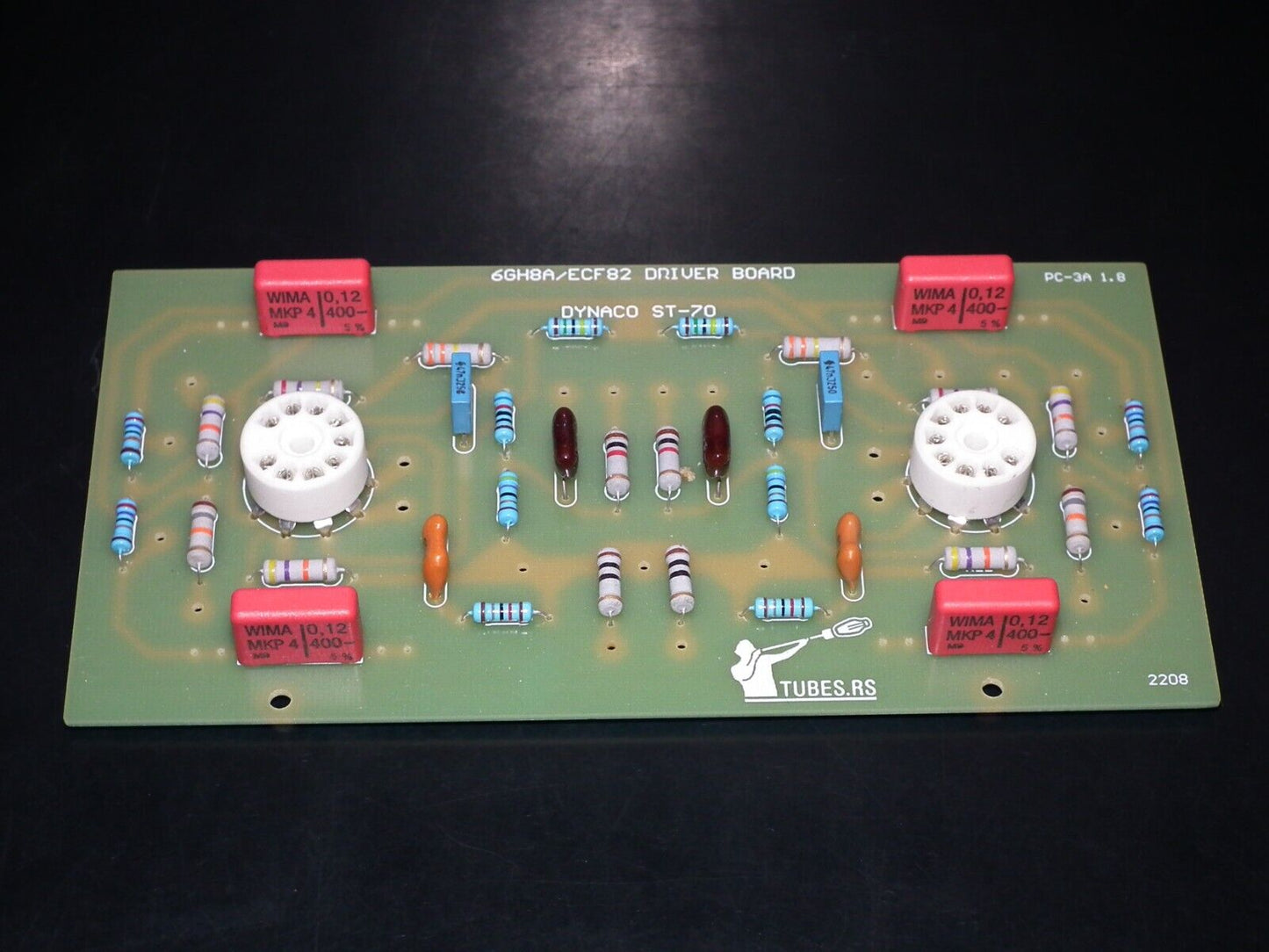

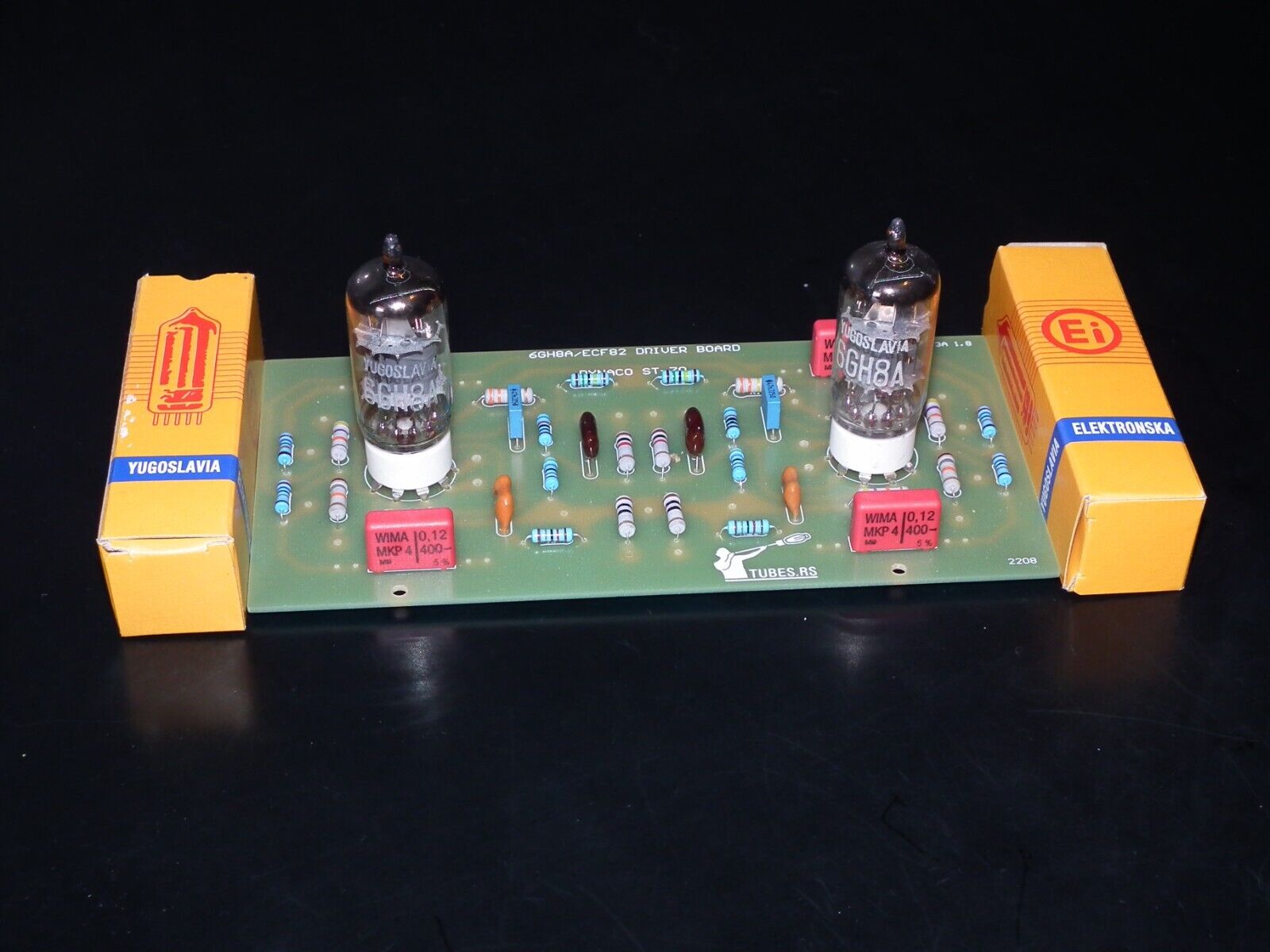

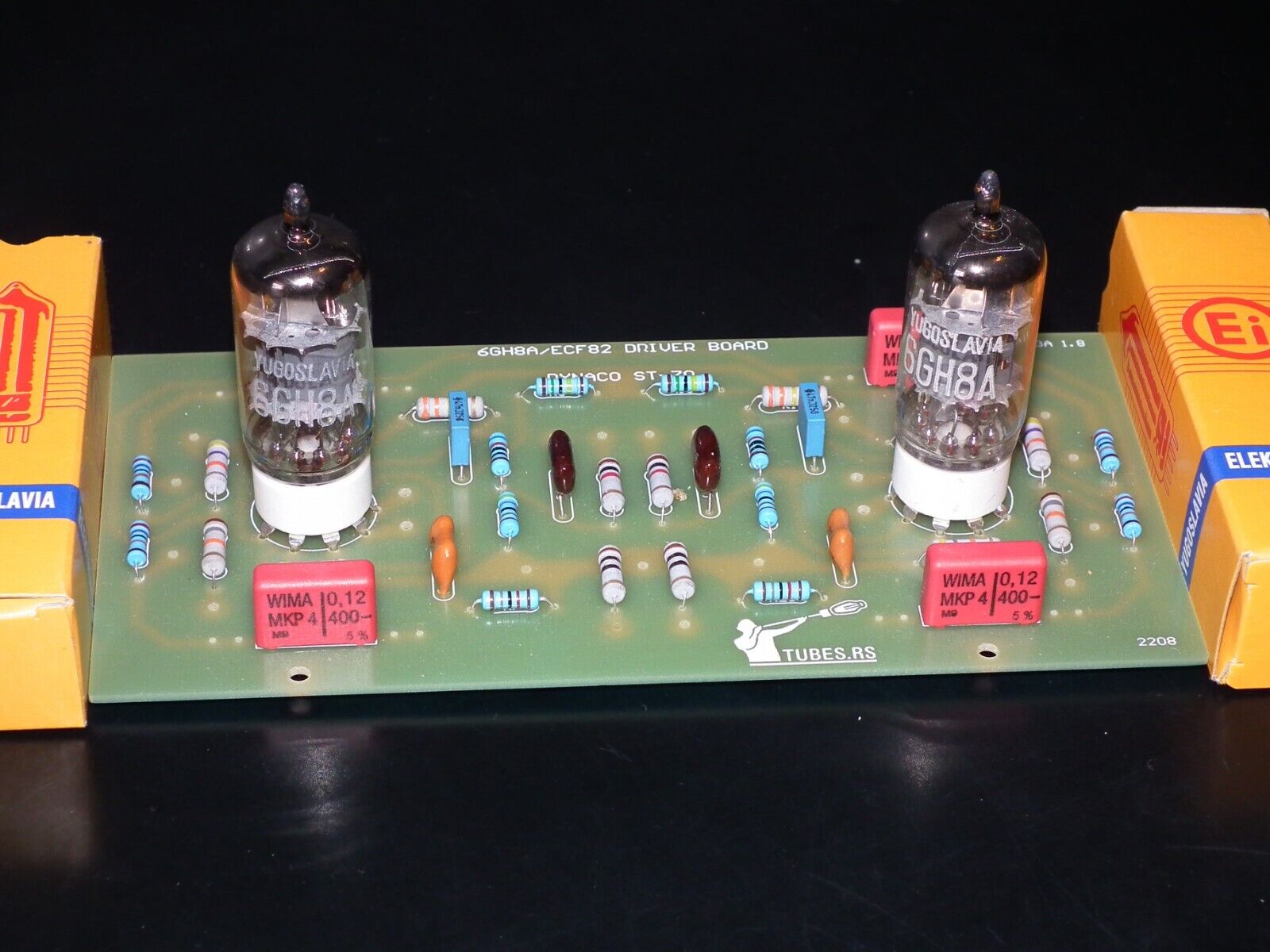

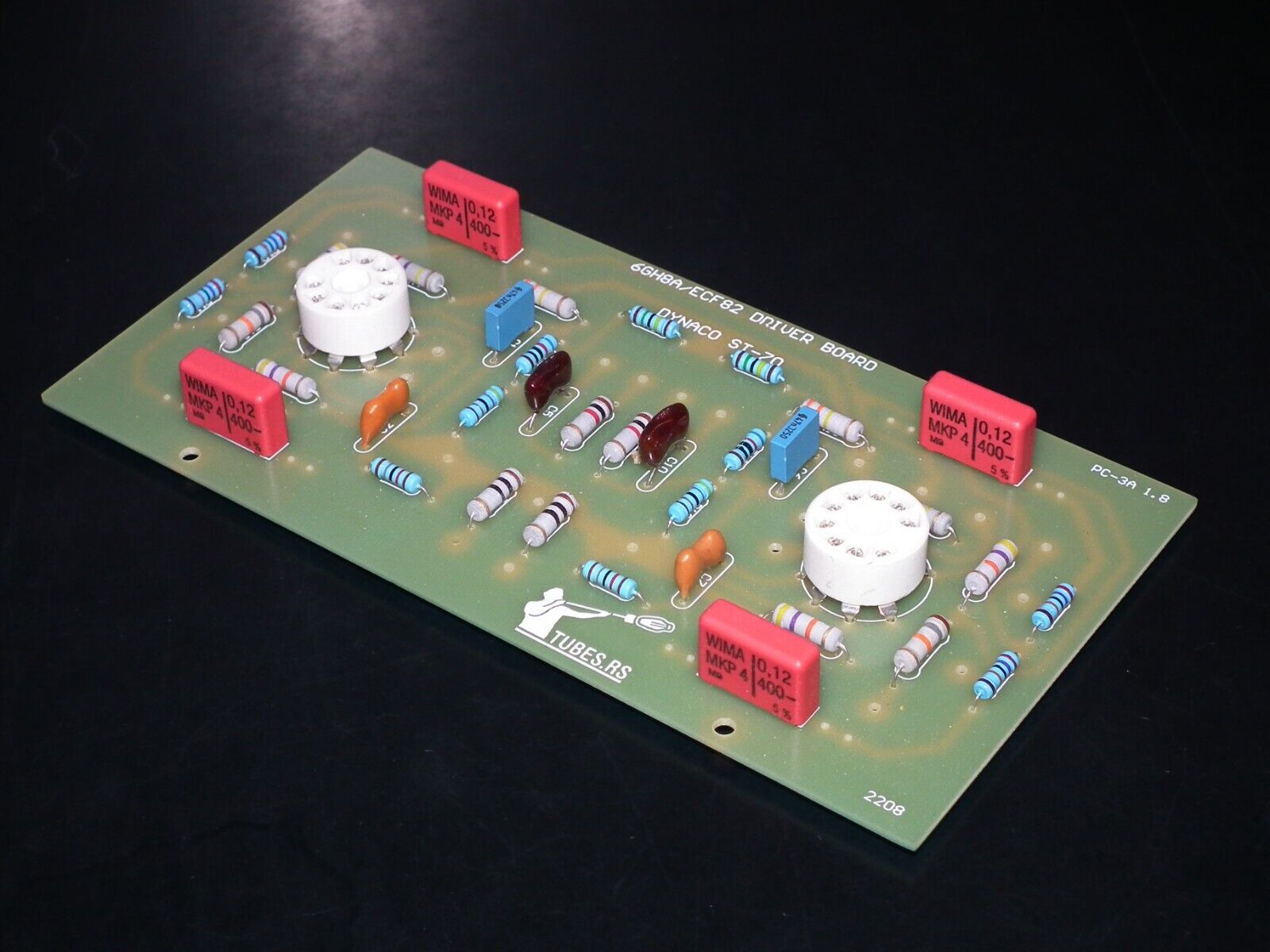

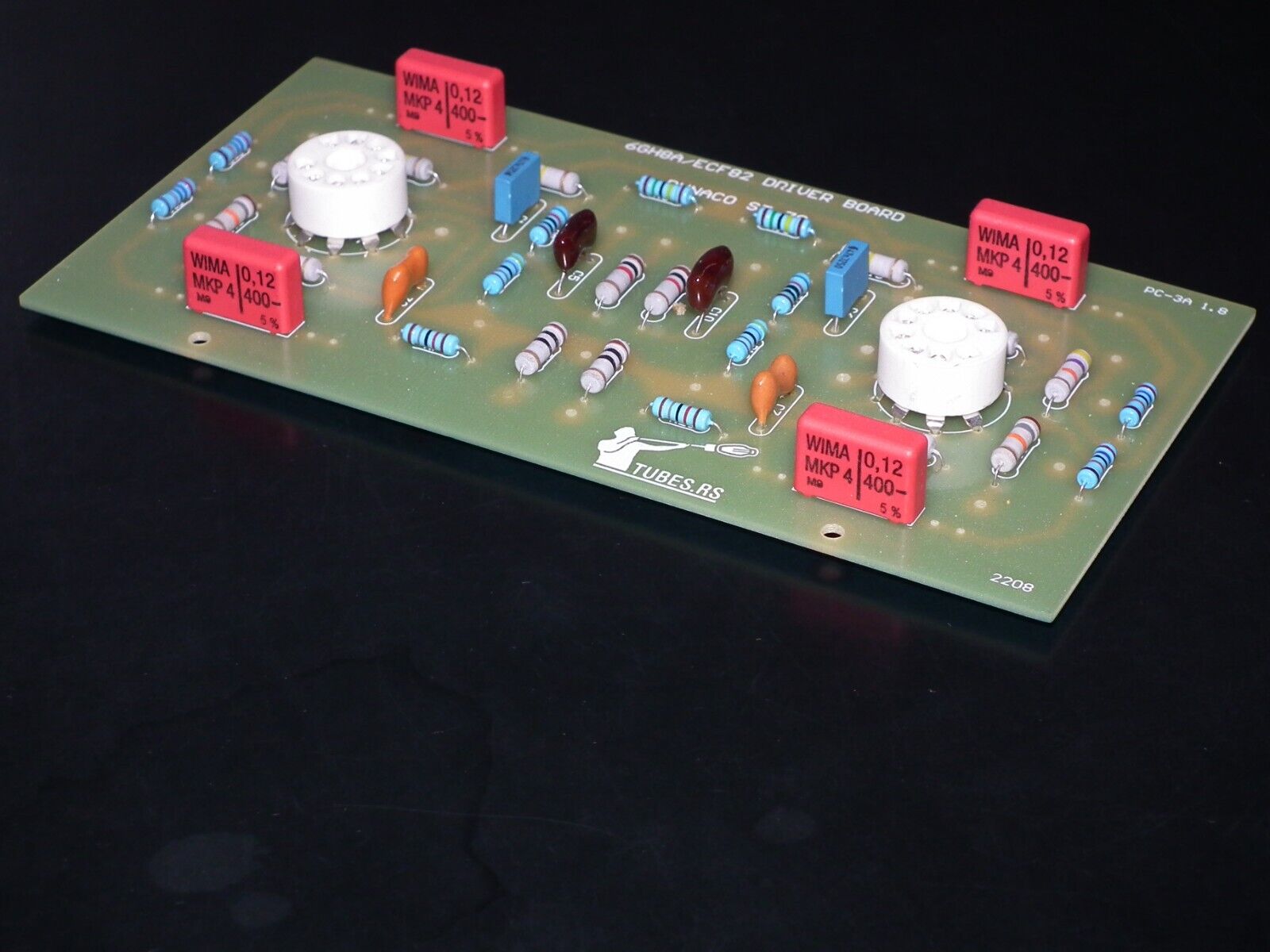

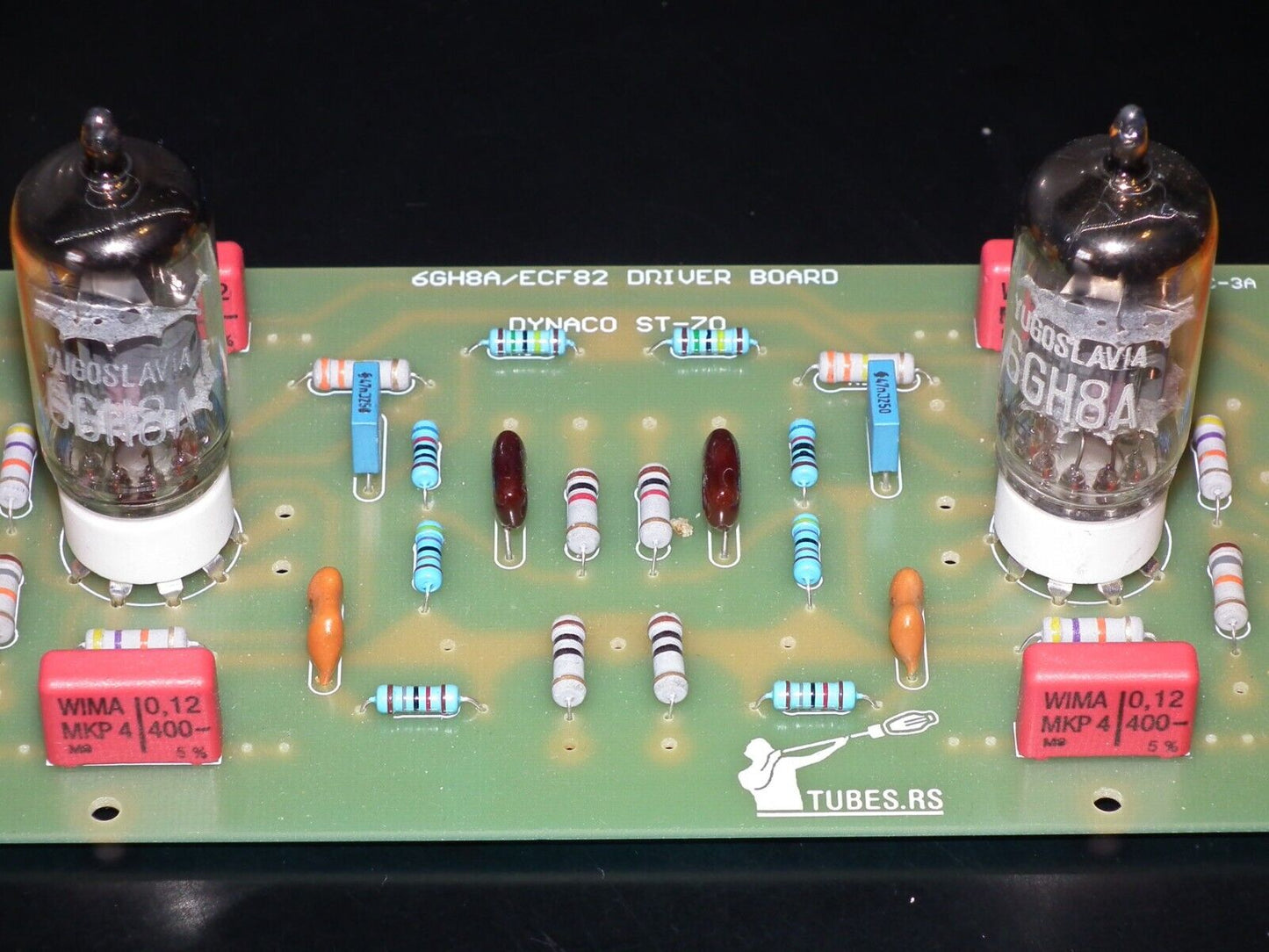

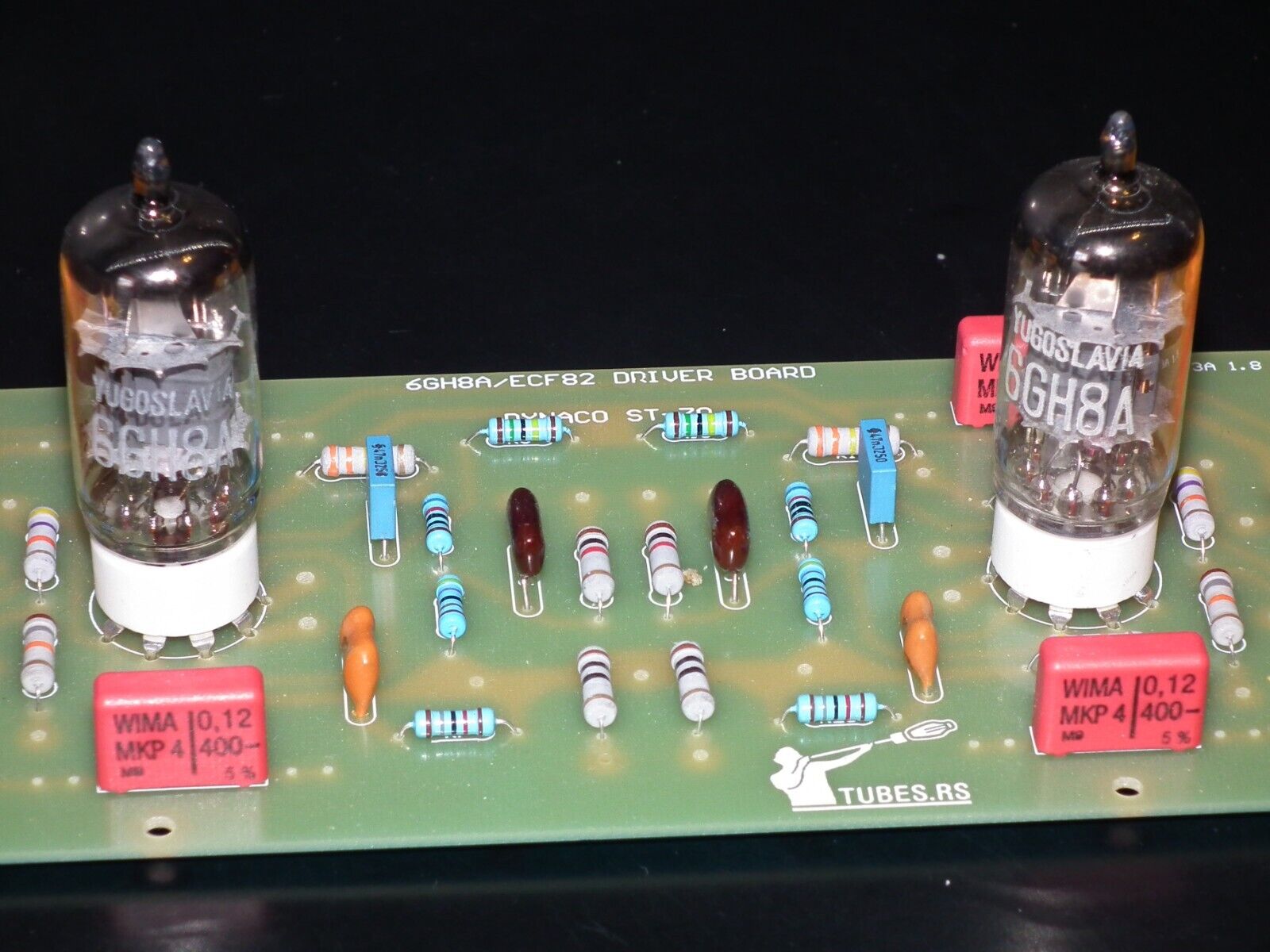

This is complete board! One brand new PCB, ceramic sockets, Hi Quality MKP coupling capacitors, silver mica capacitors, metal film, metal oxide and carbon oxide resistors and one NOS matched pair (two tubes) of 6GH8A EI Philips. They are made back in 80s in EI tube factory, under Philips licence and with some of genuine Philips materials. They were intended for export, so they have passed strict quality control. Every pair is selected from the same batch with same date codes and tubes are real platinum matched pairs, tested on my calibrated METRIX U61-B tester.

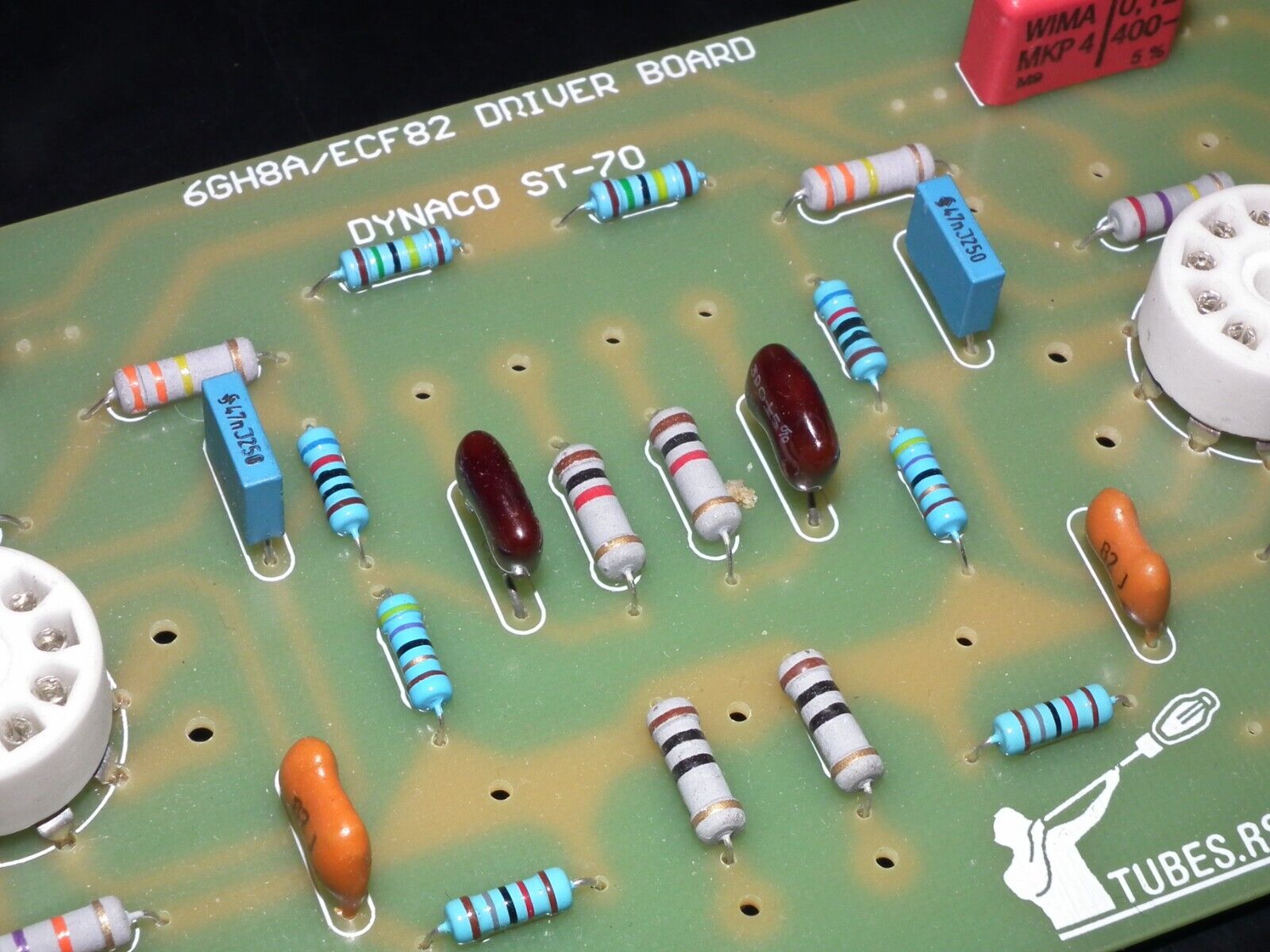

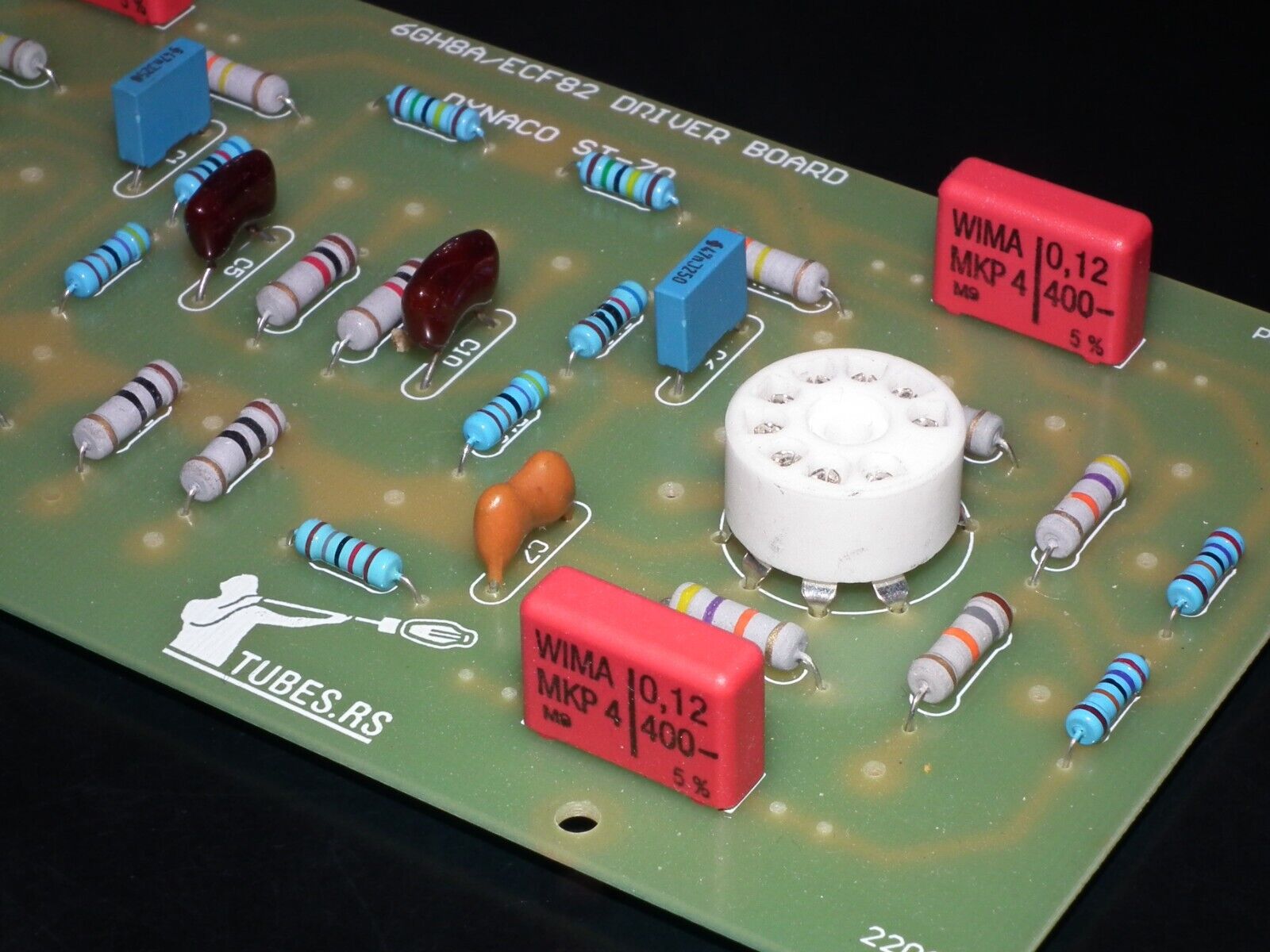

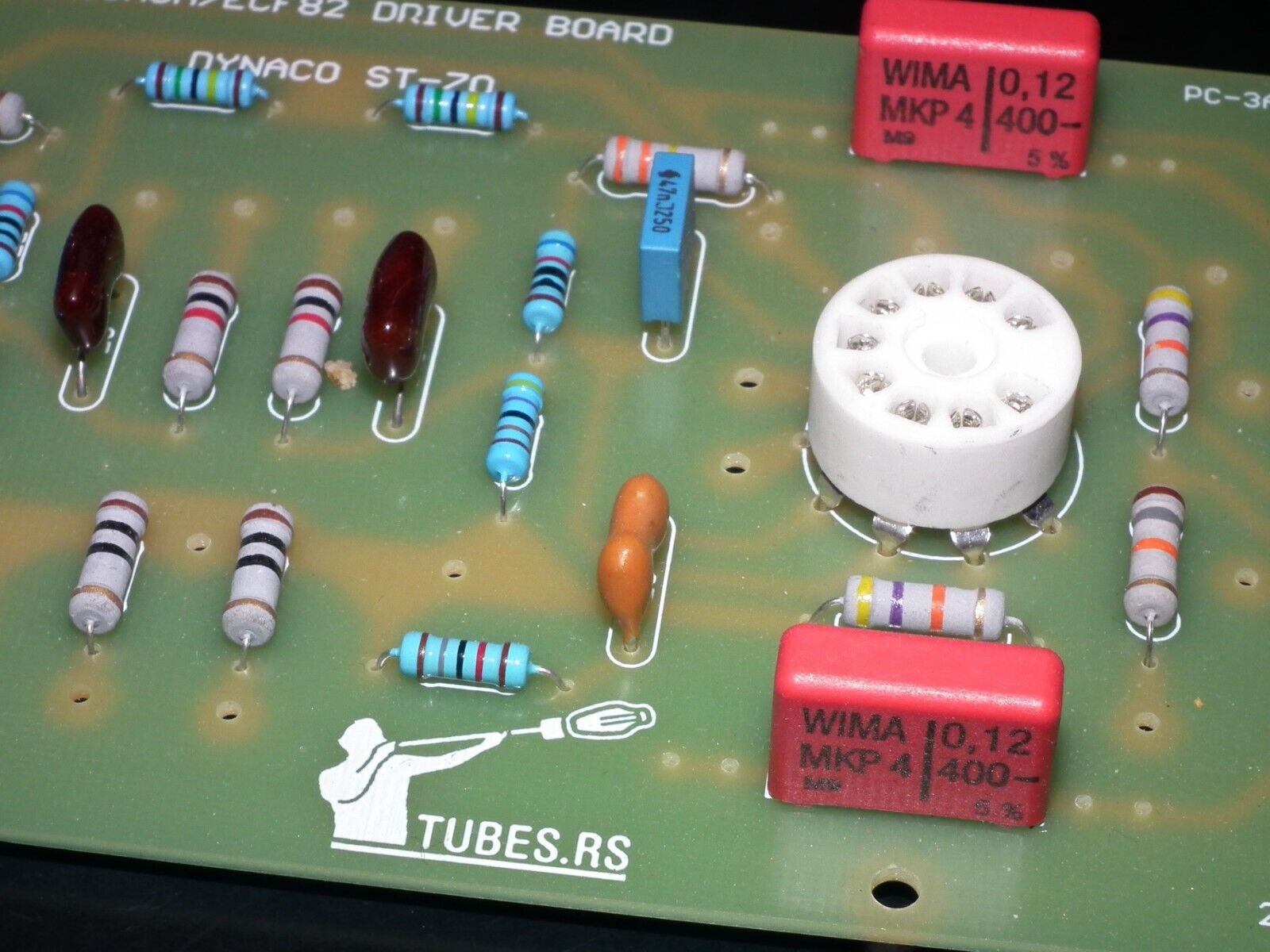

All coupling capacitors are high quality MKP Metallized Polypropylene (PP) Capacitors. 120nF are used vs original 100nF, for a bit better bass response. Also silver mica capacitors are used, metal film, metal oxide and carbon resistors for good performance and lowest hum.
