Lorlin

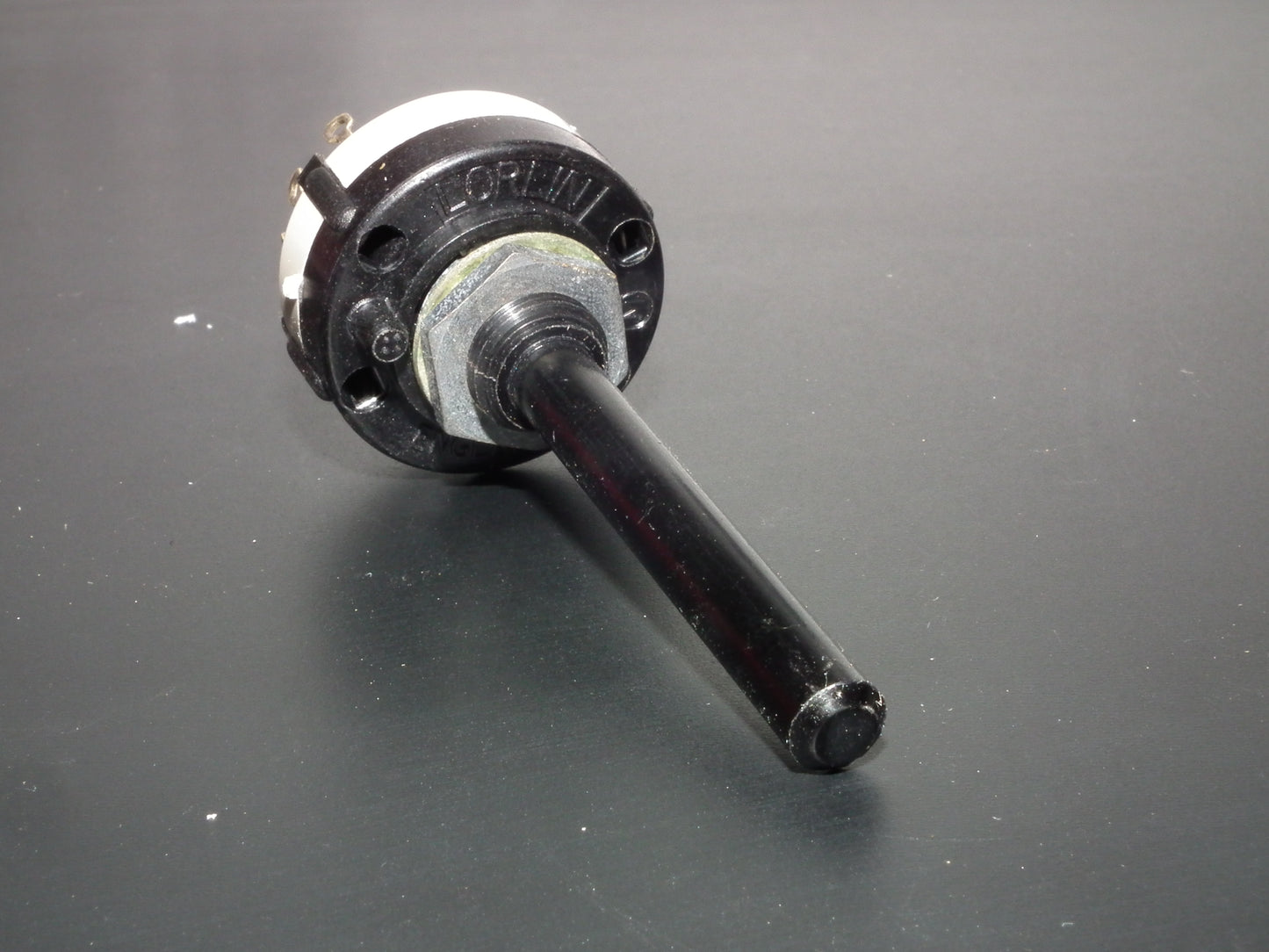

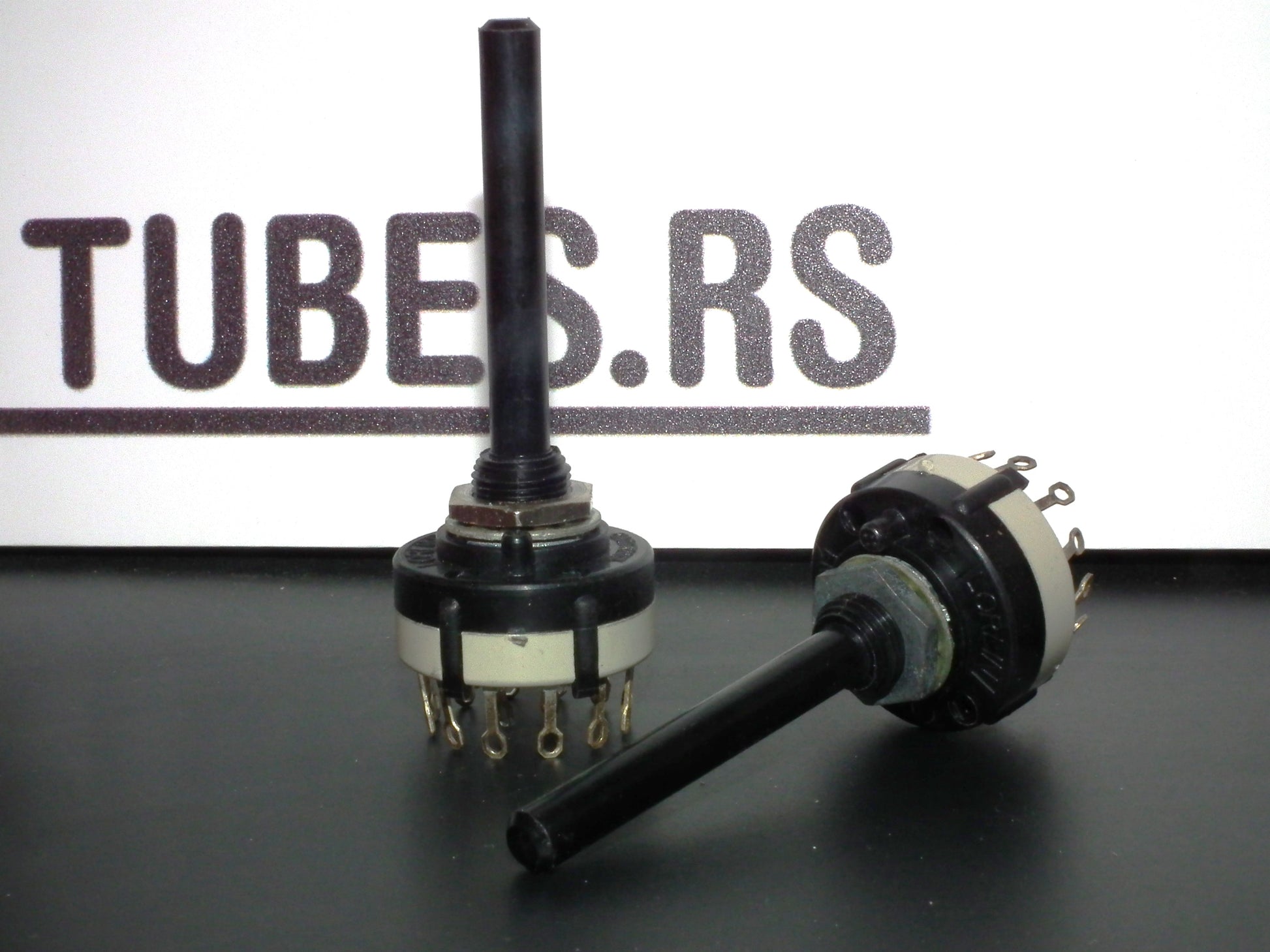

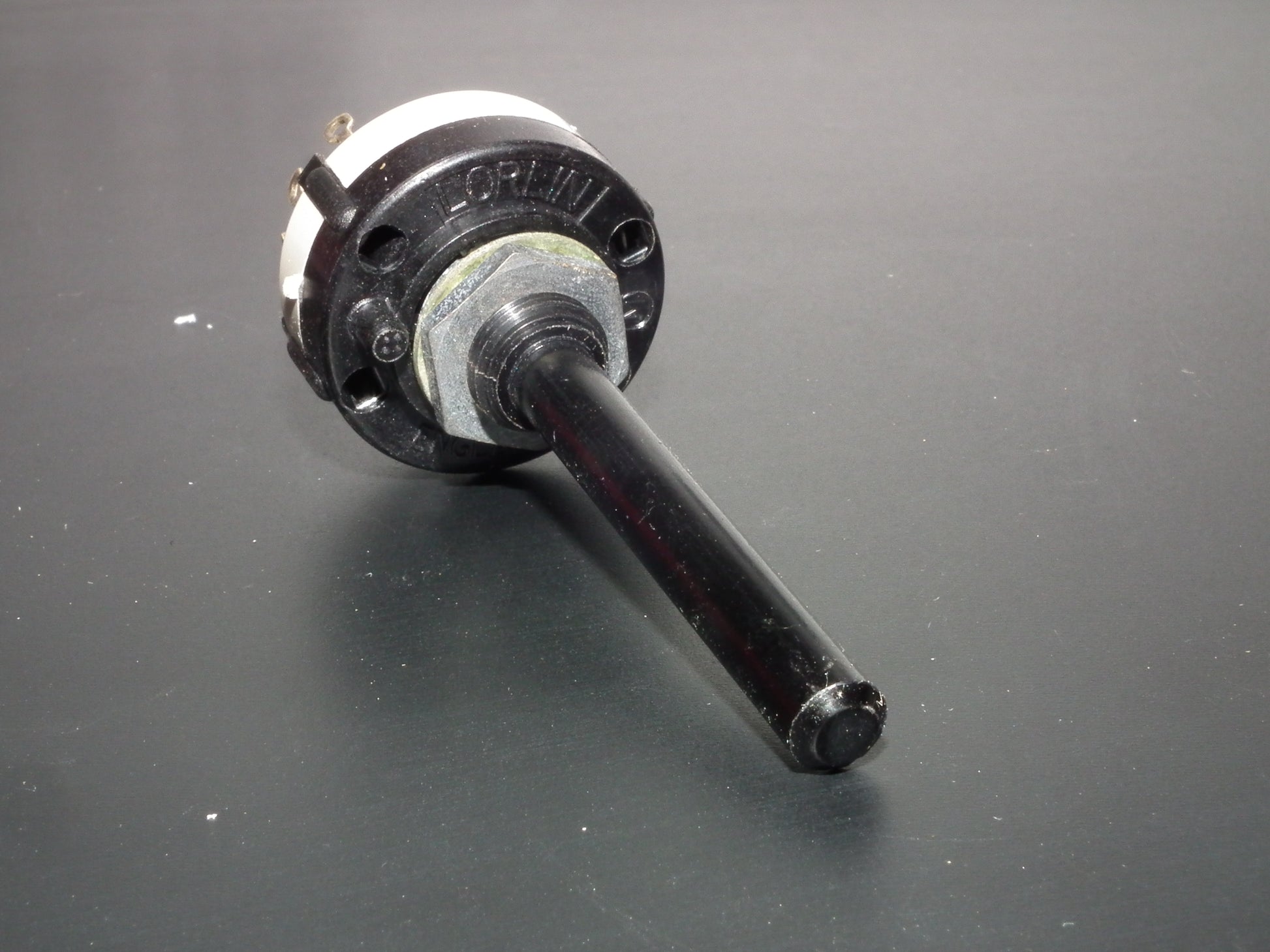

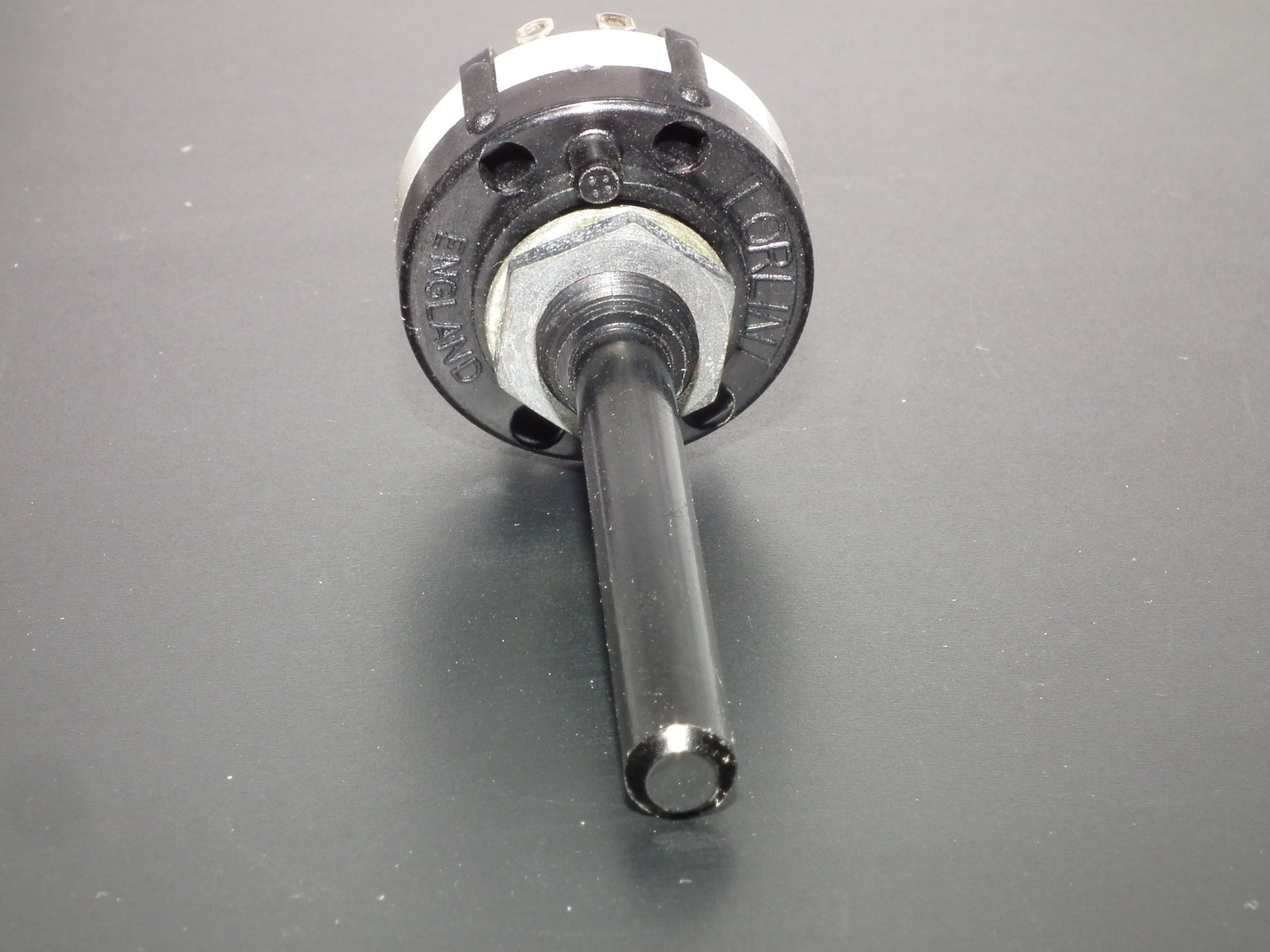

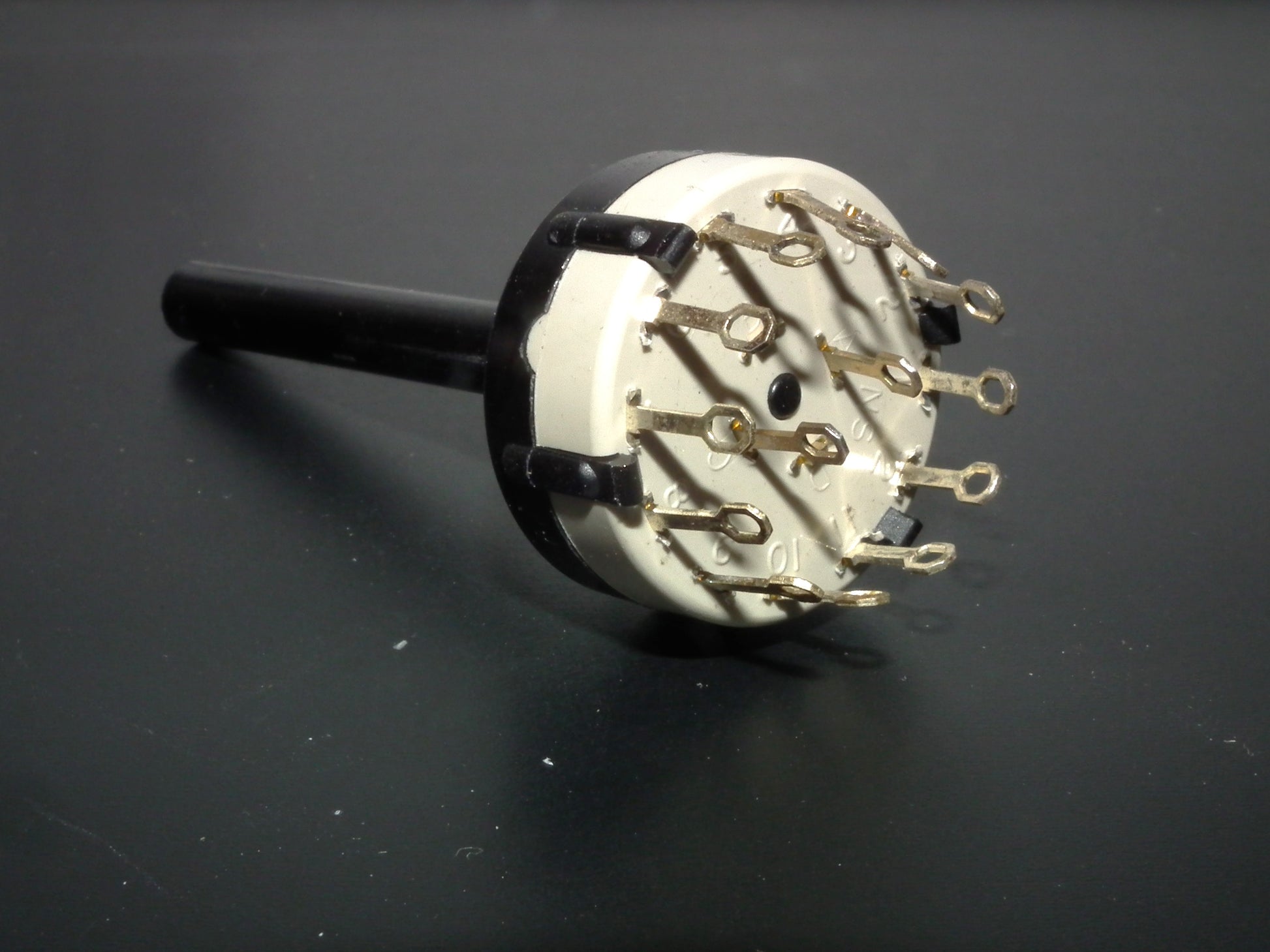

Lorlin CK1060 2x6 rotary switch Made in UK

Lorlin CK1060 2x6 rotary switch Made in UK

Regular price €3,95
Regular price Sale price €3,95
Sale Sold out
Tax included. Shipping calculated at checkout.

For sale is one (1) Lorlin UK 2x6 rotary switch NEW. This is premium UK made hi quality switch.



Switch Rating: 150mA @ 250V ac/dc
Life: >10,000 Cycles
Operating Temperature: -30ºC to +85 ºC
Proof Voltage: 1,500Vac (Initial)
Insulation Resistance: >999 M at 500Vdc (Initial)
Contact Resistance: <20 m (initial)
Operating Torque (nominal) Standard 8.6 ± 1 cNm
Light Action 3.5 ± 0.5 cNm
End Stop Torque (nominal): 0.80 Nm
Moulding Material: Polyamide 6.6 G.F.
Contact/Terminal Material: Brass CZ108 Ag Plated
