MI-514-M Magnetron USSR MI514M-1 NOS NEW 80s МИ-514-M МИ514 MI514
MI-514-M Magnetron USSR MI514M-1 NOS NEW 80s МИ-514-M МИ514 MI514
Couldn't load pickup availability

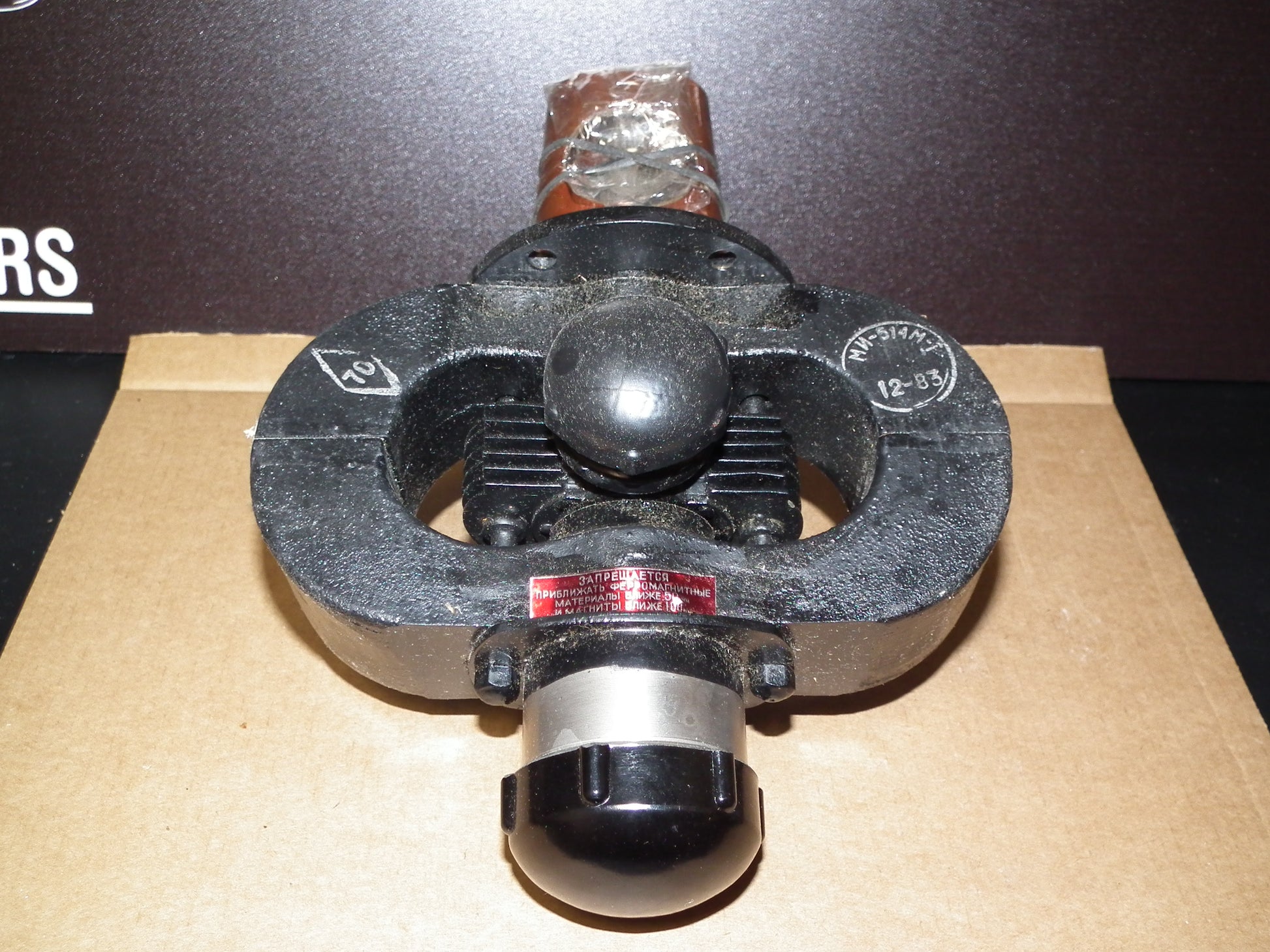

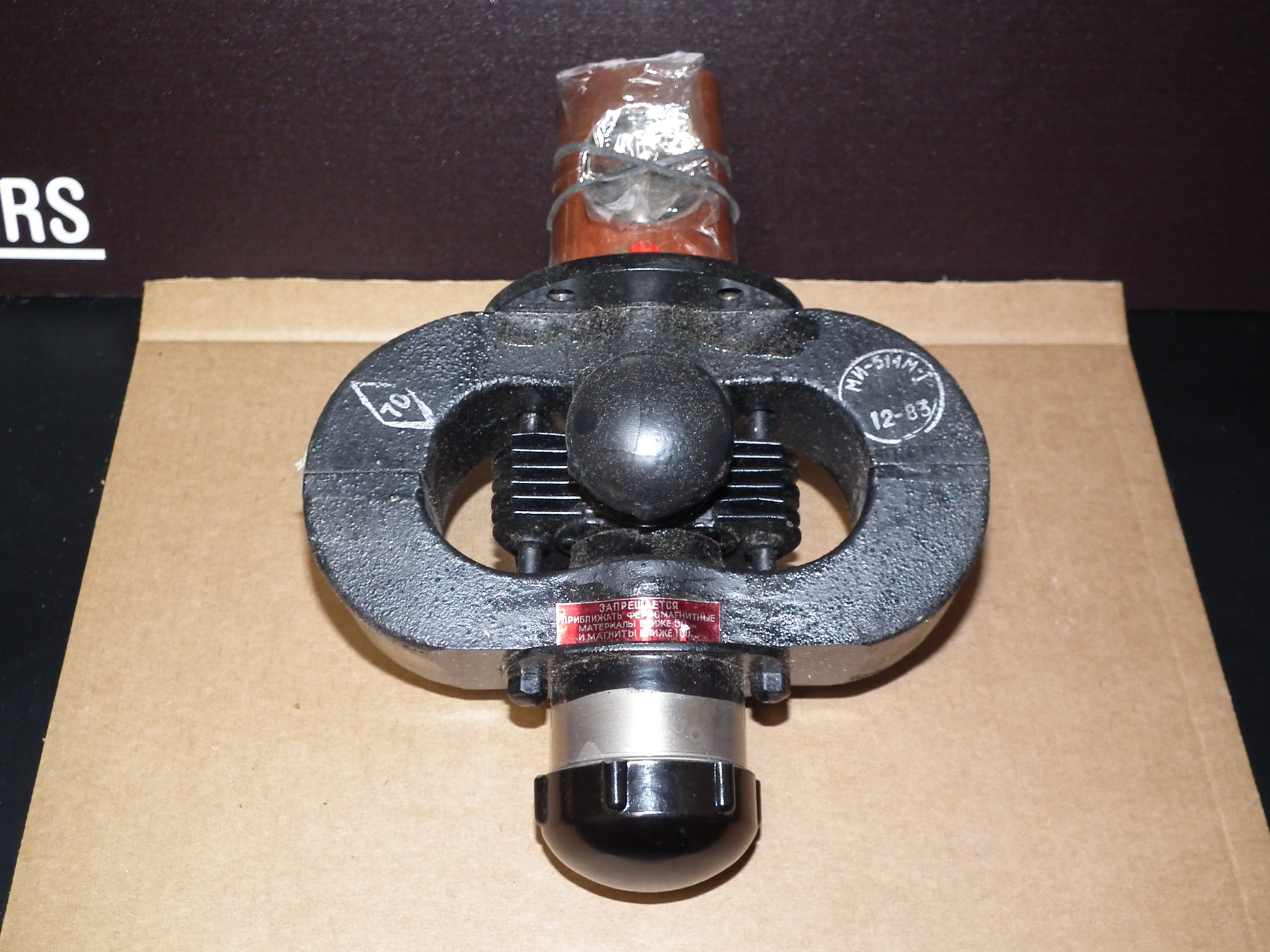

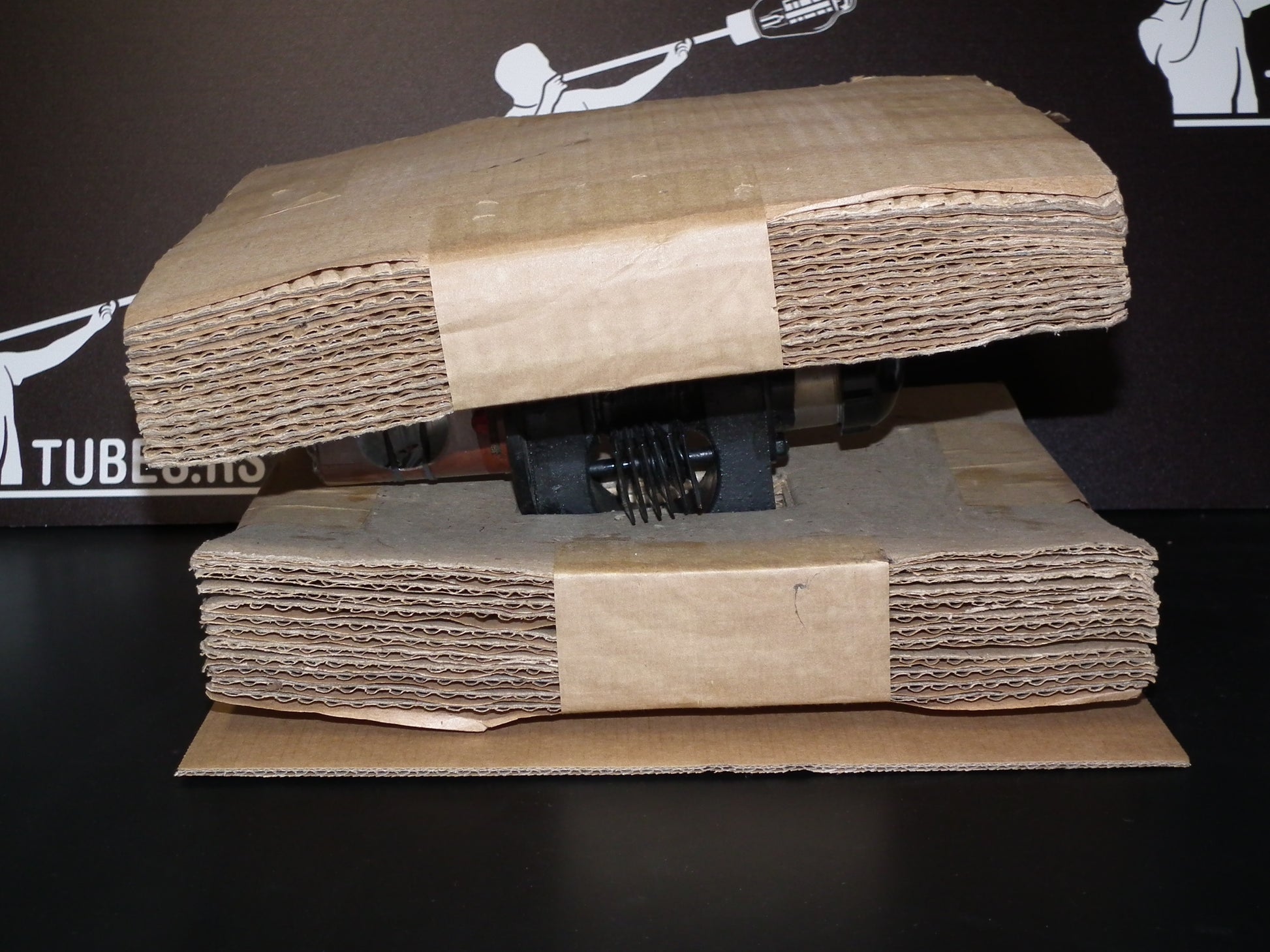

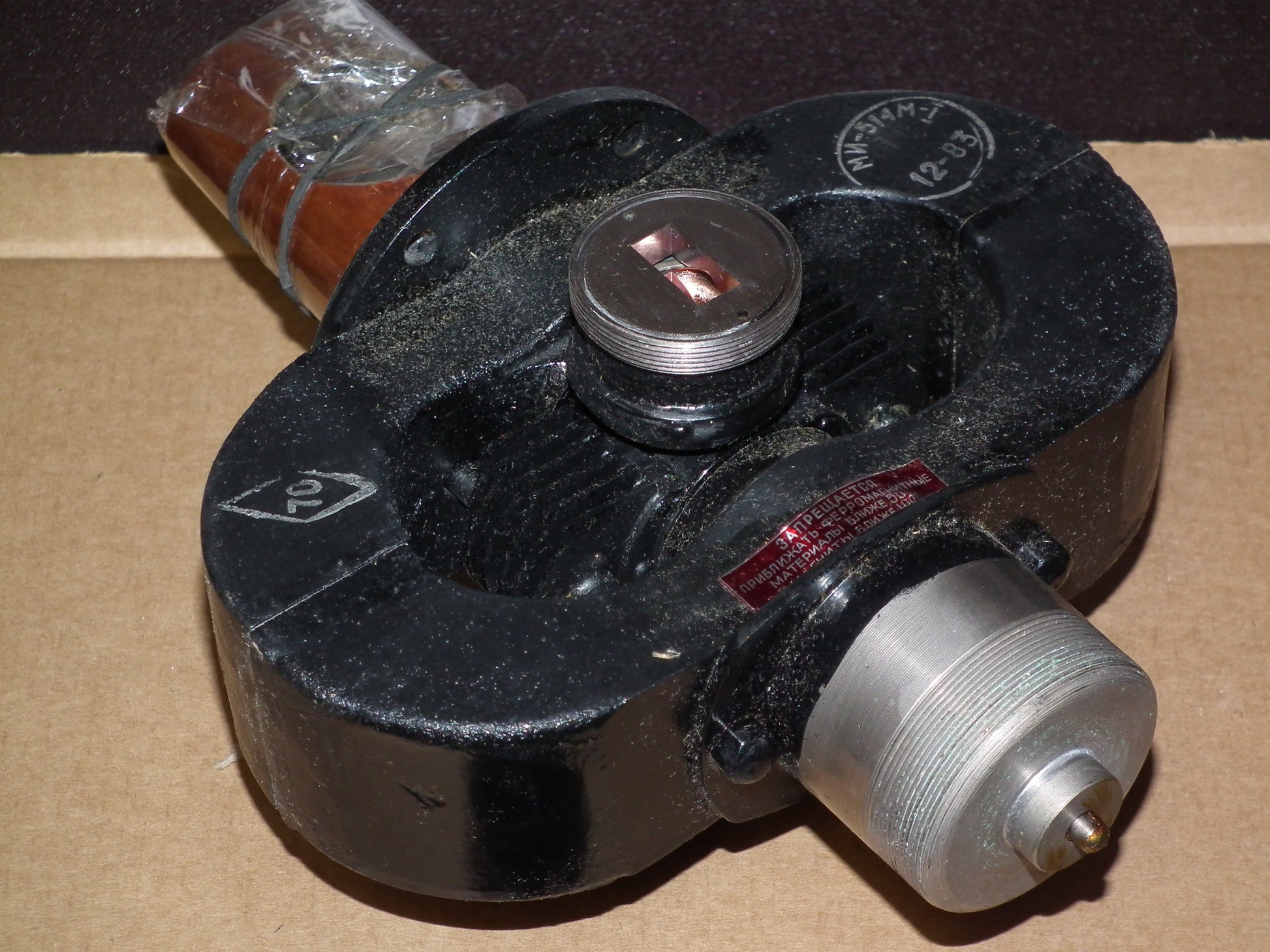

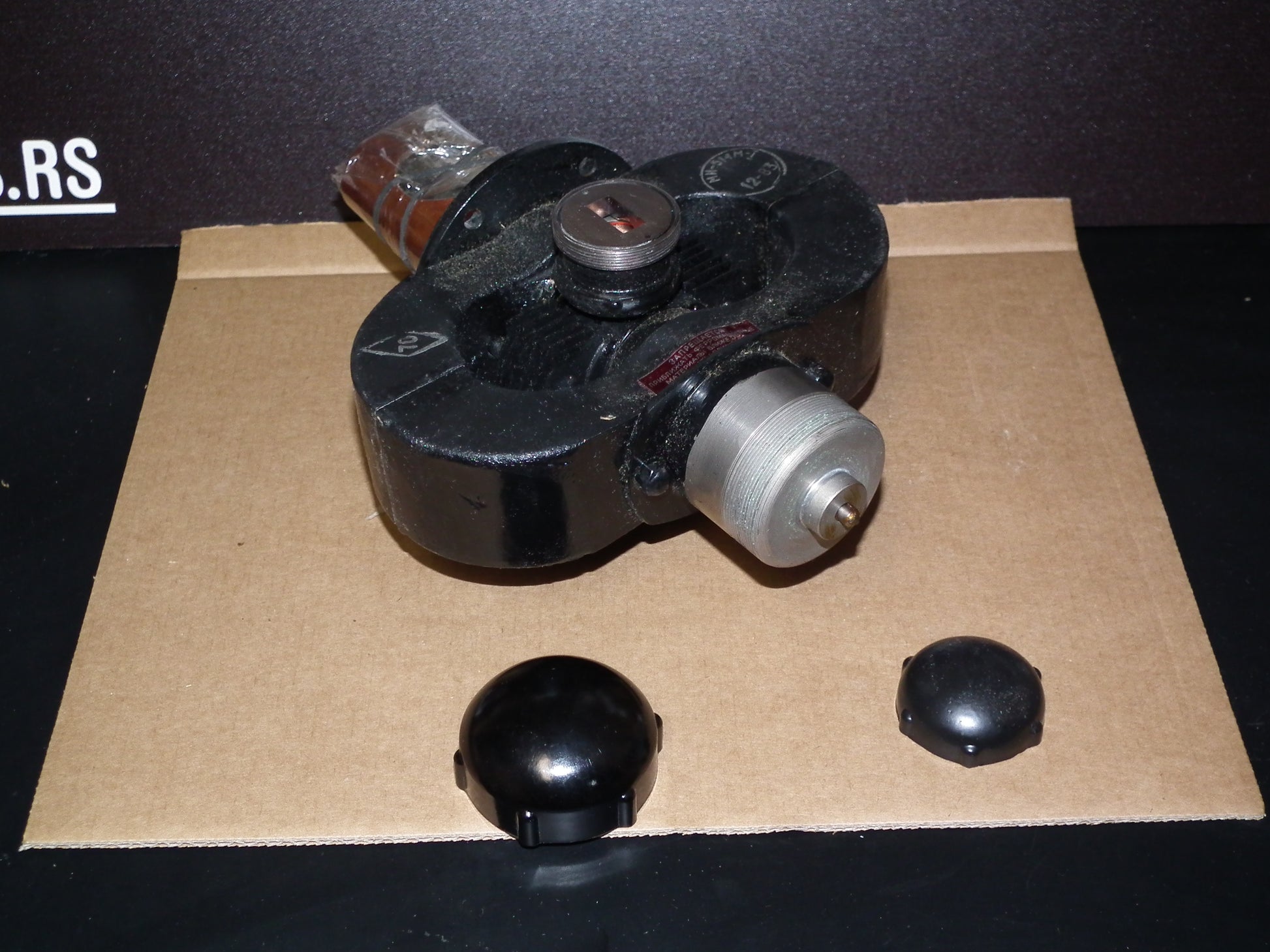

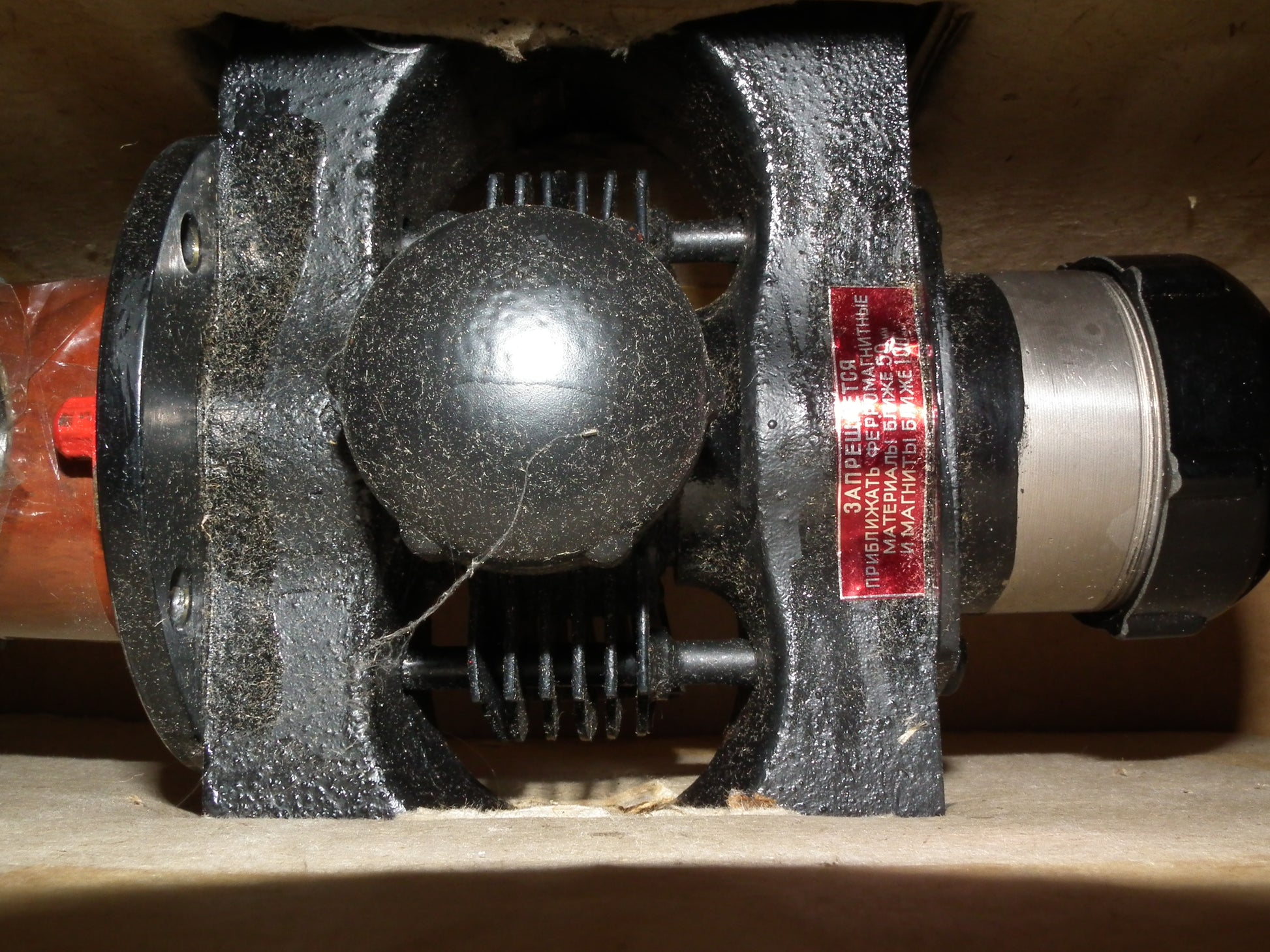

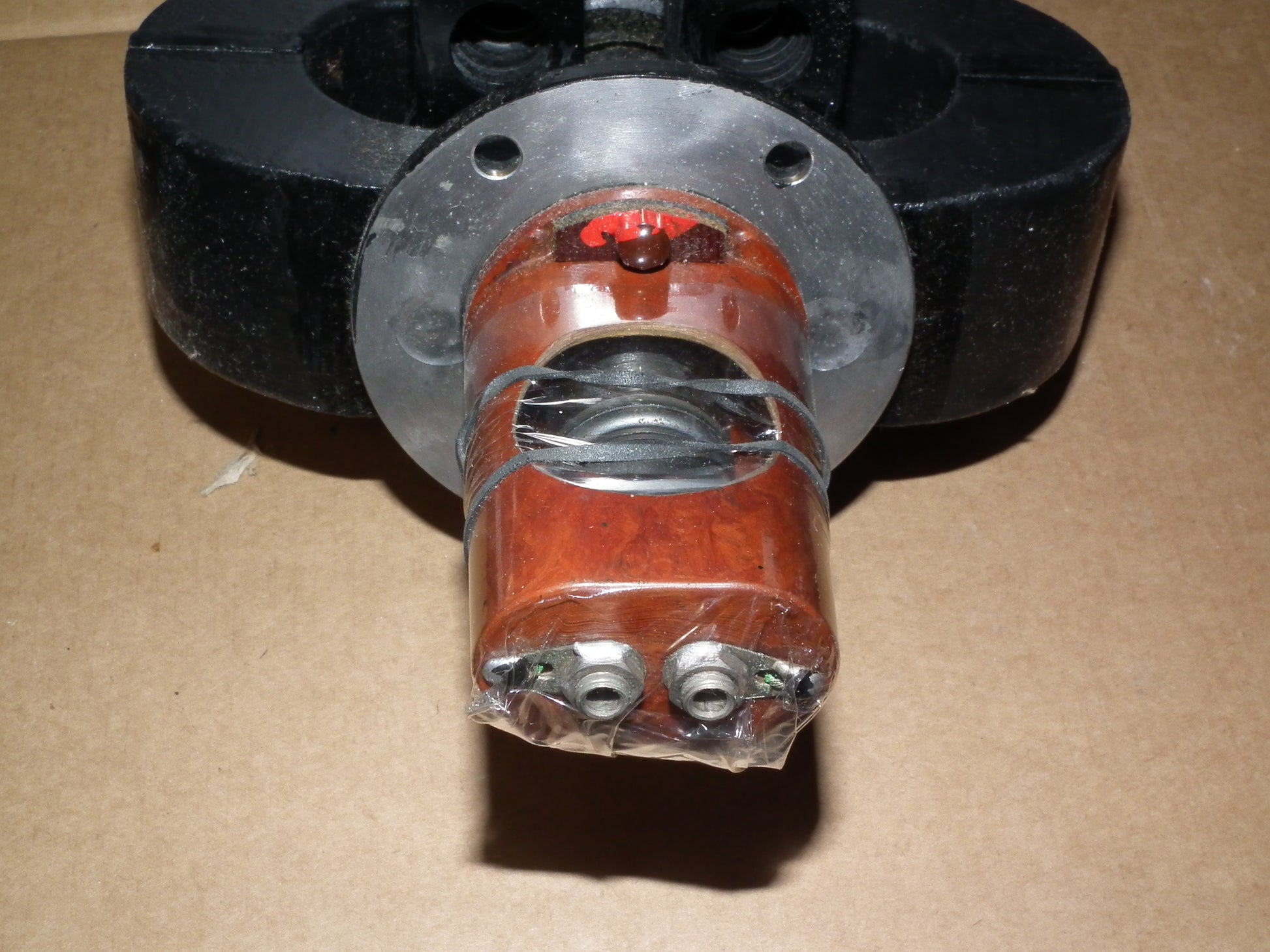

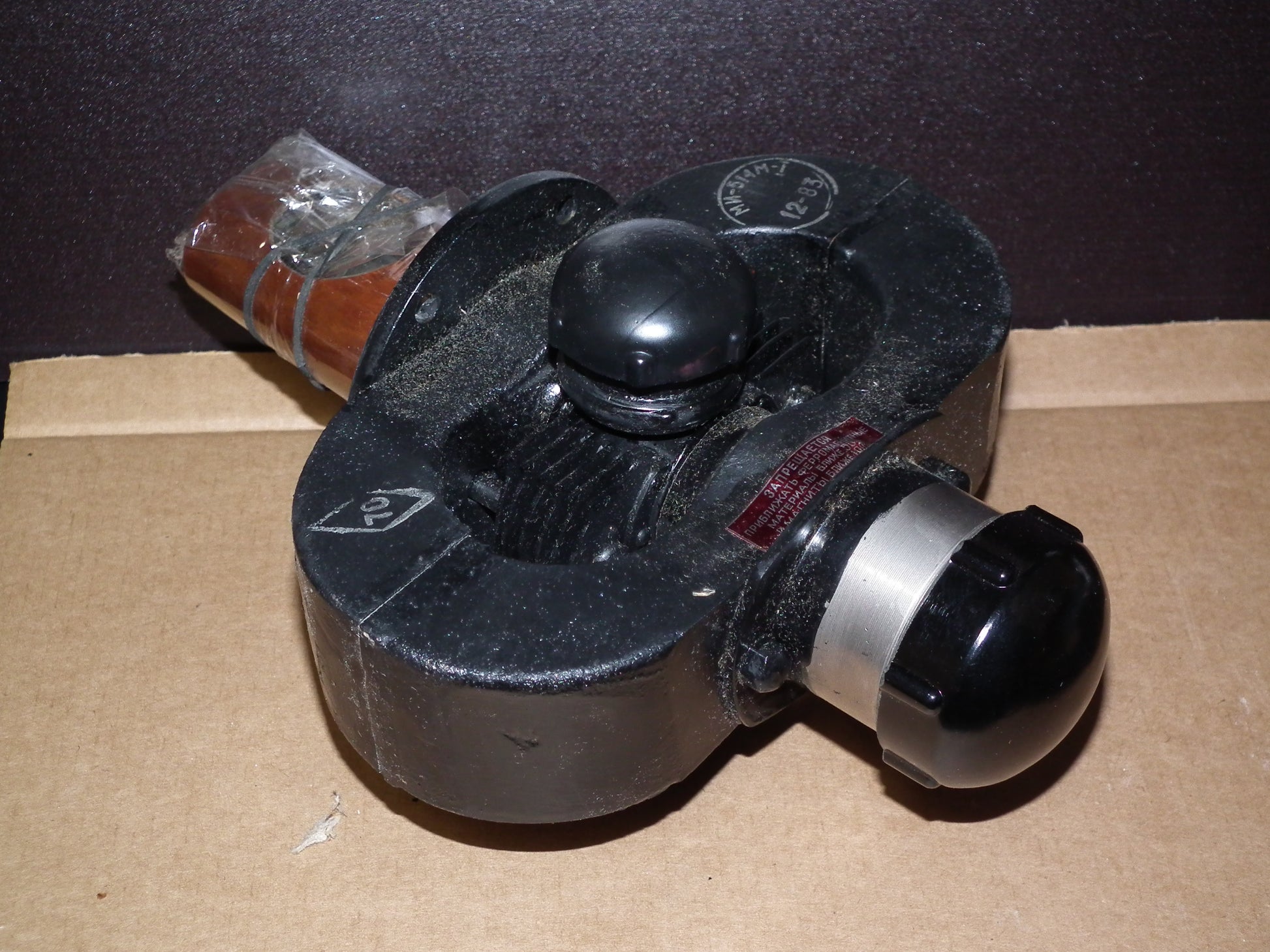

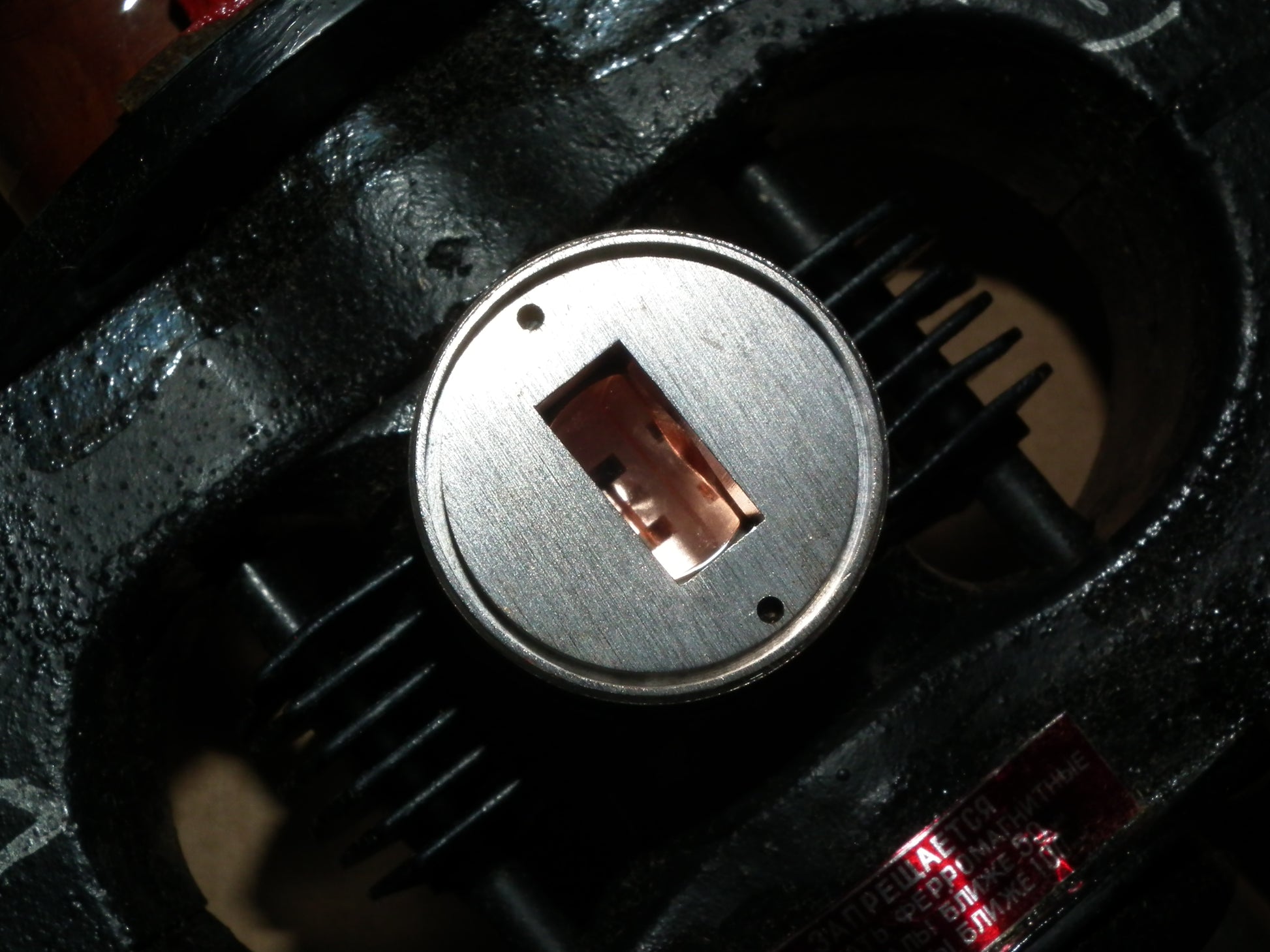

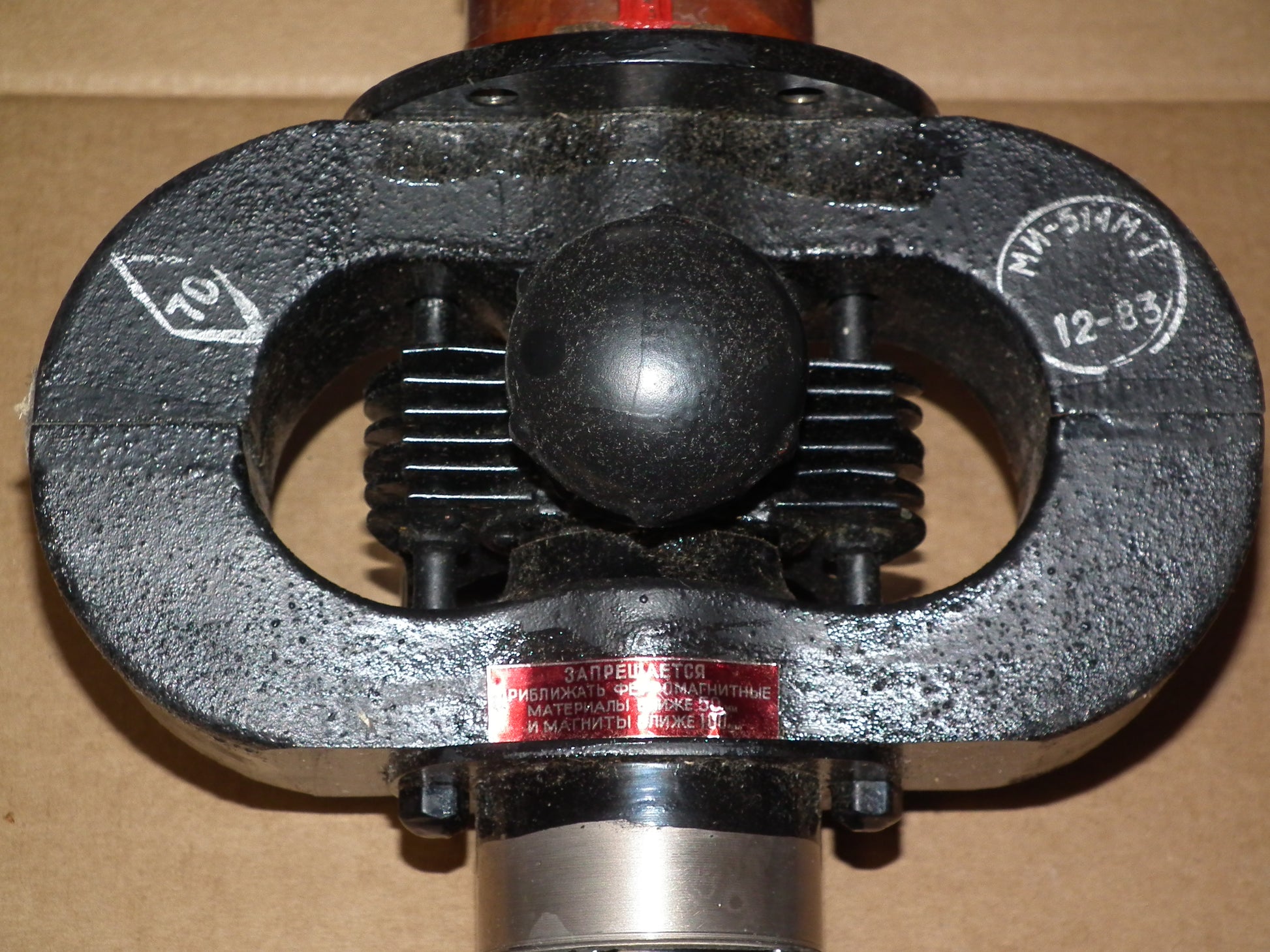

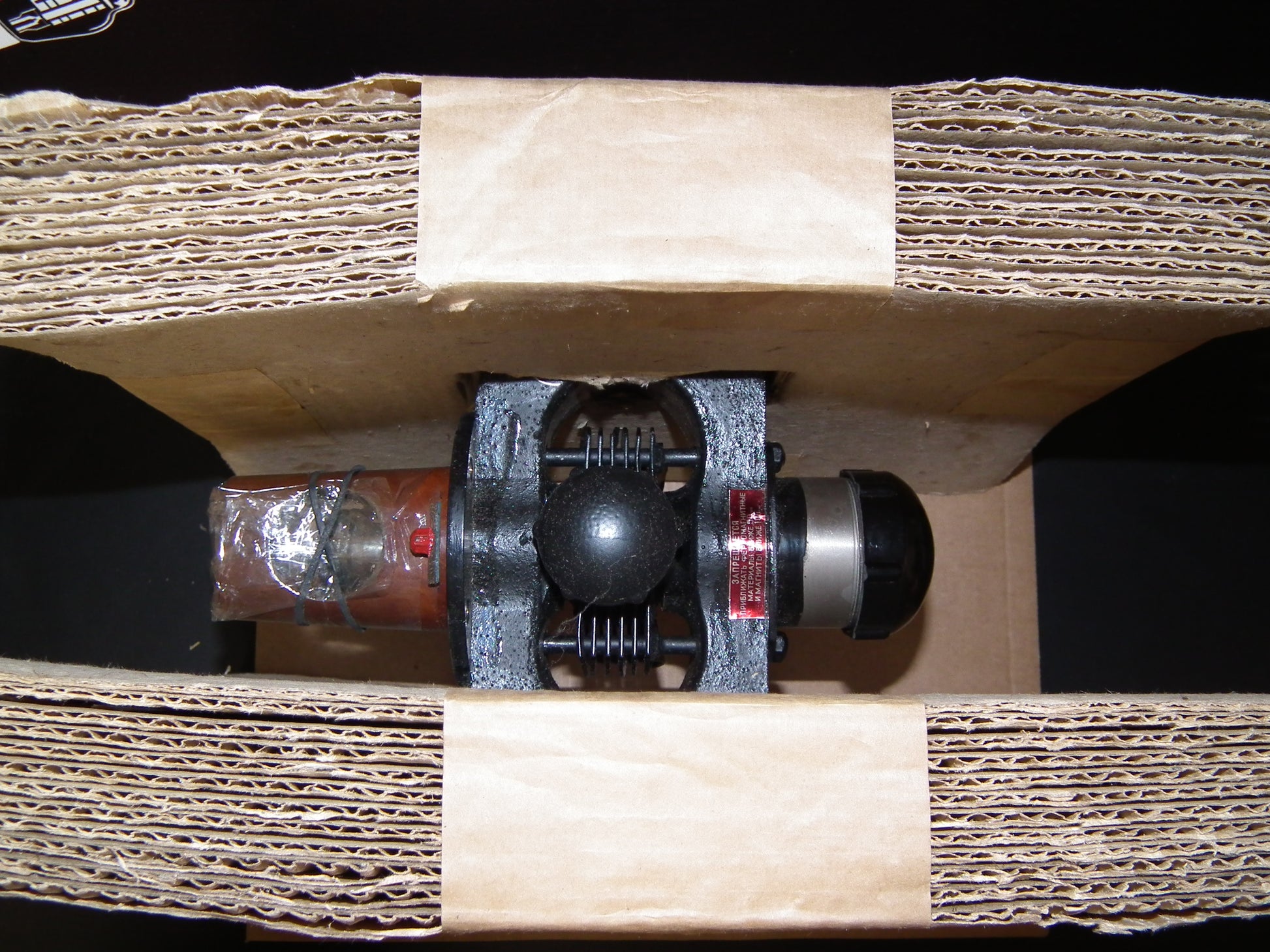

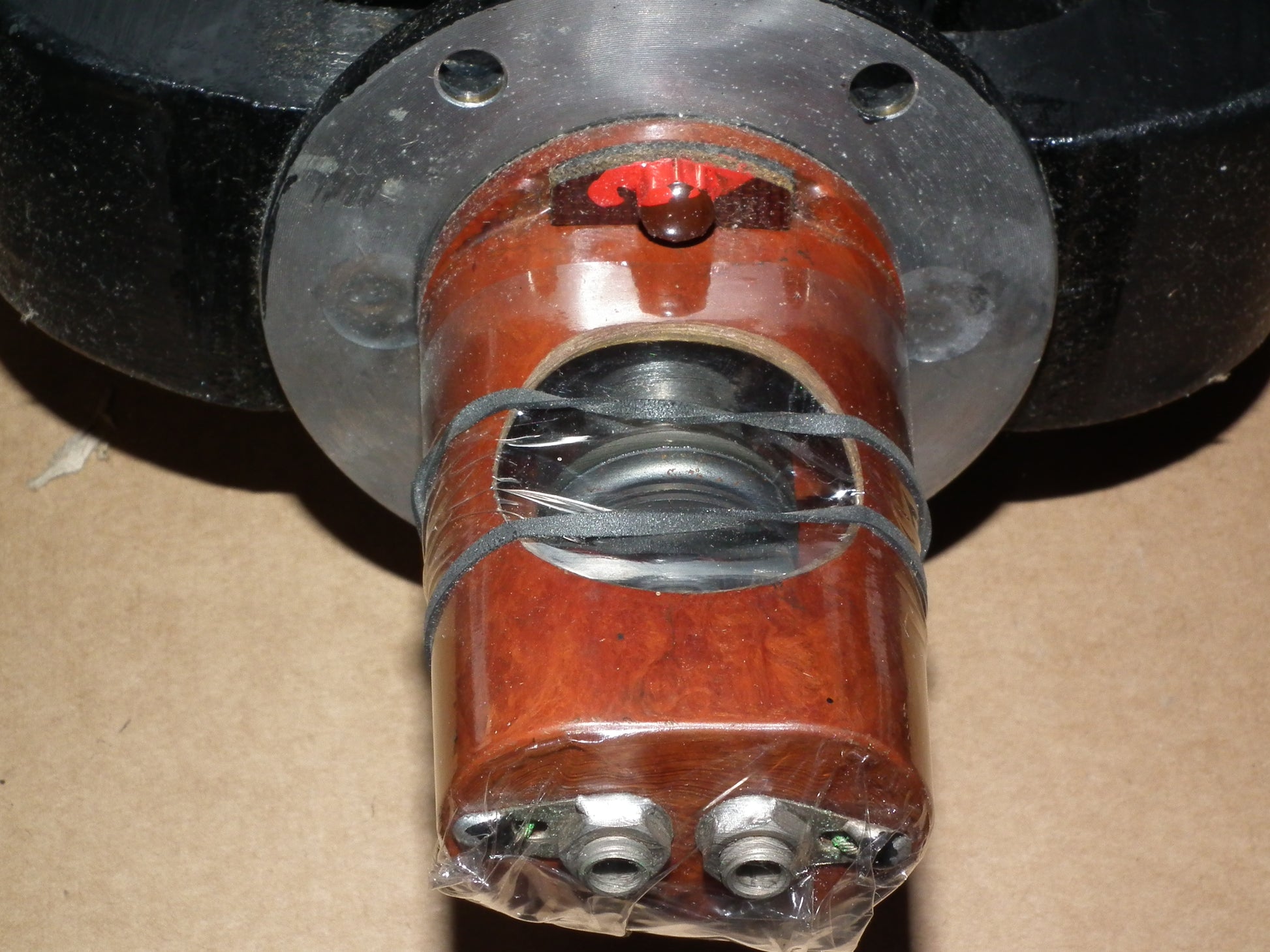

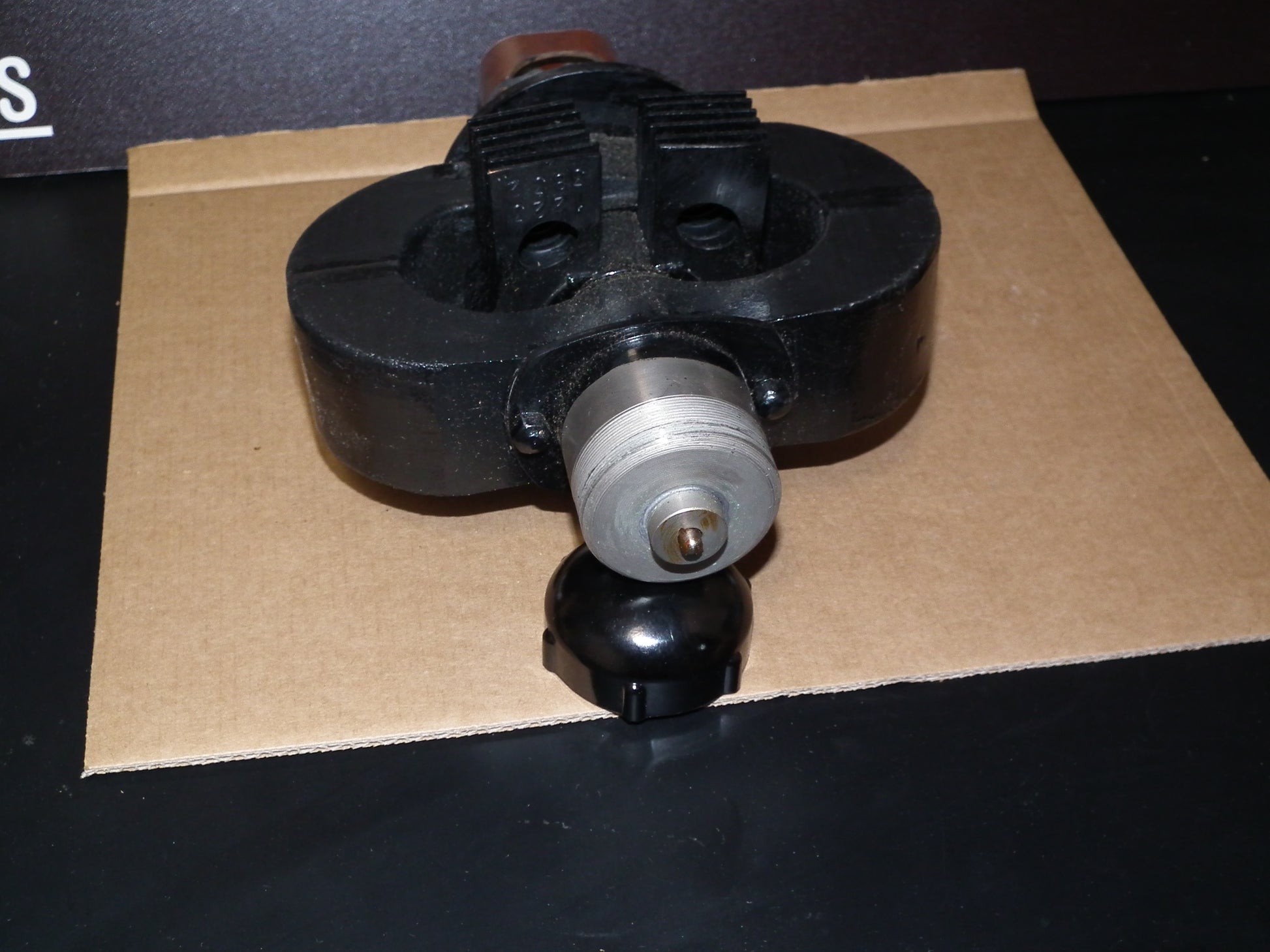

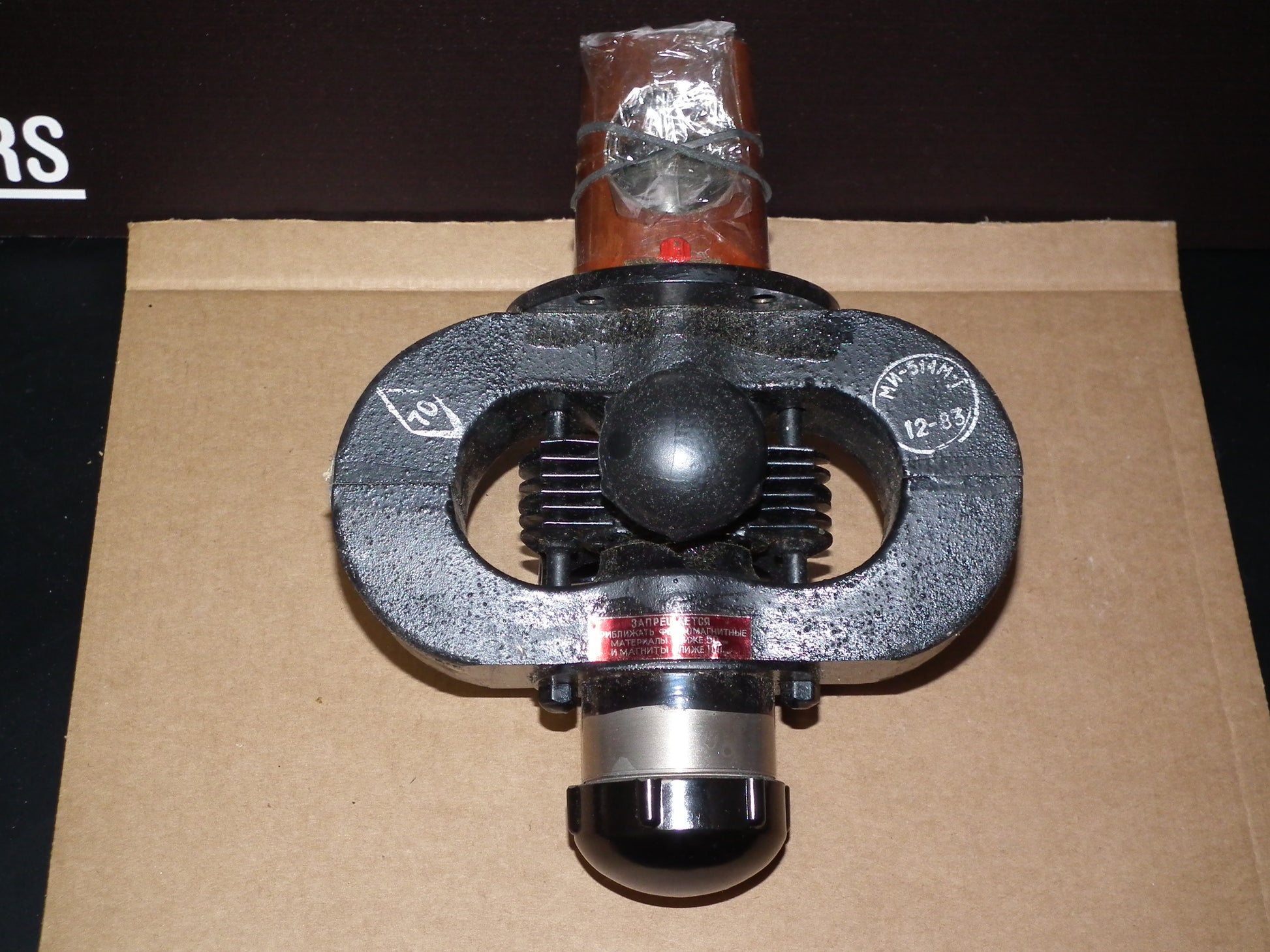

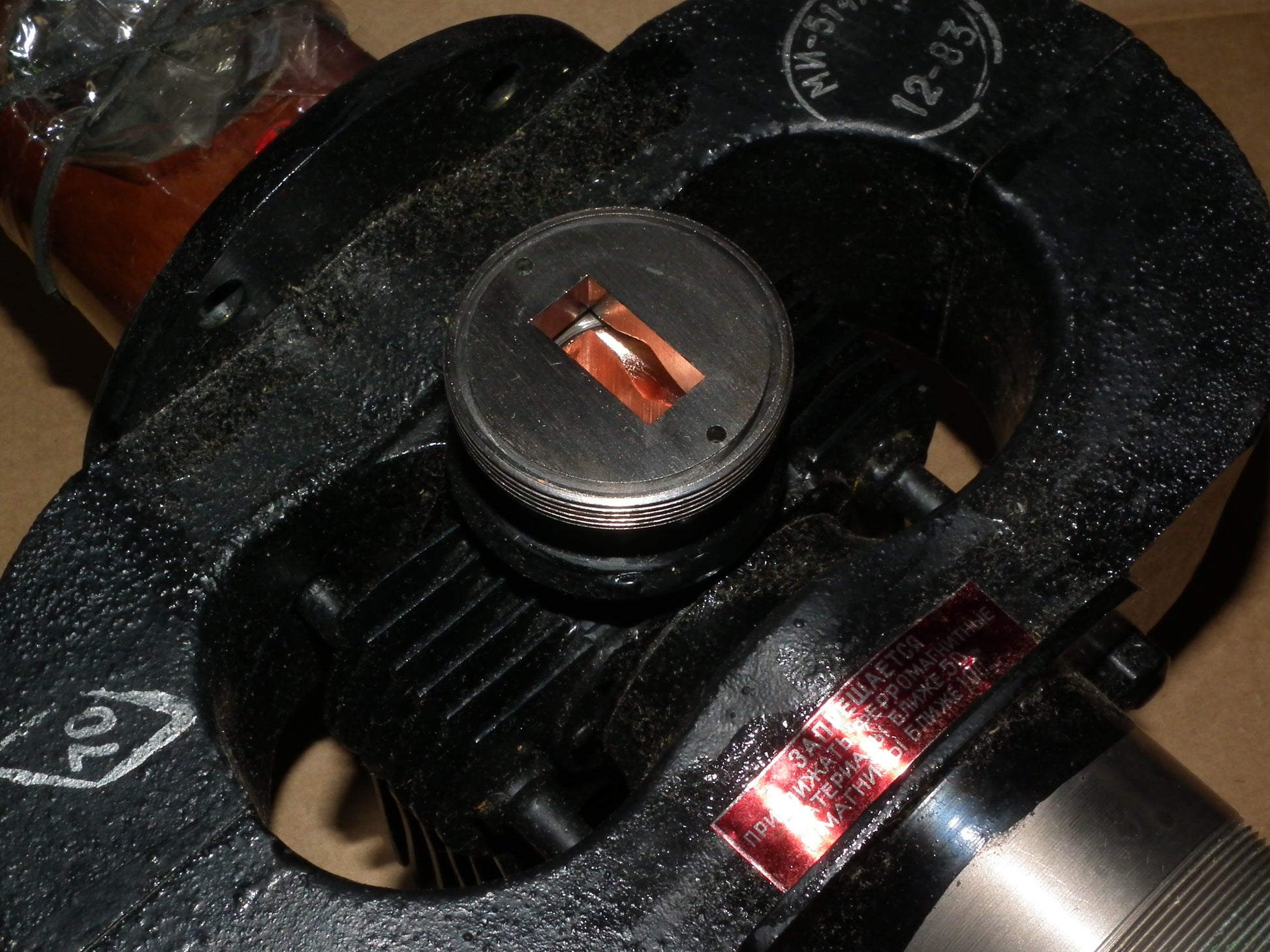

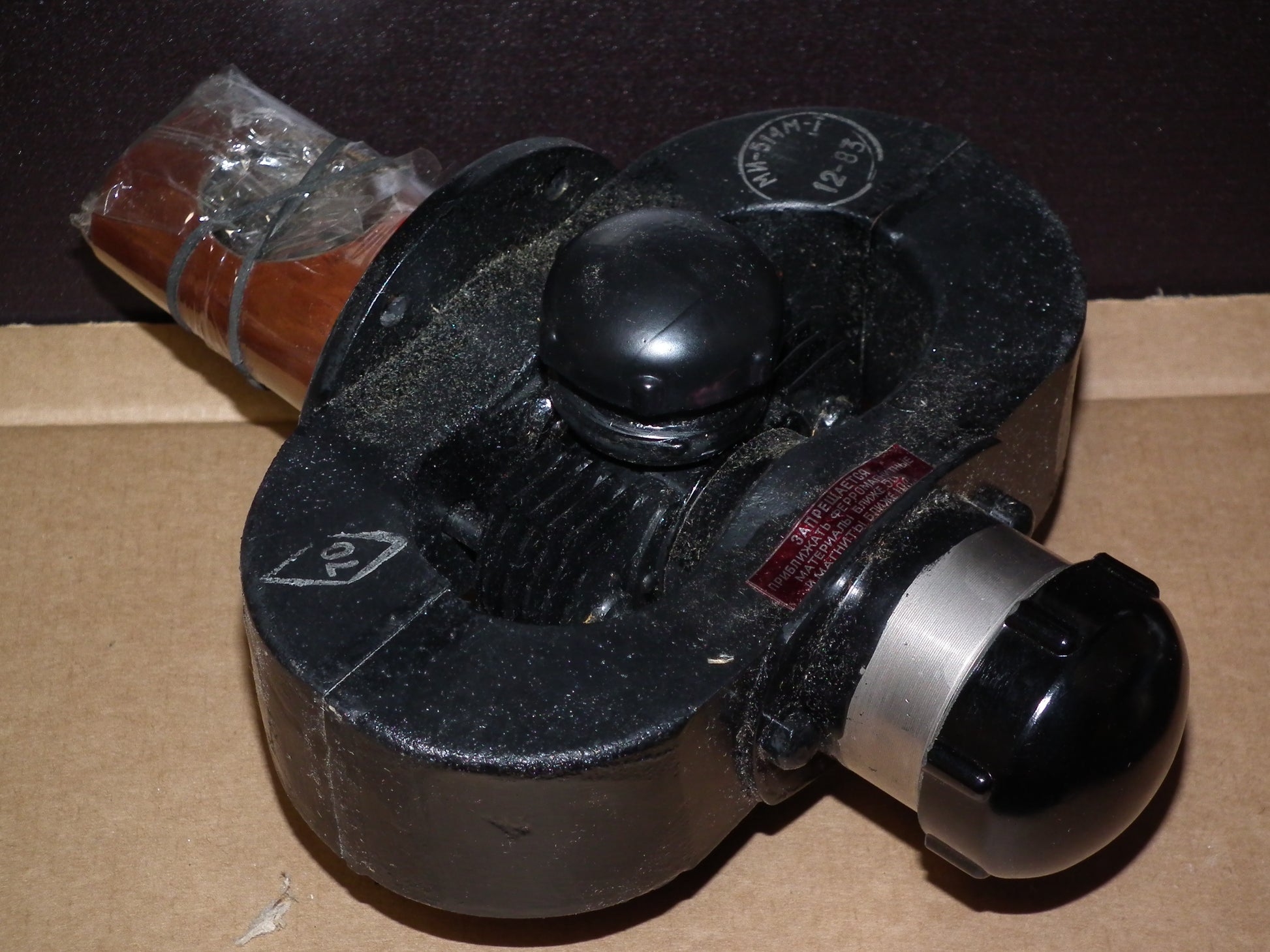

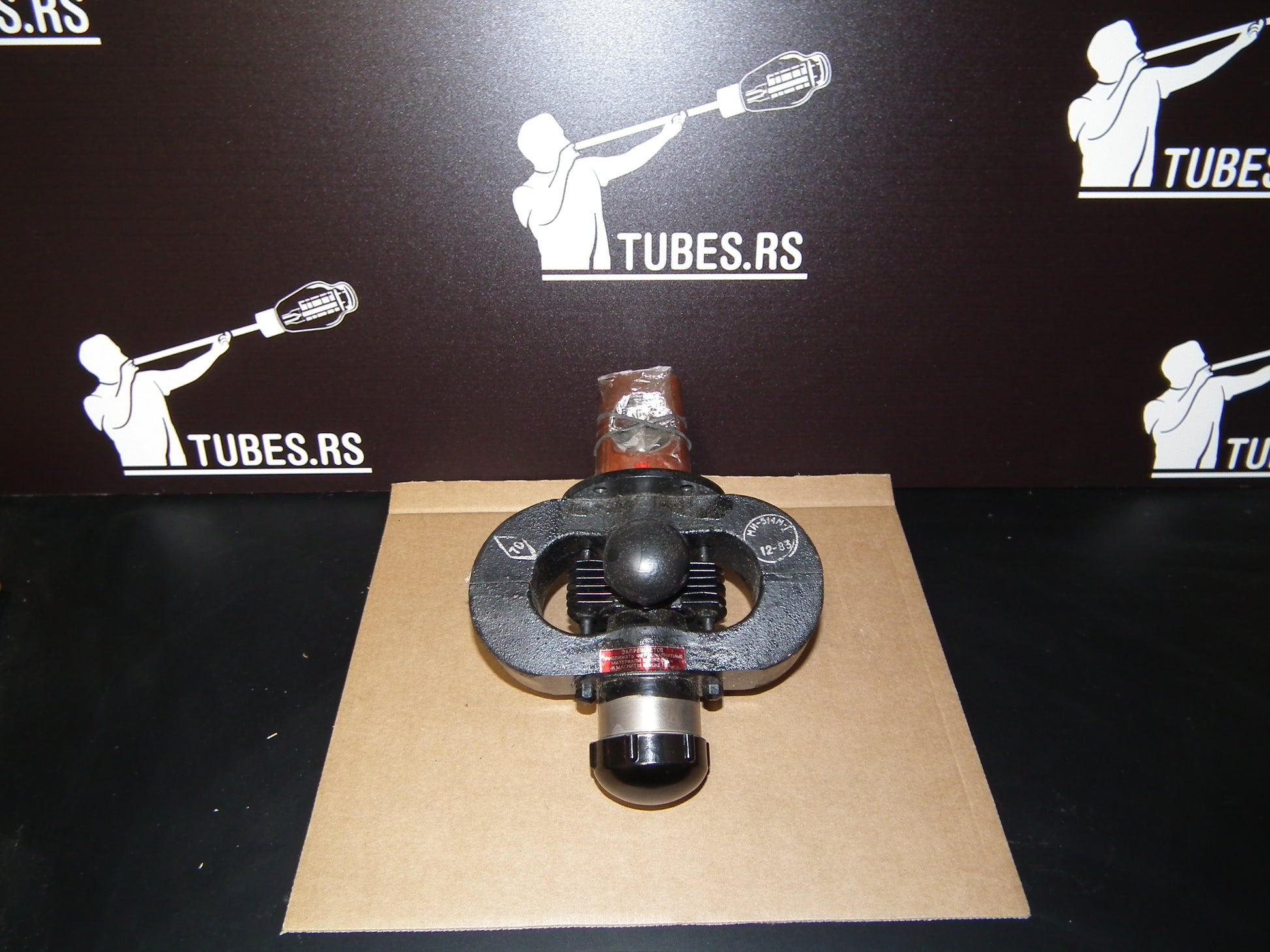

For sale is one (1 pcs) New Old Stock (NOS) magnetron, model MI514M МИ-514-M МИ514 MI514, manufactured in the 1980s. This magnetron is brand new, never used, and comes in its original packaging (as shown on the photos). It is a high-power, high-frequency component, ideal for ground radar applications.
Due to the nature of this item, we are unable to perform any testing, and it is being sold as-is with no returns accepted. The magnetron is in pristine, unused condition, and will be shipped with care to ensure it arrives safely.
| Frequency range, GHz | |
| Output power, kW | |
| Anode voltage, kV | |
| Anode current, A | |
| Pulse duration, mcs | |
| Filament voltage, V | |
| Dimension, mm | |
| Weight, kg | |
| Name | MI-514 M-1 |
| Typ | Magnetron-Impulses |
| Umfang | Generator von High-Power-Pulse von Mikrowellenenergie |
| Gewicht | 8,5 kg |
| Größe | 227x101x173 mm |
| Betriebsfrequenzbereich | 14570-15420 MHz |
| Ausgangsleistung | 80-150 kW |
| Heizspannung | 6,3 |
| Anode | 26-38 A |
| Die Anodenspannung | 14-15 kV |
| VSWR, nicht mehr | 1,1-1,5 |
| Impulsdauer | 0,1-0,25 ms |
| Название | МИ-514М-1 |
| Тип | магнетрон импульсный |
| Область применения | генератор мощных импульсов СВЧ-энергии |
| Масса | 8,5 кг |
| Габариты | 227х101х173 мм |
| Рабочий диапазон частот | 14570-15420 МГц |
| Выходная мощность | 80-150 кВт |
| Напряжение накала | 6,3 В |
| Ток анода | 26-38 А |
| Напряжение анода | 14-15 кВ |
| КСВН, не более | 1,1-1,5 |
| Длительность импульса | 0,1-0,25 мкс |
1pc. MI-514M-1 Magnetron
Important Notes:
-
This magnetron is sold as-is, with no returns accepted.
-
Testing unavailable due to the high-frequency and high-power nature of the item.
-
Ideal for collectors or specialized use in ground radar applications where this magnetron is required.
