K15U-1 HV Doorknob Capacitors module
K15U-1 (К15У-1) - subtype P100 (П100) - PTC - Positive temperature coefficient 100 ppm/C
K15U-1 (К15У-1) are High Voltage ceramic capacitors designed for Heavy duty use in uninterrupted high frequency circuits or pulse DC circuits. VERY HIGH stability over wide temperature range.
The capacitors and the whole assembly contain precious metals, most notably Silver. Leads are also silver plated.
You are bidding for a assembled set of TWO capacitors:
1. 100pF, 6kV (6000V), 20%, 55kVar, P100 = 100ppm/C

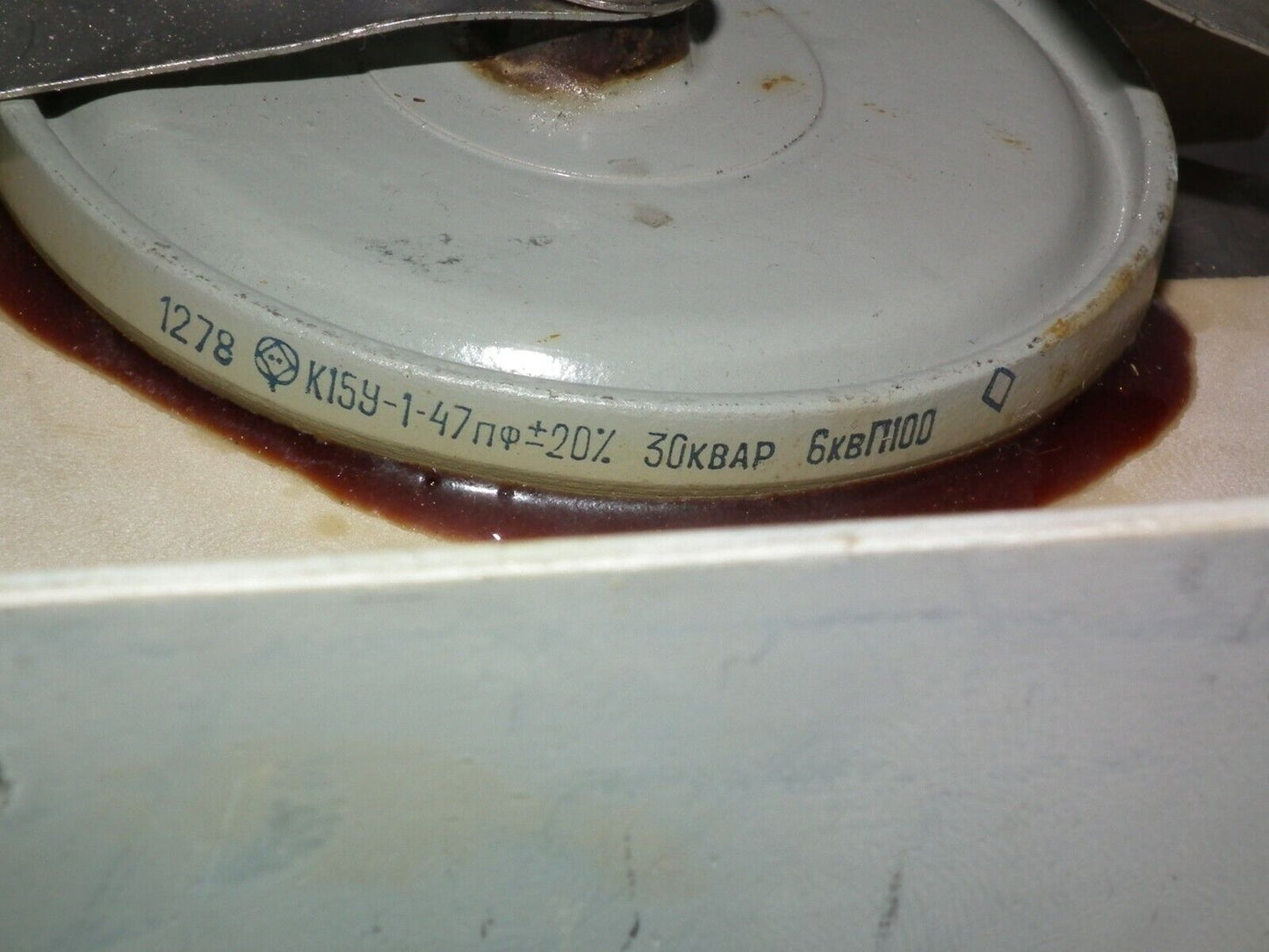

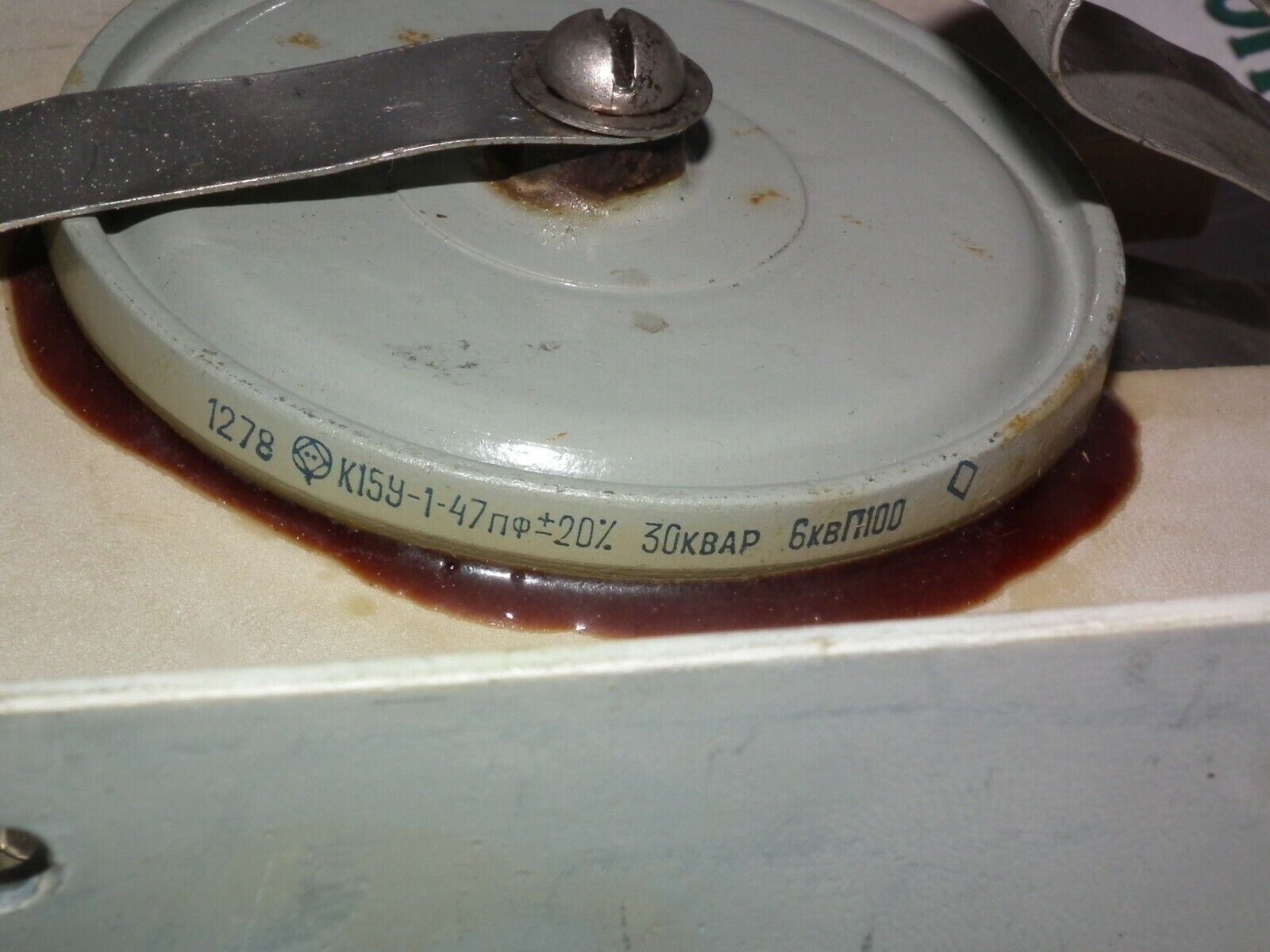

2. 47pF, 6kV (6000V), 20% , 30kVAr, P100 = 100ppm/C

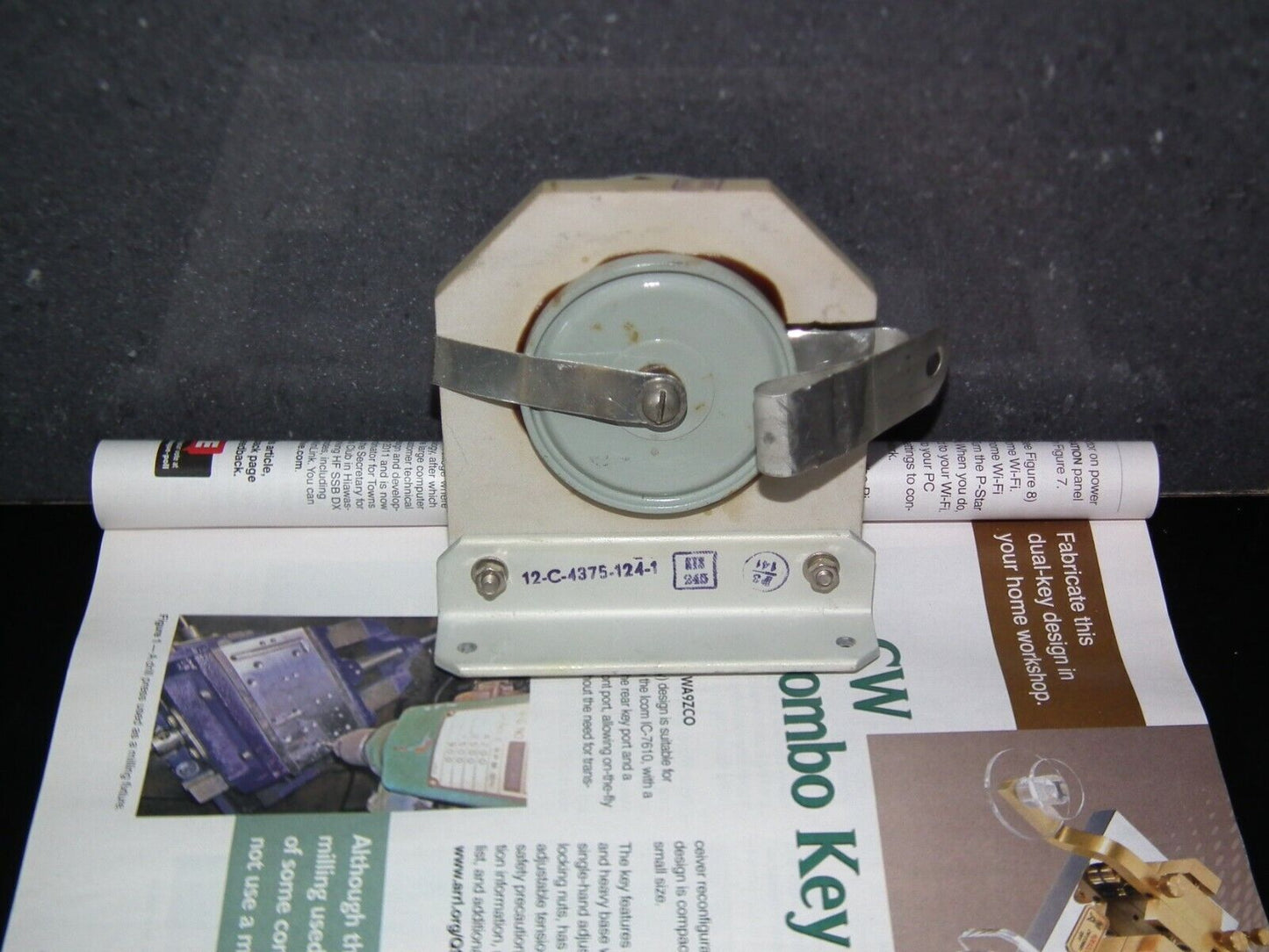

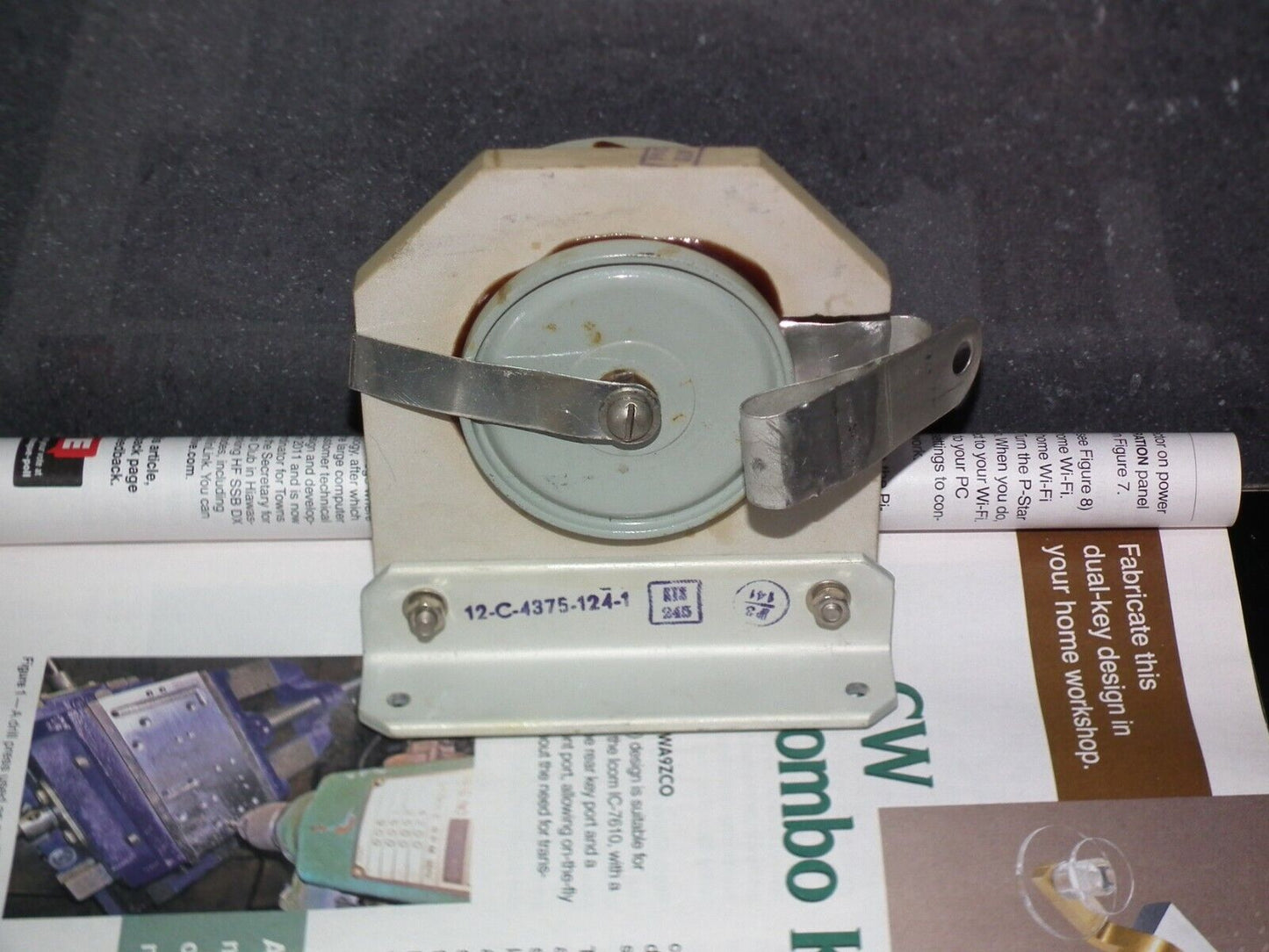

Further description: Capacitors are glued (some type of hard epoxy glue) to the white ceramic. The lead which comes from the center of the ceramic base is common lead for both capacitors. Ceramic base is 7.5mm = 0.295" thick.
Size of the whole assembly without the leads : 106 x 40 x 110 mm = 4.17 x 1.57 x 4.33 inch
Distance between chassis mounting holes is 90mm = 3.54".
