Johnson Cardwell Multronics

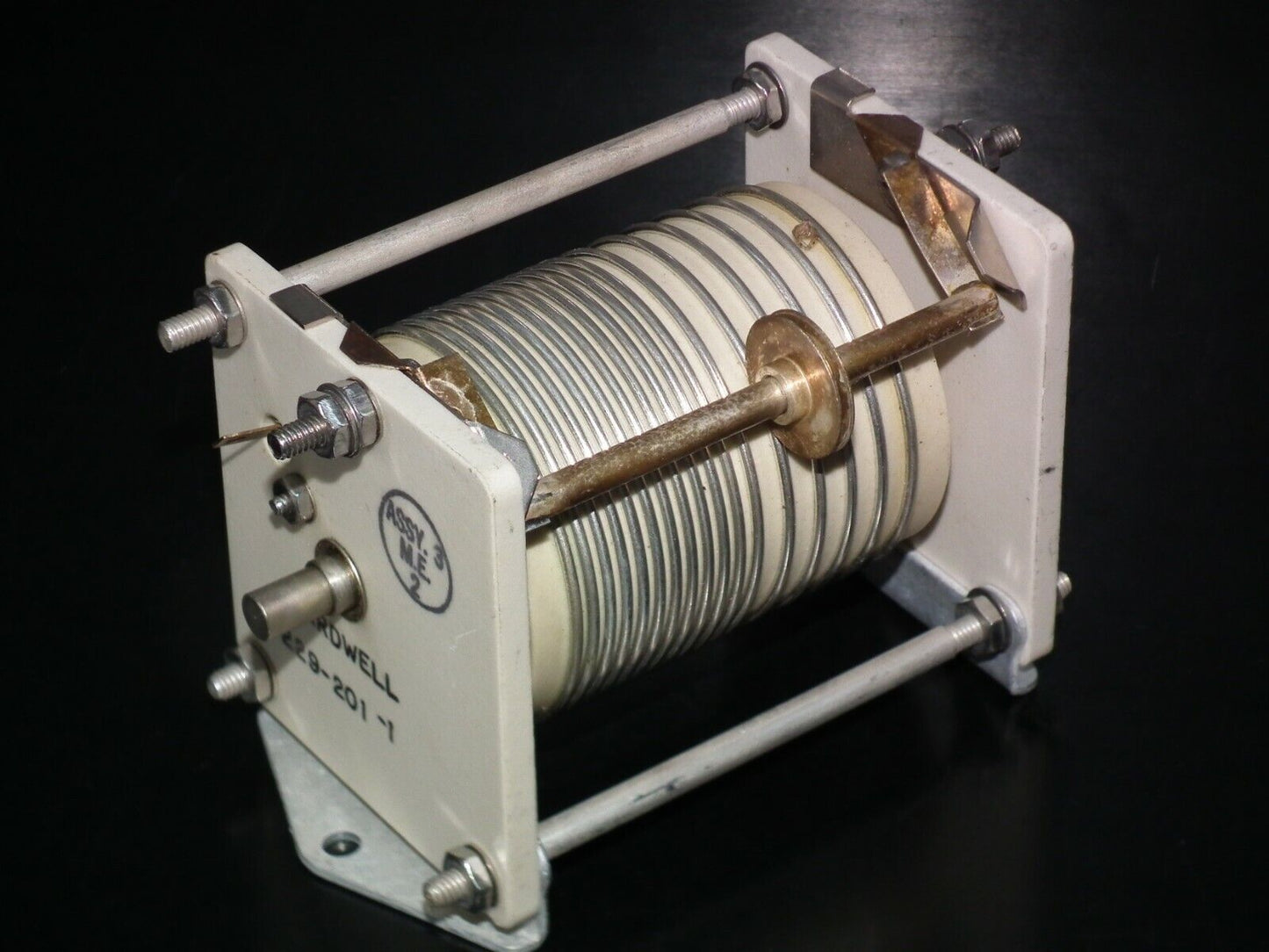

NOS Variable Roller Inductor Coil - JOHNSON CARDWELL 10uH - LINEAR AMPLIFIERS

NOS Variable Roller Inductor Coil - JOHNSON CARDWELL 10uH - LINEAR AMPLIFIERS

Regular price €101,99
Regular price Sale price €101,99
Sale Sold out
Tax included. Shipping calculated at checkout.

Model: 10 uH

Type: Linear Amplifier

Brand: Johnson Cardwell Multronics

For sale is one genuine Johnson variable roller inductor tank coil, made in USA



Variable Roller Inductor Coil - JOHNSON CARDWELL MULTRONICS 10uH - LINEAR AMPLIFIERS ANTENNA TUNERS

NOS - New Old Stock - Never Used Item, made back in 60s, perfect working condition, as shown on photos



Associated part numbers:

    • NSN - 5950005101743
    • Genisco Filter Corp - Spectrum Control Inc - Cardwell - EF Johnson - 229-201
    • Rockwell Collins Inc - 980-0110-00 980-0110-000
    • Aschbacher - SAS5101-743
    • Dare Electronics Inc - AE141-001-99
    • Viking Technologies - Cardwell - EF Johnson - 229-201-1 229-201-50



  • ITEM NAME COIL - RADIO FREQUENCY
  • TURN QUANTITY - 17 SINGLE COMPONENT SINGLE WINDING
  • MOUNTING HOLE DIAMETER - 0.200 INCHES NOMINAL SINGLE GROUP
  • INDUCTANCE RATING - 10.00 MICROHENRIES NOMINAL SINGLE COMPONENT SINGLE WINDING
  • COIL FORM TYPE - HOLLOW SINGLE COMPONENT
  • BODY LENGTH - 4.438 INCHES MAXIMUM
  • BODY WIDTH - 2.500 INCHES NOMINAL
  • BODY HEIGHT - 2.969 INCHES NOMINAL
  • DISTANCE BETWEEN MOUNTING FACILITY CENTERS - 3.812 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP
  • INCLOSURE TYPE - OPEN
  • MOUNTING FACILITY QUANTITY - 2 SINGLE GROUP
  • MOUNTING METHOD - UNTHREADED HOLE SINGLE GROUP
  • RATING METHOD - WINDING TURNS SINGLE COMPONENT SINGLE WINDING
  • WINDING CONDUCTOR SIZE - 0.06408 INCHES AMERICAN WIRE GAGE SINGLE COMPONENT SINGLE WINDING
  • TERMINAL TYPE AND QUANTITY - 2 WIRE LEAD
  • What You see is what You get


-
If you buy any item on ebay from me and for if you are not fully satisfied for any reason or have any complains, please send me message before leaving negative or neutral feedback or opening a case. I really do care about your satisfaction and I’ll do my best to solve any kind of problem.

I collect tubes and tube gear for more then 40 years and I start to sell recently, please be sure to check my other items and visit my store for more rare NOS tubes and parts.

I have more than 250000 NOS tubes in stock and just small part is listed here, if you are interested in any specific tube or part, please send me message.
