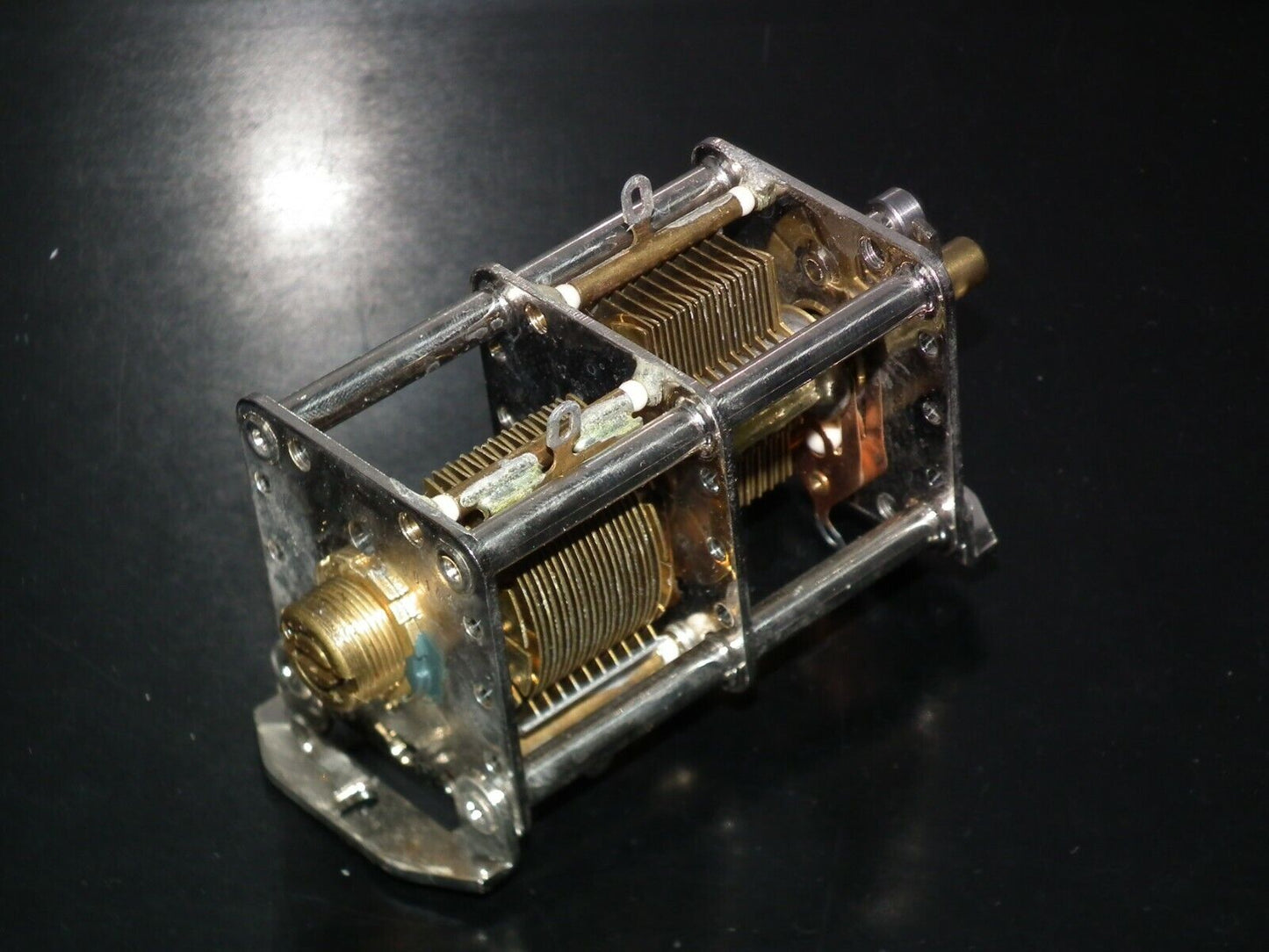

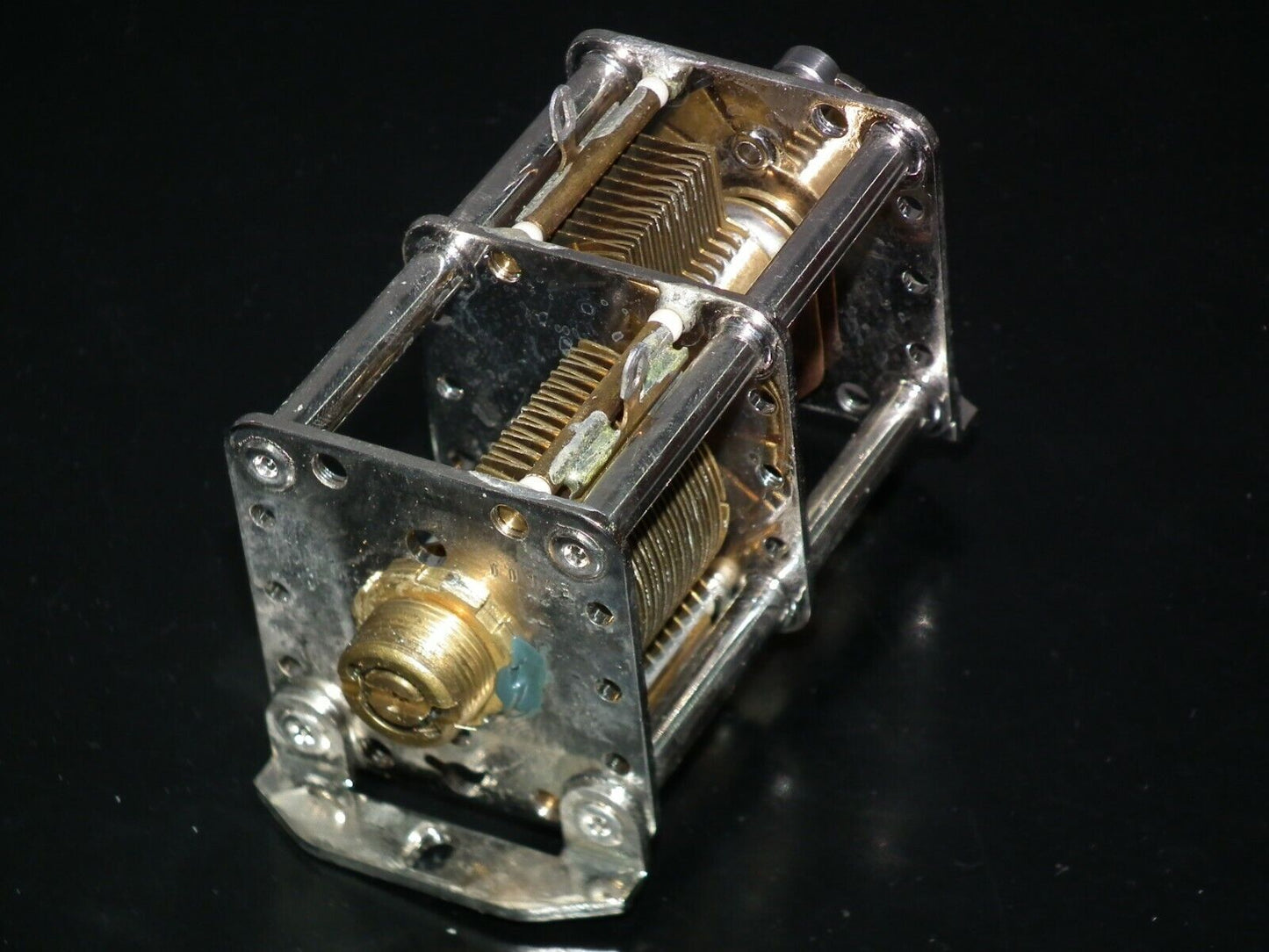

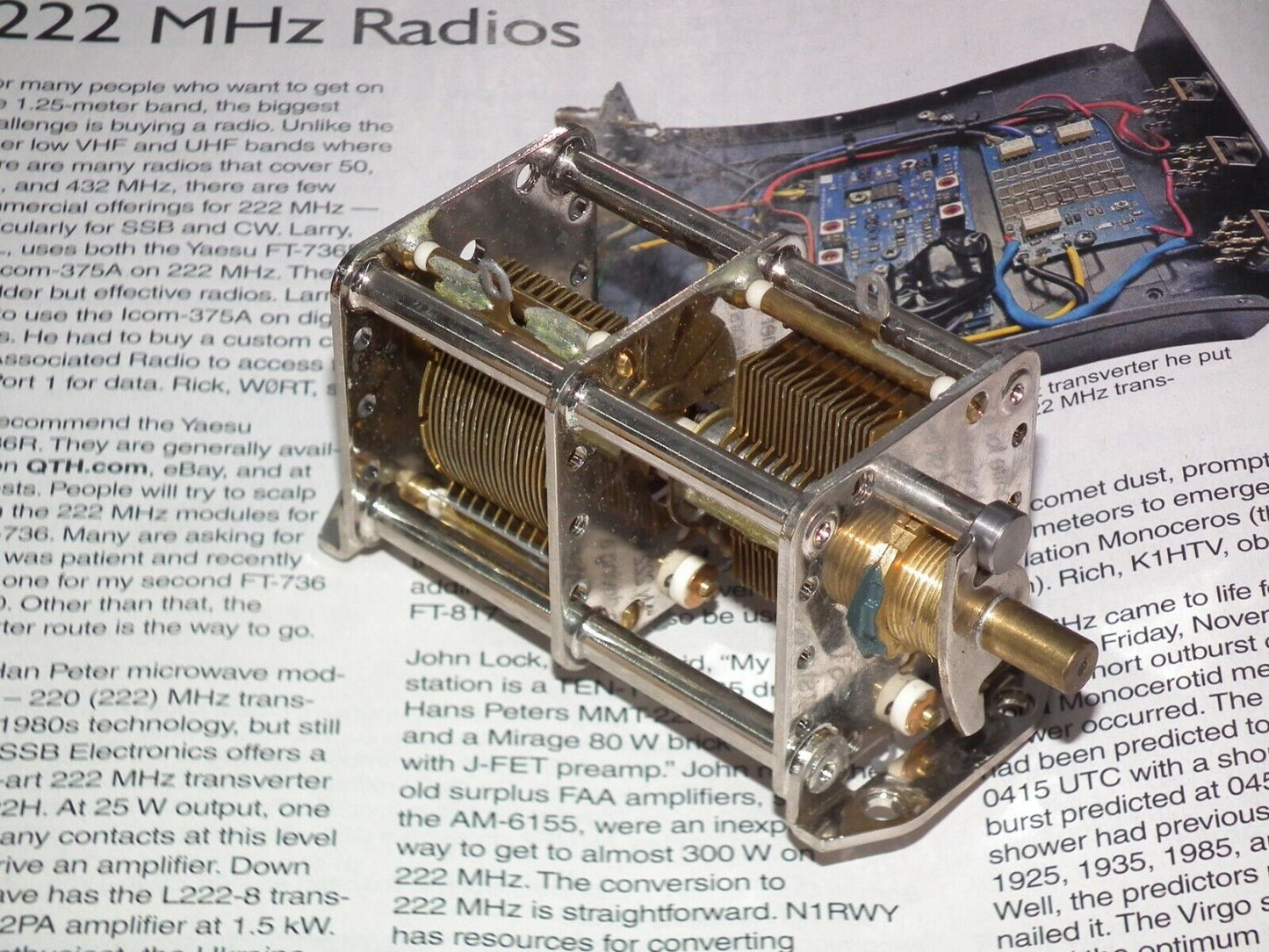

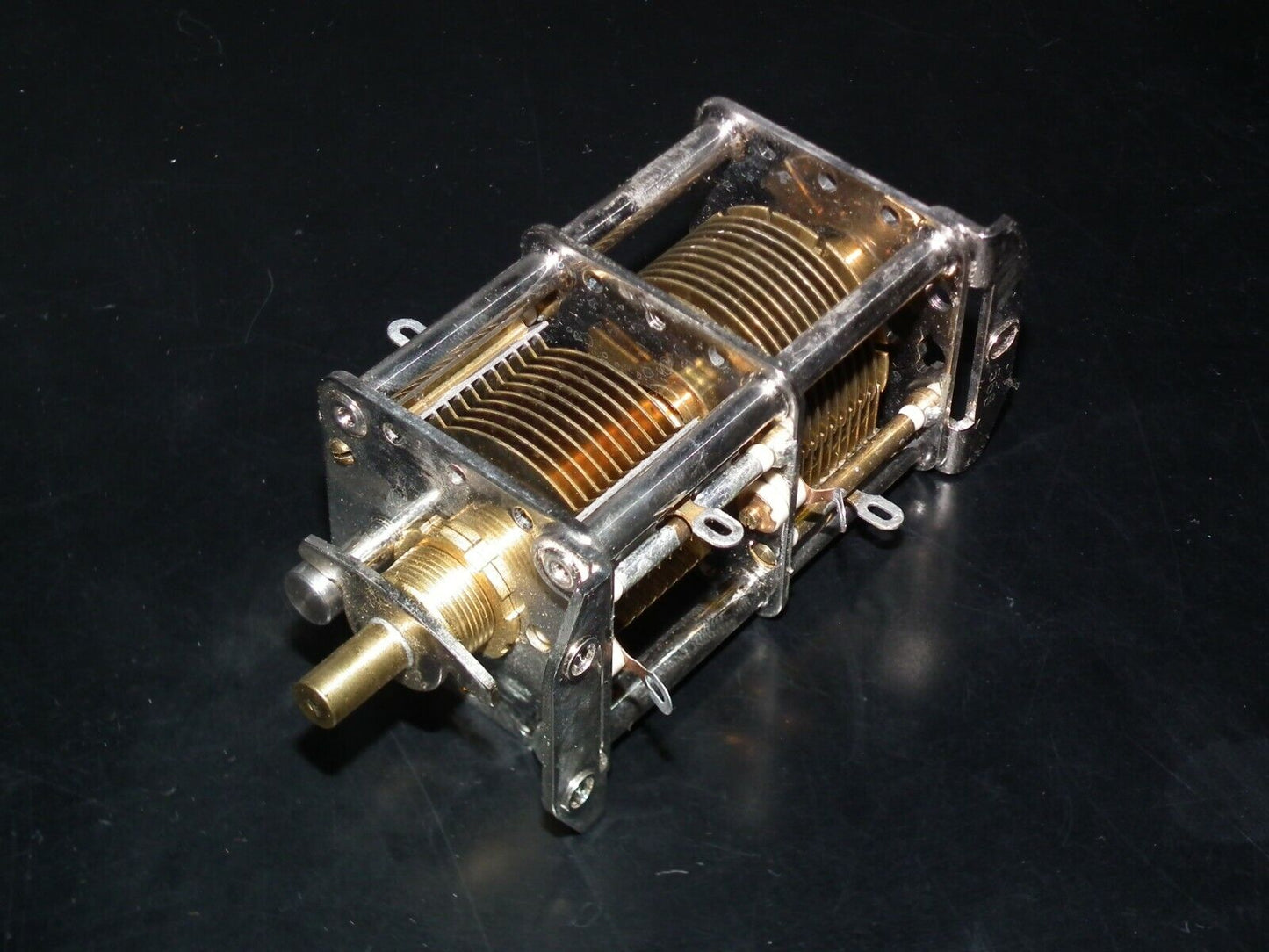

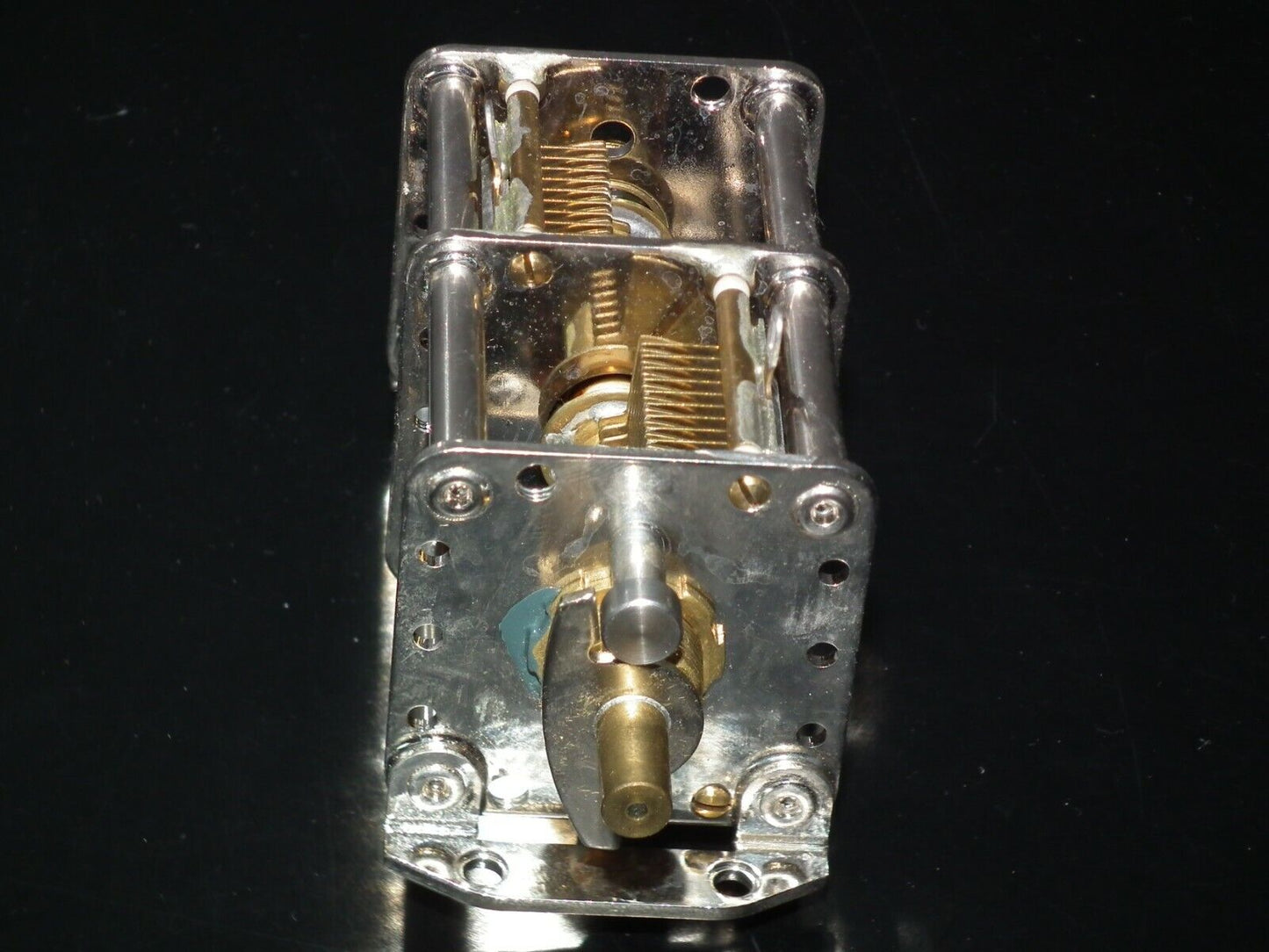

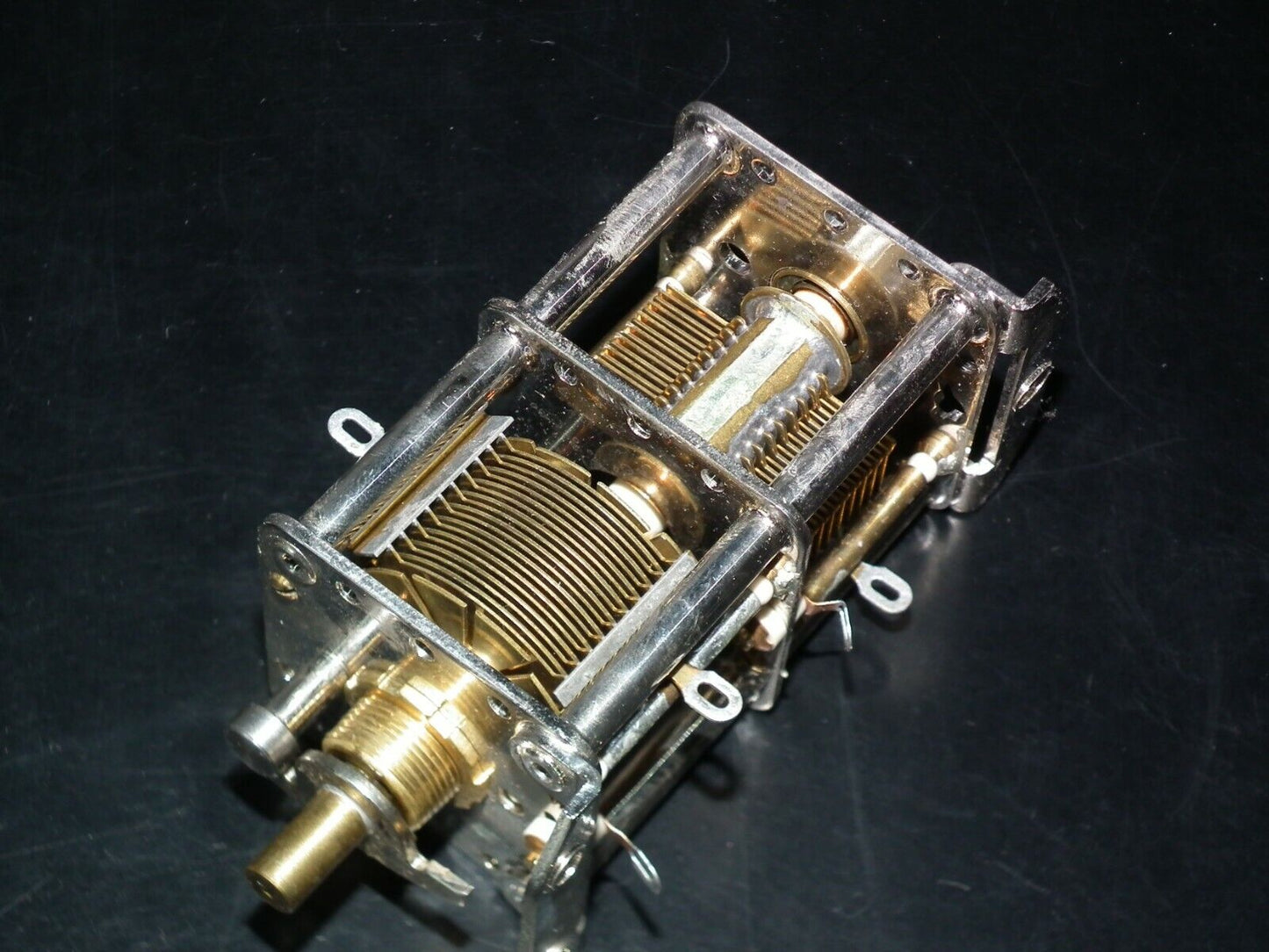

One NOS Philips air variable capacitor - 2x125 pF ( 250pF) dual section
One NOS Philips air variable capacitor - 2x125 pF ( 250pF) dual section
Regular price
€41,99
Regular price
Sale price
€41,99
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
One (1 pcs) vintage hi quality variable capacitor, dual section, ideal for tube type receivers and transmitters, made back in 70s.
View full details
2x125 pF, minimal capacitance 2x15 pF, NOS Item, Never used in original packaging
PHILIPS - air dielectric capacitor applicable where a high accuracy of adjustment and a high degree of stability are required
Precision high quality antenna tuner air variable capacitor
Could be also used as high quality VFO variable capacitor
2 gang - air spaced - 125pf 125 pf ( 250 pF if wired in parallel ) - 500V 500 V
Gold plated plates - Brass-nickel plated frame - Ceramic insulation
Two ball bearings on both side of the shaft
Air gap between plates is 1 mm
Number of plates: 11 rotor - 10 stator
Dimensions: 80 mm long, 39 mm wide, 42 mm high
Manufacturer part No. 2222 805 00143
