Philips

Philips air variable capacitor - 160 pF ball bearing HIGH QUALITY - HF VFO USED

Philips air variable capacitor - 160 pF ball bearing HIGH QUALITY - HF VFO USED

Regular price €24,99
Regular price Sale price €24,99
Sale Sold out
Tax included. Shipping calculated at checkout.

Brand: Philips

Featured Refinements: Air Variable Capacitor

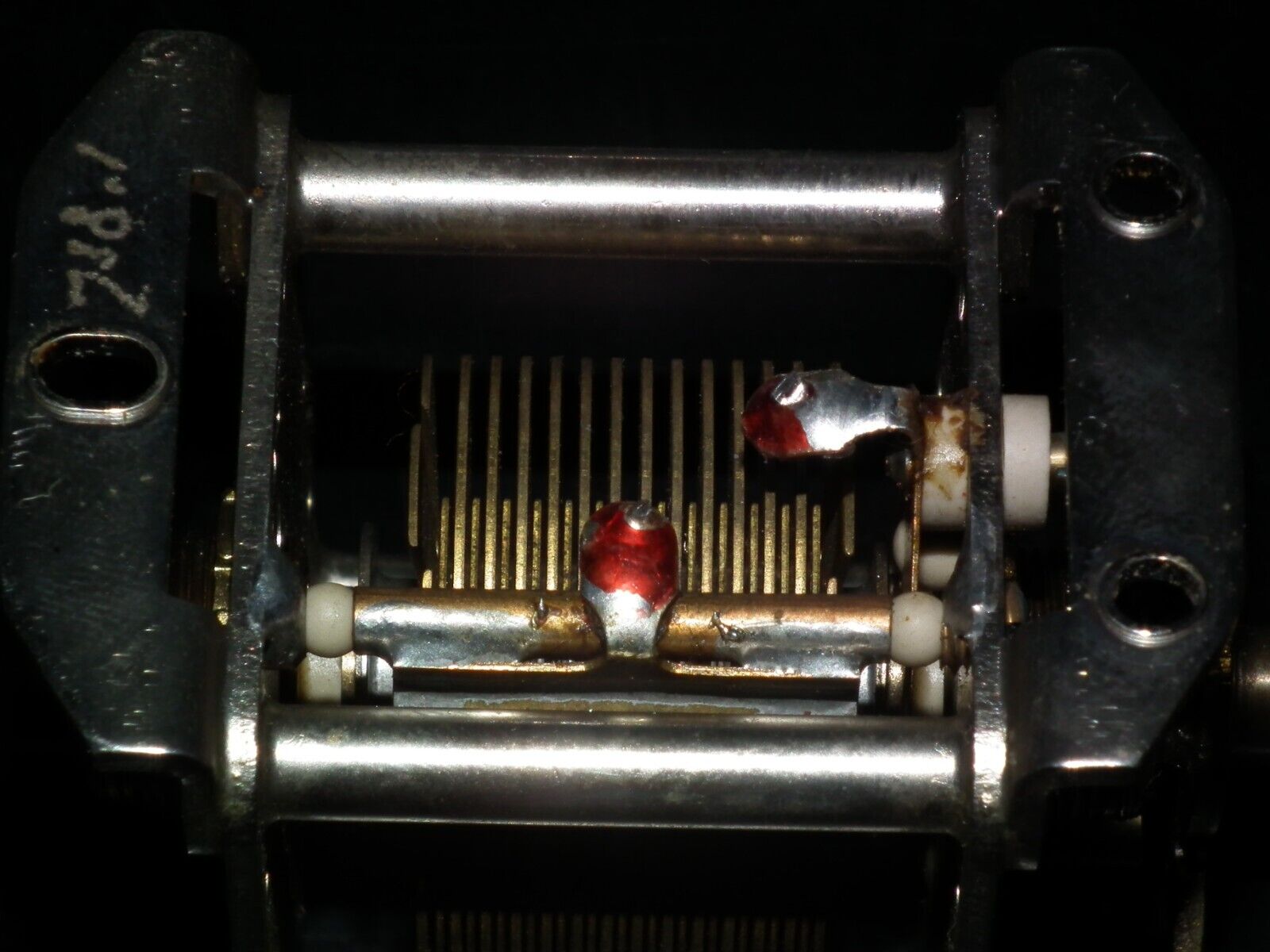

One (1 pcs)  vintage hi quality variable capacitor 160pF, ideal for tube type receivers and transmitters, made back in 70s.

Used, dismantled from professional transmitter, tested, perfect as NEW one


PHILIPS - air dielectric capacitor applicable where a high accuracy of adjustment and a high degree of stability are required

Precision high quality antenna tuner air variable capacitor

Could be also used as high quality VFO variable capacitor

1 gang - air spaced - 160pf 160 pf  - 500V 500 V

Gold plated plates -  Brass-nickel plated frame - Ceramic insulation

Two ball bearings on both side of the shaft

Air gap between plates is 1 mm

Number of plates: 13 rotor - 12 stator

Dimensions: 45 mm long, 39 mm wide, 42 mm high

Manufacturer part No. 2222 805 00136

Made by Philips
