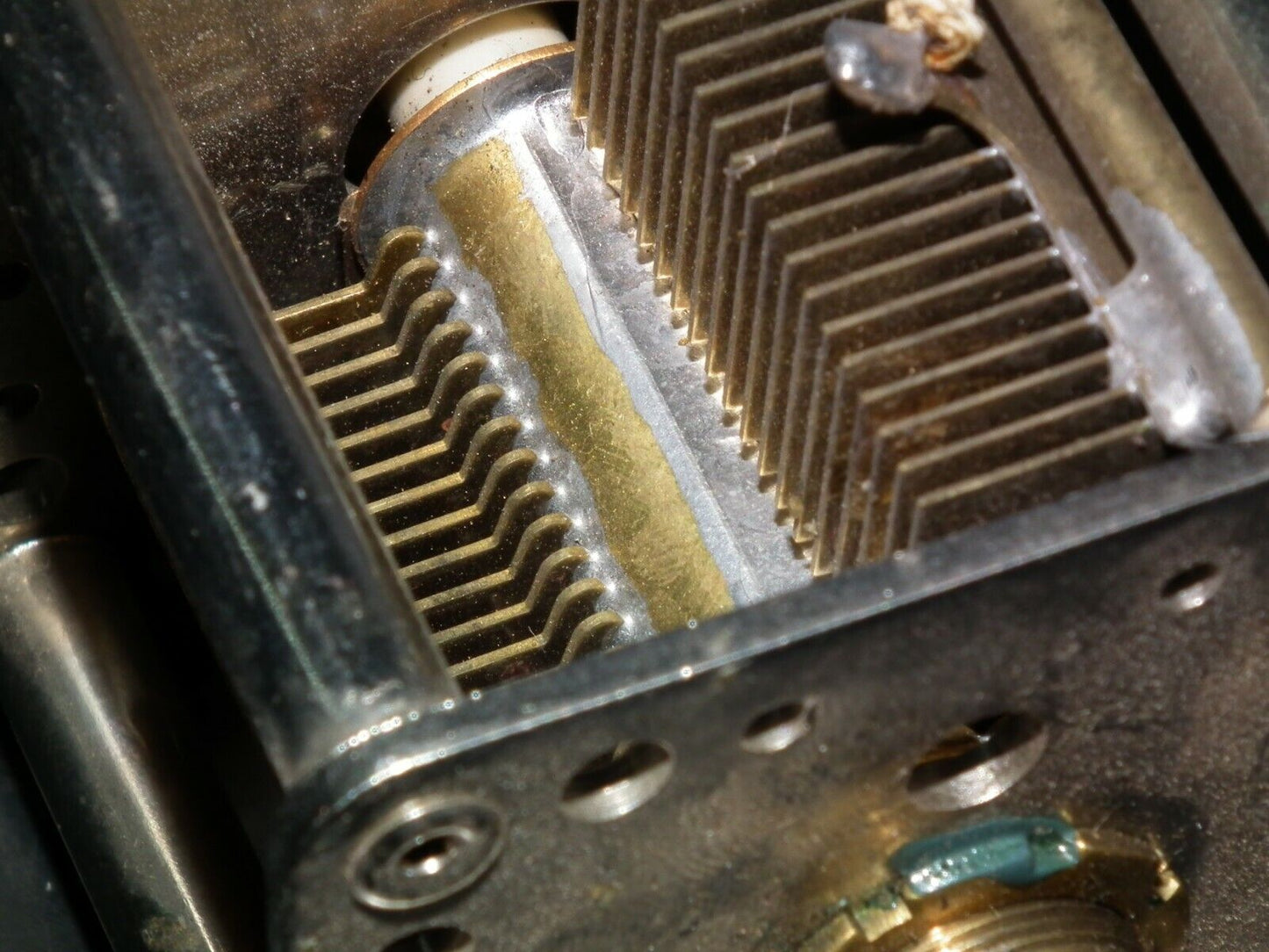

PHILIPS AIR VARIABLE CAPACITOR 2 x 570pF ( 1140pF ) - ball bearing HIGH QUALITY

Up for sale, PHILIPS - air dielectric capacitor applicable where a high accuracy of adjustment and a high degree of stability are required

Precision high quality antenna tuner or HF amplifier air variable capacitor

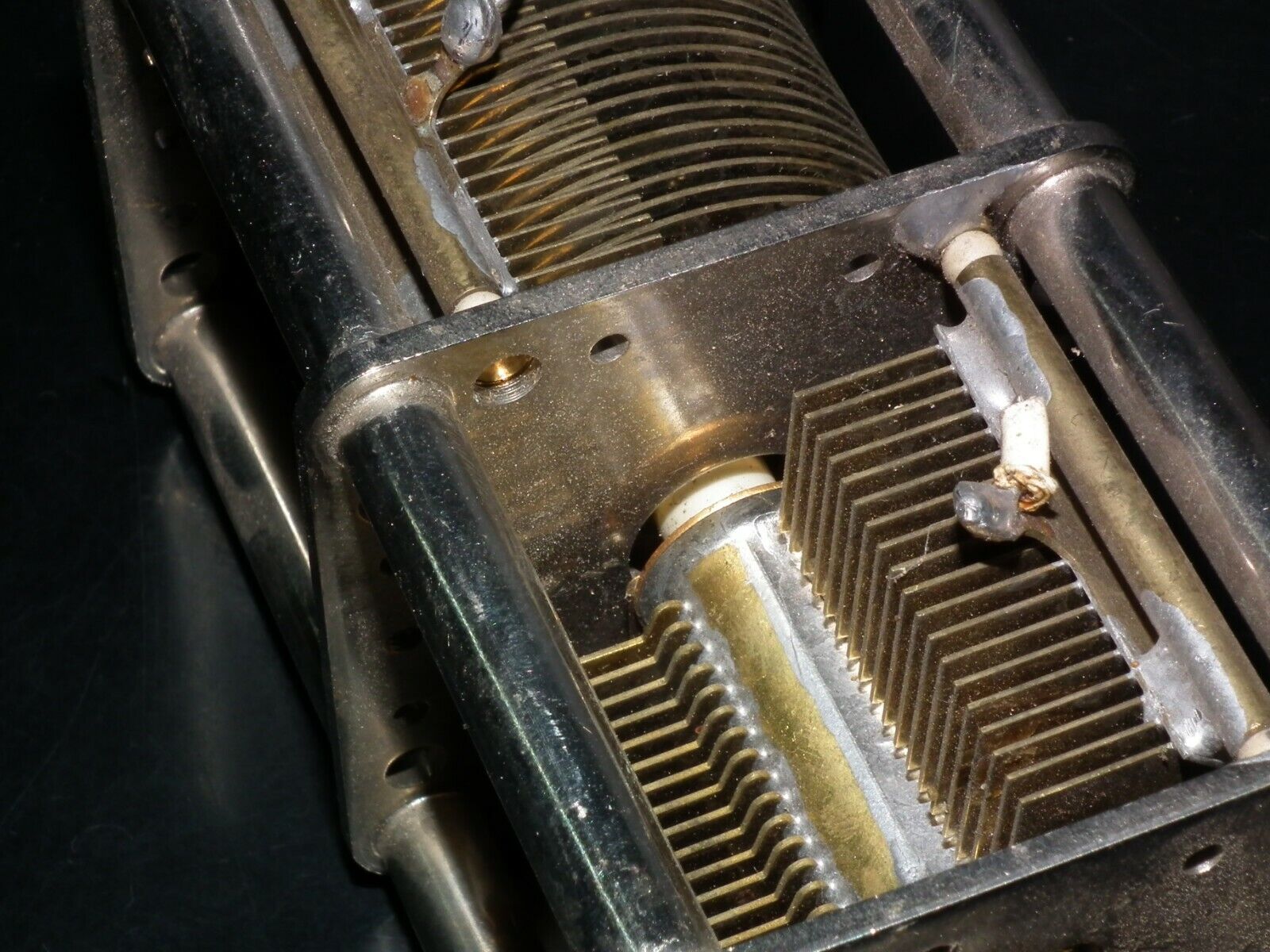

Two gang - air spaced - each section is 570pF (total 1140pF in parallel)

Gold plated plates -  Brass-nickel plated frame - Ceramic insulation

Two ball bearings on both side of the shaft

Air gap between plates is 1.5 mm

Number of plates: 19 rotor - 20 stator

Dimensions: 128 mm long, 60 mm wide, 62 mm high

Manufacturer part No. 02214

Made by Philips

We have also the same item - NOS, please find it among our listings if you are interested in NOS one
