Variable Roller Inductor Coil - JOHNSON 10uH - LINEAR AMPLIFIERS ANTENNA TUNERS

Variable Roller Inductor Coil - JOHNSON 10uH - LINEAR AMPLIFIERS ANTENNA TUNERS

€49,95
€49,95
Sale Sold out
Tax included. Shipping calculated at checkout.

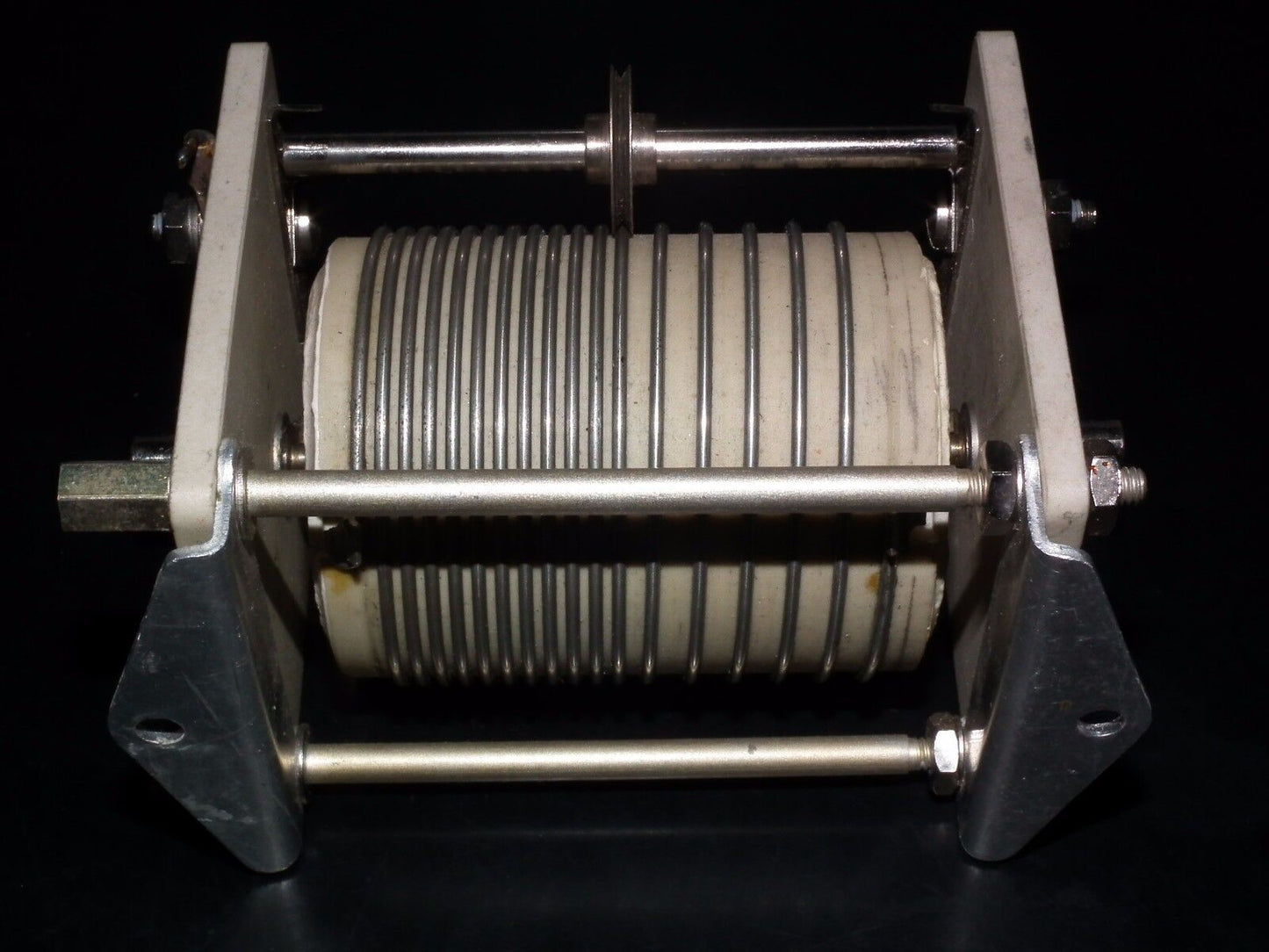

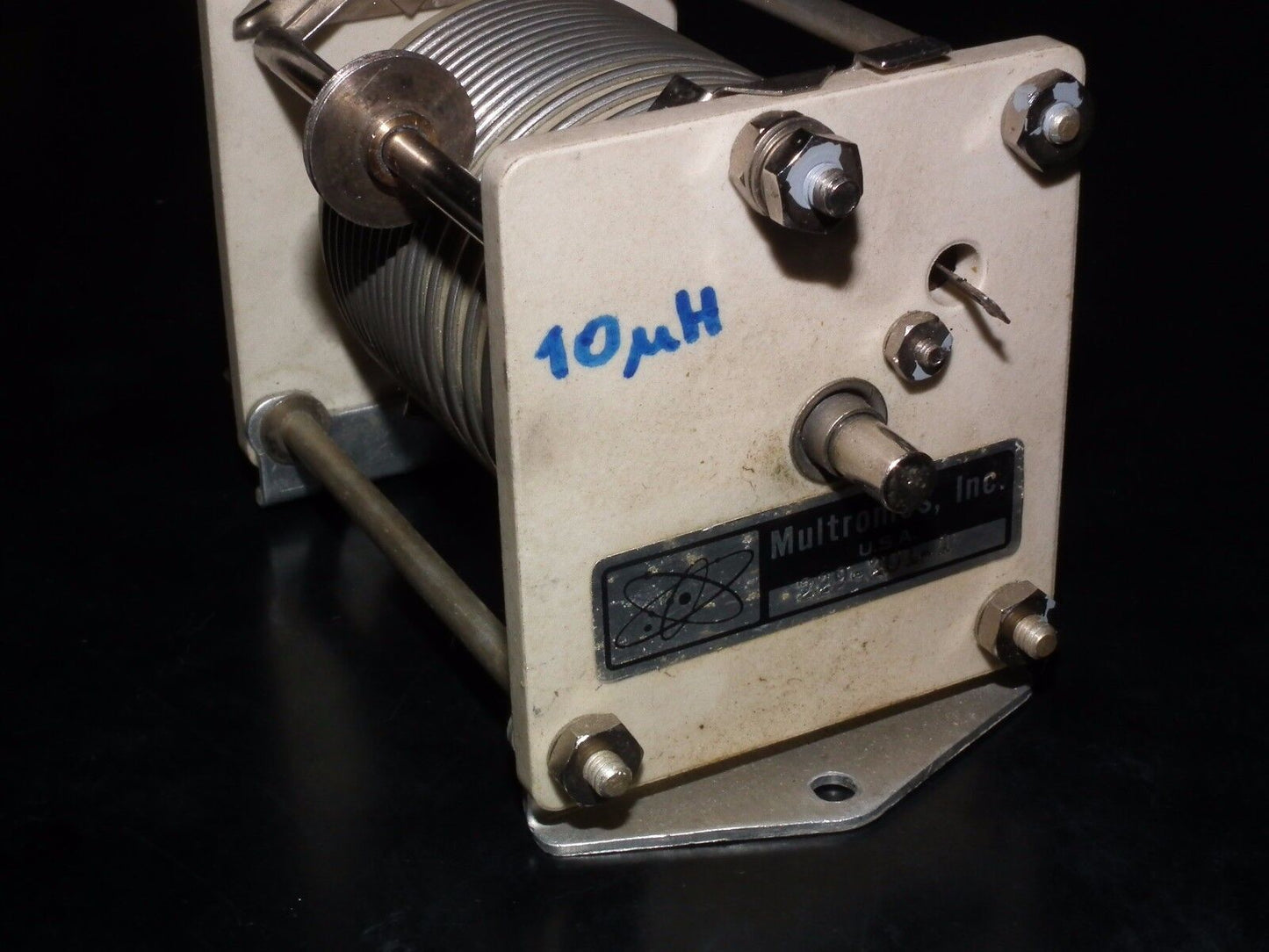

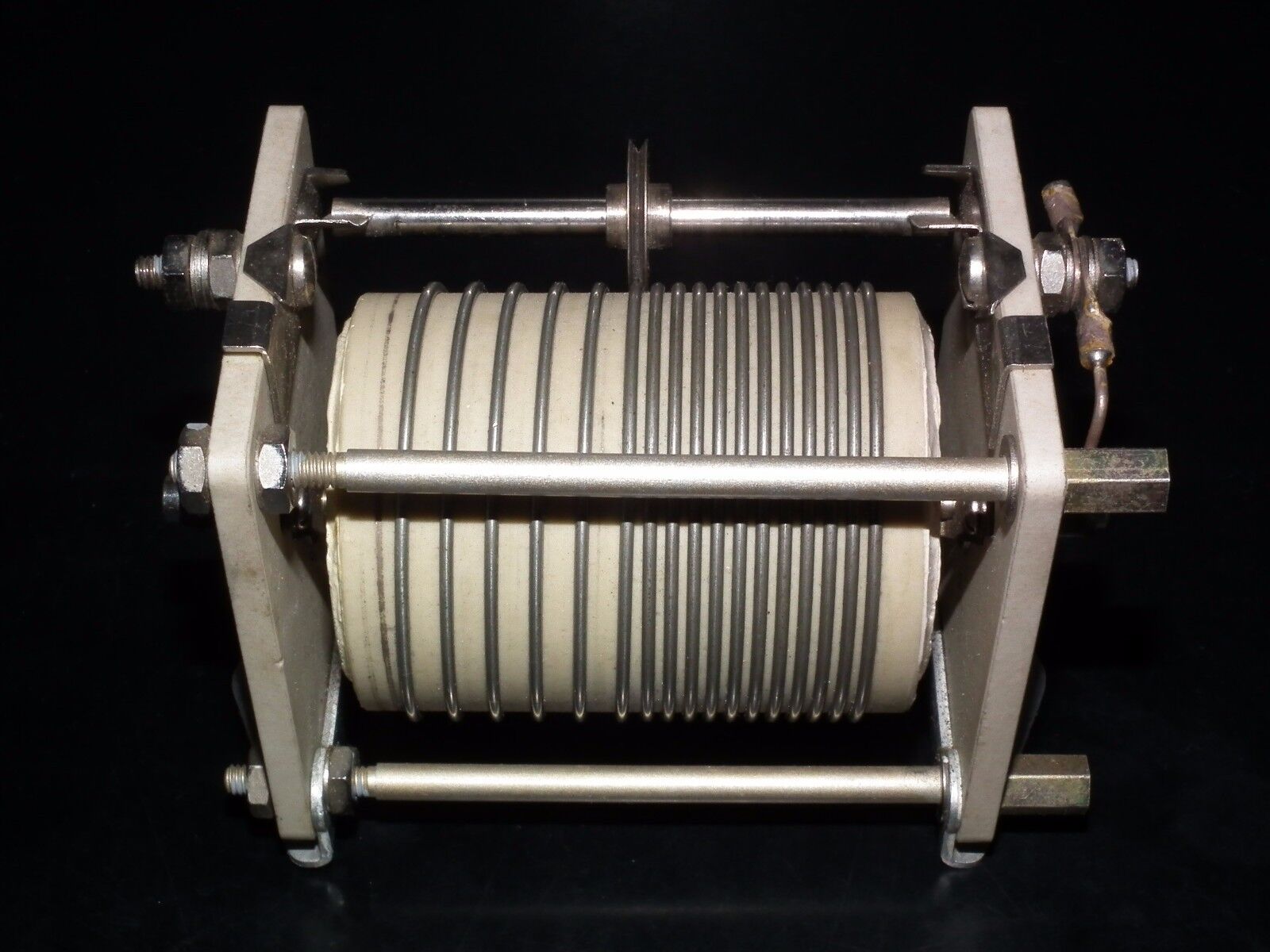

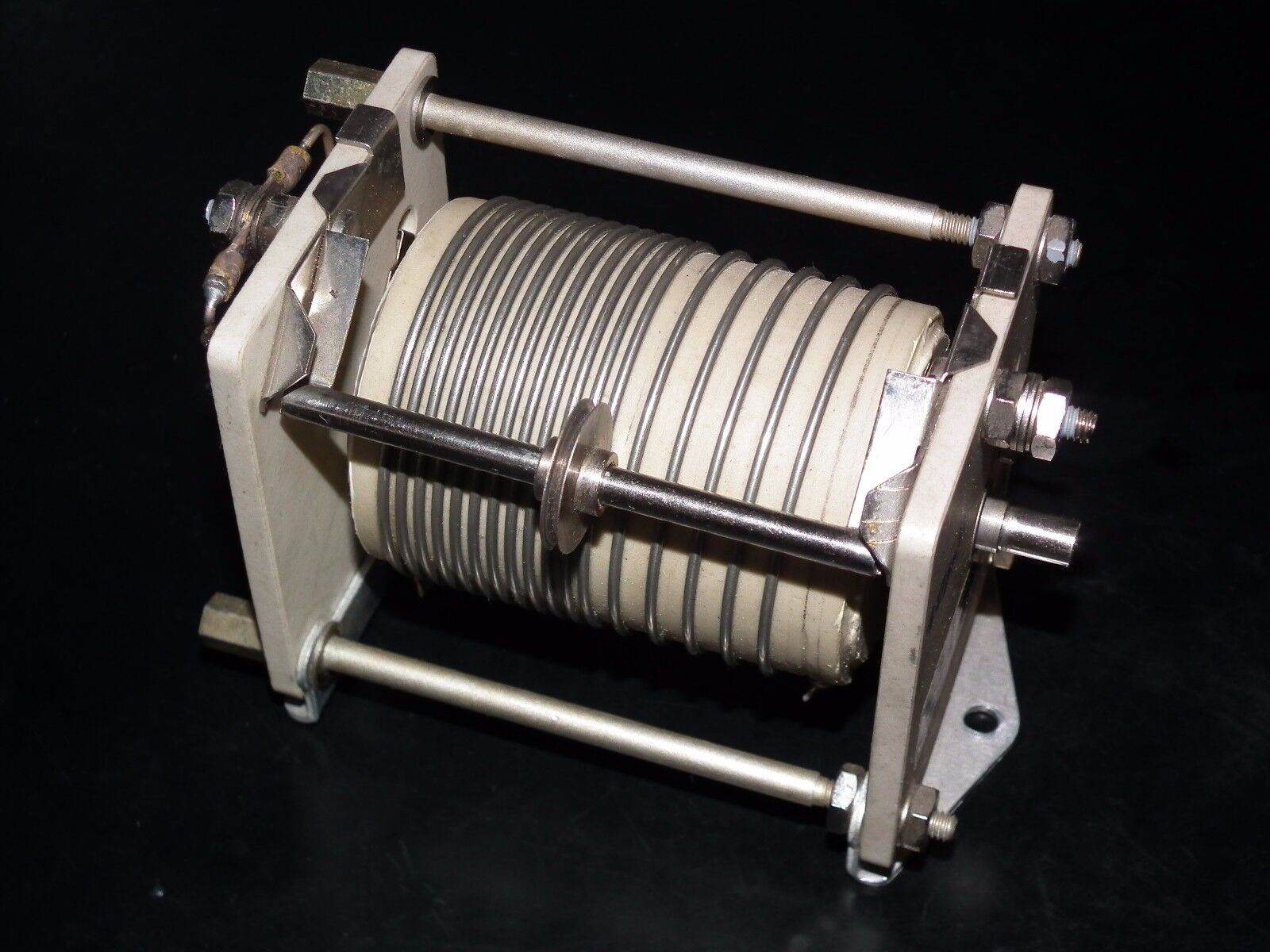

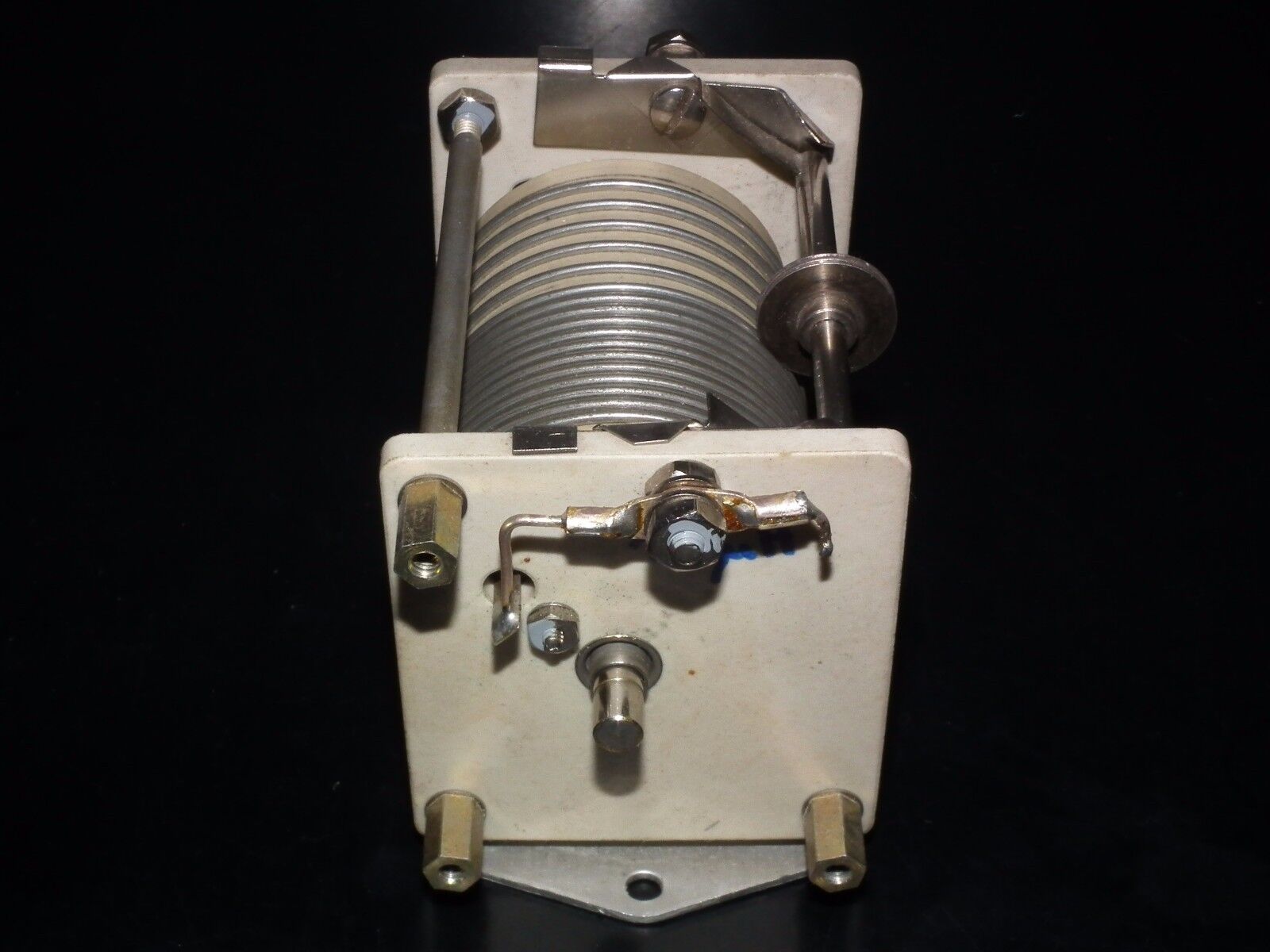

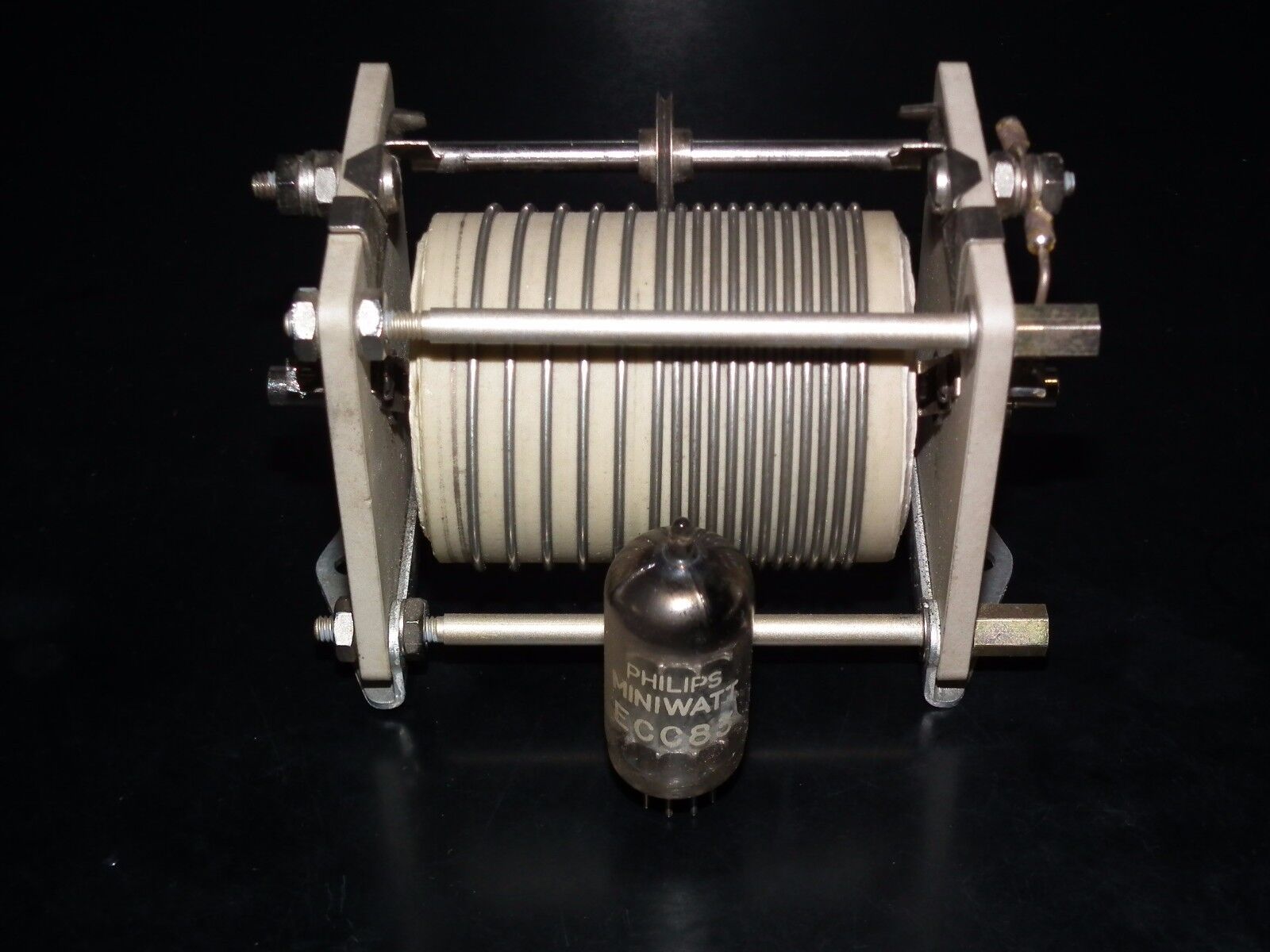

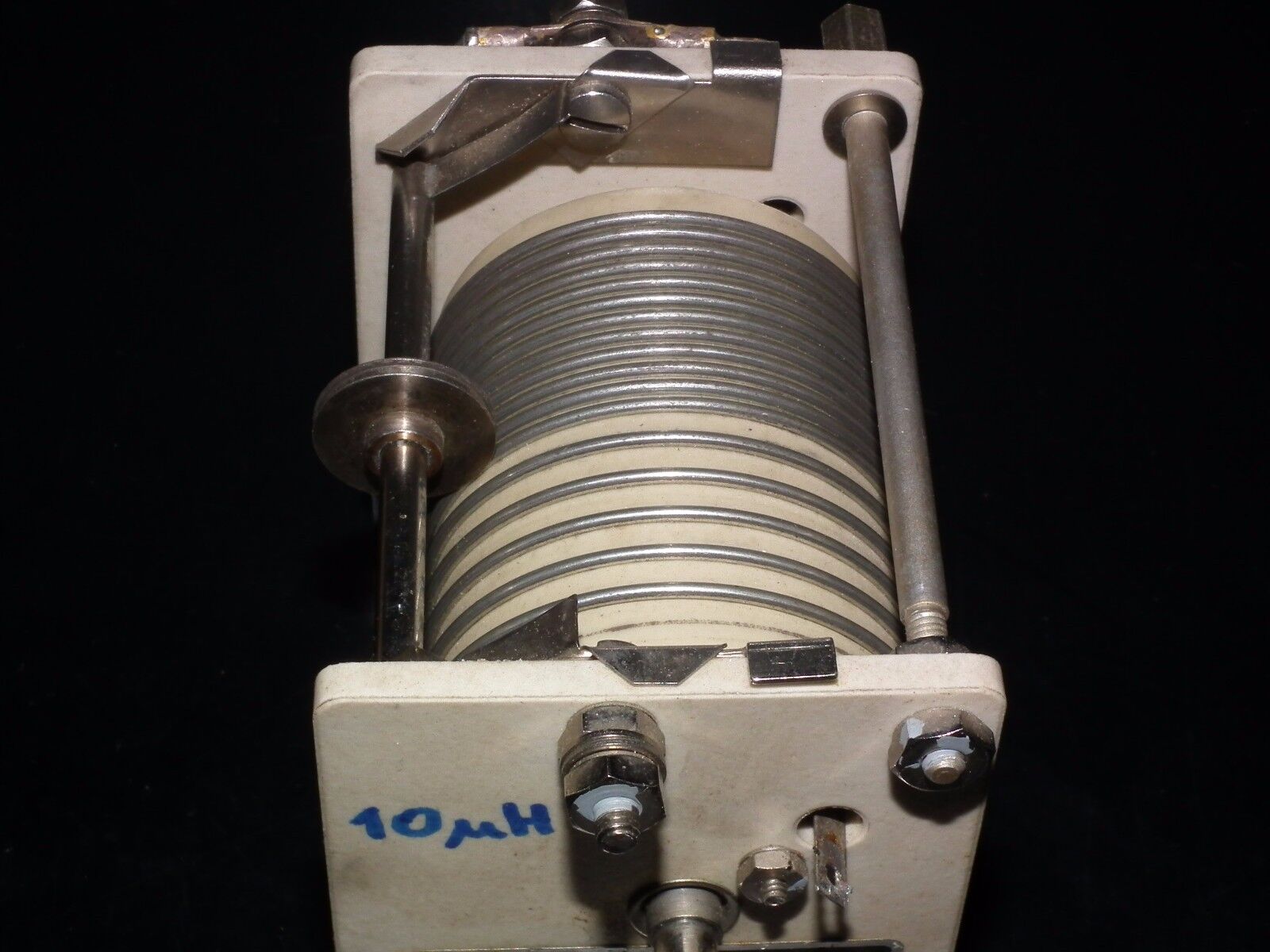

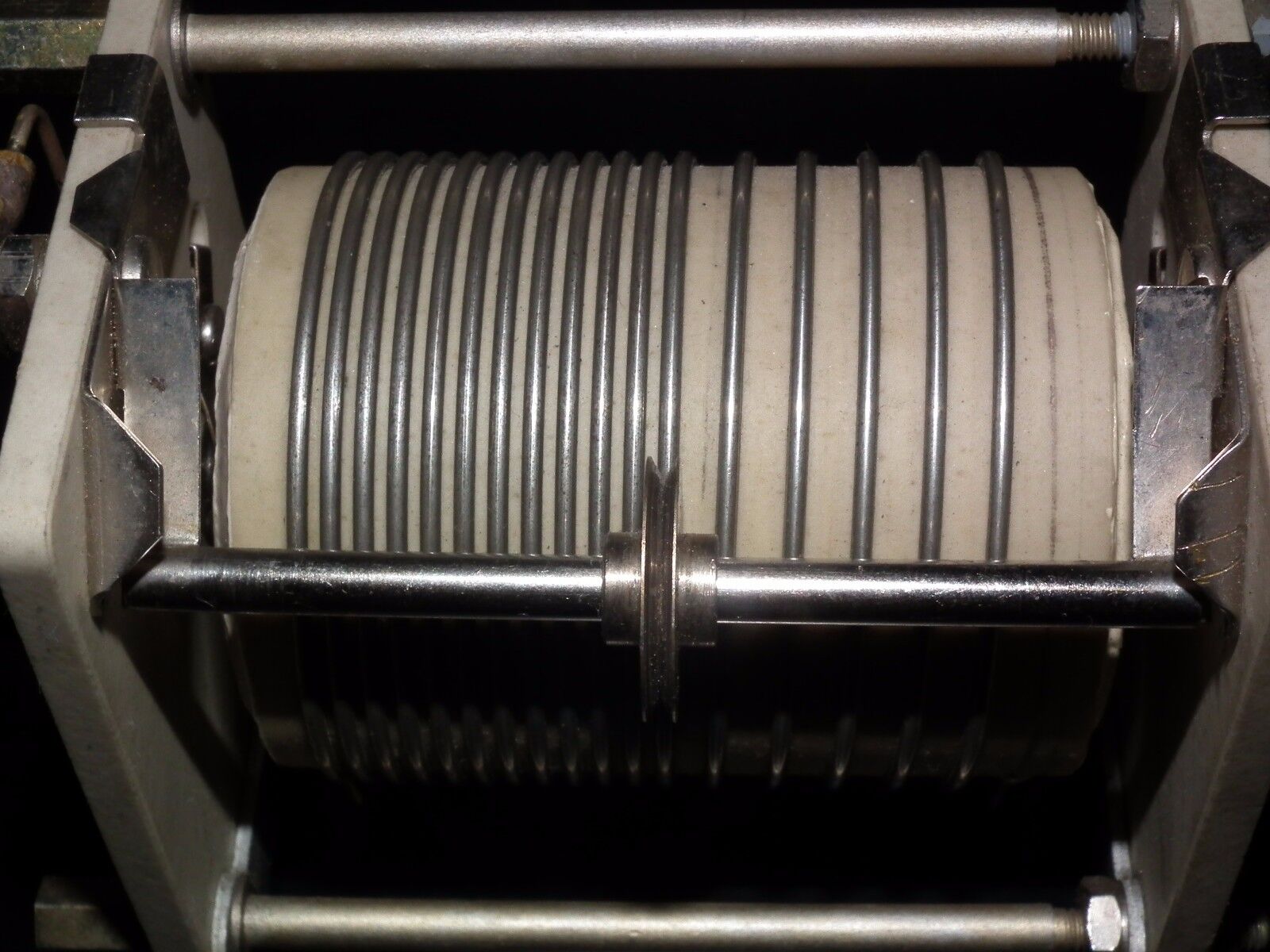

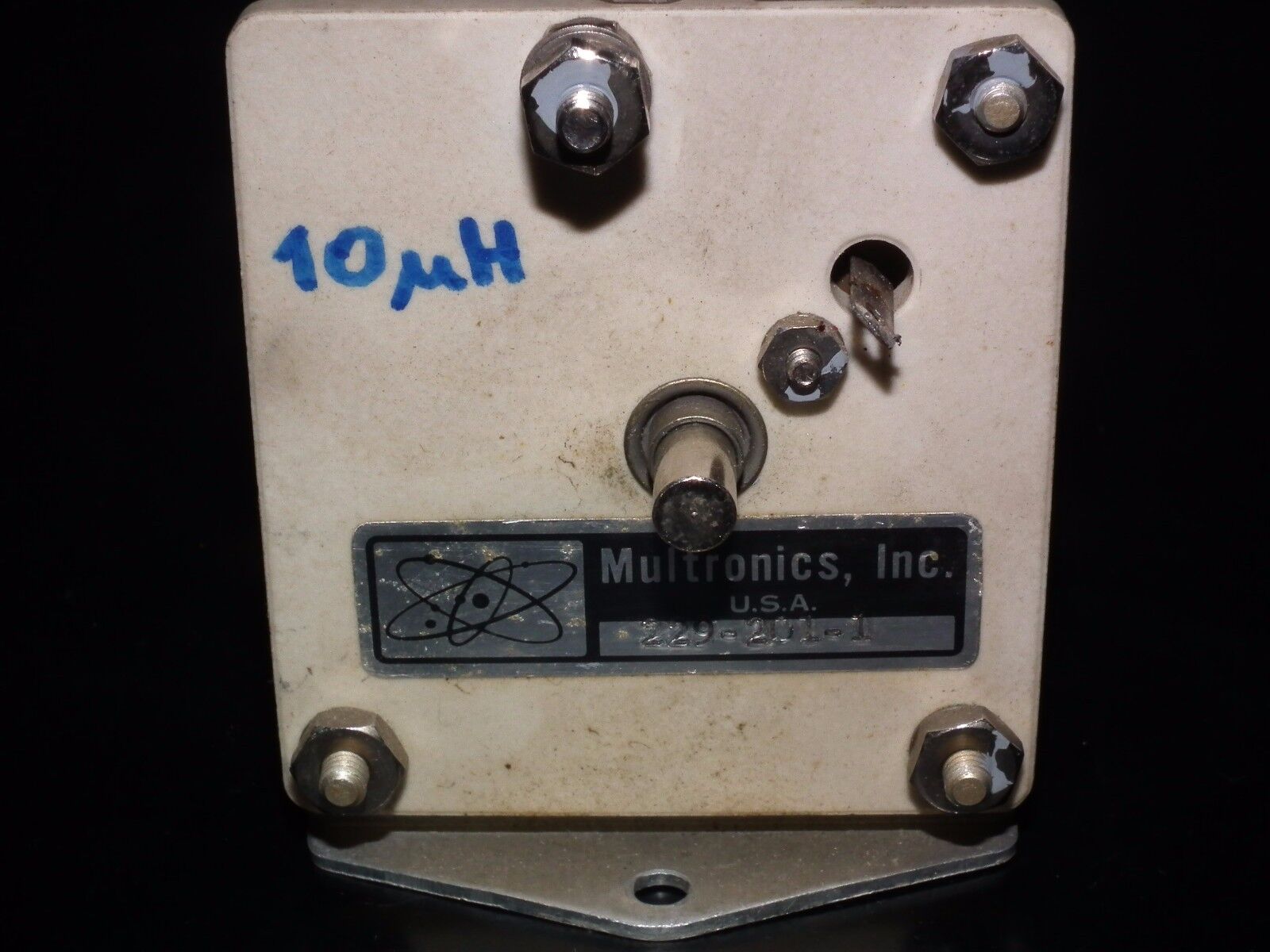

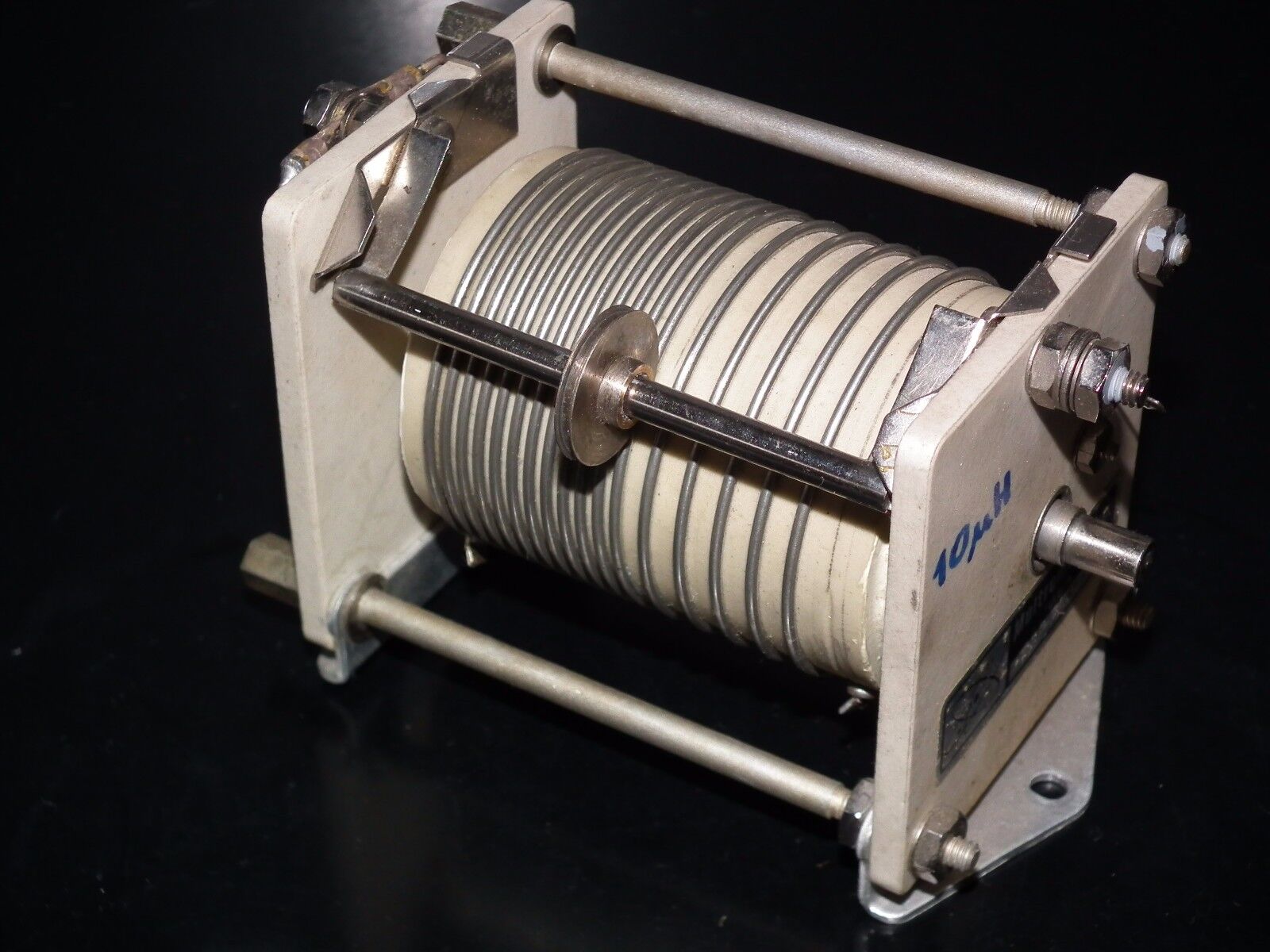

For sale is one genuine Johnson variable roller inductor tank coil, made in USA


EX equipment - excellent condition

Associated part numbers:

    • NSN - 5950005101743

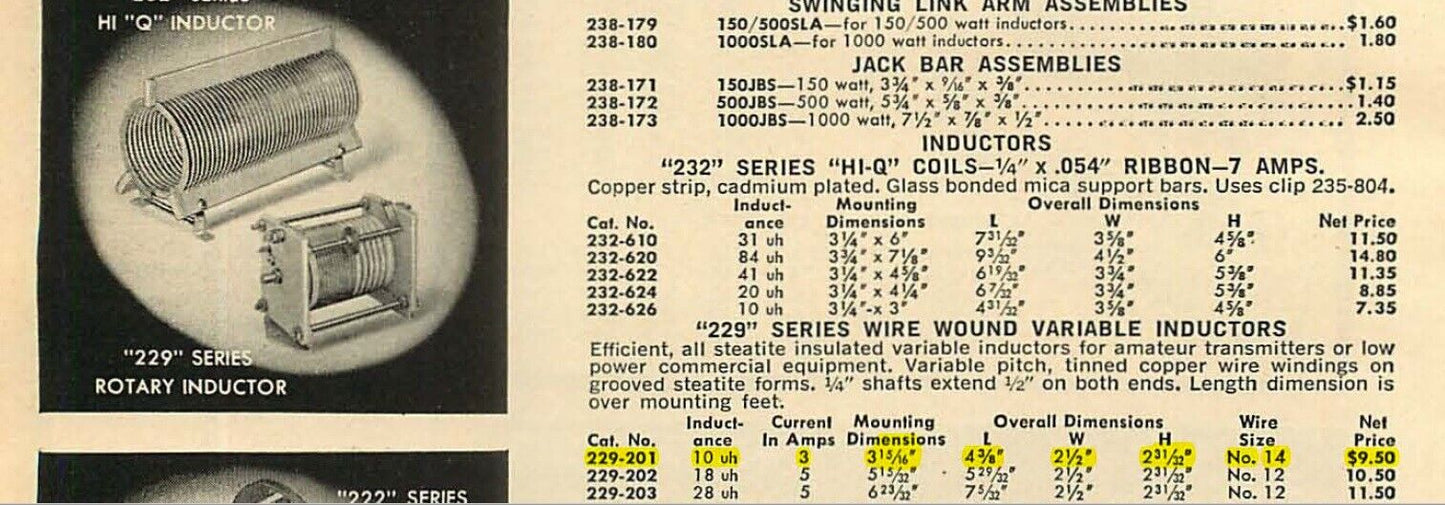

    • Genisco Filter Corp - Spectrum Control Inc - Cardwell - EF Johnson - 229-201
    • Rockwell Collins Inc - 980-0110-00 980-0110-000
    • Aschbacher - SAS5101-743
    • Dare Electronics Inc - AE141-001-99
    • Viking Technologies - Cardwell - EF Johnson - 229-201-1 229-201-50



  • ITEM NAME COIL - RADIO FREQUENCY
  • TURN QUANTITY - 17 SINGLE COMPONENT SINGLE WINDING
  • MOUNTING HOLE DIAMETER - 0.200 INCHES NOMINAL SINGLE GROUP
INDUCTANCE RATING - 10.00 MICROHENRIES NOMINAL SINGLE COMPONENT SINGLE WINDINGCOIL FORM TYPE - HOLLOW SINGLE COMPONENTBODY LENGTH - 4.438 INCHES MAXIMUMBODY WIDTH - 2.500 INCHES NOMINALBODY HEIGHT - 2.969 INCHES NOMINALDISTANCE BETWEEN MOUNTING FACILITY CENTERS - 3.812 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUPINCLOSURE TYPE - OPENMOUNTING FACILITY QUANTITY - 2 SINGLE GROUPMOUNTING METHOD - UNTHREADED HOLE SINGLE GROUPRATING METHOD - WINDING TURNS SINGLE COMPONENT SINGLE WINDINGWINDING CONDUCTOR SIZE - 0.06408 INCHES AMERICAN WIRE GAGE SINGLE COMPONENT SINGLE WINDINGTERMINAL TYPE AND QUANTITY - 2 WIRE LEAD

What You see is what You get
